OVERVIEW
Introduction
This is an RS232/485 device data acquisitor/ IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, serial port to HTTPD Client, etc. With RS232, RS485, WIFI and Ethernet interfaces, the module can realize functions such as serial port to WIFI, serial port to Ethernet, Ethernet to WIFI and so on. Onboard multiple power supply interfaces, supports 6~36V wide range power supply, and PoE function optional. Industrial grade metal case design, supports wall-mount and rail-mount installations, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument.
Features
• Support 802.11b/g/n wireless standard
• Supports fast networking protocol.
• Support router and bridge modes.
• Supports communication via RS232/485 to WiFi and Ethernet interfaces.
• Rich status indicator: PWR, LINK, RXD, TXD
• Wide-range voltage DC 6-36V input, supporting screw terminals and power supply methods
• The operating modes can be selected as transparent transmission mode, serial command mode, HTTP Client Mode, Modbus mode, and AT command mode.
• Support registering MAC, transparent cloud, and customized registration packets.
• Supports custom heartbeat packets, socket distribution protocols, and Modbus polling functions.
• Support timeout reboot, timed reboot function and so on.
• Support MQTT function, can access Ali cloud and other IoT cloud platforms.
• Support hardware watchdog, making the system more stable.
• Supports serial port free framing and automatic framing, resulting in higher forwarding
• efficiency.
• Support Websocket function to achieve real-time interaction between serial ports and webpages.
• Support four parameter configuration methods: web page, software settings, serial AT command, and network AT command.
• Supports one click (pressing the RELOAD button for more than 5 seconds) to restore factory settings.
• Long communication distance, with two serial servers transmitting 150 meters to each other.
Specification

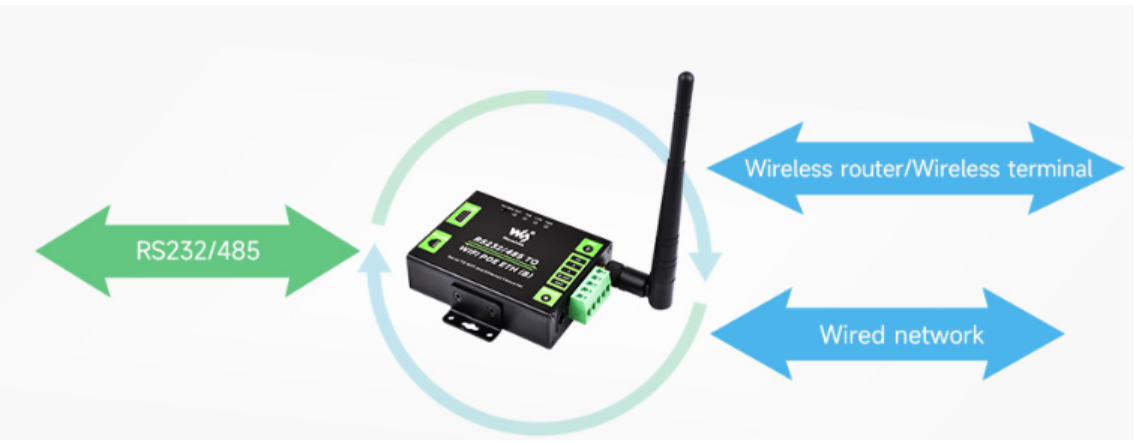

Connection Diagram

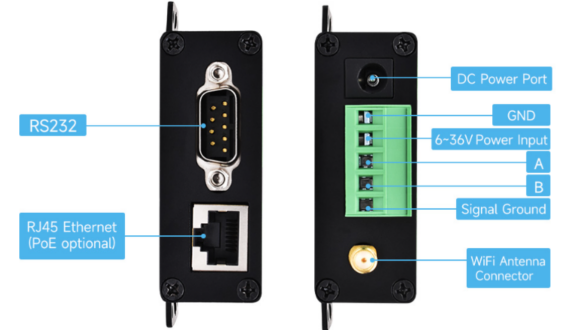

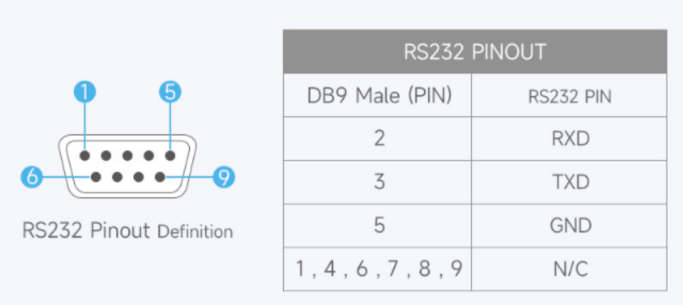

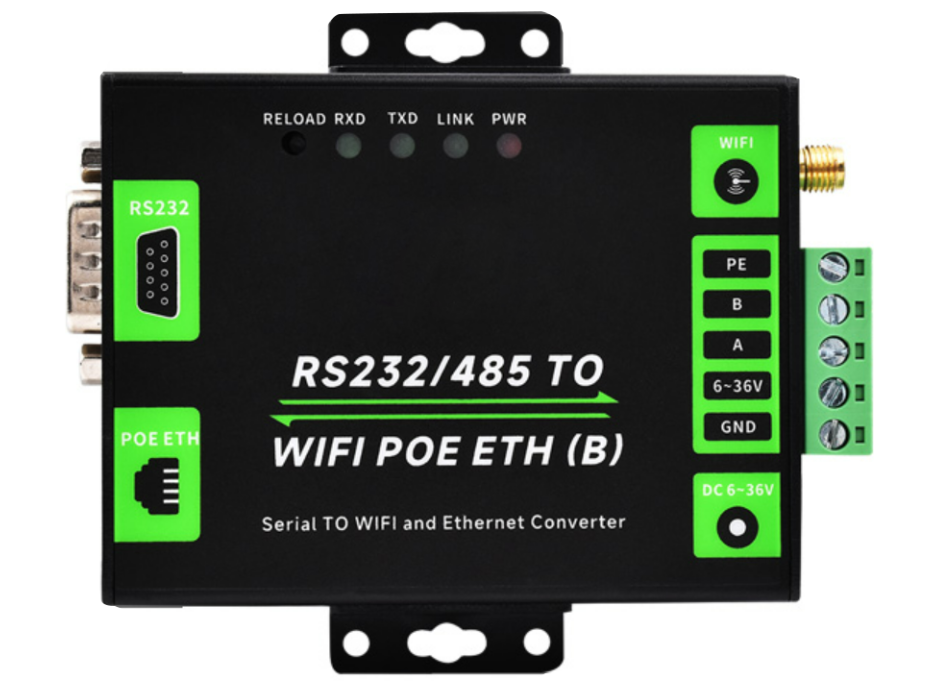

Interface
