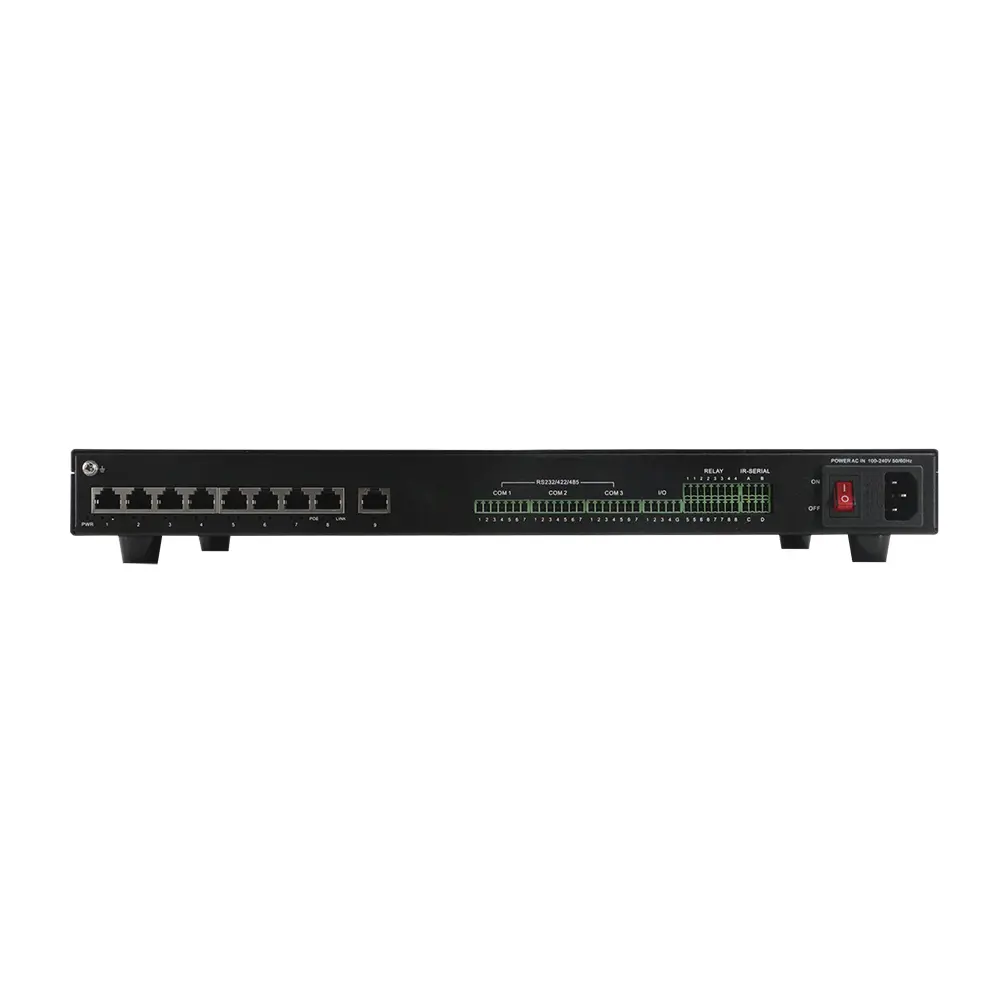

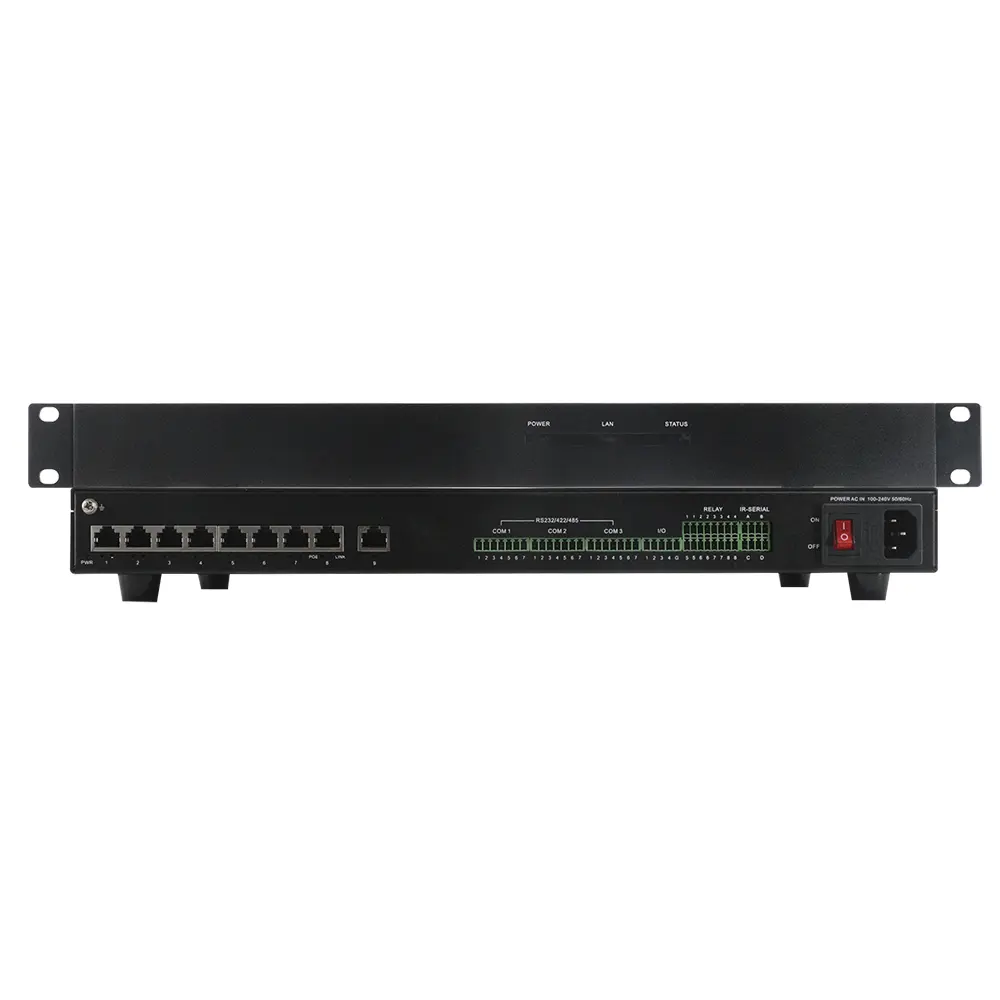

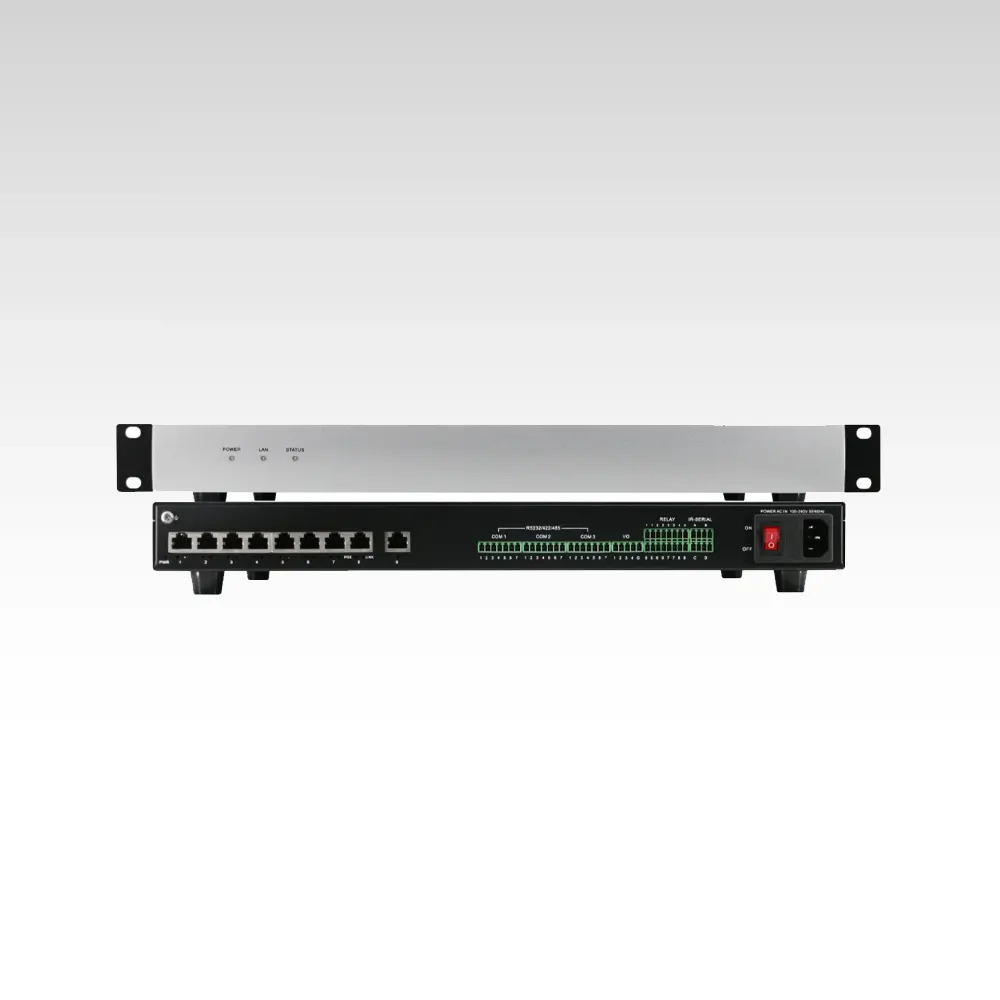

Web-based programming central control host with 8-port POE switch

★★★★★★★★★★ No reviews yet — write one › SKU: DI-39D-CZ49F

BEST SELLERFEATUREDNEW

Delivery in 5-7 days

378,191 views 551 sold

In Stock

Request Quote

Contact Channels

Get in touch for more details

LINE Official Facebook WeChat WhatsApp

1-Year WarrantyOfficial Thai warranty

Fast Delivery1-3 business days

Expert SupportEngineer team standby

0% InstallmentUp to 10 months

Official Thailand Warranty5 Years

Free System DesignConsultation

Technical SupportRemote Assistance

Online TrainingFor Partners & Users

Spare Parts AvailableLocal Stock

OVERVIEW

The Web-based programming central control host with 8-port POE switch, cloud programming and remote debugging, ideal for commercial AV control systems. Get a custom quote today!

Suitable Applications

Conference Room

Auditorium

Hotel

University

Broadcast

Courtroom

Command Center

TECHNICAL SPECIFICATIONS

CPU	i.MX ARM Cortex-A7 528MHz
Operating system	Linux 4.1.15 kernel
Memory	512M DDR3 RAM
Flash	512M Nand Flash
RS232/422/485	7pin phoenix connector
RELAY	8 – isolated low voltage relay (normally open) 30VDC/AC 1A
I/O	4 – Digital I/O input
INFRARED–SERIAL	4 – infrared or one-way RS-232 serial port
LAN	9 – RJ45 10M/100M Ethernet interface(8*port with POE)
RST	1 – RST system reset button
LED	3 – LED system status indicator
Power Supply	24VDC 1A
Working environment temperature	0℃ ~50℃
Relative humidity of working environment	10% to 90%
Size and weight	44019245 (mm)

KEY FEATURES

View All ›

Cloud programming without installing software

Remote debugging

Neural networks mode to inspect the real time operation

Sharing resources on cloud platform

Supports various network control protocols(TCP/UDP/Telnet/Http)

Supports arbitrary Linux+ platform and is free to migrate

FirmwareLatest Version

DSP TemplateDownload

AutoCADDrawing

EASE FileAcoustic Data

Product Features

Cloud programming without installing software
Remote debugging
Neural networks mode to inspect the real time operation
Sharing resources on cloud platform
Supports various network control protocols(TCP/UDP/Telnet/Http)
Supports arbitrary Linux+ platform and is free to migrate
