9-button programming control keypad with knob, lock and PoE function⧉

OVERVIEW

Introduction

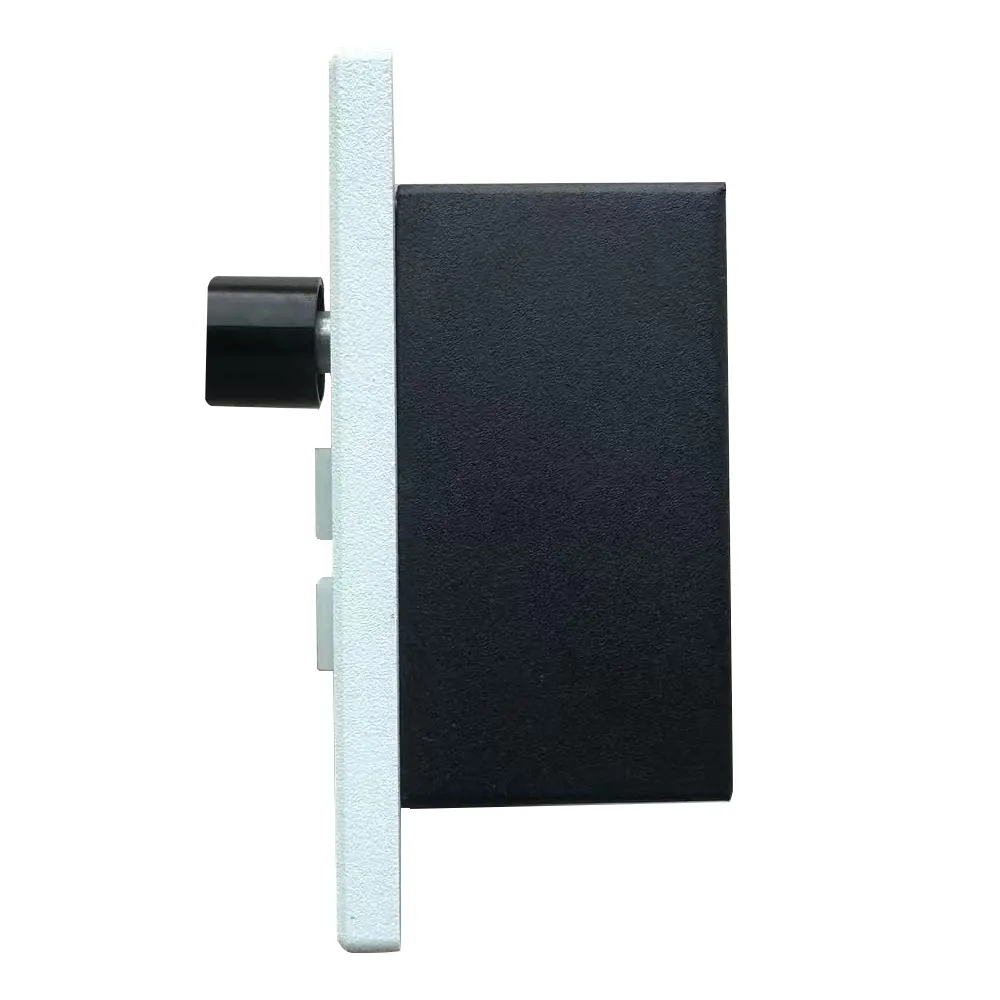

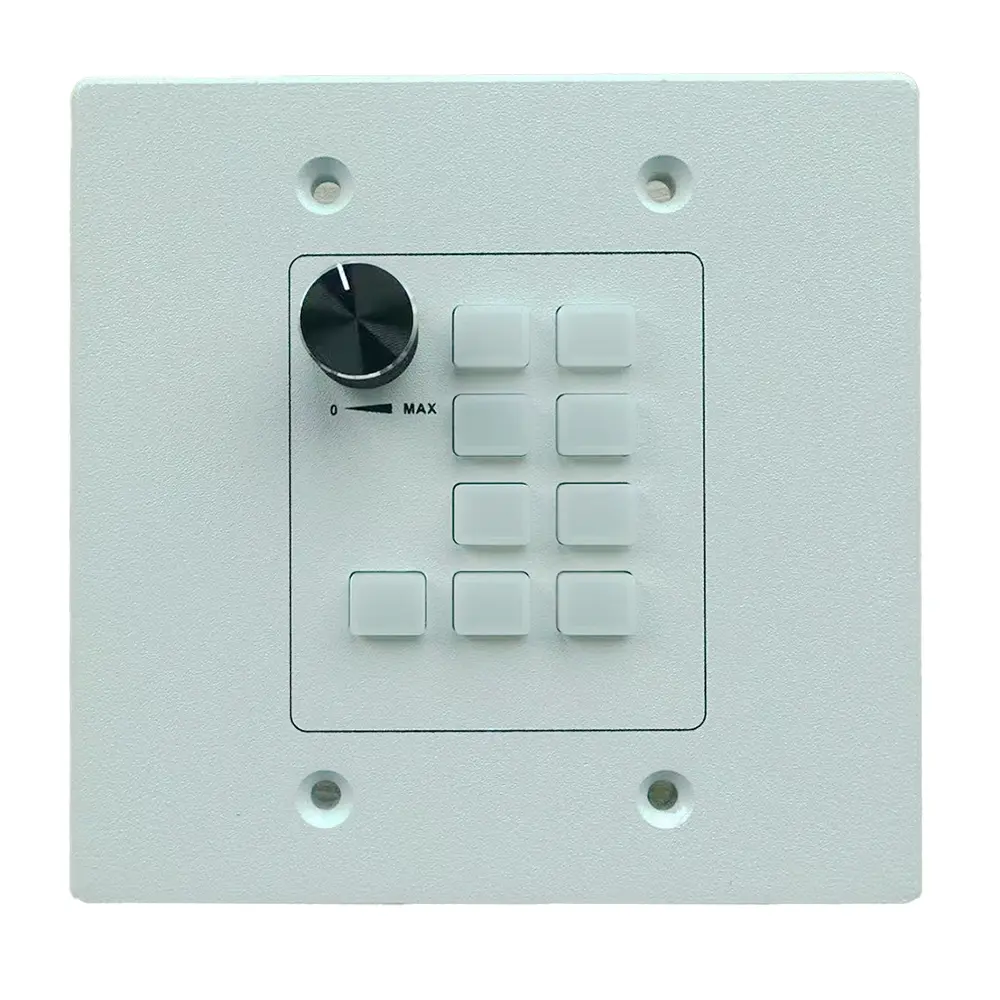

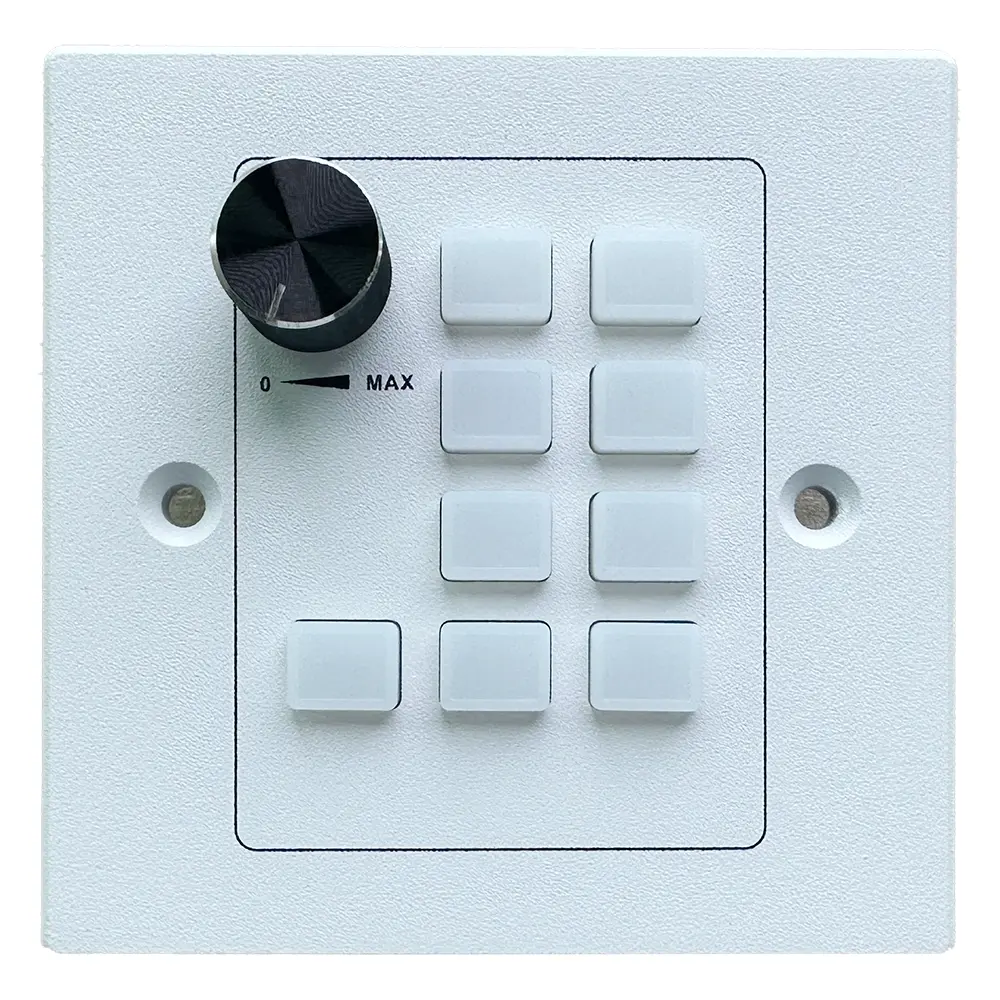

BYOD-1000A (Hereinafter referred to as the Keypad) is a 9-button keypad controller aimed at providing customers simple and economic control solutions. With built-in PoE, it can receive power from PoE enabled ethernet switch. The keypad can control devices like presentation switches through LAN(PoE),RS232 or relay ports to control other devices, it also can support the 3rd party control via commands. It supports WEB GUI/APP control/programming, also system firmware update, configuration save/restore on web UI. Available in both UK single or US double-gang size panels.

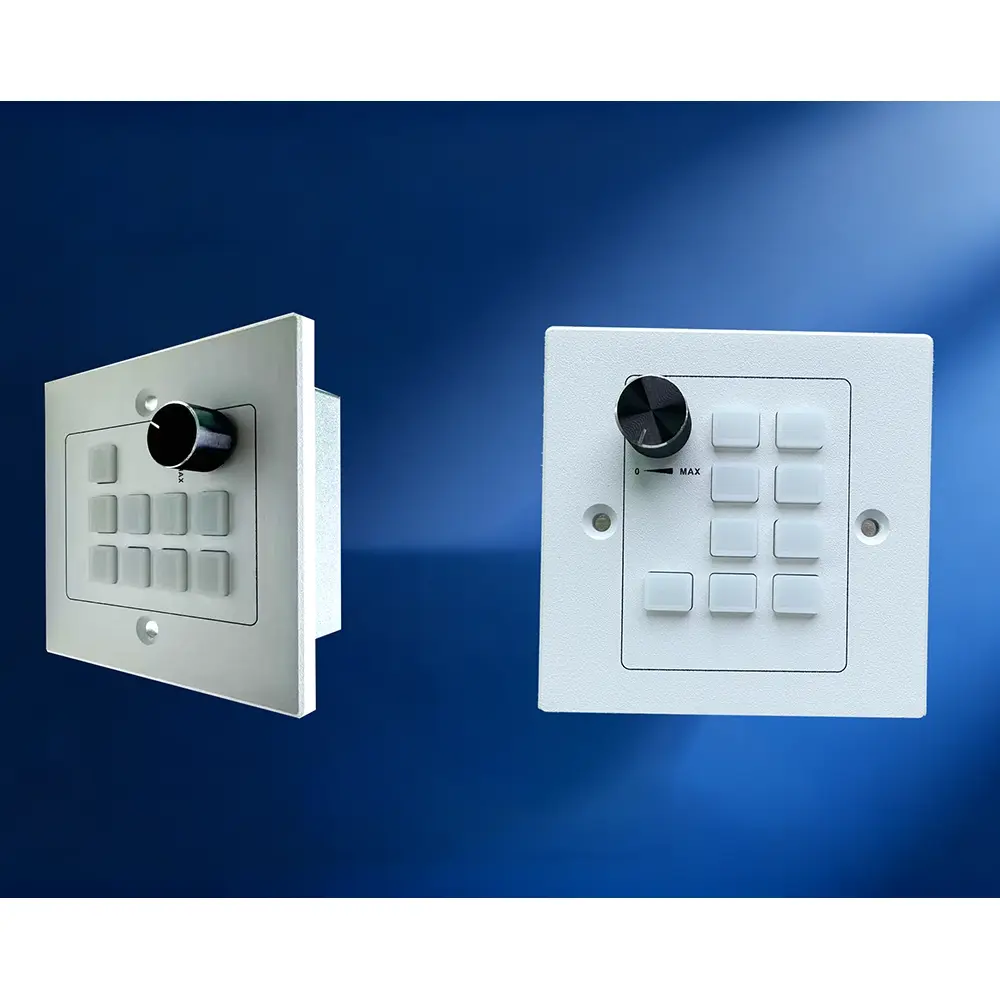

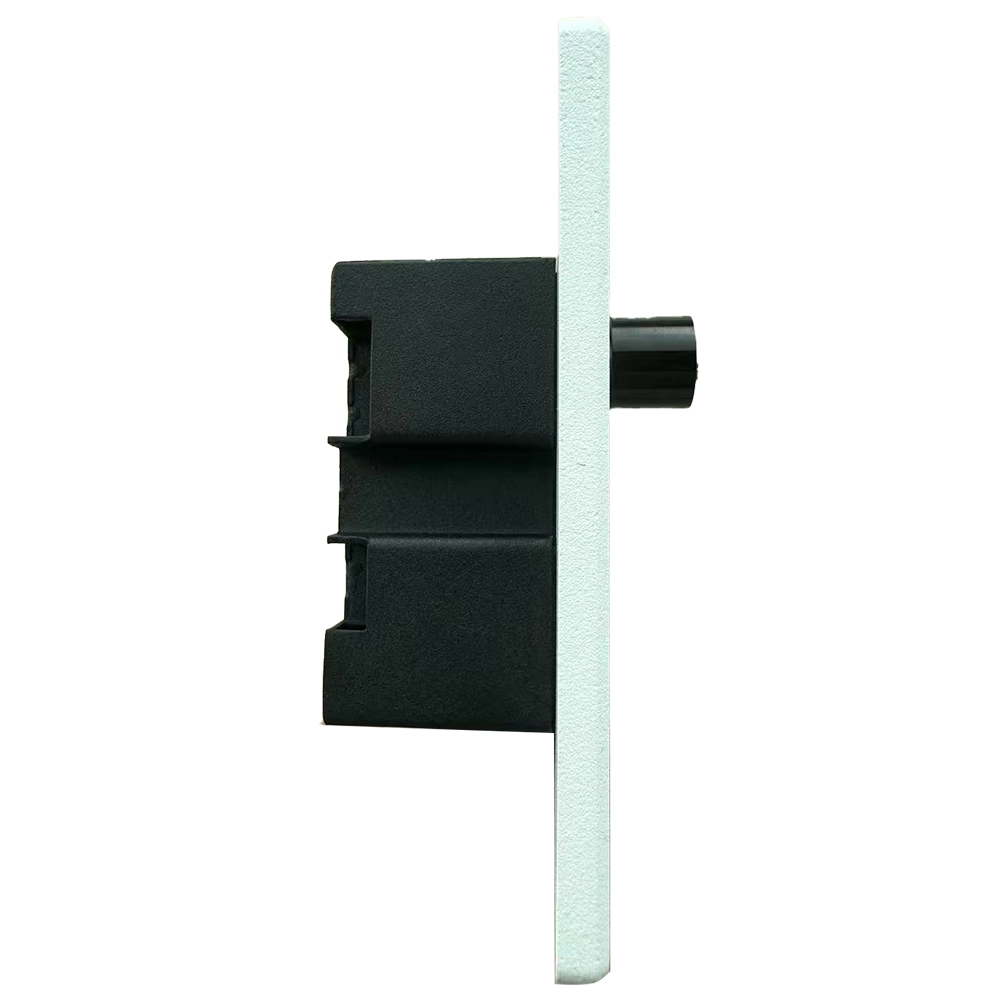

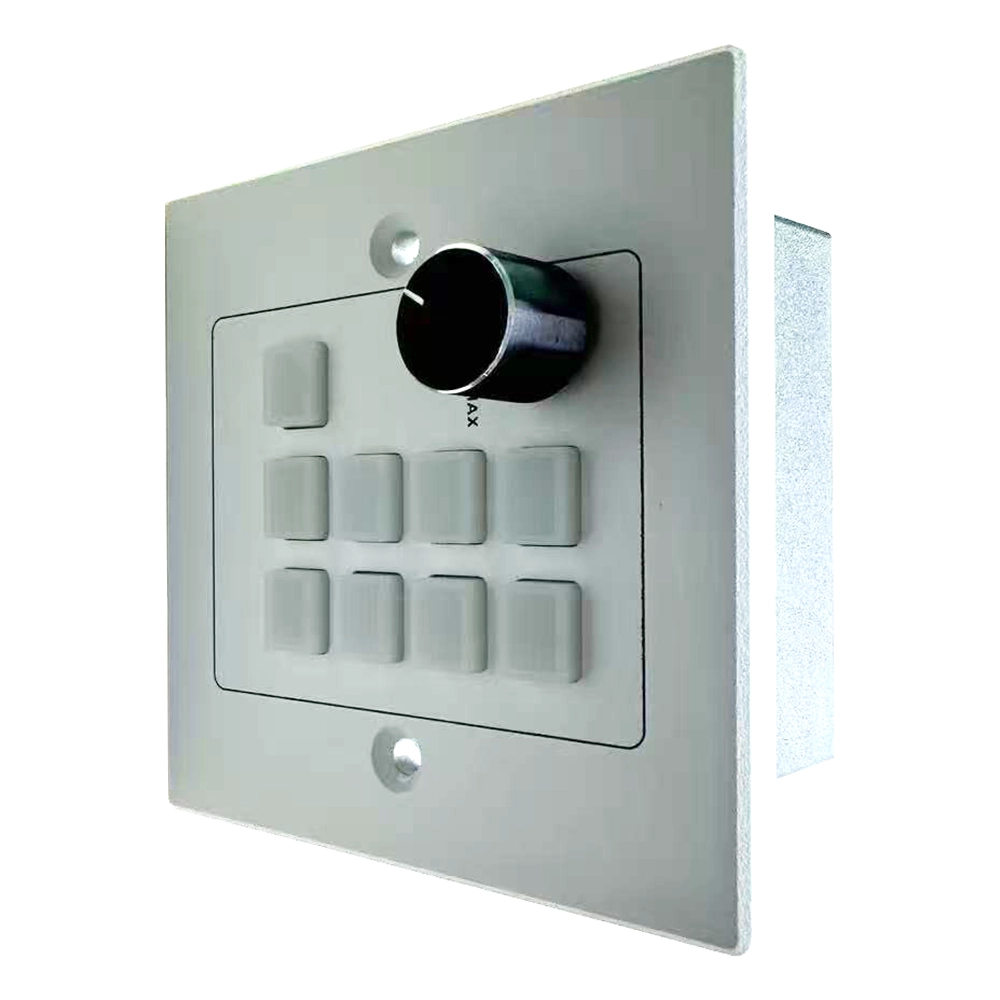

The 9-button programming control keypad (Model BYOD-1000A) is a wall-mounted control solution with a knob, lock and PoE function, ideal for conference rooms and commercial installations.This 9-button programming control keypad supports WEB GUI, APP and 3rd party controls, making it highly flexible for integration into different AV systems.

Features

• Supports 9 control buttons(8-button and 1-knob and one lock)

• Supports Lock button to lock/unlock key operations

• Supports 2*RS232, 2*RELAY, 1*LAN(POE):TCP, UDP, HTTP control protocols

• Supports WEB GUI, APP, 3rd party controls

• Supports WEB GUI and APP programming

• Supports POE or DC power supplies

• Support UK single-gang or US double-gang size

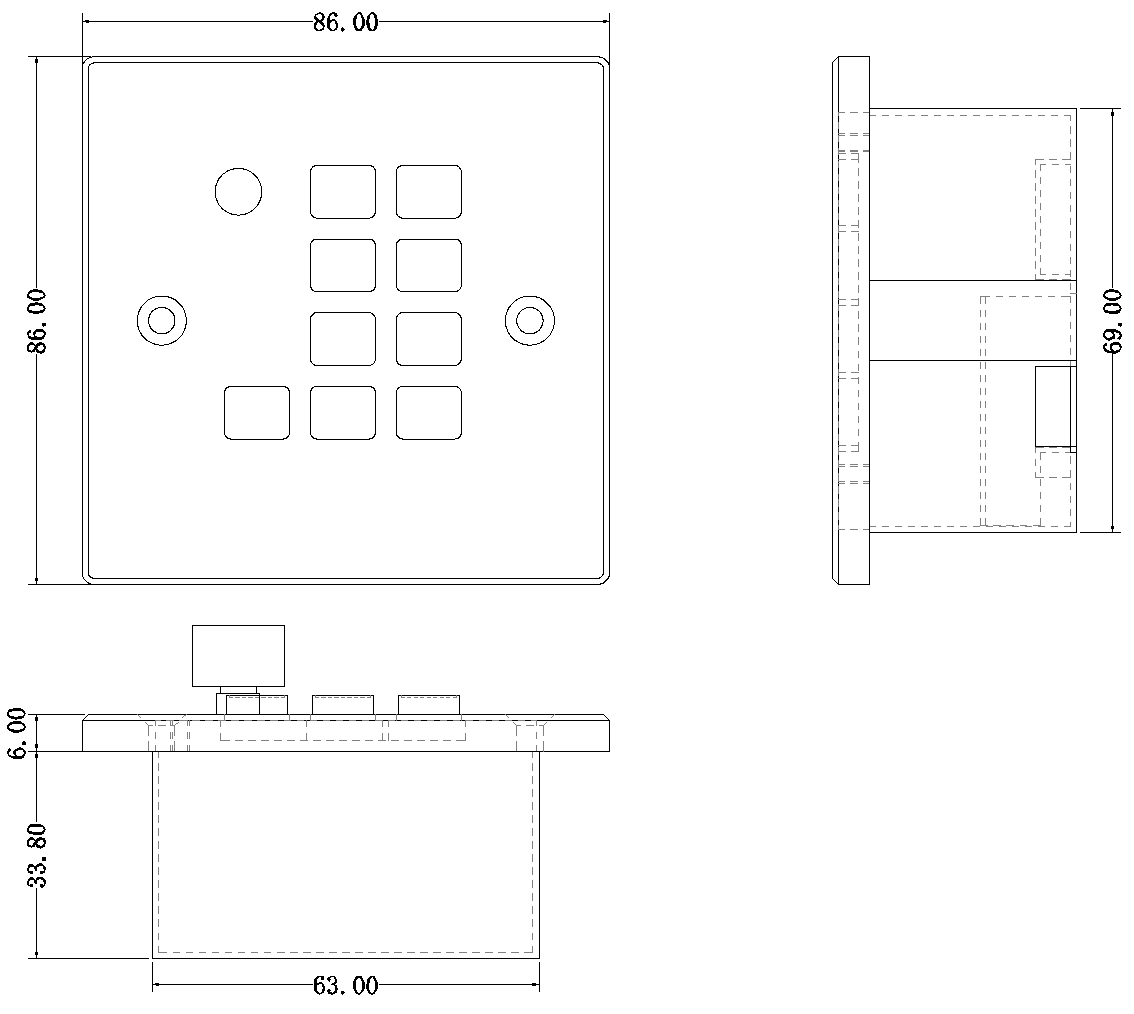

Specification

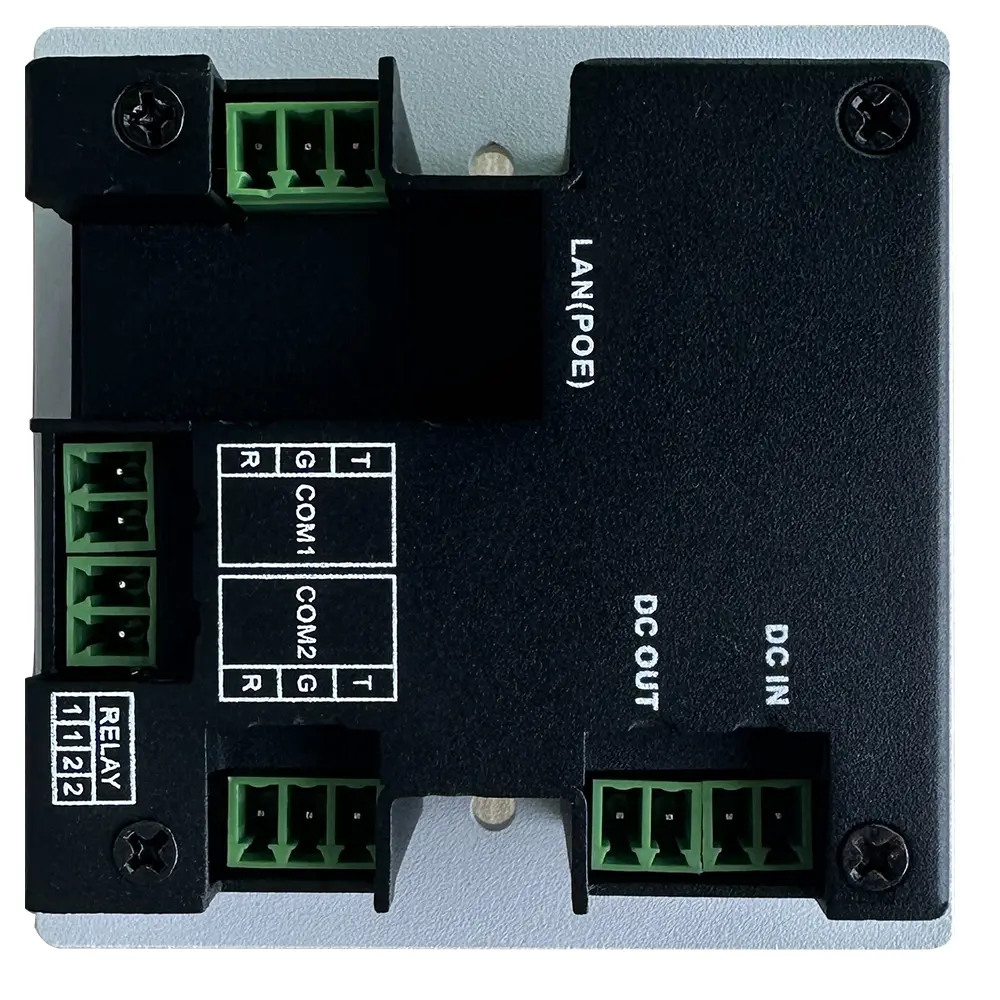

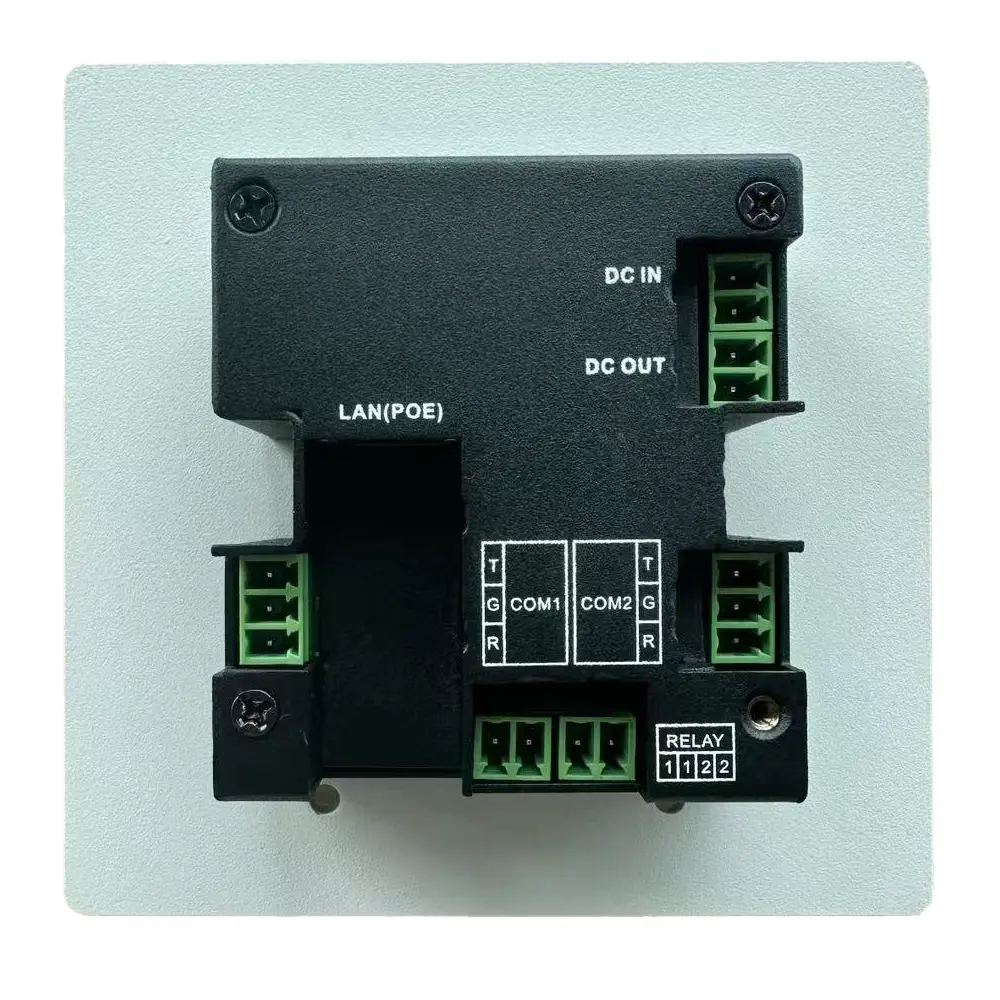

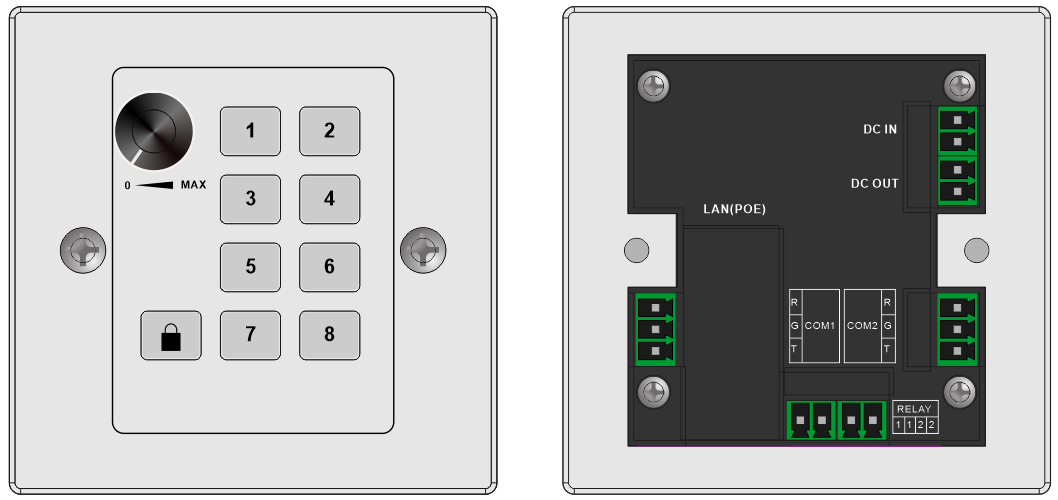

Connection diagram

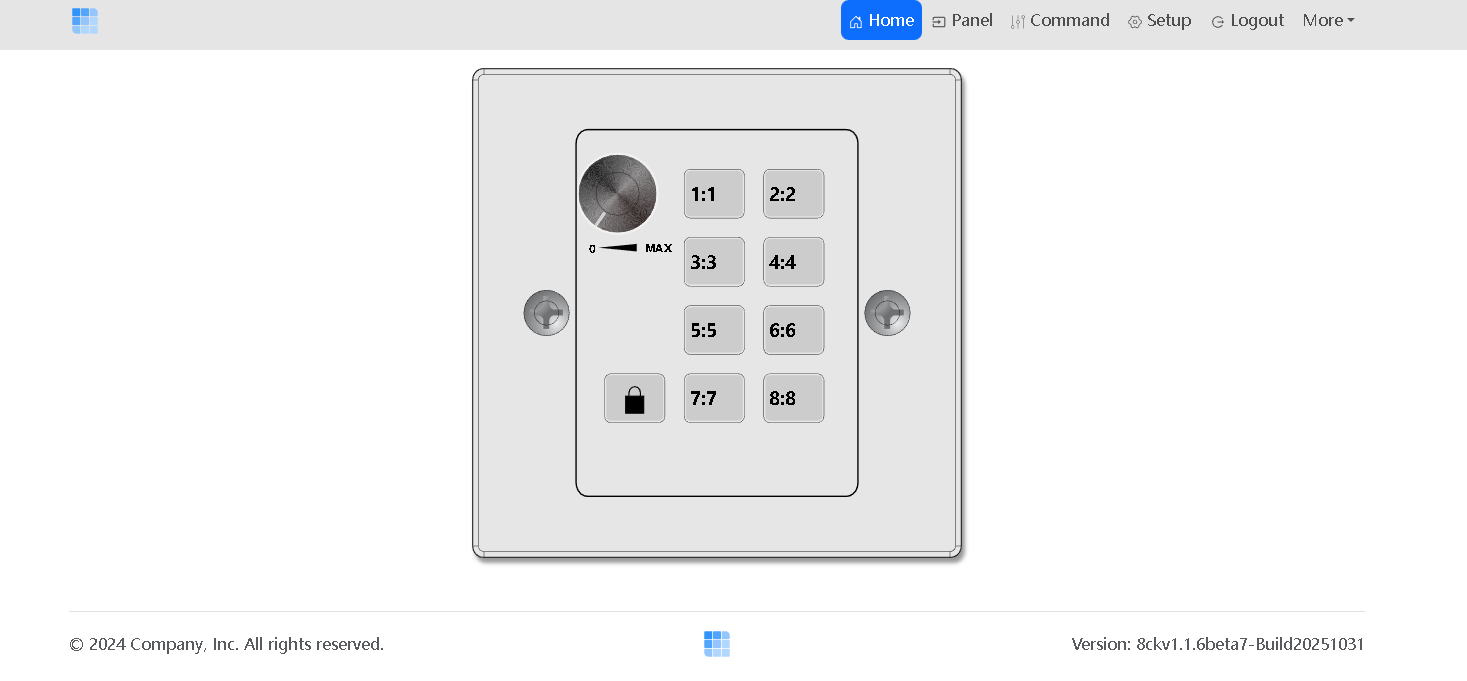

WEB GUI/APP control UI
