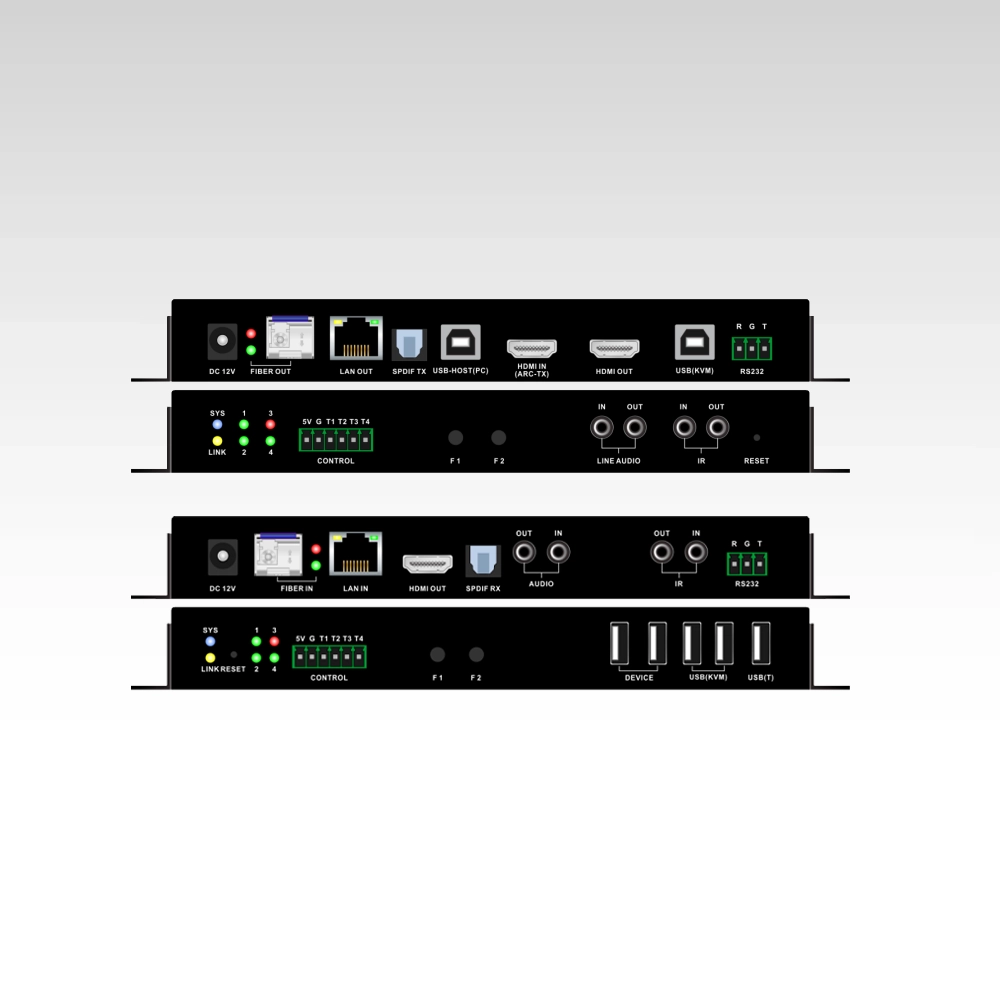

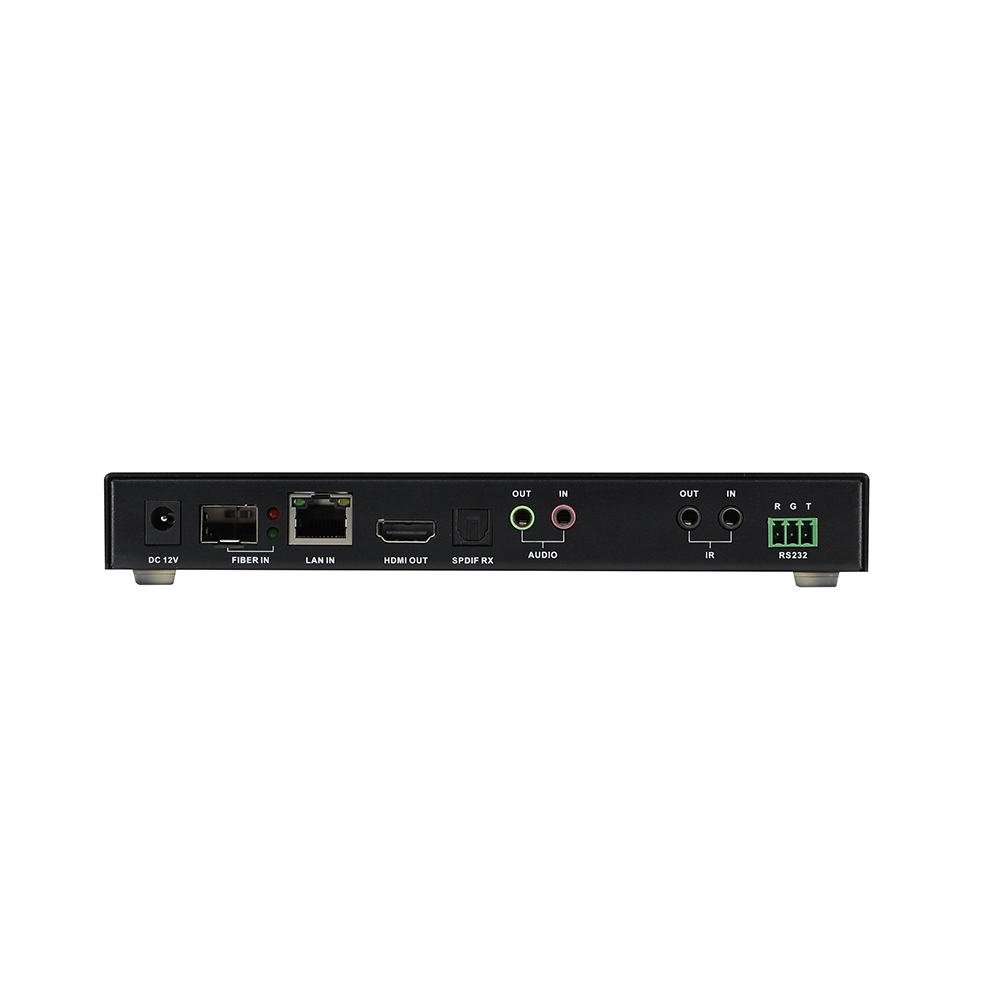

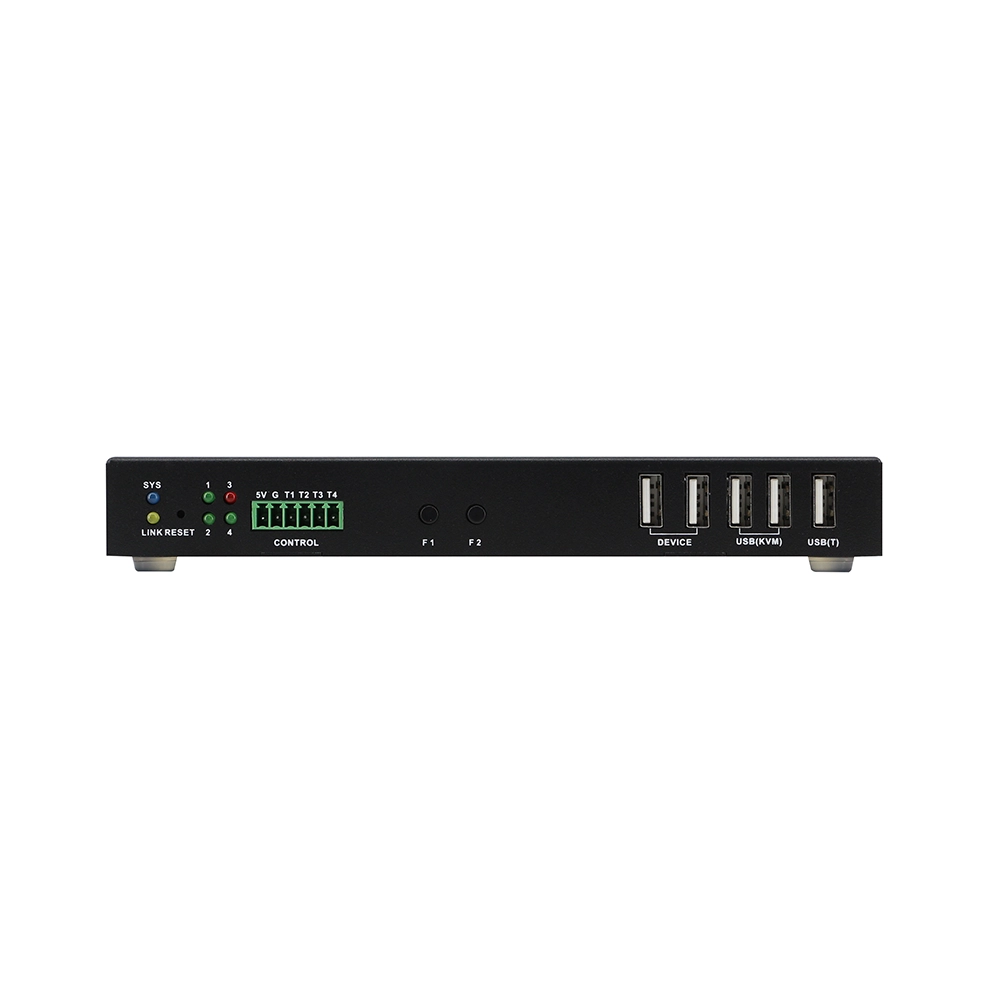

4K@60 4:4:4 AV over IP Extender Matrix System with USB

★★★★★★★★★★ No reviews yet — write one › SKU: K-2J9-A82

AV over IP Extender Matrix System

BEST SELLERFEATUREDNEW

Delivery in 5-7 days

92,331 views 102 sold

In Stock

Request Quote

Contact Channels

Get in touch for more details

LINE Official Facebook WeChat WhatsApp

รับประกัน 1 ปีรับประกันไทยอย่างเป็นทางการ

จัดส่งไว1-3 วันทำการ

Expert SupportEngineer team standby

0% InstallmentUp to 10 months

Official Thailand Warranty5 Years

Free System DesignConsultation

Technical SupportRemote Assistance

Online TrainingFor Partners & Users

Spare Parts AvailableLocal Stock

OVERVIEW

4K UHD AV signals via standard gigabit
Supports HDMI input and output resolutions up to 3840 x 2160@60Hz 4:4:4.
Supports streaming resolutions up to 3840 x 2160@60Hz 4:4:4.
Video wall function and up to 16 x 16.
Supports HDR10 and Dolby Vision.
Supports CEC commands to power on and off the display, as well as CEC Frame.
Supports PCM 7.1, Dolby Atmos, DTS HD Master and DTS:X.
Analog audio embedding and de-embedding. S/PDIF audio return
HDMI ARC audio return

Suitable Applications

Conference Room

Auditorium

Hotel

University

Broadcast

Courtroom

Command Center

TECHNICAL SPECIFICATIONS

Input Port	1 x female HDMI type A (19 pins)
Input Video Type	HDMI 2.0, HDCP 2.2/2.3
Input Resolution	3840 x 2160p@24Hz 4:4:4, 3840 x 2160p@30Hz 4:4:4, 3840 x 2160p@50Hz 4:4:4, 3840 x 2160p@60Hz 4:4:4,
Output Video Port	1 x female RJ-45, 1 x Optical
Output Video Type	IP Stream
Average Encoding Data Rate	3840 x 2160@60Hz: 650Mbps (avg) / 900Mbps (max)
Output Resolution	Up to 3840 x 2160p@60Hz 4:4:4
Video Impendence	100 Ω
Input DDC Signal	5 V p-p (TTL)
Input Audio Port	1 x HDMI; 1 x 3.5 mm stereo jack
Input Audio Format	HDMI: Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X; Audio In: analog
Output Audio Port	1 x 3.5 mm stereo jack; 1 x S/PDIF Out; 1 x LAN/Optical
Output Audio Format	Audio Out: analog S/PDIF Out: digital audio LAN/Optical: Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X

KEY FEATURES

View All ›

4K UHD AV signals via standard gigabit

Supports HDMI input and output resolutions up to 3840 x 2160@60Hz 4:4:4.

Supports streaming resolutions up to 3840 x 2160@60Hz 4:4:4.

Video wall function and up to 16 x 16.

Supports HDR10 and Dolby Vision.

Supports CEC commands to power on and off the display, as well as CEC Frame.

Supports PCM 7.1, Dolby Atmos, DTS HD Master and DTS:X.

Analog audio embedding and de-embedding. S/PDIF audio return

HDMI ARC audio return

FirmwareLatest Version

DSP TemplateDownload

AutoCADDrawing

EASE FileAcoustic Data

Product Features

4K UHD AV signals via standard gigabit
Supports HDMI input and output resolutions up to 3840 x 2160@60Hz 4:4:4.
Supports streaming resolutions up to 3840 x 2160@60Hz 4:4:4.
Video wall function and up to 16 x 16.
Supports HDR10 and Dolby Vision.
Supports CEC commands to power on and off the display, as well as CEC Frame.
Supports PCM 7.1, Dolby Atmos, DTS HD Master and DTS:X.
Analog audio embedding and de-embedding. S/PDIF audio return
HDMI ARC audio return

TECHNICAL SPECIFICATIONS

Input Port	1 x female HDMI type A (19 pins)
Input Video Type	HDMI 2.0, HDCP 2.2/2.3
Input Resolution	3840 x 2160p@24Hz 4:4:4, 3840 x 2160p@30Hz 4:4:4, 3840 x 2160p@50Hz 4:4:4, 3840 x 2160p@60Hz 4:4:4,
Output Video Port	1 x female RJ-45, 1 x Optical
Output Video Type	IP Stream
Average Encoding Data Rate	3840 x 2160@60Hz: 650Mbps (avg) / 900Mbps (max)
Output Resolution	Up to 3840 x 2160p@60Hz 4:4:4
Video Impendence	100 Ω
Input DDC Signal	5 V p-p (TTL)
Input Audio Port	1 x HDMI; 1 x 3.5 mm stereo jack
Input Audio Format	HDMI: Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X; Audio In: analog
Output Audio Port	1 x 3.5 mm stereo jack; 1 x S/PDIF Out; 1 x LAN/Optical
Output Audio Format	Audio Out: analog S/PDIF Out: digital audio LAN/Optical: Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
