OVERVIEW
Introduction
This machine is a compact and powerful intelligent low-current power controller, it integrates the functions of a variety of conventional products in a box with a height of only 1U rack. With the front push buttons for the friendly use and support the RS232/RS485/RJ45 control protocols which can be integrated with the 3rd party control system.
Features
• Communication method: USB, RS232, RS485, RJ45 network control interface
• Power supply: AC 85-265V
• Number of relays: 8
• Single channel loading capacity: 20A
• Support programmable definition of various logic switches
• Supports definable sequence switch action sequence
• Support standard RS232 data interface and open control protocol
• Support standard RS485 data interface and open control protocol
• Support standard USB data interface, more convenient to connect with PC.
• Support keyboard lock (LOCK) function
• One-key factory reset function.
Specification
Panels

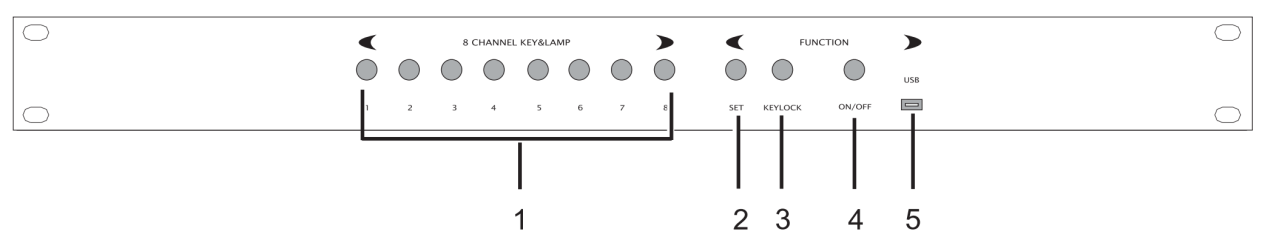

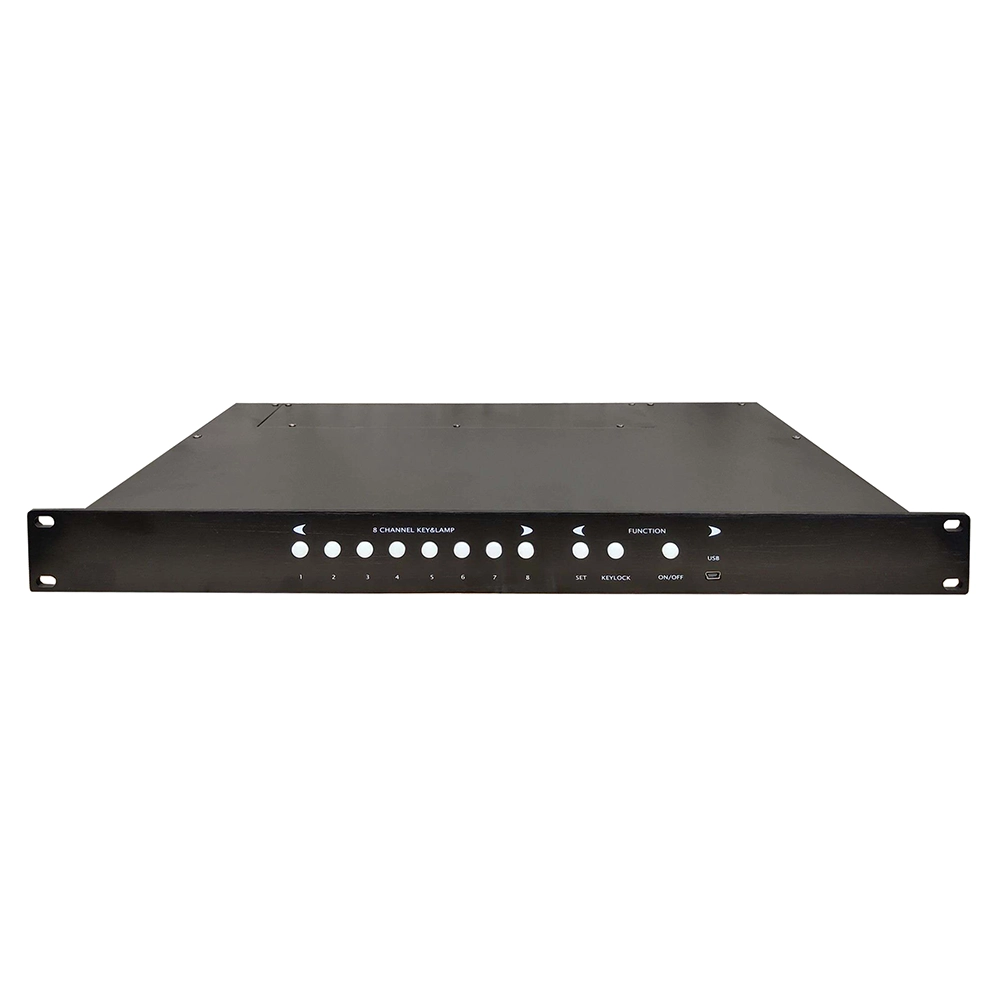

1: Eight output channels button with indicator
2: SET button for setting the devices IP etc.
3: KEYLOCK: for front push button lock or unlock, green indicator means l=unlock, red for lock
4: Power ON/OFF button
5: USB port for PC connection control

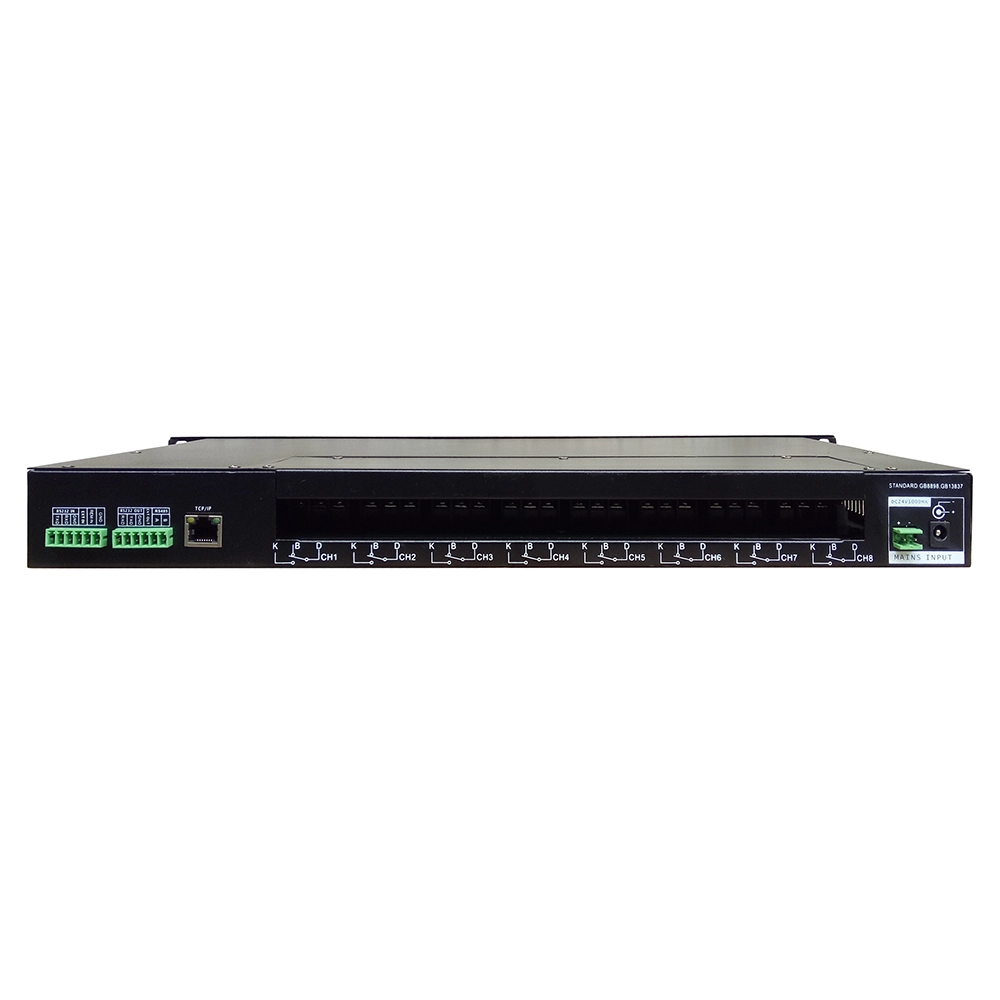

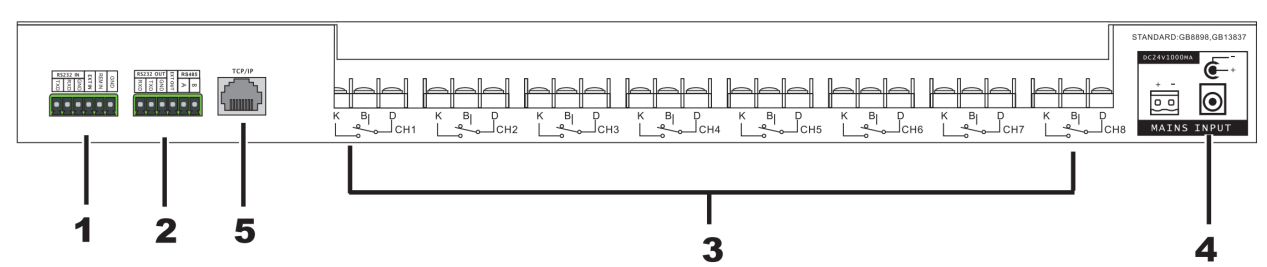

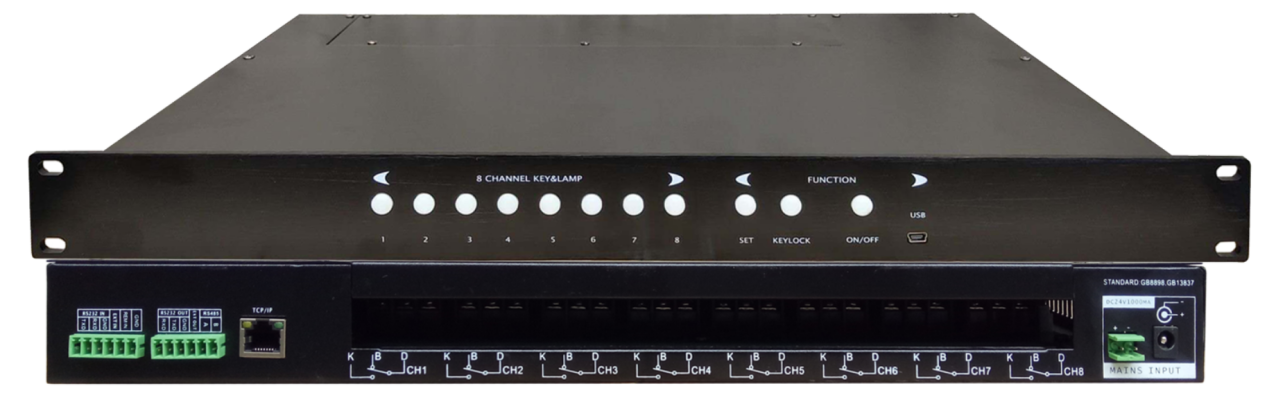

1: 6-PIN control port, PIN1-RS232IN TXD, PIN2-RS232IN RXD, PIN-3 GND, PIN4 NEXT IN(Cascading in), PIN5 REM IN (Control in)
2: 6-PIN control port, PIN1-RS232 OUT RXD, PIN2-RS232 OUT RXD, PIN-3 GND, PIN4 NEXT OUT(Cascading out), PIN5 REM OUT(Control out)
3: 8-channel controlled ports, D is switch tab, B for close, K for open
4: Power input DC24V1000MA
5: The default IP address is 192.168.0.18, TCP port number is 5000

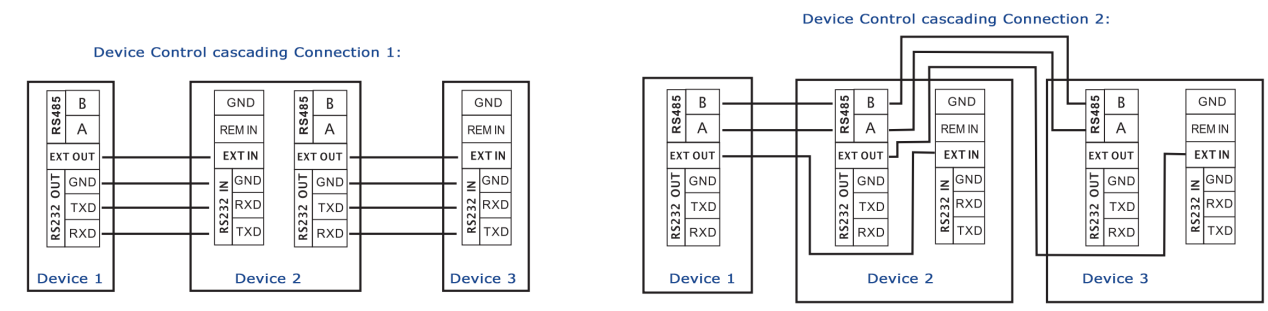

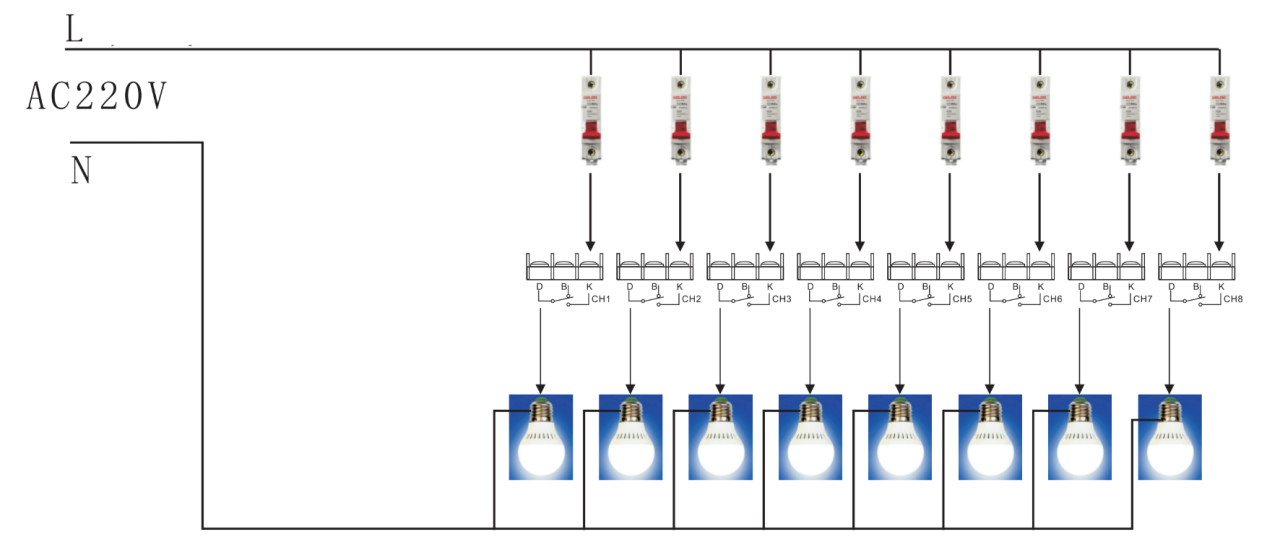

Control diagram

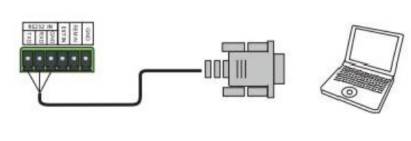

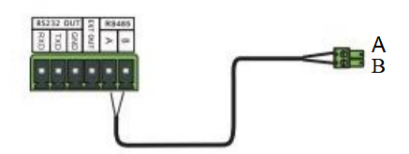

RS232 control: RS485 control:

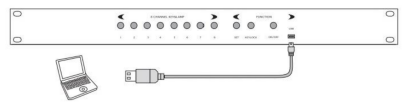

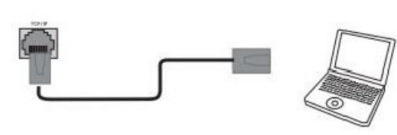

USB port control RJ45 port control
RS232 control codes:
Baud rate: 9600
The below equipment ID is 1, send as Hex format
Channel control:
Examples:
All channels based on order ON: 43 4A 59 04 01 0D 1F AA
All channels ON: 43 4A 59 04 01 10 1F AA
For channel 1 based on order ON: 43 4A 59 04 01 01 1F AA
Device status get:
Get Device ID 1 status: 43 4A 59 04 01 00 2F AA
Device status respond:
Respond: example device 1, channel 1~4 open, channel 5~8 close, it will respond as
43 4A 59 OB 01 1F 1F 1F 1F OF OF OF OF 3F AA
Example 1, device 1, channel 1~4 channel open, timing as 1 second:
43 4A 59 08 01 01 02 03 04 01 8F AA
Example 2, device 1, open channel 7 and 8, timing as 2 seconds:
43 4A 59 06 01 07 08 02 8F AA
Example 3, device 1, off channel 8, 6, 4, 2, 5, time as 1 second:
43 4A 59 09 01 08 04 02 05 01 9F AA
