Home› Products› Video Systems› FM series cards

DesignPro

Click to zoom

Video Systems

FM series cards

★★★★★★★★★★ No reviews yet — write one › SKU:

Delivery in 5-7 days

5 views 0 sold

In Stock

Contact Sales

Request Quote

Contact Channels

Get in touch for more details

LINE Official Facebook WeChat WhatsApp

1-Year WarrantyOfficial Thai warranty

Fast Delivery1-3 business days

Expert SupportEngineer team standby

0% InstallmentUp to 10 months

Official Thailand Warranty5 Years

Free System DesignConsultation

Technical SupportRemote Assistance

Online TrainingFor Partners & Users

Spare Parts AvailableLocal Stock

OVERVIEW

Professional-grade equipment designed for high-quality, stable AV installations.

Suitable Applications

Conference Room

Auditorium

Hotel

University

Broadcast

Courtroom

Command Center

TECHNICAL SPECIFICATIONS

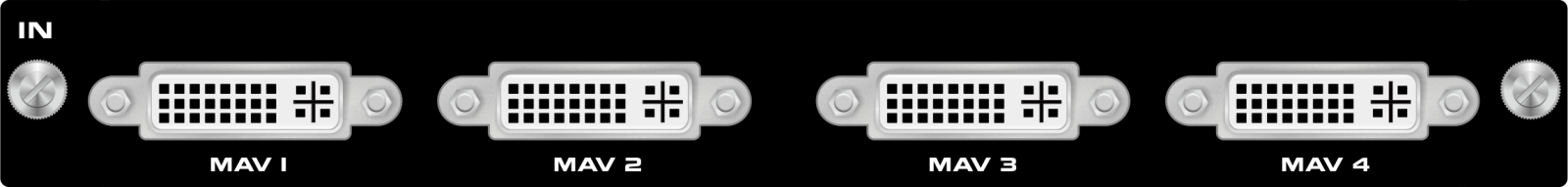

4-Port 1080P SVM input cards	FM 4-port 1080P MAV input card · FM-IN-SVM-MAV · CBKFM0009 · 4-port MAV inputs, can support CVBS/YPBPR/VGA/HDMI with different adapters / HDCP compliant / Support up to 1080P60hz and backwards

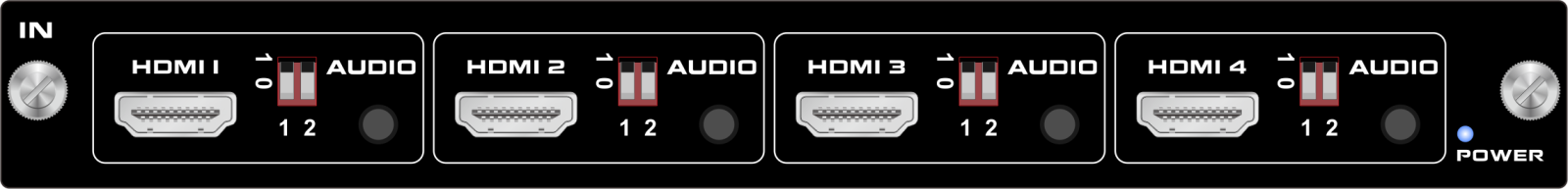

FM 4-port 1080P HDMI input card	FM-IN-SVM-HD · CBKFM0007 · 4-port HDMI inputs, HDCP compliant / Support up to 1080P60hz and backwards / Support 3.5mm audio embedded

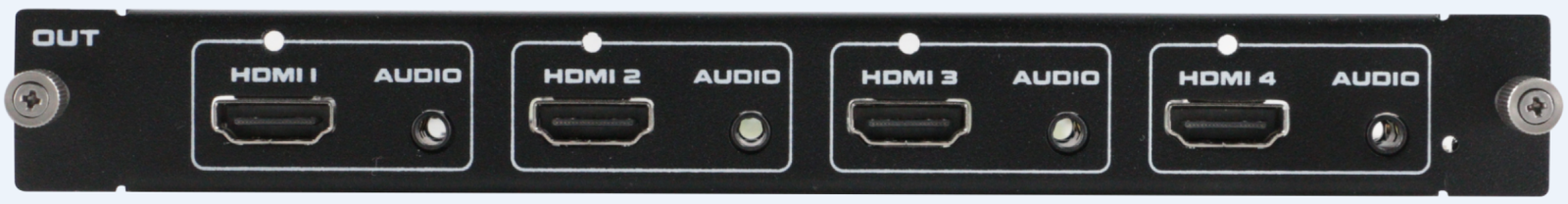

FM 4-port 1080P HDMI input card with audio out	FM-IN-SVM-HD-AO · CBKFM0046 · 4-port HDMI inputs, HDCP compliant / Support up to 1080P60hz and backwards / Support 3.5mm audio out
FM 4-port 1080P DVI input card	FM-IN-SVM-DVI · CBKFM0070 · Support 4-port DVI Inputs, HDCP1.4 compliant / Support 1080P60 resolution and down compatible / Support seamless switching

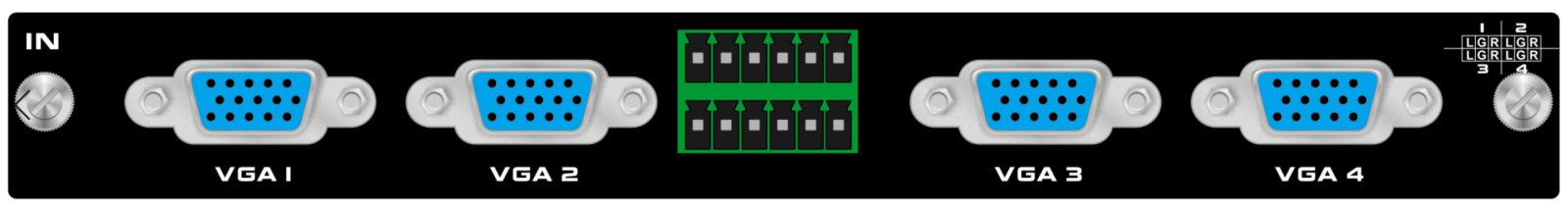

FM 4-port 1080P VGA input card	FM-IN-SVM-VGA · CBKFM0064 · 4-port VGA inputs / Support up to 1080P60hz and backwards / Support 3-PIN phoenix audio embedded

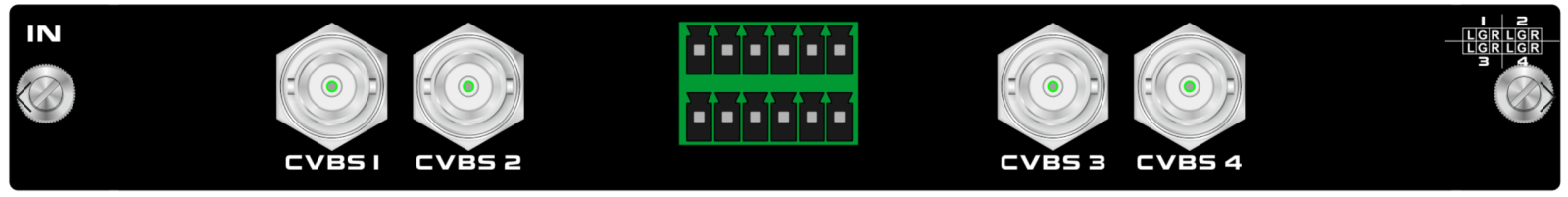

FM 4-port 1080P CVBS input card	FM-IN-SVM-CVBS · CBKFM0062 · 4-port SVBS(BNC) inputs / Support up to 1080P60hz and backwards / Support 3-PIN phoenix audio embedded

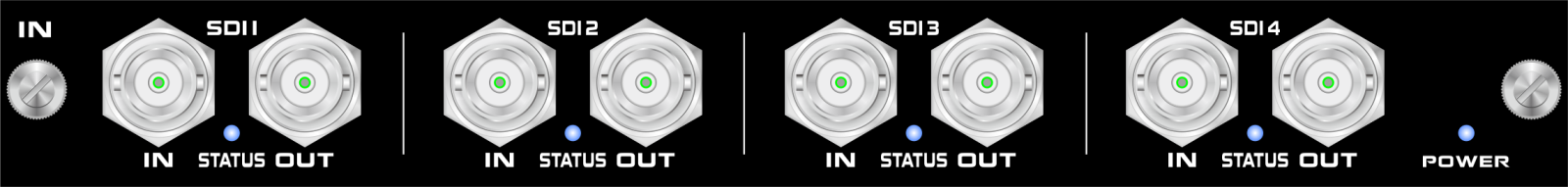

FM 4-port 1080P 3GSDI input card	FM-IN-SVM-3GSDI-TW · CBKFM0061 · 4-port SD/HD/3G-SDI input and 4 loop outs / Resolution up to 1080P60, 720/1080P key / Seamless switch / SDI cable distance can up to 20m/60ft

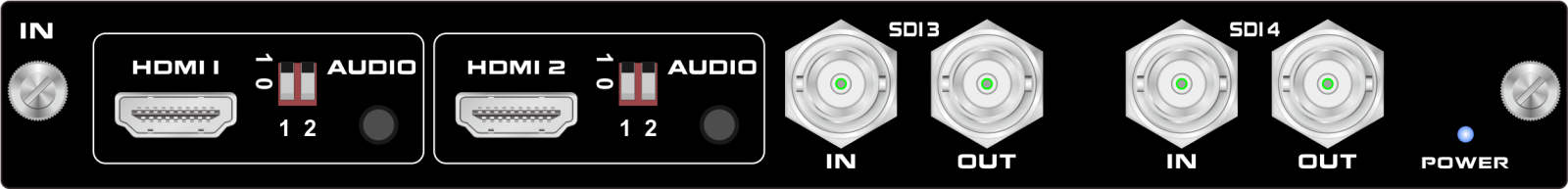

FM 4-port 1080P 23GSDI+2HDMI input card	FM-IN-SVM-2S2H · CBKFM0071 · 2-port SD/HD/3G-SDI inputs with loop outs+2-port HDMI inputs / Support up to 1080P60hz and backwards / Support 3-PIN phoenix audio embedded

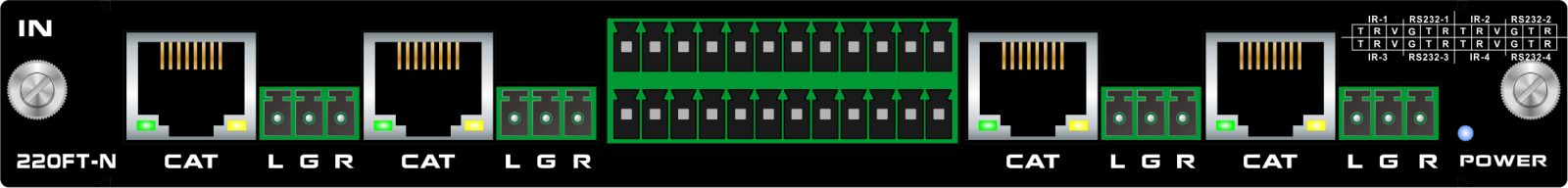

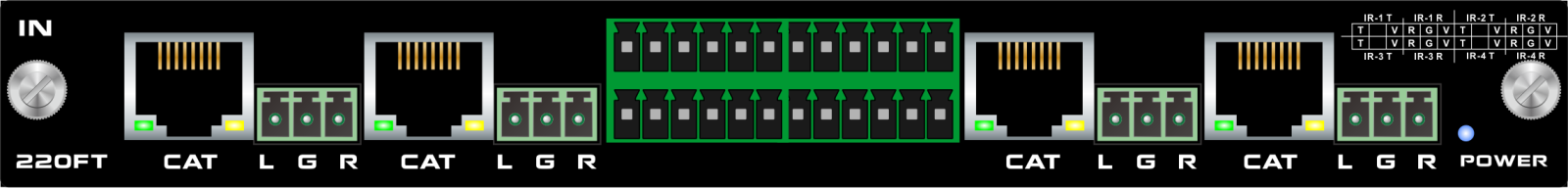

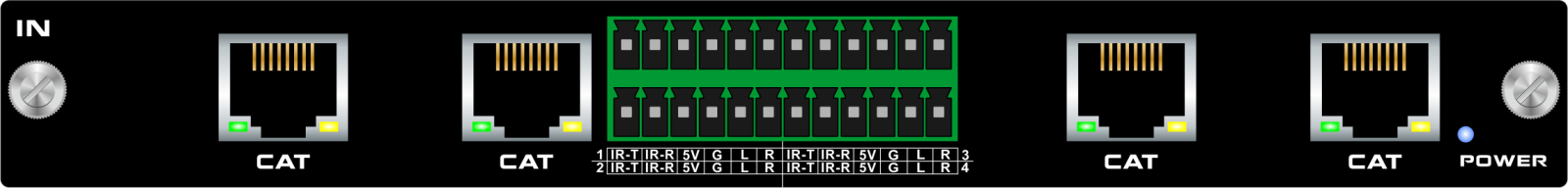

FM 4-port 1080P 70M HDBaseT input card	FM-IN-SVM-HDBT-70 · CBKFM0072 · 4port HDBaseT inputs / Support bi-drectional IR, RS232/Audio out / Supports POC function / Can work with any HDBaseT products / Resolution up to 1080P60Hz, distance up to 70m/220ft over single STP CAT6
FM 4-port 1080P 100M HDBaseT input card	FM-IN-SVM-HDBT-100 · CBKFM0001 · 4port HDBaseT inputs / Support bi-drectional IR, RS232/Audio out / Supports POC function / Can work with any HDBaseT products / Resolution up to 1080P60Hz, distance up to 100m/330ft over single STP CAT6
FM 4-port 1080P 150M LHDT input card	FM-IN-SVM-LHDT-150 · CBKFM0041 · Support 4-port LHDT inputs / Distance up to 150m over CAT5E/6/7 for 1080P60 / Support one-way IR, POC function / Needs to work with LHDT extenders
4-Port 1080P SVM output cards	FM 4-port 1080P MAV output card · FM-OUT-MVM-HD · CBKFM0047 · 4-port HDMI outputs / Support up to 1080P60hz and backwards, scaling function by DIP switch / Supports seamless switching and Video Wall function / Supports 3.5mm audio de-embedded
FM 4-port 1080P HDMI input card with audio out (2)	FM-OUT-SVM-HD · CBKFM0028 · Support 4-port HDMI outputs, each port up to 1080P60Hz / Support audio de-embedded fucntion / Support seamless switching and resolution adjustment / Support WEB GUI based PIP, cross-screen function

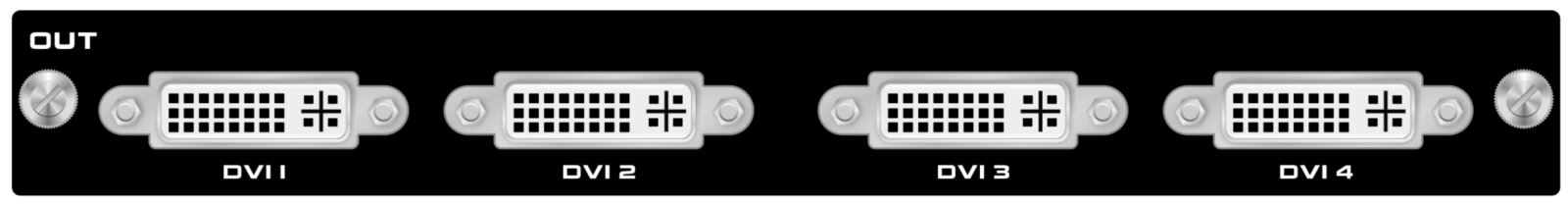

FM 4-port 1080P DVI output card	FM-OUT-SVM-DVI · CBKFM0044 · 4-port DVI outputs / Support up to 1080P60hz and backwards / Supports seamless switching

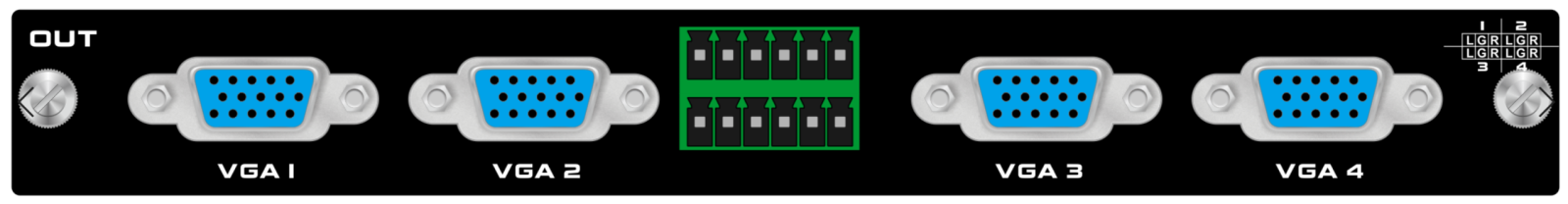

FM 4-port 1080P VGA output card	FM-OUT-SVM-VGA · CBKFM0065 · 4-port VGA outputs / Support up to 1080P60hz and backwards, scaling function by DIP switch / Supports seamless switching and Video Wall function / Supports 3-PIN phoenix audio de-embedded

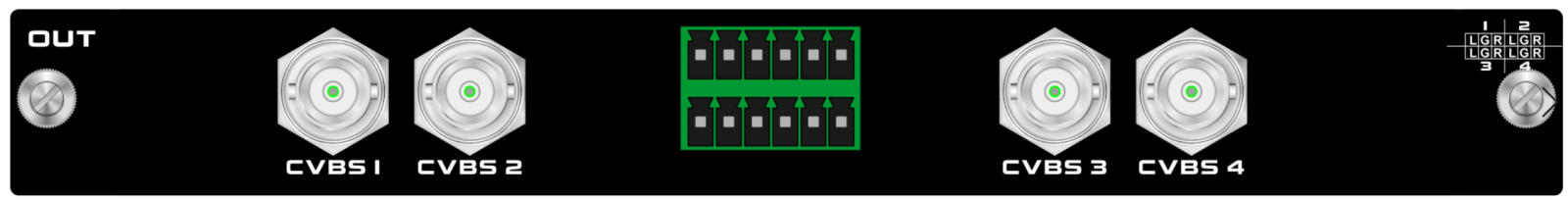

FM 4-port 1080P CVBS output card	FM-OUT-SVM-CVBS · CBKFM0063 · 4-port CVBS outputs / Support up to 1080P60hz and backwards, scaling function by DIP switch / Supports seamless switching and Video Wall function / Supports 3-PIN phoenix audio de-embedded

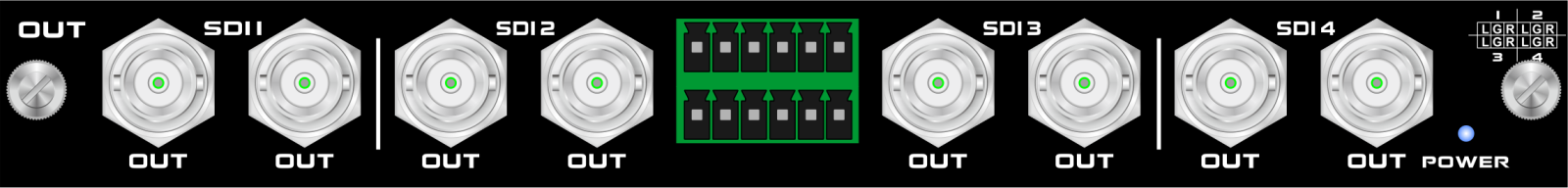

FM 4-port 1080P 3GSDI output card	FM-OUT-SVM-3GSDI · CBKFM0030 · 4-port 3G/HD/SD-SDI outputs with loop outs / Support up to 1080P60hz and backwards, scaling function by DIP switch / Supports seamless switching and Video Wall function / Supports 3-PIN phoenix audio de-embedded

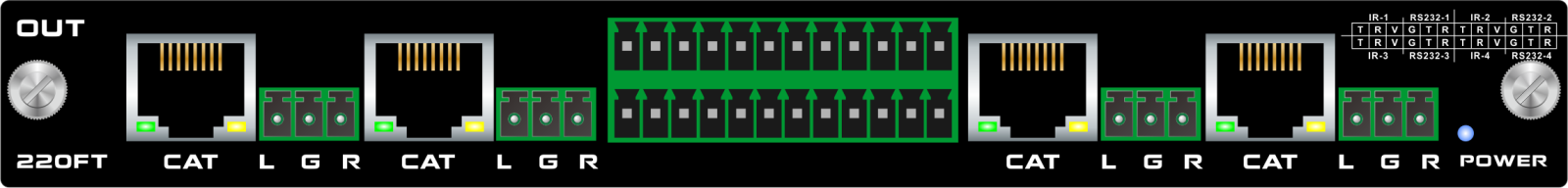

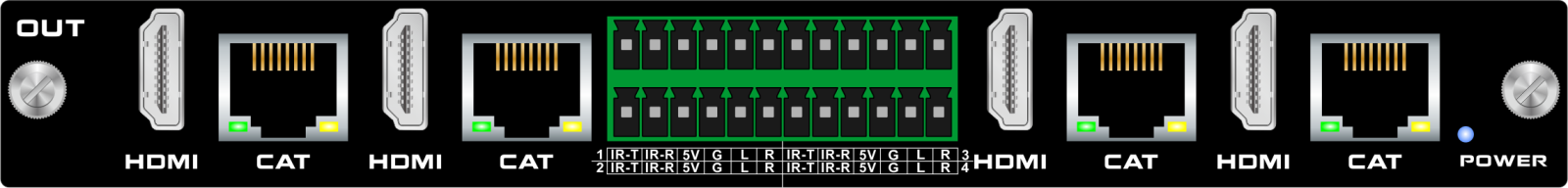

FM 4-port 1080P 70M HDBaseT output card	FM-OUT-SVM-HDBT-70 · CBKFM0032 · 4port HDBaseT Outputs / Support bi-drectional IR, RS232/Audio out / Supports POC function / Can work with any HDBaseT products / Resolution up to 1080P60Hz, distance up to 70m/220ft over single STP CAT6
FM 4-port 1080P 100M HDBaseT output card	FM-OUT-SVM-HDBT-100 · CBKFM0033 · 4port HDBaseT outputs / Support bi-drectional IR, RS232/Audio out / Supports POC function / Can work with any HDBaseT products / Resolution up to 1080P60Hz, distance up to 100m/330ft over single STP CAT6
FM 4-port 1080P 150M LHDT output card	FM-OUT-SVM-LHDT-150 · CBKFM0042 · 1-card 4-port LHHDT output card with 4 HDMI loop out / Support seamless switching, video wall and scaling functions / Distance up to 150m/450ft for 1080P over LAN with POC / Only works with the LHDT Extender Receiver

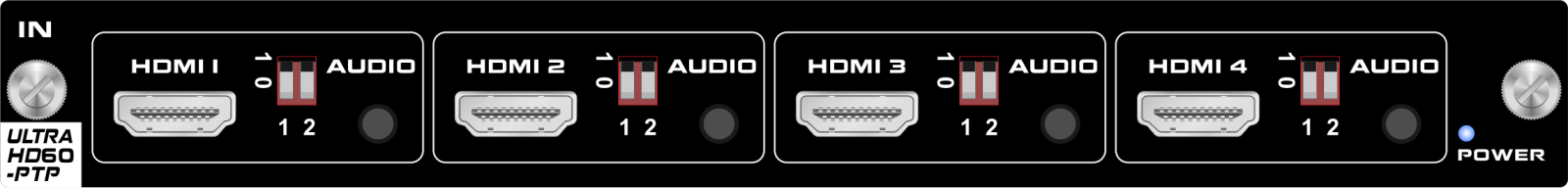

4-Port 4K60 HDR input Cards	FM 4-port 4K60 HDMI input with audio in · FM-IN-HD-4K60-AI · CBKFM0006 · 4-port HDMI 4K60 inputs / HDCP2.2 compliant / Support up to 4K60hz and backwards, / Support 3.5mm audio embedded / Support DIP switch for EDID management
FM 4-port 4K60 HDMI input with audio out	FM-IN-HD-4K60-AO · CBKFM0029 · 4-port HDMI 4K60 inputs / HDCP2.2 compliant / Support up to 4K60hz and backwards, / Support 3.5mm audio De-embedded / Support DIP switch for EDID management

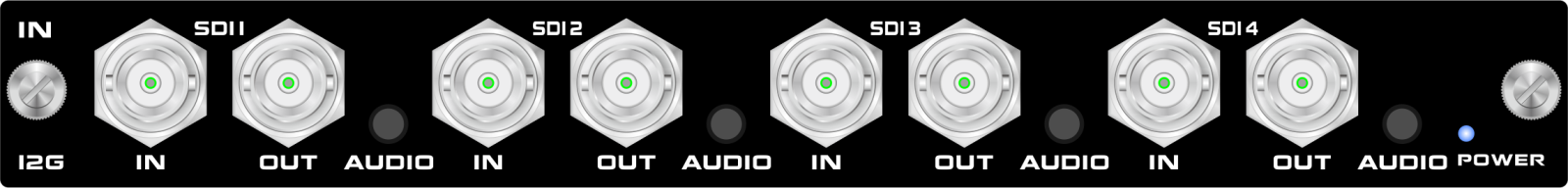

FM 4-port 4K60 12G-SDI input card	FM-IN-12GSDI-4K60 · CBKFM0055 · 4-port 12GSDI inputs with 4* 12G SDI loopout / Support 12GSDI and down compatible with 3GSDI / Support 3.5mm audio embedded
FM 4-port 4K60 40M HDBaseT input card	FM-IN-HDBT-4K60-40 · CBKFM0026 · 4-port HDBaseT input pass-through card / Resolution up to 4K60(4:2:0), distance up to 35m/110ft / Support bi-directional IR, RS232 and Audio out / Support POC, no video wall, no seamless switch / Can work with any of our HDBaseT Transmitters
FM 4-port 4K60 70M HDBaseT input card	FM-IN-HDBT-4K60-70 · CBKFM0027 · 4-port HDBaseT input pass-through card / Resolution up to 4K60(4:2:0), distance up to 70m/220ft / Support bi-directional IR, RS232 and Audio out / Support POC, no video wall, no seamless switch / Can work with any of our HDBaseT Transmitters

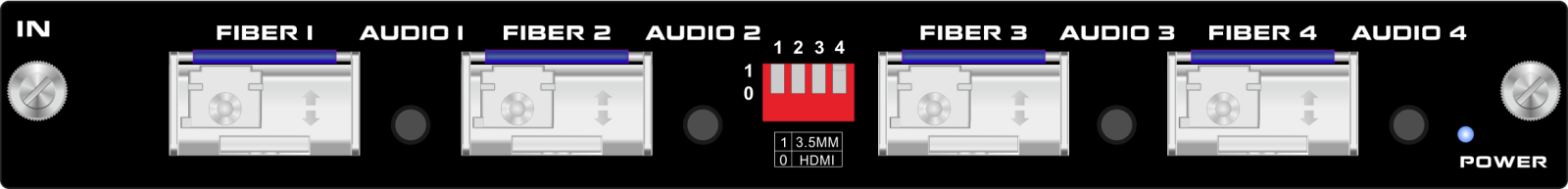

FM 4-port 4K60 2KM Fiber LC input card with audio in	FM-IN-FIBER-4K60-AI · CBKFM0078 · 4-port Fiber input card / Resolution up to 4K60, disance up to 2km over 1-core LC fiber cable / Support 3.5mm audio in / Can work with the AEL Fiber Transmitter

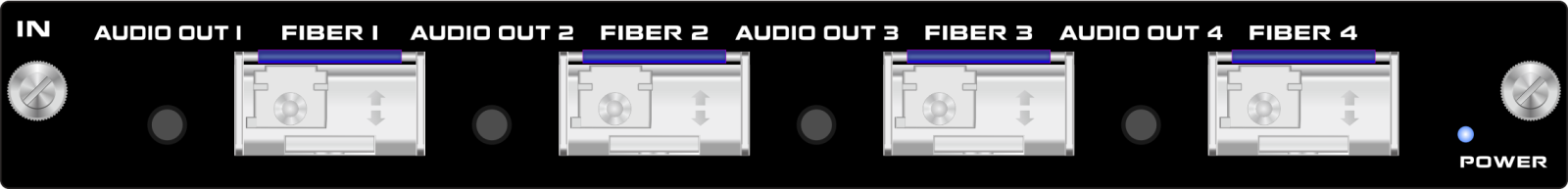

FM 4-port 4K60 2KM Fiber LC input card with audio out	FM-IN-FIBER-4K60-AO · CBKFM0017 · 4-port Fiber inputs, LC connector / Resolution up to 4K60, disance up to 2km over 1-core LC fiber cable / Support 3.5mm audio out / Can work with the AEL Fiber Transmitter
FM 4-port 4K60 SVM input card	FM 4-port 4K60 SVM HDMI input card · FM-IN-SVM-HD-4K60 · CBKFM0015 · 4-port HDMI 4K60 inputs / HDCP2.2 compliant / Support up to 4K60hz and backwards, / Support 3.5mm audio embedded / Support seamless switching and scaling by DIP switch

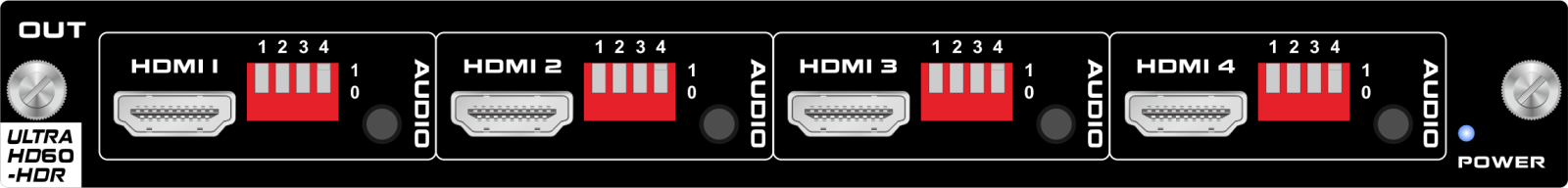

FM 4-port 4K60 HDR output cards	FM 4-port 4K60 HDMI HDR output card 3.5mm audio out · FM-OUT-HD-4K60 · CBKFM0008 · 4-port HDMI 4K60 outputs / HDCP2.2 compliant / Support up to 4K60hz and backwards, / Support 3.5mm audio embedded

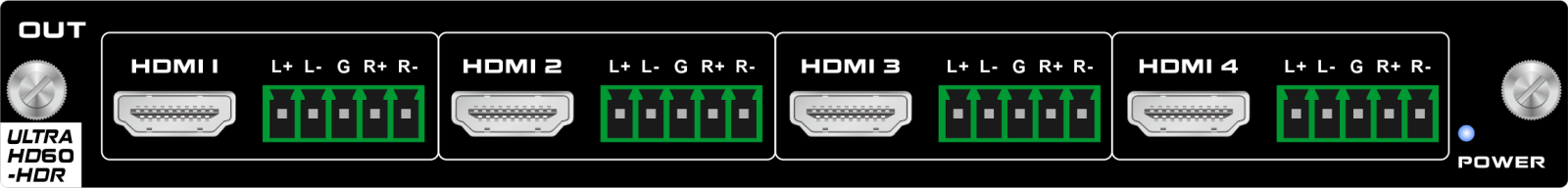

FM 4-port 4K60 HDMI HDR output card(balance audio out)	FM-OUT-HD-4K60-BAL · CBKFM0075 · 4-port HDMI 4K60 outputs / HDCP2.2 compliant / Support up to 4K60hz and backwards, / Support balanced audio out
FM 4-port 4K60 40M HDBaseT output card	FM-OUT-HDBT-4K60-40 · CBKFM0043 · 4-port HDBaseT output pass-through output card / Resolution up to 4K60(4:2:0), distance up to 35m/110ft / Support bi-directional IR, RS232 / Support POC, no video wall, no seamless switch / Can work with any of our HDBaseT receivers
FM 4-port 4K60 70M HDBaseT output card	FM-OUT-HDBT-4K60-70 · CBKFM0039 · 4-port HDBaseT output pass-through output card / Resolution up to 4K60(4:2:0), distance up to 70m/220ft / Support bi-directional IR, RS232 / Support POC, no video wall, no seamless switch / Can work with any of our HDBaseT receivers

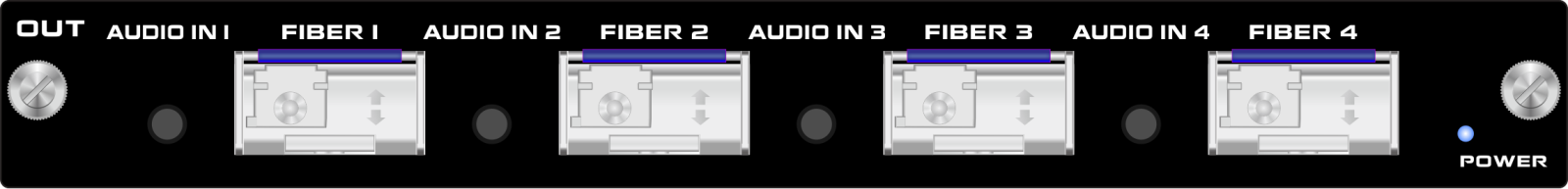

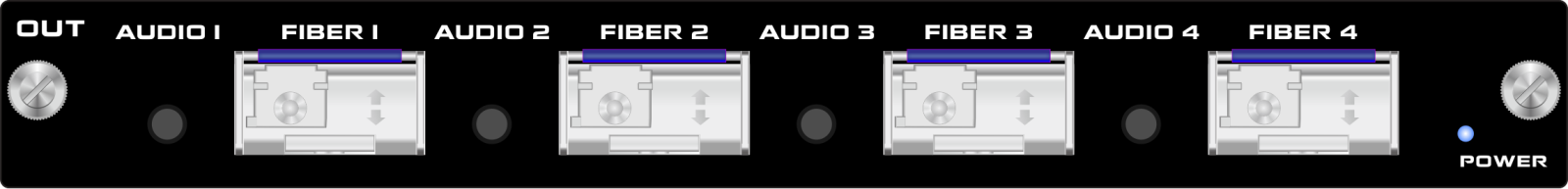

FM 4-port 4K60 2KM fiber optic output card with audio in	FM-OUT-FIBER-4K60-AI · CBKFM0018 · 4-port Fiber output card / Resolution up to 4K60, disance up to 2km over 1-core LC fiber cable / Support 3.5mm audio in / Can work with the AEL Fiber Receiver
FM 4-port 4K60 2KM fiber optic output card with audio out	FM-OUT-FIBER-4K60-AO · CBKFM0040 · 4-port Fiber outputs, LC connector / Resolution up to 4K60, disance up to 2km over 1-core LC fiber cable / Support 3.5mm audio out / Can work with the AEL Fiber Receiver

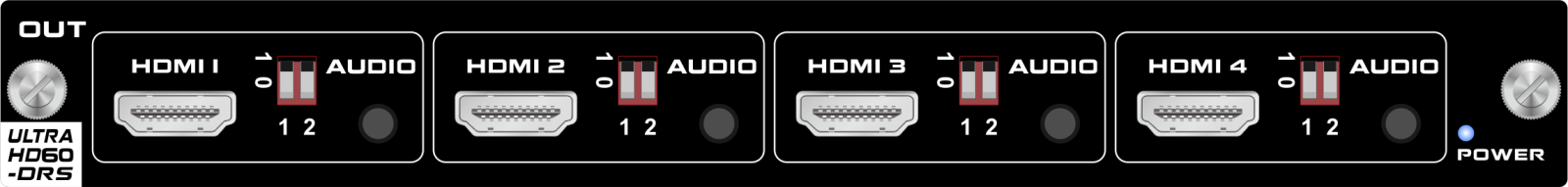

FM 4-port 4K60 DRS SVM output cards	FM 4-port 4K60 HDMI DRS output card with audio out · FM-OUT-DRS-HD-4K60 · CBKFM0076 · 4-port HDMI 4K60 outputs / HDCP2.2 compliant / Support up to 4K60hz and backwards / Support 3.5mm audio de-embedded / Support seamless switching, scaling, video wall and image rotation by commands
FM 4-port 4K60 12GSDI DRS output card with audio out	FM-OUT-DRS-12GSDI-4K60 · CBKFM0054 · Support 4-port 12GSDI output with 4* 12G SDI loop out / Support 12GSDI and down compatible with 3GSDI / Support video wall and audio de-embedded functions
FM 4-port 4K60 40M DRS HDBaseT output card	FM-OUT-DRS-HDBT-4K60-40 · CBKFM0035 · 4-port HDBaseT outputs / Displace up to 40m over STP CAT5E/6/7 / Resolution to 4K60 and down compatible / Support IR, RS232/audio out / Support POC function, video wall, and seamless switching and scaling function
FM 4-port 4K60 70M DRS HDBaseT output card	FM-OUT-DRS-HDBT-4K60-70 · CBKFM0034 · 4-port HDBaseT outputs / Displace up to 70m over STP CAT5E/6/7 / Resolution to 4K60 and down compatible / Support IR, RS232/audio out / Support POC function, video wall, and seamless switching and scaling function

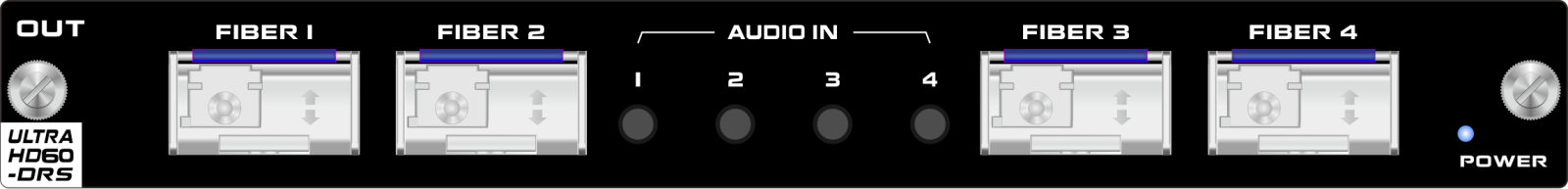

FM 4-port 4K60 2KM DRS fiber optic output card with audio out	FM-OUT-DRS-FIBER-4K60 · CBKFM0038 · 4-port Fiber Optic Outputs / Resolution up to 4K60 and distance to 2km over SM fiber LC cable / Supports seamless switching, video wall and scaling / Works with the AEL Fiber receivers

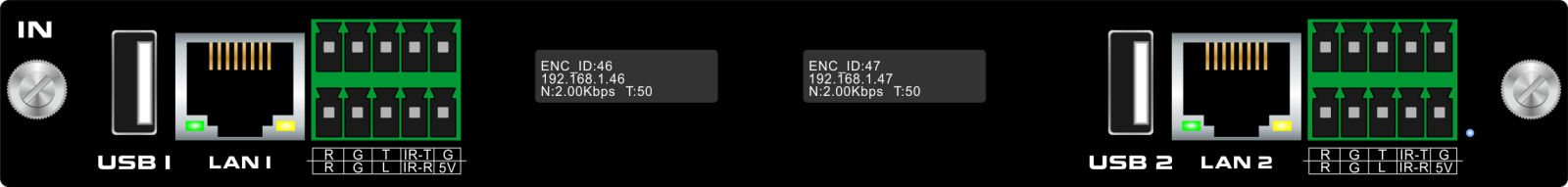

Function cards	FM 2-port H.264/265 IP encoding card · FM-IN-IPX-925 · CBKFM0053 · Working with AV over IP system / Support USB keyboard/mouse / Support IR/RS232/AUDIO

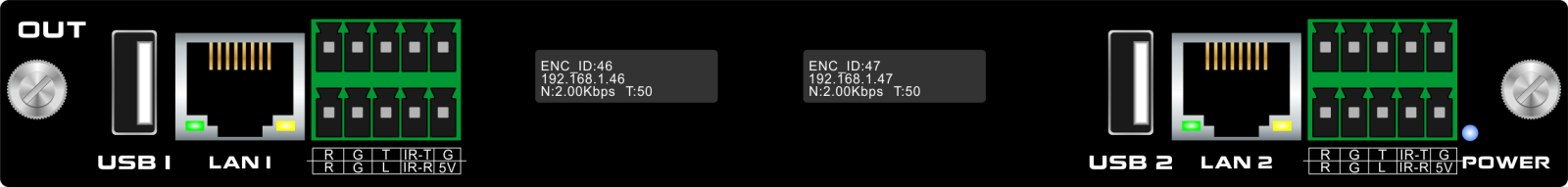

FM 2-port H.264/265 IP decoding card	FM-OUT-IPX-925 · CBKFM0052 · Working with AV over IP system / Support USB keyboard/mouse / Support IR/RS232/AUDIO

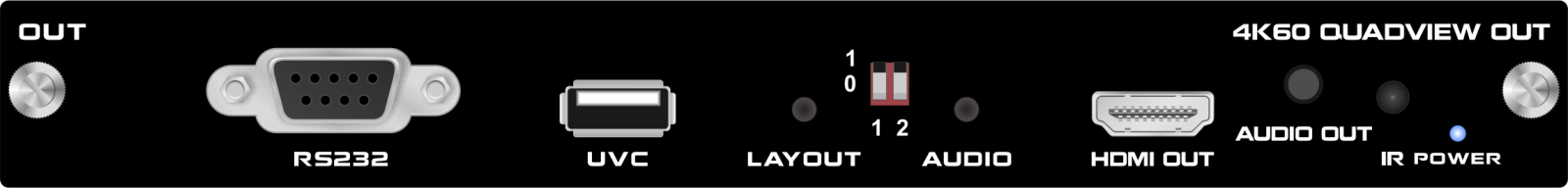

FM FM 4K60 quad-view output card with RS232 and USB2.0 capture	FM-OUT-QUVC-4K60 · CBKFM0066 · 1-port 4K60 HDMI2.0 quad-view output / Supports 8 working modes / Supports RS232, Layout key, IR remote control layouts, resolution / Support 1-port USB3.0 capture by OBS

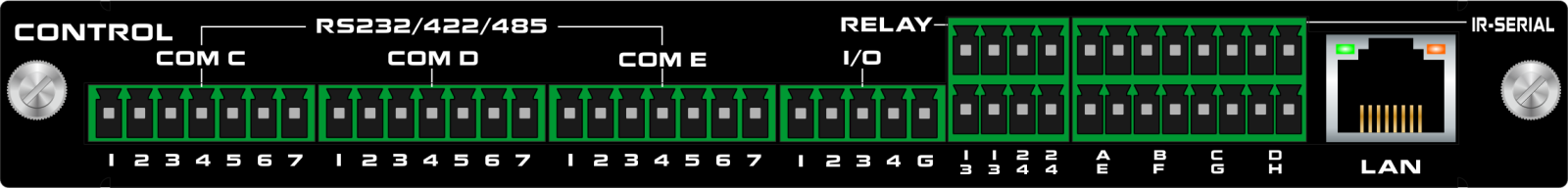

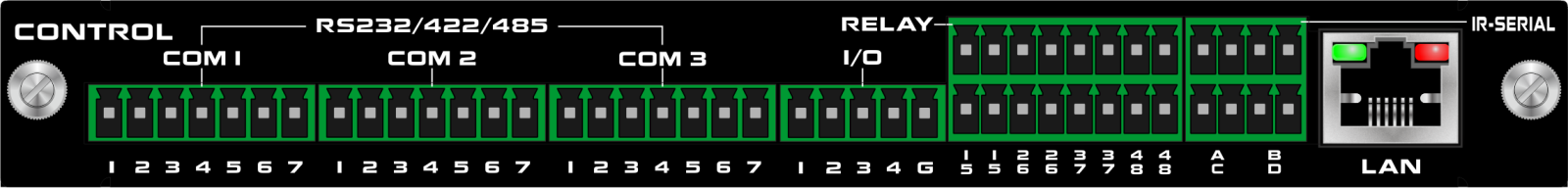

FM Central control card(M3)	FM-CONTROL · CBKFM0067 · Built-in the matrix chassis / 3RS232/RS422/RS485, 4IO, 8RELAY, 4IR / Supports WEB GUI dragdrop programming / Supports IP expansion / Supports control UI/APP customizing
FM Central control card(M5)	FM-CONTROL-M5000 · CBKFM0080 · Built-in the matrix chassis / 3RS232/RS422/RS485, 4IO, 8RELAY, 4IR / Supports WEB GUI dragdrop programming / Supports IP expansion / Supports control UI/APP customizing

KEY FEATURES

View All ›

Genuine ProductOfficial warranty in Thailand

Professional GradeBuilt for AV system installations

After-sales SupportEngineer team on standby

FirmwareLatest Version

DSP TemplateDownload

AutoCADDrawing

EASE FileAcoustic Data

Product Features

Professional grade build
Industry-standard compatibility
Full warranty included
