4X1 Presentation Switcher with wireless, scaling and PD

★★★★★★★★★★ No reviews yet — write one › SKU: BYOD-T401U

Delivery in 5-7 days

4 views 0 sold

In Stock

Contact Sales

Request Quote

Contact Channels

Get in touch for more details

LINE Official Facebook WeChat WhatsApp

1-Year WarrantyOfficial Thai warranty

Fast Delivery1-3 business days

Expert SupportEngineer team standby

0% InstallmentUp to 10 months

Official Thailand Warranty5 Years

Free System DesignConsultation

Technical SupportRemote Assistance

Online TrainingFor Partners & Users

Spare Parts AvailableLocal Stock

OVERVIEW

Introduction

The BYOD-T4001 is a high-performance BYOD presentation switcher with wire and wireless presentation capabilities. It equips built-in Wi-Fi module and supports multiple access approaches, including Airplay Mirroring, Miracast, physical interfaces (2*HDMI,and USB-C) and USB Dongles, with which can project screen contents of computer (Mac/Windows) or mobile device (iPhone/iPad/Android) to a display in Multiview mode.

Multiple features like fast seamless switching, auto signal switch, serial control, Guide Screen, OSD display, USB switching and extension are included. The switcher is a collaboration terminal used for meeting room or workgroup discussion.

Features

• Multiview presentation with configurable screen layout.

• Supports wireless connectivity over Airplay, Miracast and USB Dongles.

• Supports HDMI input resolutions up to 4K@60Hz 4:4:4, USB-C up to 4K30

• Supports HDMI output resolutions up to 4K@60Hz 4:4:4.

• Detailed and friendly OSD information.

• Supports USB extension and switching control among three USB hosts.

• Offers multiple control approaches: front panel buttons, rs232

• USB-C with PD 60W

Specification

USB Dongles:

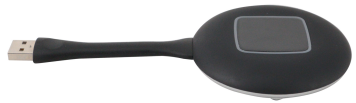

Type-C/USB接口传屏器

支持摄像机回传

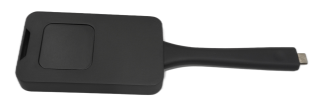

Type-C接口传屏器

支持拓展1路Type-C

Suitable Applications

Conference Room

Auditorium

Hotel

University

Broadcast

Courtroom

Command Center

TECHNICAL SPECIFICATIONS

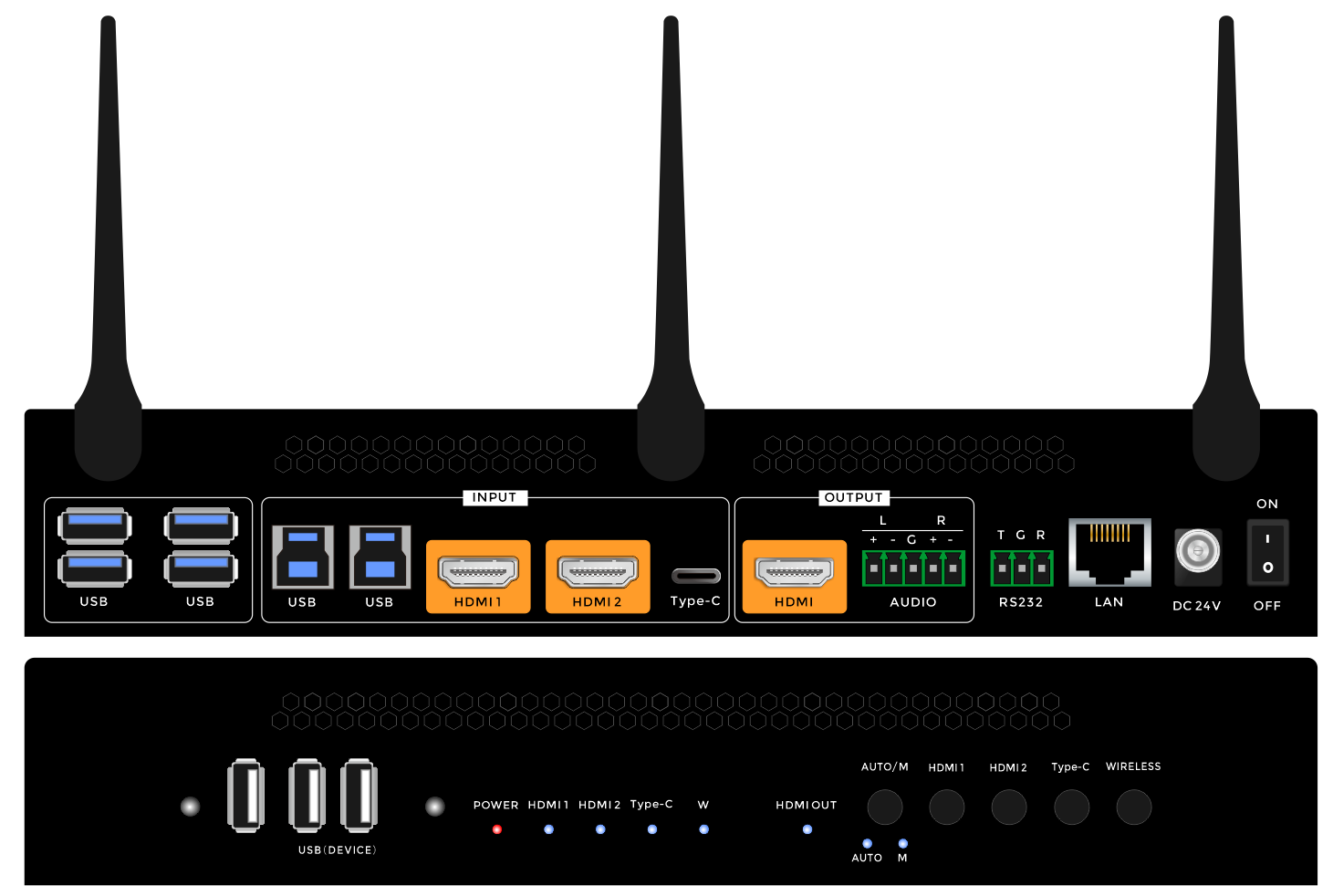

Input Video Port	2 x HDMI; 1 x USB-C; 1 x LAN, 10/100/1000 Mbps Ethernet; 1 x WLAN
Input Resolutions	HDMI/USB-C: 640×4808, 800×6008, 1024×7688, 1280×7688, 1280×8008, 1280×10248, 1360×7688, 1366×7688, 1440×9008, 1400×10508, 1600×12008, 1680×10508, 1920×12008, 720×4808 (480p), 720×5766 (576p), 1280×7205 (720p30), 1280×7206 (720p50), 1280×7208 (720p60), 1920×10802 (1080p24), 1920×10803 (1080p25), 1920×10805 (1080p30), 1920×10806 (1080p50), 1920×10808 (1080p60), 3840×21605(2160p30) LAN/WLAN: Up to 1920×10808 (1080p60) Note: The input resolution support for LAN or WLAN may vary according to the specific BYOD protocols and devices. 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz
Output Video Port	1x HDMI
Output Resolutions	720×4808 (480p60), 720×5766 (576p60), 640×4808, 800×6008, 1024×7688, 1280×10248, 1366×7688, 1440×9008, 1280×8008, 1680×10508, 1920×21605, 1600×12008, 1920×12008, 2560×14405, 2560×14408, 1280×7206 (720p50), 1280×7208 (720p60), 1920×10806 (1080i50), 1920×10808 (1080i60), 1920×10802 (1080p24), 1920×10803 (1080p25), 1920×10805 (1080p30) , 1920×10806 (1080p50), 1920×10808 (1080p60), 3840×21602 (2160p24) , 3840×21603 (2160p25) , 3840×21605 (2160p30) , 3840×21606 (2160p50) , 3840×21608 (2160p60)
Input Audio Port	2 x HDMI, 1 x USB-C, 1 x LAN, 1 x WLAN
Input Audio Format	RAW PCM, 16 bit, 32/44.1/48KHz sps; PCM 2.0
Output Audio Port	1 x HDMI, 1 x Analog Audio
Output Audio Format	RAW PCM, 16 bit, 32/44.1/48KHz sps; PCM 2.0
Control Method	Front panel buttons; RS232
Standard	IEEE 802.11 a/b/g/n/ac
Frequency	Dual bands, 2.4~2.4835GHz, 5.0~5.8GHz
Throughout	2T x 2R, up to 867Mbps
Security	WEP, TKIP, AES, WPA, WPA2
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Humidity	10% to 90%, non-condensing
ESD Protection	Human-body Model: ±8kV (Air-gap discharge)/ ±4kV (Contact discharge)
Power Supply	24 V 5A
Power Consumption	20W (Max)

KEY FEATURES

View All ›

Multiview presentation with configurable screen layout.

Supports wireless connectivity over Airplay, Miracast and USB Dongles.

Supports HDMI input resolutions up to 4K@60Hz 4:4:4, USB-C up to 4K30

Supports HDMI output resolutions up to 4K@60Hz 4:4:4.

Detailed and friendly OSD information.

Supports USB extension and switching control among three USB hosts.

Offers multiple control approaches: front panel buttons, rs232

USB-C with PD 60W

FirmwareLatest Version

DSP TemplateDownload

AutoCADDrawing

EASE FileAcoustic Data

Product Features

Multiview presentation with configurable screen layout.
Supports wireless connectivity over Airplay, Miracast and USB Dongles.
Supports HDMI input resolutions up to 4K@60Hz 4:4:4, USB-C up to 4K30
Supports HDMI output resolutions up to 4K@60Hz 4:4:4.
Detailed and friendly OSD information.
Supports USB extension and switching control among three USB hosts.
Offers multiple control approaches: front panel buttons, rs232
USB-C with PD 60W

TECHNICAL SPECIFICATIONS

Input Video Port	2 x HDMI; 1 x USB-C; 1 x LAN, 10/100/1000 Mbps Ethernet; 1 x WLAN
Input Resolutions	HDMI/USB-C: 640×4808, 800×6008, 1024×7688, 1280×7688, 1280×8008, 1280×10248, 1360×7688, 1366×7688, 1440×9008, 1400×10508, 1600×12008, 1680×10508, 1920×12008, 720×4808 (480p), 720×5766 (576p), 1280×7205 (720p30), 1280×7206 (720p50), 1280×7208 (720p60), 1920×10802 (1080p24), 1920×10803 (1080p25), 1920×10805 (1080p30), 1920×10806 (1080p50), 1920×10808 (1080p60), 3840×21605(2160p30) LAN/WLAN: Up to 1920×10808 (1080p60) Note: The input resolution support for LAN or WLAN may vary according to the specific BYOD protocols and devices. 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz
Output Video Port	1x HDMI
Output Resolutions	720×4808 (480p60), 720×5766 (576p60), 640×4808, 800×6008, 1024×7688, 1280×10248, 1366×7688, 1440×9008, 1280×8008, 1680×10508, 1920×21605, 1600×12008, 1920×12008, 2560×14405, 2560×14408, 1280×7206 (720p50), 1280×7208 (720p60), 1920×10806 (1080i50), 1920×10808 (1080i60), 1920×10802 (1080p24), 1920×10803 (1080p25), 1920×10805 (1080p30) , 1920×10806 (1080p50), 1920×10808 (1080p60), 3840×21602 (2160p24) , 3840×21603 (2160p25) , 3840×21605 (2160p30) , 3840×21606 (2160p50) , 3840×21608 (2160p60)
Input Audio Port	2 x HDMI, 1 x USB-C, 1 x LAN, 1 x WLAN
Input Audio Format	RAW PCM, 16 bit, 32/44.1/48KHz sps; PCM 2.0
Output Audio Port	1 x HDMI, 1 x Analog Audio
Output Audio Format	RAW PCM, 16 bit, 32/44.1/48KHz sps; PCM 2.0
Control Method	Front panel buttons; RS232
Standard	IEEE 802.11 a/b/g/n/ac
Frequency	Dual bands, 2.4~2.4835GHz, 5.0~5.8GHz
Throughout	2T x 2R, up to 867Mbps
Security	WEP, TKIP, AES, WPA, WPA2
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Humidity	10% to 90%, non-condensing
ESD Protection	Human-body Model: ±8kV (Air-gap discharge)/ ±4kV (Contact discharge)
Power Supply	24 V 5A
Power Consumption	20W (Max)
