Home› Products› Video Systems› 4K60 TV Wall controller -DPB-2400U
DesignPro

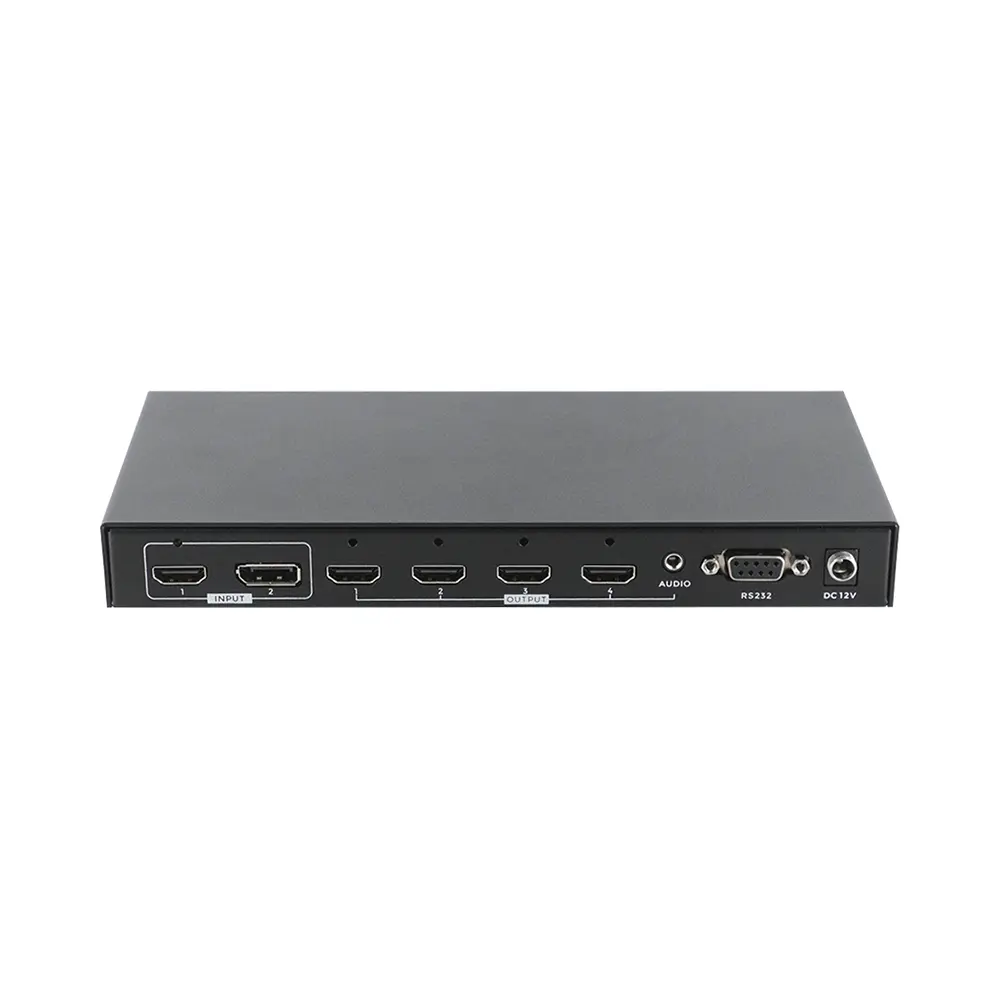

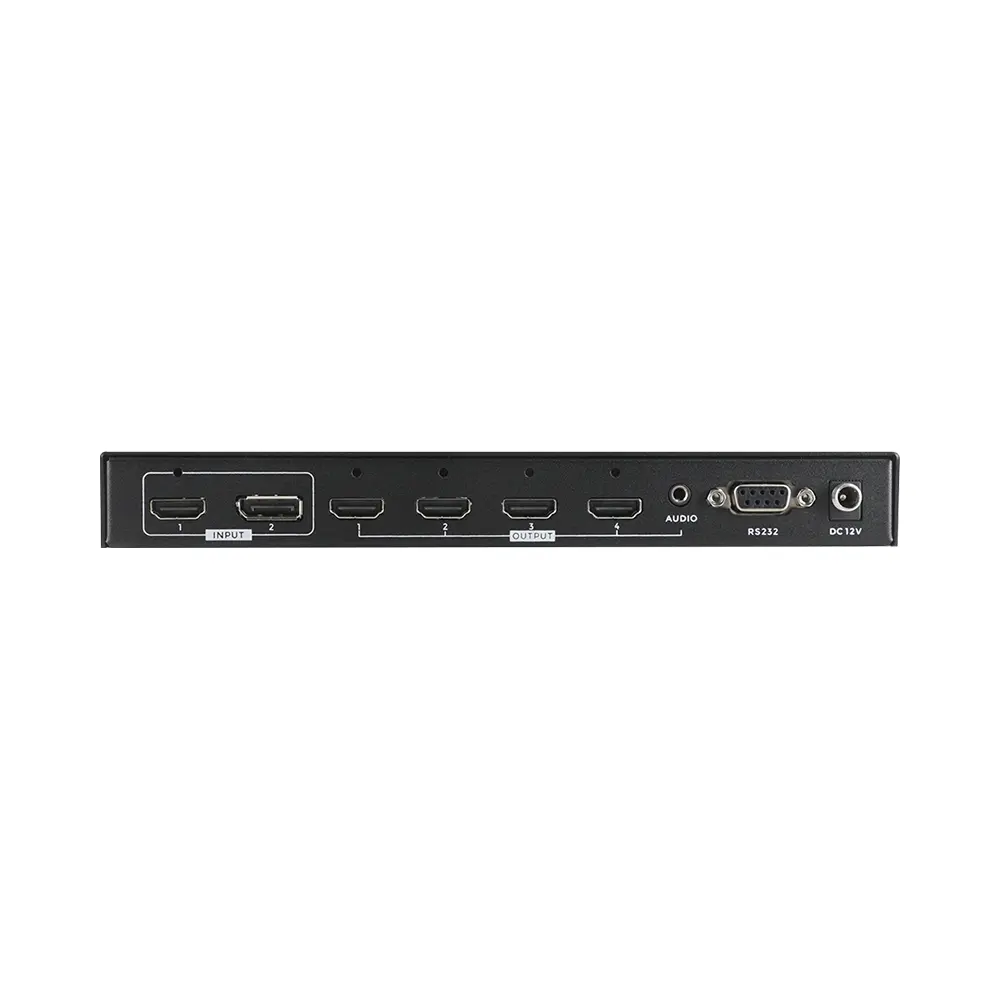

4K60 TV Wall controller -DPB-2400U Click to zoom
Video Systems

4K60 TV Wall controller -DPB-2400U

★★★★★★★★★★ No reviews yet — write one › SKU:
Delivery in 5-7 days
9 views 0 sold
In Stock
Contact Sales
Request Quote

Contact Channels

Get in touch for more details
LINE Official Facebook WeChat WhatsApp
1-Year WarrantyOfficial Thai warranty
Fast Delivery1-3 business days
Expert SupportEngineer team standby
0% InstallmentUp to 10 months
Official Thailand Warranty5 Years
Free System DesignConsultation
Technical SupportRemote Assistance
Online TrainingFor Partners & Users
Spare Parts AvailableLocal Stock

OVERVIEW

Introduction

This TV Wall controller is designed to be a truly capture, AD convert, route, distribute all-format signal to the video wall(LCD displays), while maintaining a true digital signal.

The controller with many different video interfaces, include 2 inputs(HDMI+DP) with up to 4K60 resolution and 4 HDMI outputs with 1080P resolution and 3.5mm audio output. Supports different Video Wall modes, 1×2, 1×3, 1×4, 2×2 etc, with the 4K input and 1080P output, it can realize the point to point(pixel to pixel) display. This controller can be controlled by remote control, front buttons and RS232 commands.

Features

• Supports 2 inputs, resolution up to 4K60

• Outputs support image 90, 180 and 270 degrees rotation

• Supports 4 HDMI with 1920*1200@60 resolution outputs

• Supports multiple splicing ways: 2×2, 1×4, 4×1, 1×3 …

• Supports the splicing edge adjustment

• Supports HDMI 2.0, HDCP compatible

• Supports the IR remote, push-button control and RS232 commands

Specification

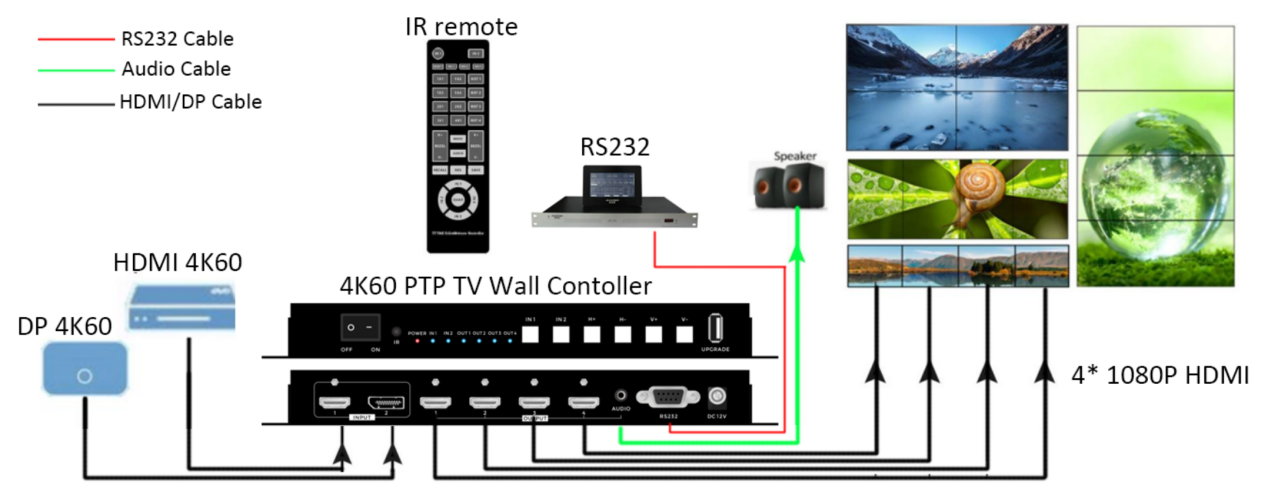

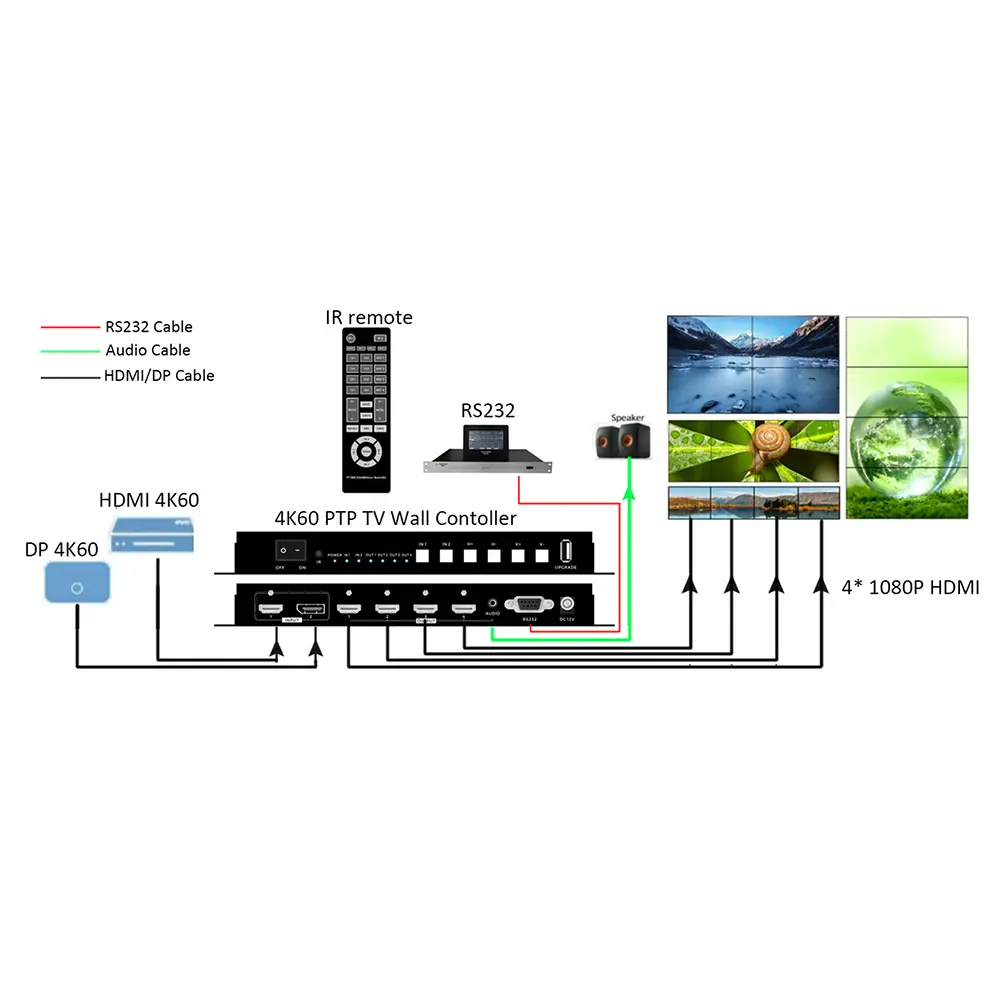

Connection diagram

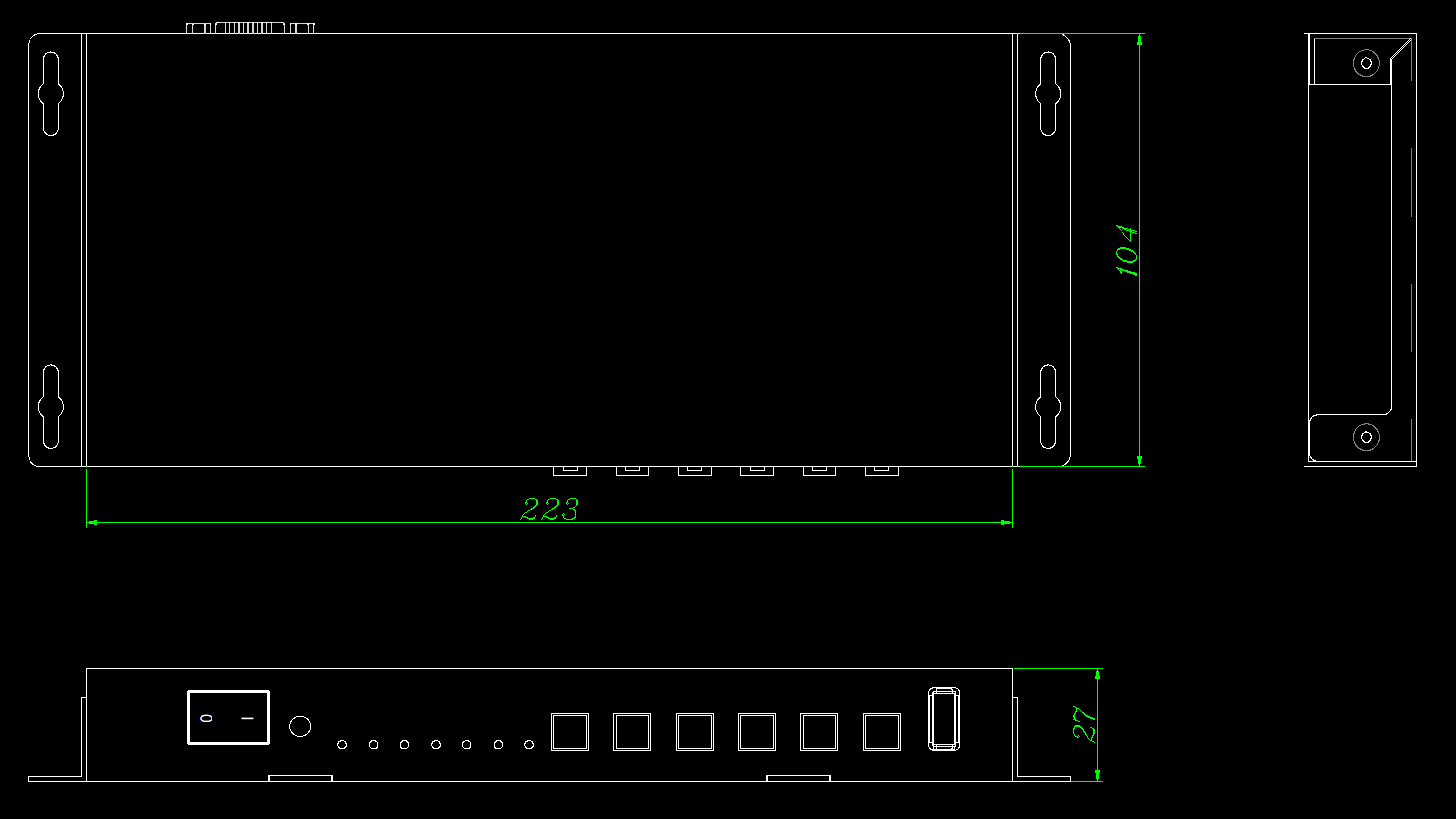

Product size(223*104*27mm):

Suitable Applications
Conference Room
Auditorium
Hotel
University
Broadcast
Courtroom
Command Center

TECHNICAL SPECIFICATIONS

Product name4K60 TV wall controller
ControlFront buttons, remote control, RS232 commands
Input1* HDMI, 1*DP
Output4*HDMI, 1*3.5mm audio
ResolutionInput: 1920X1080,1920X2160,1920X3240,1920X4320,3840X1080,3840X2160,5760X1080, 7680X1080 Output: 1920*1200@60Hz
Display splice mode2×2, 1×4, 4×1, etc…
Power SupplyDC 12V3A
Power Consumption10W
Dimension (WxHxD)223*104*27mm
Weight2.5KG/ 5.5lbs
Operating Temperature-10℃ to 50℃
Storage Temperature-25℃ to 55℃

KEY FEATURES

View All ›
Supports 2 inputs, resolution up to 4K60
Outputs support image 90, 180 and 270 degrees rotation
Supports 4 HDMI with 1920*1200@60 resolution outputs
Supports multiple splicing ways: 2×2, 1×4, 4×1, 1×3 …
Supports the splicing edge adjustment
Supports HDMI 2.0, HDCP compatible
Supports the IR remote, push-button control and RS232 commands
FirmwareLatest Version
DSP TemplateDownload
AutoCADDrawing
EASE FileAcoustic Data

Product Features

  • Supports 2 inputs, resolution up to 4K60
  • Outputs support image 90, 180 and 270 degrees rotation
  • Supports 4 HDMI with 1920*1200@60 resolution outputs
  • Supports multiple splicing ways: 2×2, 1×4, 4×1, 1×3 …
  • Supports the splicing edge adjustment
  • Supports HDMI 2.0, HDCP compatible
  • Supports the IR remote, push-button control and RS232 commands

TECHNICAL SPECIFICATIONS

Product name4K60 TV wall controller
ControlFront buttons, remote control, RS232 commands
Input1* HDMI, 1*DP
Output4*HDMI, 1*3.5mm audio
ResolutionInput: 1920X1080,1920X2160,1920X3240,1920X4320,3840X1080,3840X2160,5760X1080, 7680X1080 Output: 1920*1200@60Hz
Display splice mode2×2, 1×4, 4×1, etc…
Power SupplyDC 12V3A
Power Consumption10W
Dimension (WxHxD)223*104*27mm
Weight2.5KG/ 5.5lbs
Operating Temperature-10℃ to 50℃
Storage Temperature-25℃ to 55℃
