OVERVIEW
Introduction
This is a new fixed 1U height 4K2K HDMI matrix switcher with 16 HDMI input ports and 16 HDMI output ports and OUT1 with 3.5mm audio out, the resolution can up to 4K30Hz and all ports are HDCP compliant. With the friendly user control methods: IR remote control, 2-Press push buttons with background blue light, WEB GUI and the iOS/Android APP control, supports the WEB smart EDID management, this matrix switcher can work with the Blu-Ray Players, Set-Top boxes, Home Theater, and game consoles etc HDMI input sources to route to the HDMI displays, it has been widely used in different audio visual applications.
Features
• 16 HDMI inputs and 16 HDMI outputs, and OUT1 with 3.5mm audio out
• Supports HDMI1.4, HDCP1.4
• The resolution can up to 4K@30Hz
• Deep Color support 48/36/30/24-bit
• Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital and DTS-HD Master Audio
• Supports IR remote control(IR remote control codes are available)
• Supports smart EDID management, including 8-output EDID, 15 internal EDID.
• Supports RS-232 and TCP/IP Control(WEB GUI and iOS/Android APP)
• Supports 2-press push buttons control with blue lights
• Supports to rename the inputs and outputs
Specification

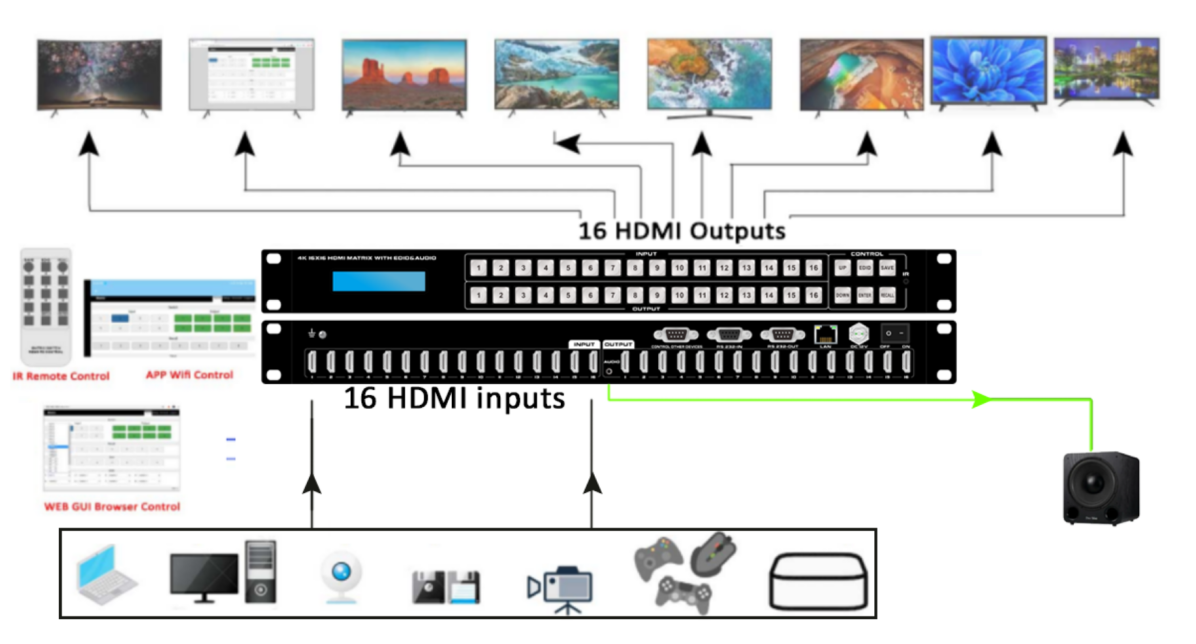

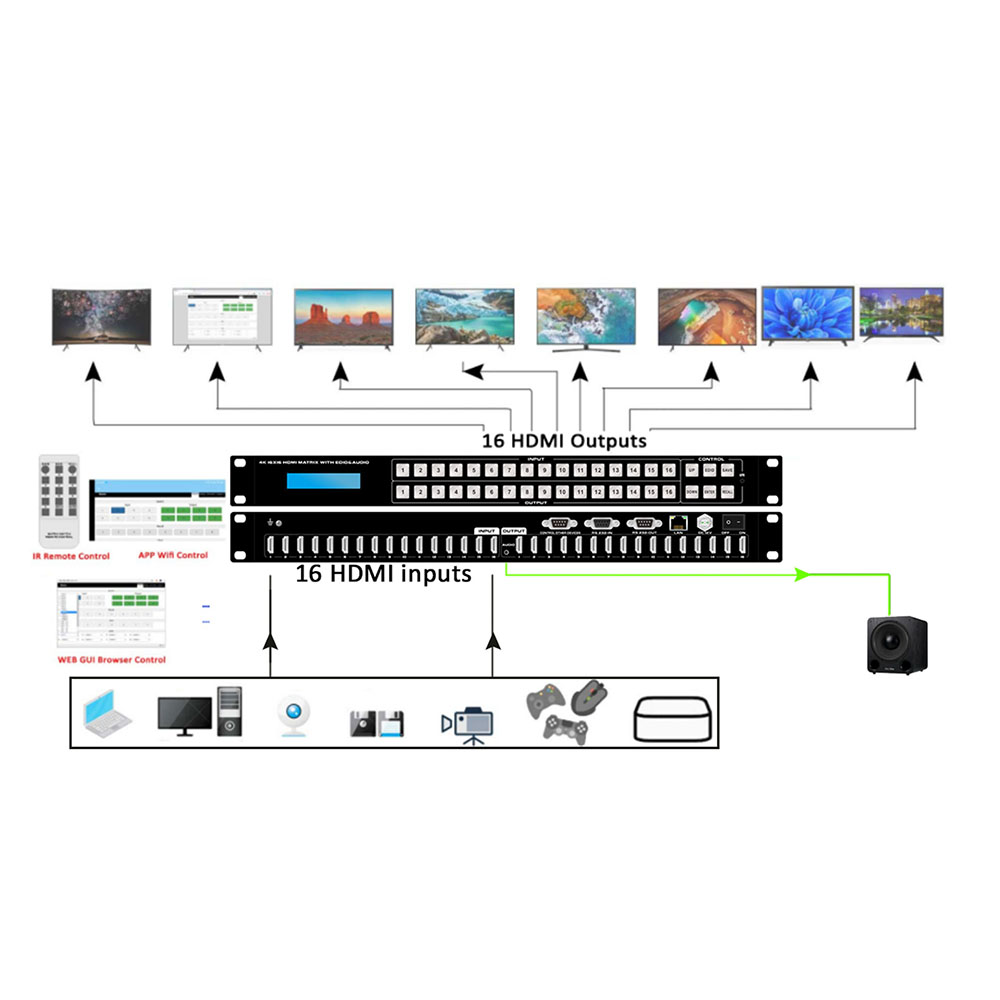

Connection diagram
