OVERVIEW
Introduction

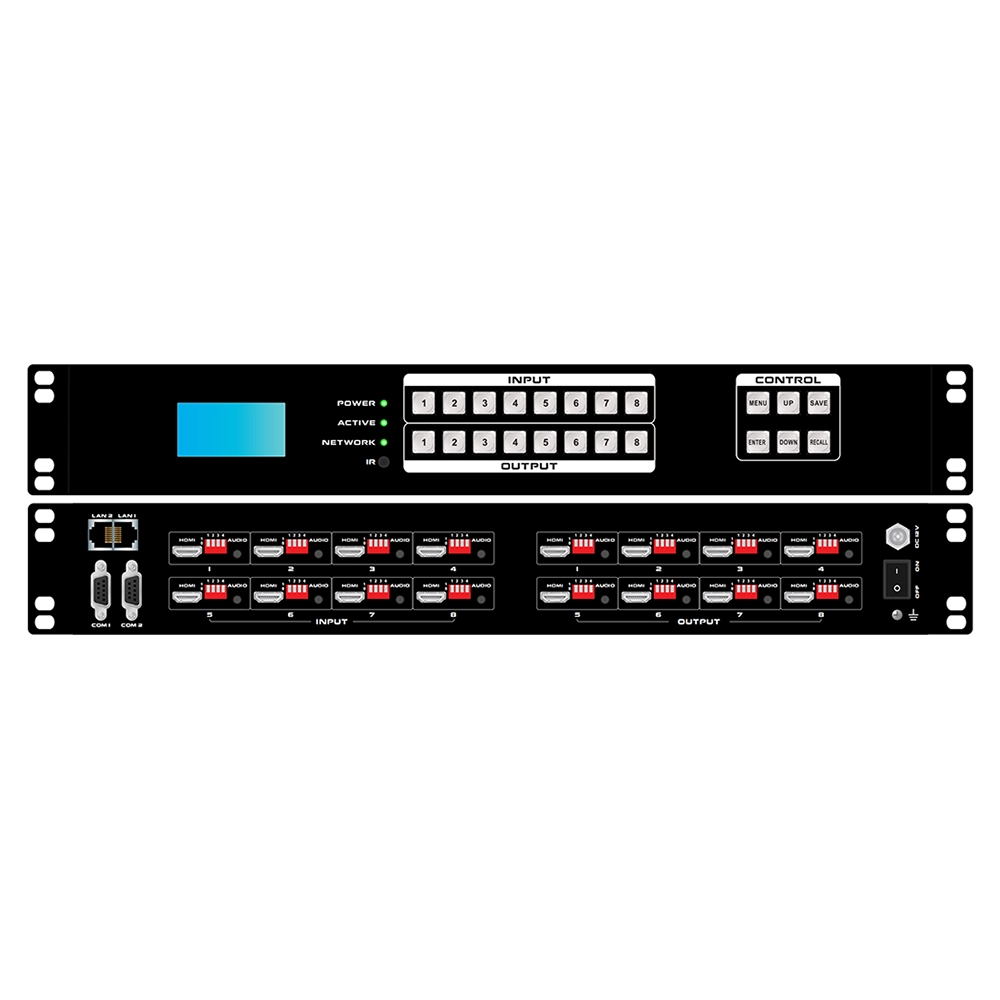

This is a new fixed 4K60Hz HDMI matrix switcher with 8 HDMI input ports with 8* 3.5mm audio in and 8 HDMI output ports with 8* 3.5mm audio outs, the resolution can up to 4K60Hz and all ports are HDCP compliant. With the friendly user control methods: IR remote control, 2-key push front buttons with background blue light, WEB GUI, TCP/IP, RS232,UDP and the iOS/Android APP control, supports EDID management by the DIP switches, this matrix switcher can work with the Blu-Ray Players, Set-Top boxes, Home Theater, and game consoles etc HDMI input sources to route to the HDMI displays, it has been widely used in different audio visual applications.

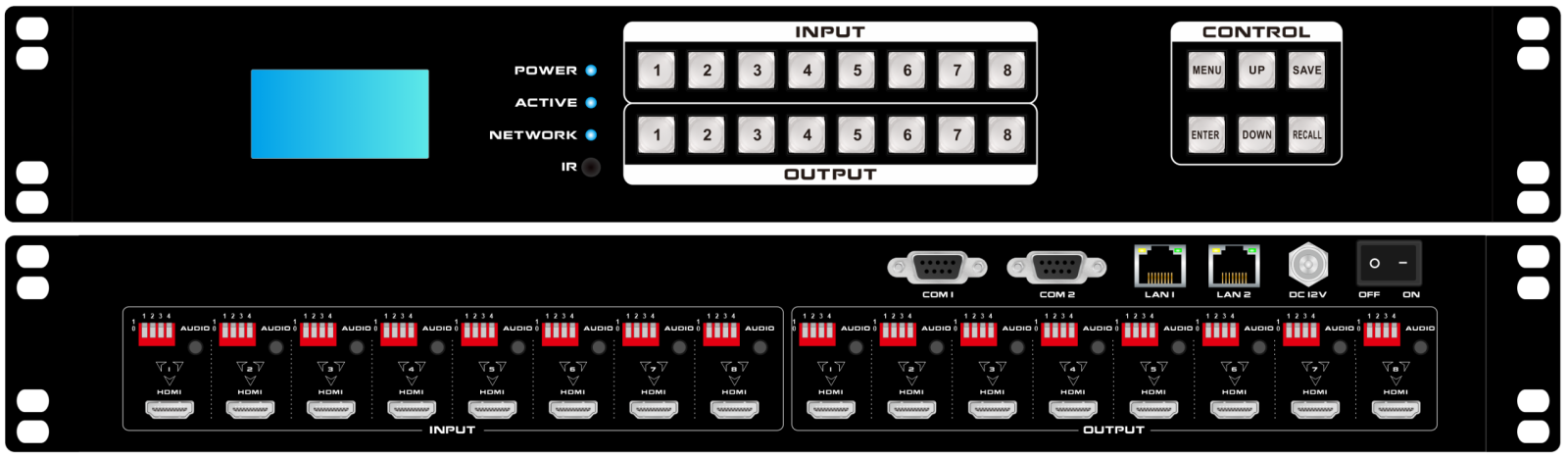

Features
• 8 HDMI inputs with 8 audio in and 8 HDMI outputs with 8 audio outs
• Supports HDMI2.0, HDCP compliant
• The resolution can up to 4K@60Hz
• Deep Color support 48/36/30/24-bit
• Supports LPCM 7.1CH, Dolby Digital and DTS-HD Master Audio
• Supports EDID management by DIP switch
• Supports RS-232, UPD(4000) and TCP/IP(5000) Control protocols
• Supports 2-press push buttons control with blue lights
• Supports WEB GUI, APP, RS232, push-button, IR remote controls
Specification
DIP switch for inputs:
DIP switch for outputs:

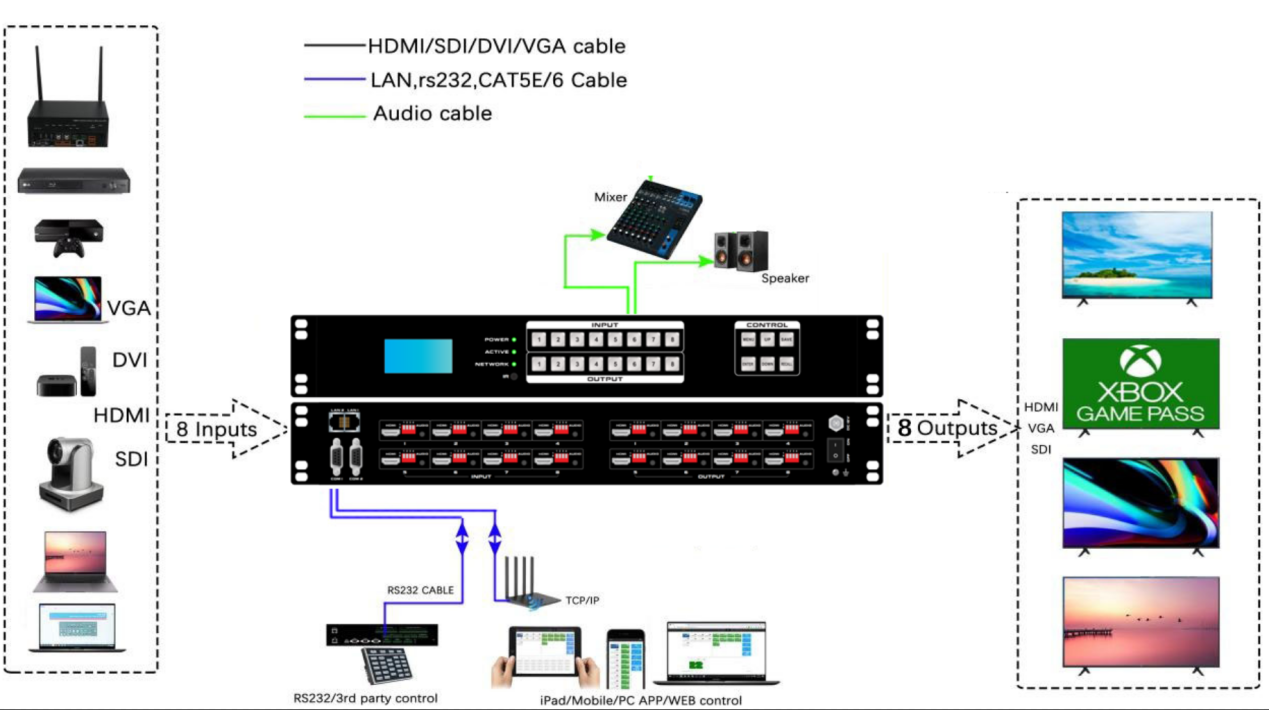

Connection diagram

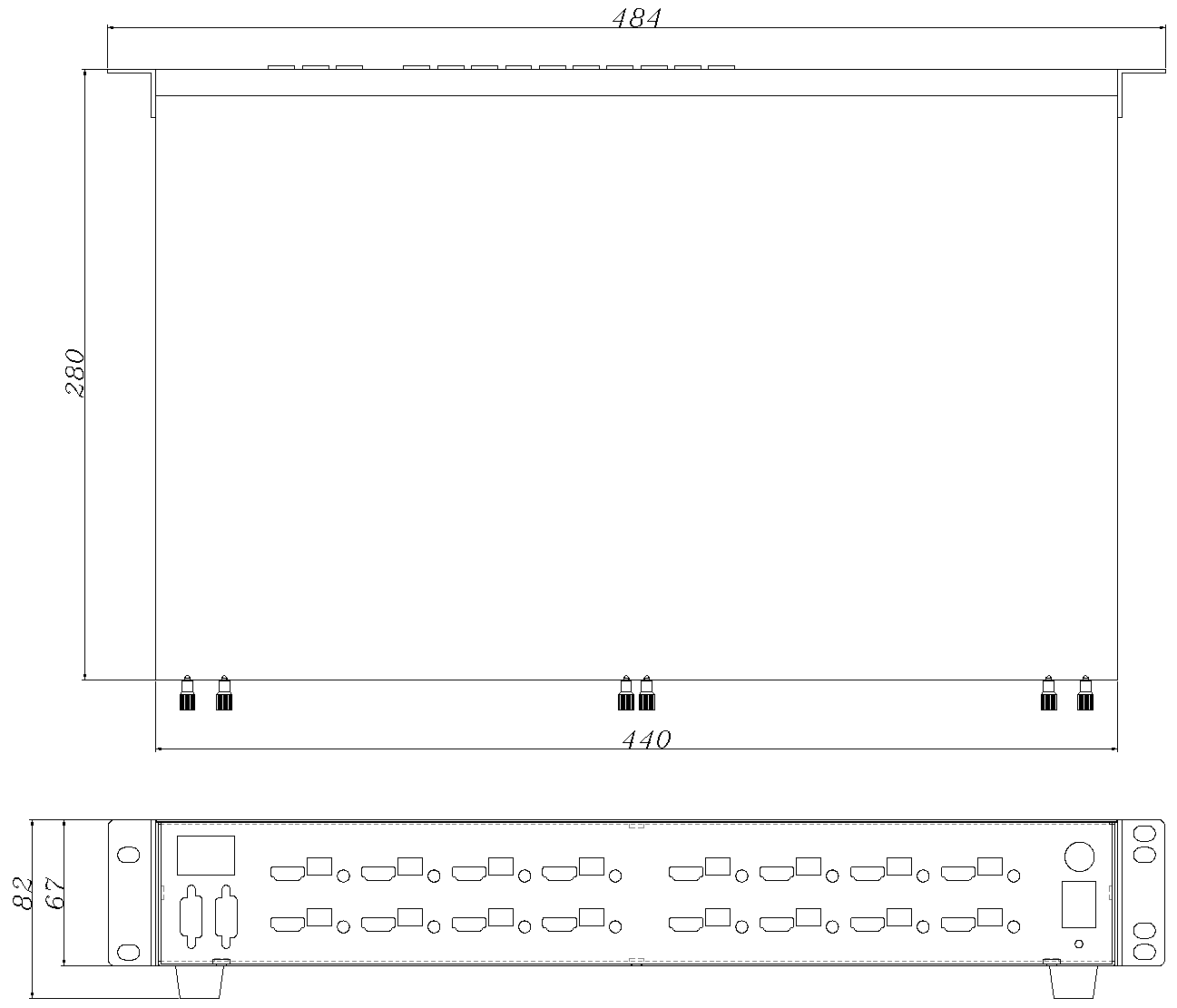

Matrix Size Drawing(484*67*280)mm(L*H*D)
