OVERVIEW
Introduction

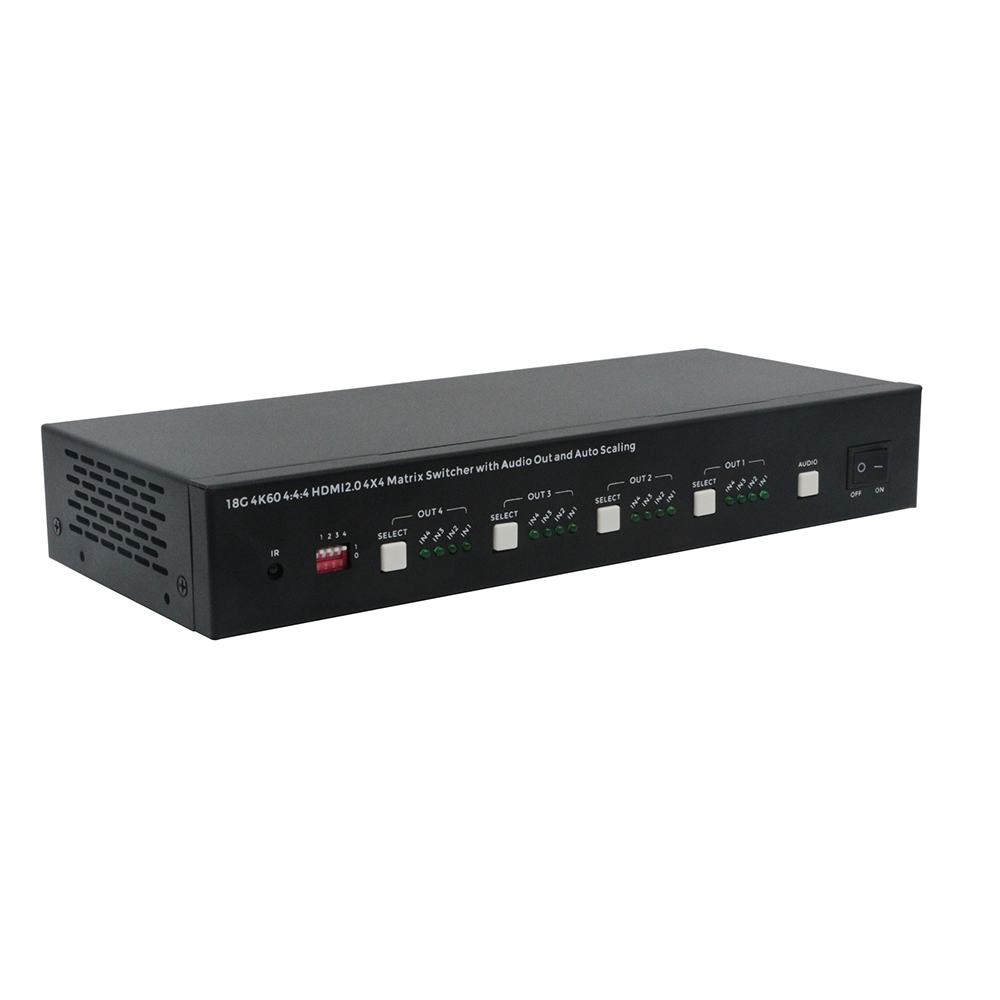

This is a new series of the fixed 4K60 HDMI2.0 Matrix Switcher, with 4 in and 4 out. Every HDMI input and output supports 1080p full HD plus 3D formats and up to 4K60 with HDCP2.2 compliant on all ports. It can work with Blu-Ray players, Set-Top boxes, Home Theater PCs, and game consoles which connect to an HDMI display. Supports independent EDID management. Supports RS-232 serial port commands, infrared remote control and front push-button switching. Supports the audio de-embedding with independent switching from all the 4 inputs. This is lite 4K60 matrix switcher can be widely used for home theater, small meeting room, etc.
Features
• 4 HDMI2.0 inputs and 4 HDMI2.0 outputs
• Support 1 audio(3.5mm and SPDF) de-ebmedded with independent switching
• Supports HDMI2.0, HDCP2.2
• The resolution can up to 4K@60Hz 4:4:4
• Deep Color support 48/36/30/24-bit
• Supports IR remote and RS232 commands control
• Supports smart EDID management by front 4-PIN DIP switch
• LITE chassis for small space application, rack ears are available
Specification

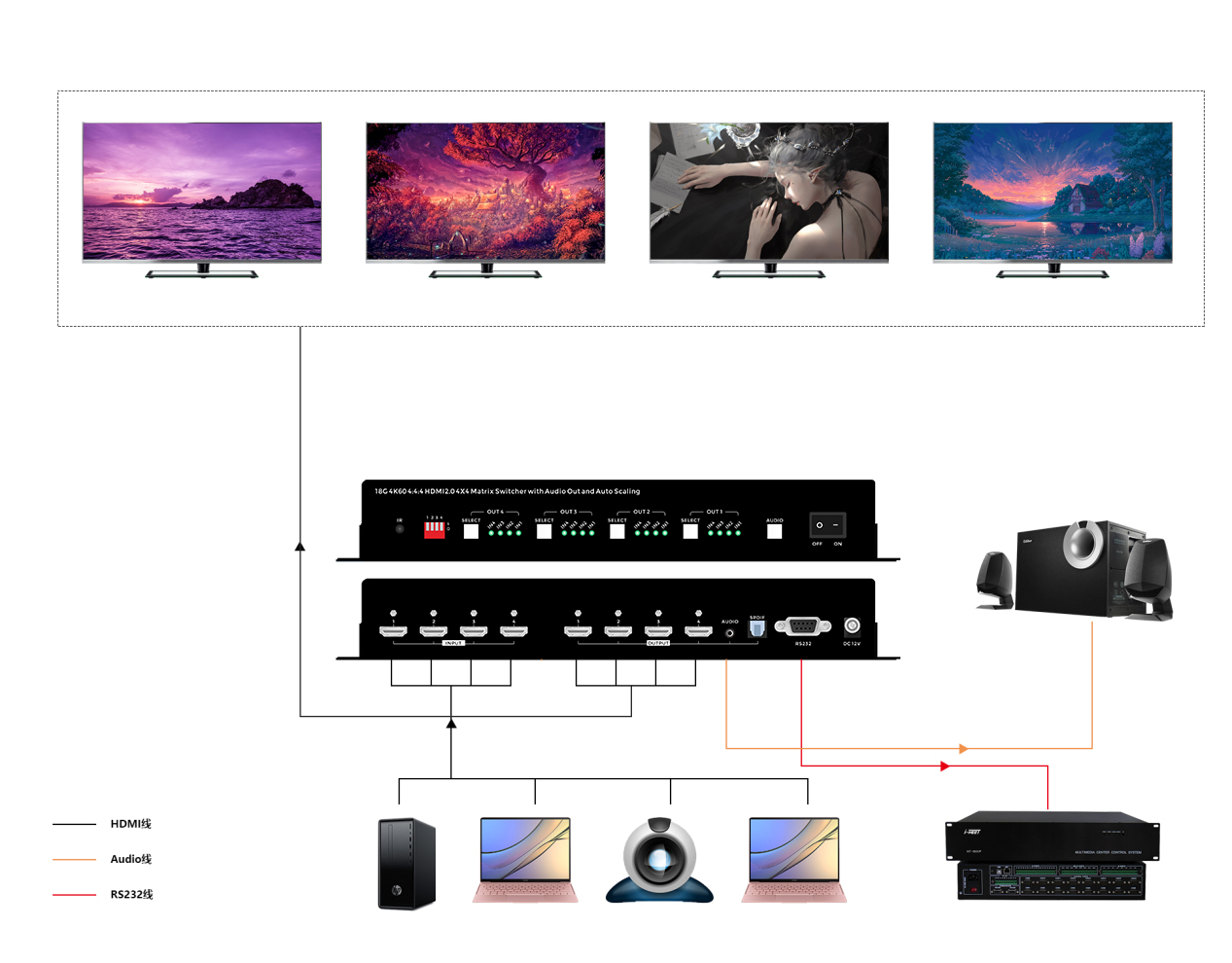

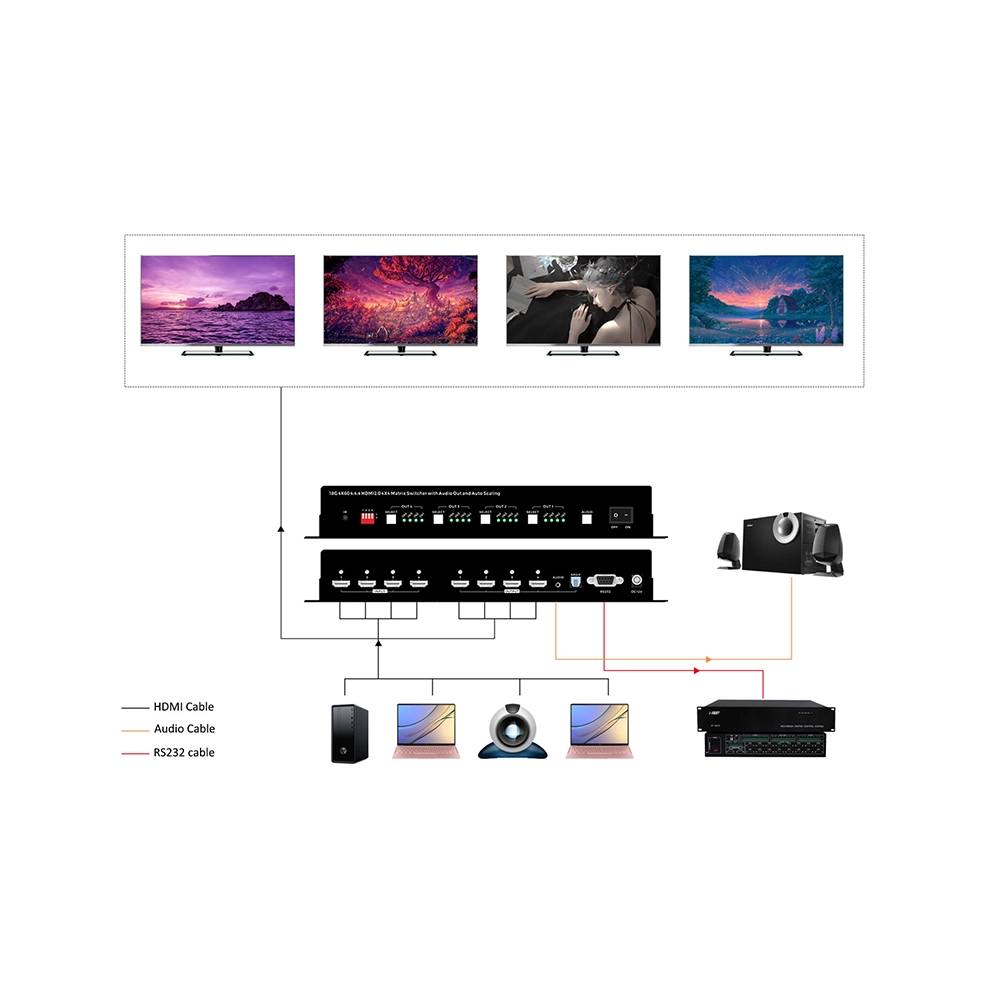

Connection diagram

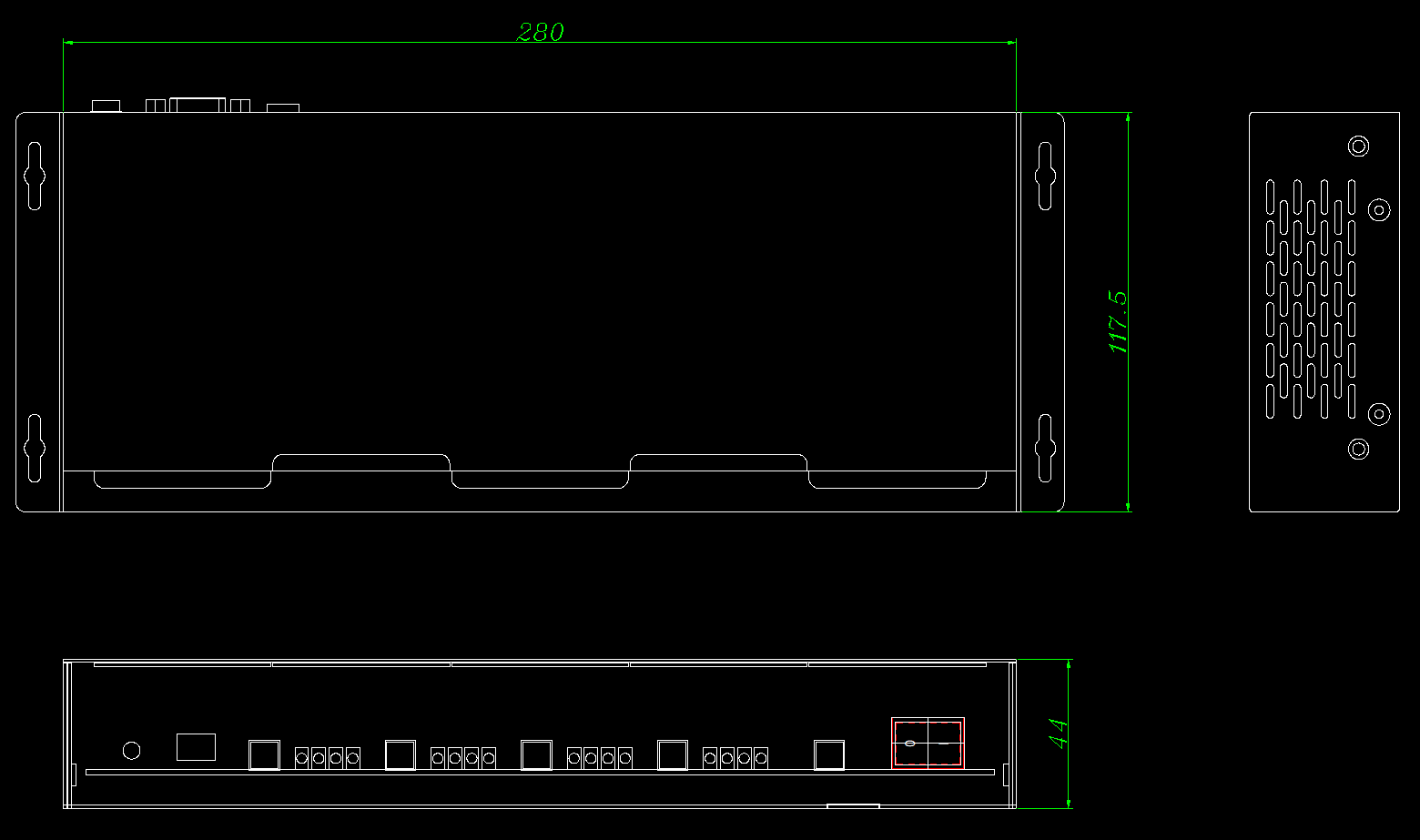

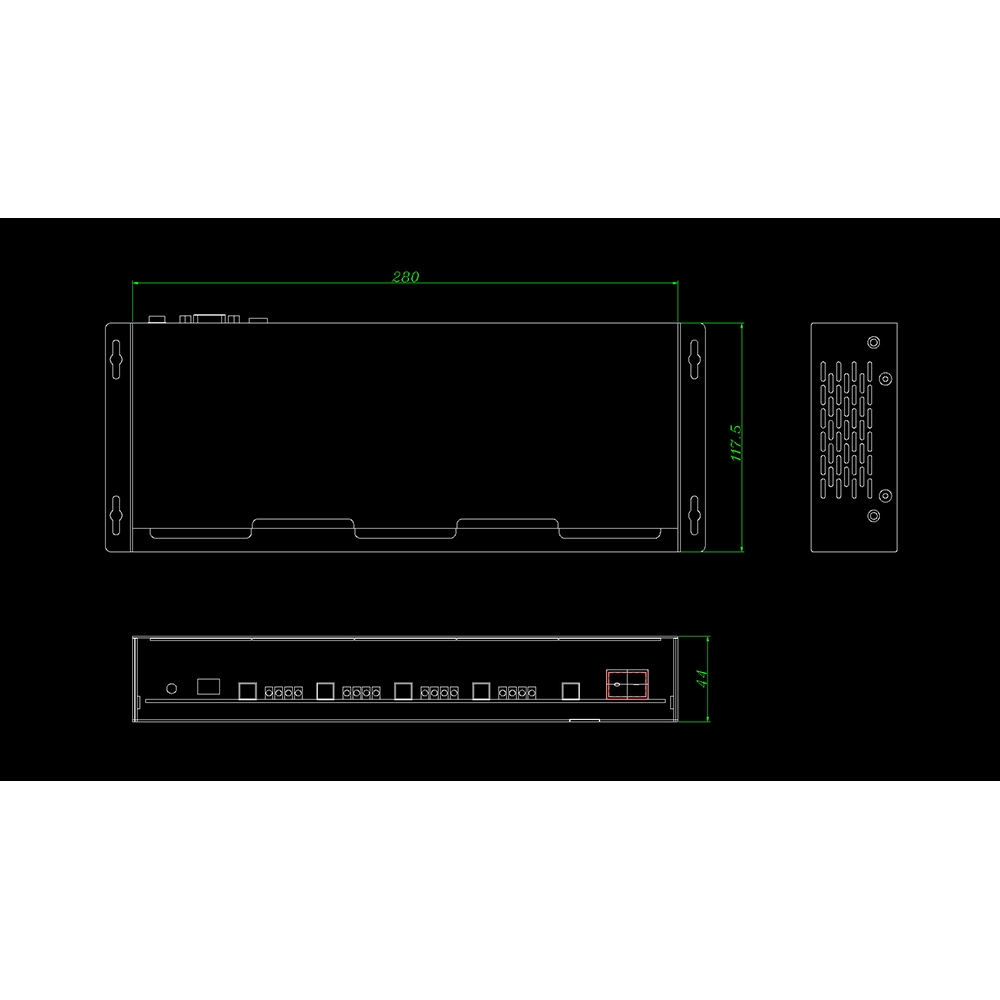

Product Dimension
