OVERVIEW
Introduction
This is a 4K60 FIX SVM series matrix switcher with the seamless switch, Video Wall function, EDID management, audio embedded&de-embedded, scaling function and all ports are HDCP compliant. With the friendly user control methods by IR remote, 2-Key push buttons with background blue light, WEB GUI/TCPIP/RS232/APP control, supports EDID management, this matrix switcher can work with the Blu-Ray Players, Set-Top boxes, Home Theater, and game consoles etc HDMI input sources to route to the HDMI displays, it has been widely used in different audio visual applications.
Features
• The resolution can up to 4K@60Hz inputs and outputs with scaling
• Supports seamless switching, no black/blue screen during the sources switch
• Supports the video wall function
• Supports the 3.5mm audio embedded and de-embedded
• Supports EDID management
• Supports RS-232 and TCP/IP Control(WEB GUI, APP), IR remote control
• Supports the push buttons control with blue lights
• Supports to rename the inputs and outputs
• Supports up to 40 scenes
Specification

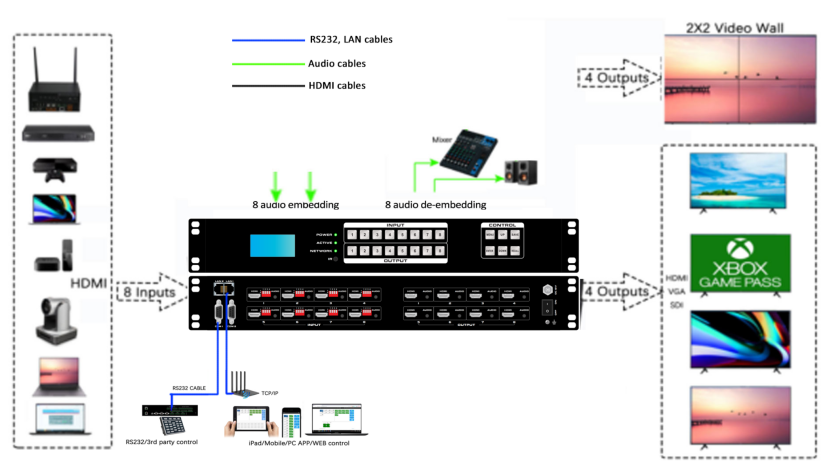

Connection diagram(here takes the 8×8 model)

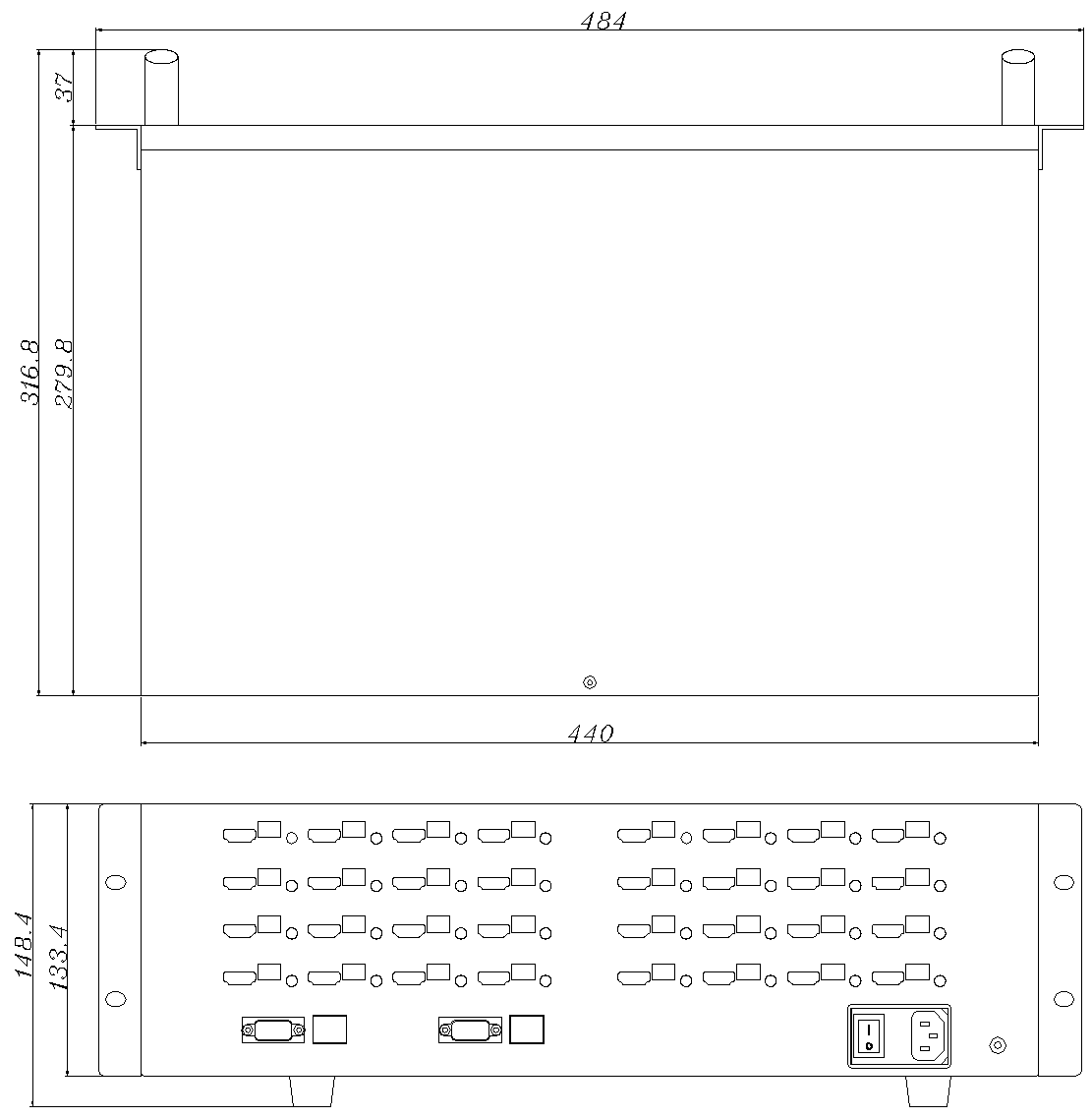

Product dimensions(mm)
