OVERVIEW
Introduction
This 4K@60 444 AV over IP System (Model H264&265-IPB-940) is a distributed input and output solution that eliminates the need for a server or control box,

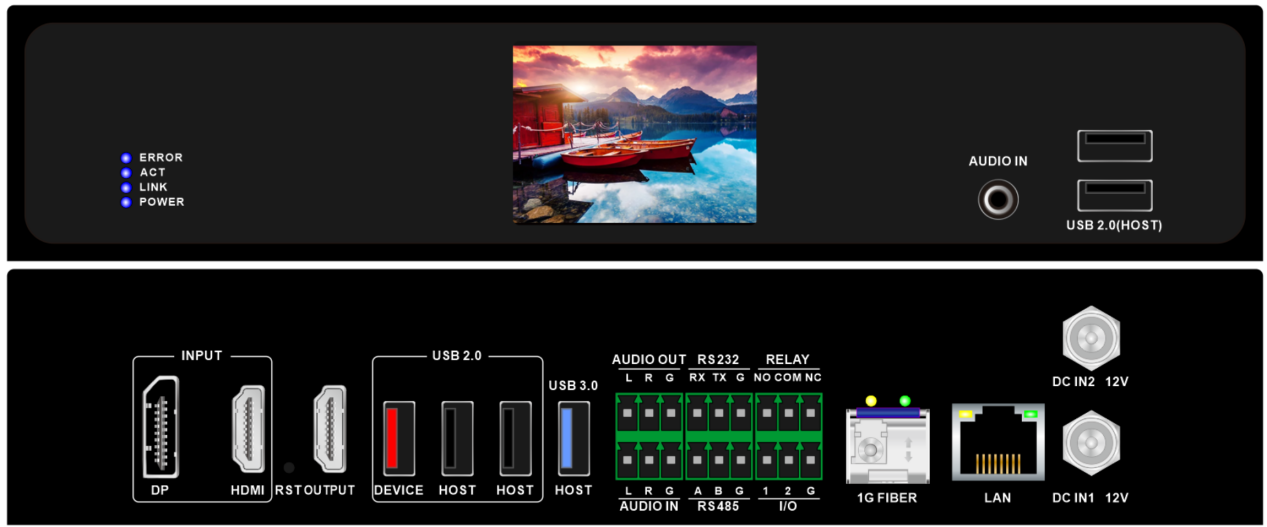

This is a 4K60 4:4:4 HDMI over IP system, have Encode&Decode integrated into one device, any of the unit can be used as the encoder or decoder, supports 3-PIN audio in&out, 3.5mm MIC/speaker out, USB ports for Keyboard&Mouse/Host/Touch/USB pen drive, 1*RS232, 1*RS485, 1*Relay and 1*Bi-directional IR central control interfaces; Support Fiber or LAN ports transmission, this distance can up to 150m over CAT6 or 2km over Fiber, supports POE function and DC power supply. The front panel LCD screen can preview the source and showing the model/ID/IP/Status which is easier for installation settings.
With the no server needed technology, any failure of any units in the system will not affect the operation of the whole system. it’s widely improving the system stability. This system can be widely used in command centers, conference rooms, smart campuses, smart parks, etc.
Features
• 4K60 distributed input and output over AV over IP system
• No server or control box needed in the system
• Encoder and decoder are the same device, set by Windows Software
• Supports resolution down/up scaling
• Supports Video Wall control with up to 16-windows per screen
• Supports KVM workstation with mouse&keyboard control
• Supports input sources preview and output preview
• Supports seamless switch
• Supports control UI customizing
• Supports audio embedded and de-embedded
• Supports RS232, RS485, Relay and Bi-directional IR control or pass-through
• Supports OSD, scrolling text, etc functions
• Supports workstation control remote PCs, video wall etc.
Specification

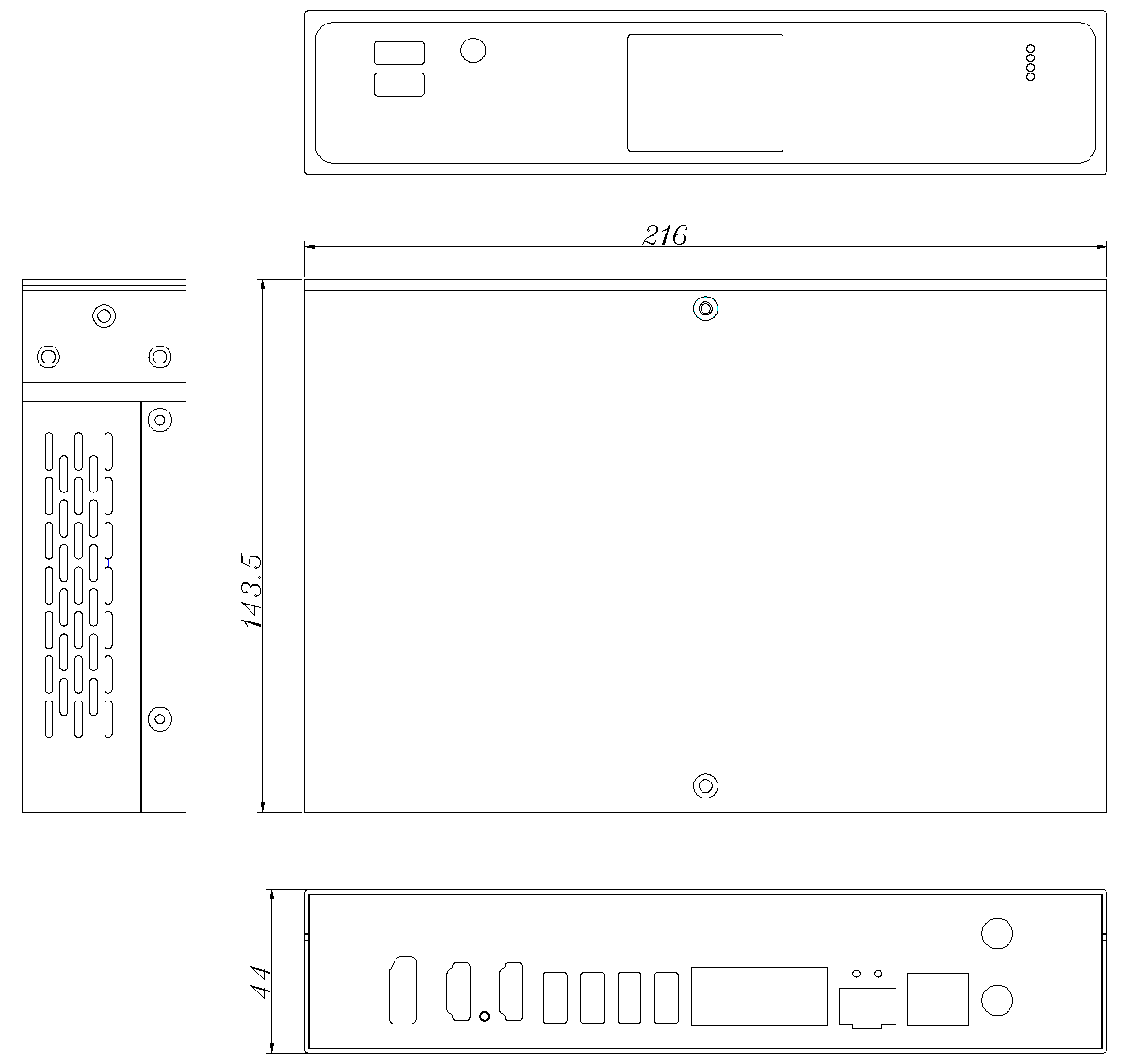

Product dimension(mm)
