FIBER 8K60P cable⧉

OVERVIEW

Introduction

This product is an HDMI2.1 active optical cable (AOC) with high bandwidth, low power consumption and low cost. Using optical fiber to replace copper wire as the high-speed signal transmission medium, it can perfectly transmit 8k@60hz image up to more than 100 meters. Compared with the traditional copper wire, HDMI AOC is much longer, softer, more slim, with better signal quality and perfect CEC, HEAC feature. Compared with other HDMI optical fiber transmission solution, HDMI AOC is easy to use, has perfect compatibility, and no external power supply needed.

With the embedded optical engine, it can support the long distance transmission, and no extra power supply needed, real to plug and play.

Features

• Long distance transmission up to 100 meters(330ft)

• HDMI2.1 standard, support up to 8K@60hz

• Support HDCP2.2

• Plug and play without the external power needed

• Thinner(cable OD 4.5mm), lighter and softer than the normal copper cable

• Highly resistant to EMI and RFI

• EDID,CEC,HDCP (2.2), HDR (High Dynamic Range)，HEC,ARC etc.

Specification

Application

•

• Home Theater

• High definition Video Meeting System

• Medical Video System

• High definition Video Surveillance System

• Digital Signage and TV Wall

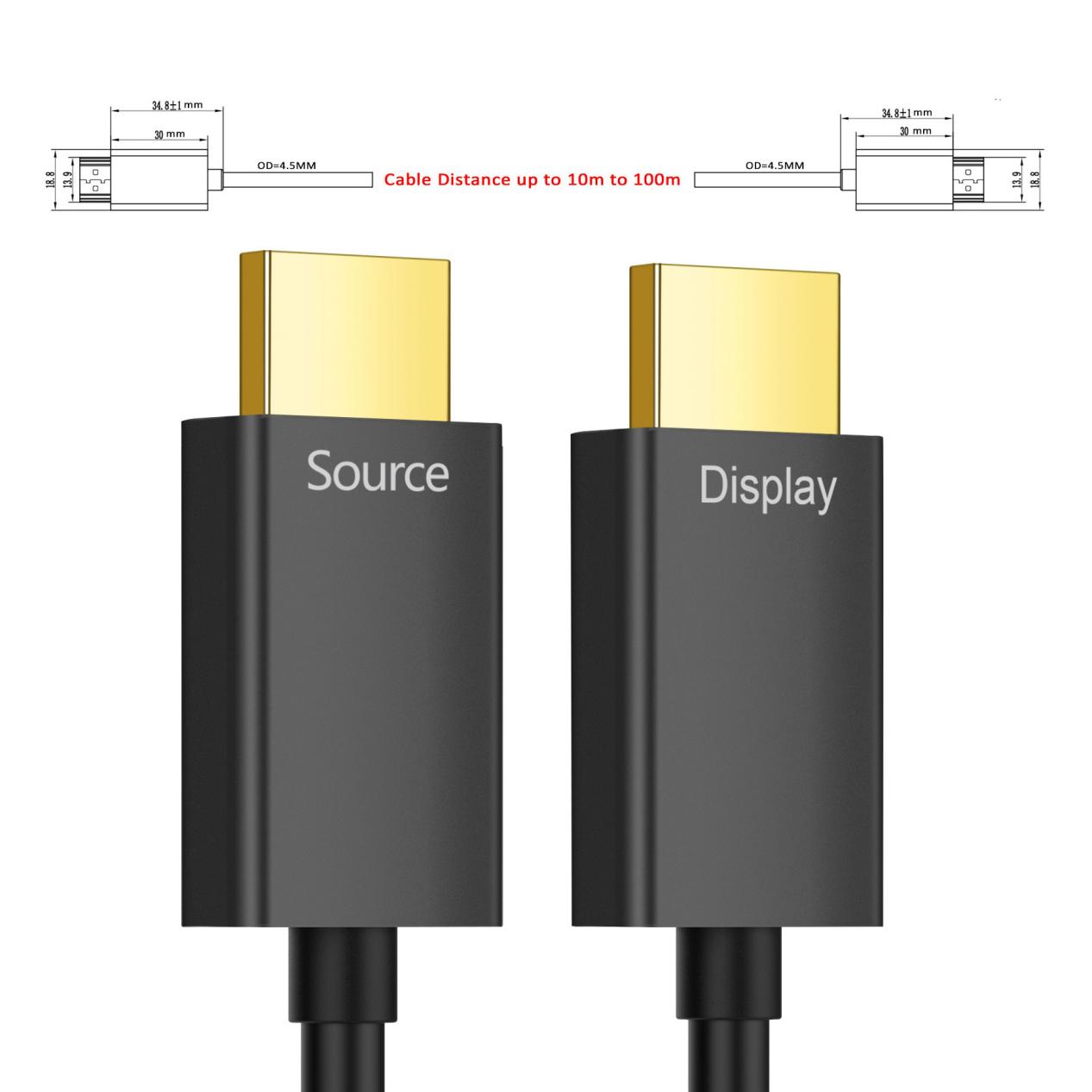

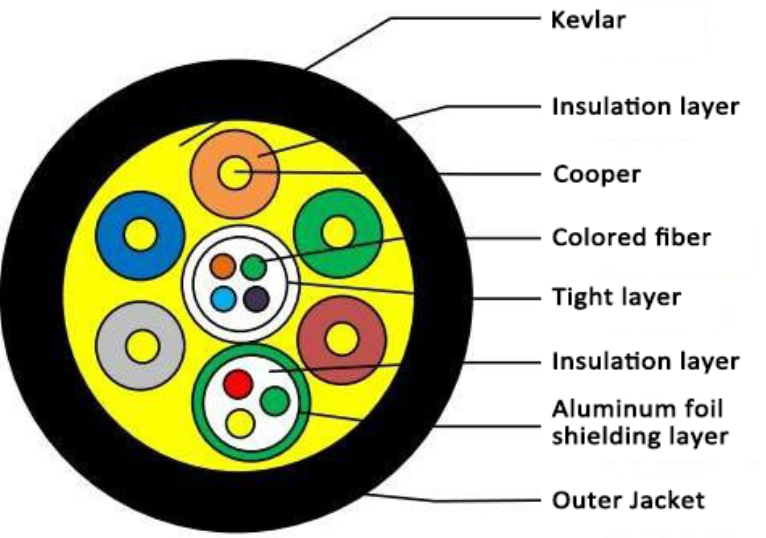

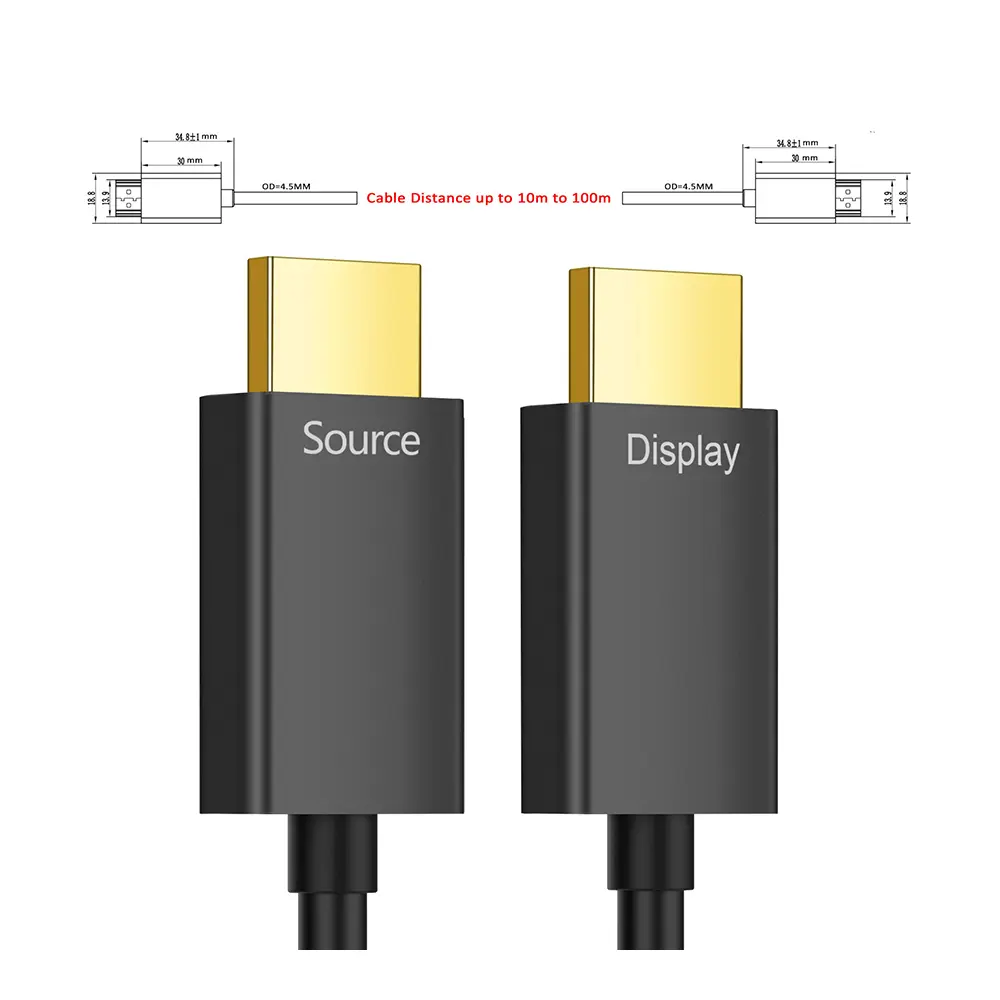

Cable details
