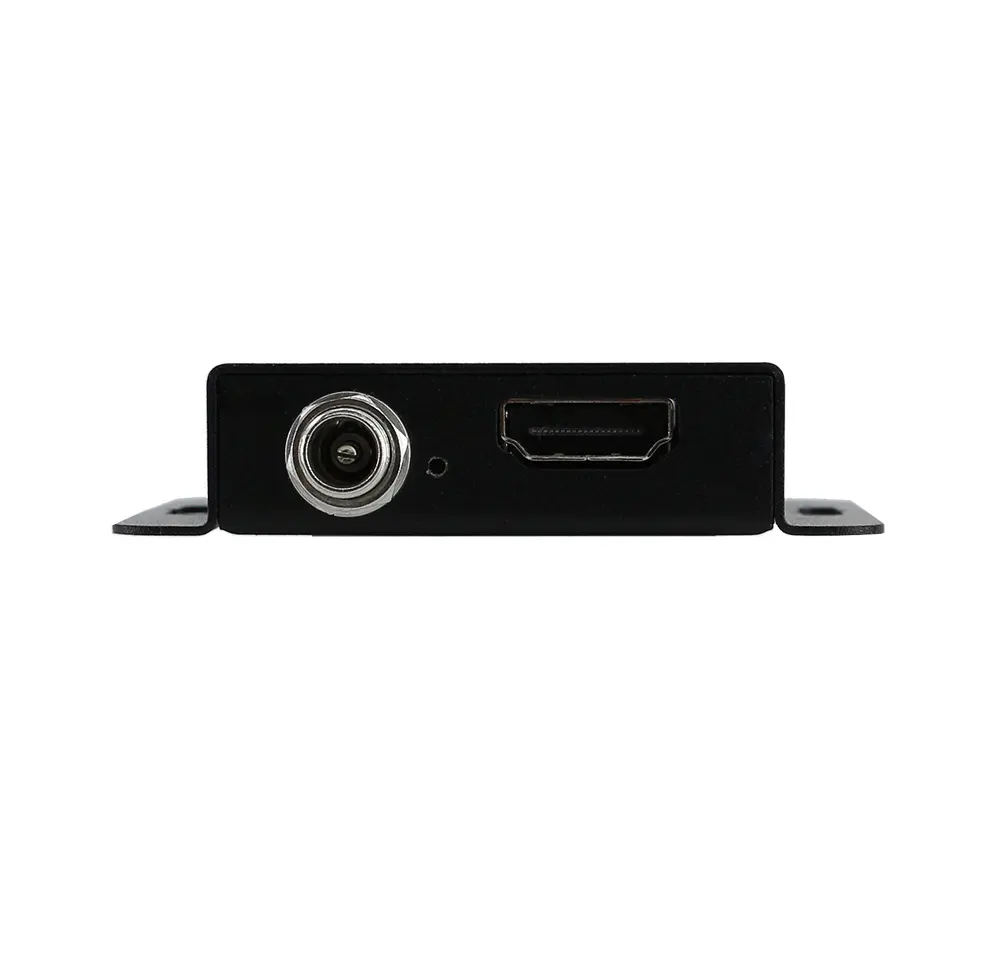

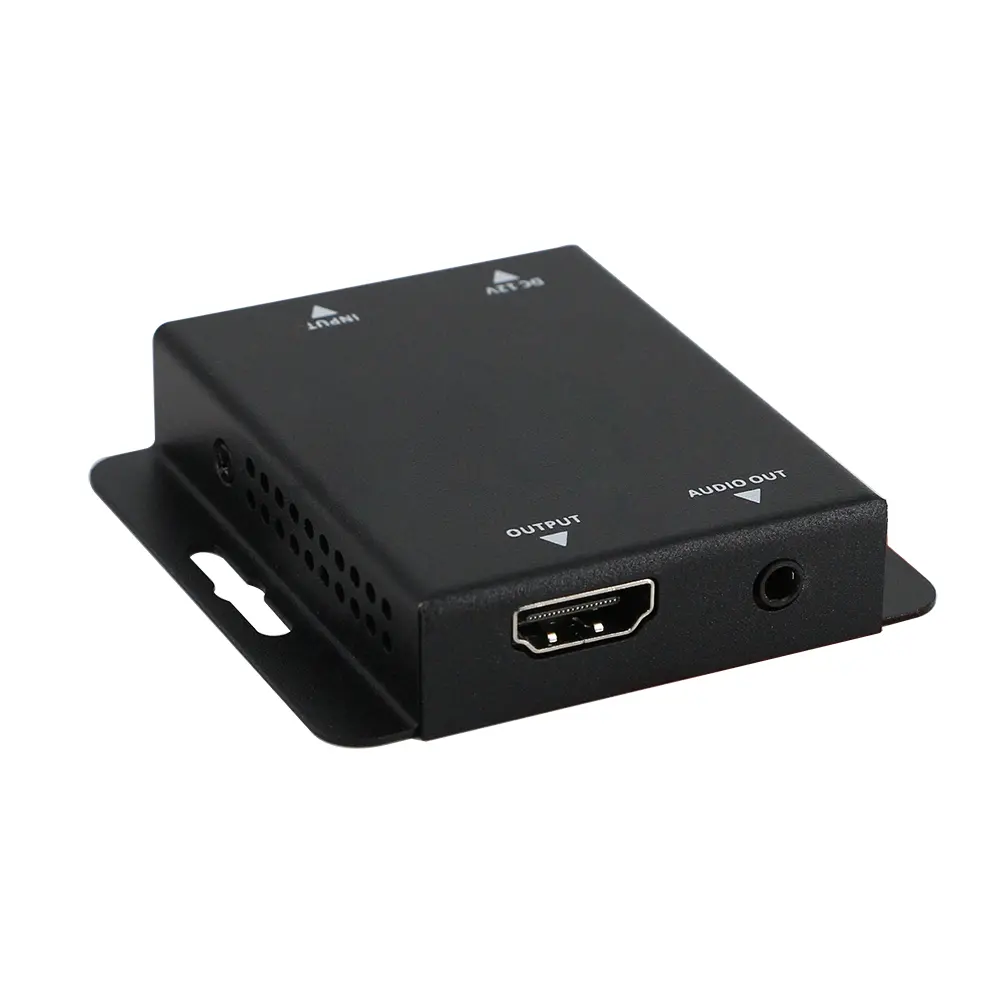

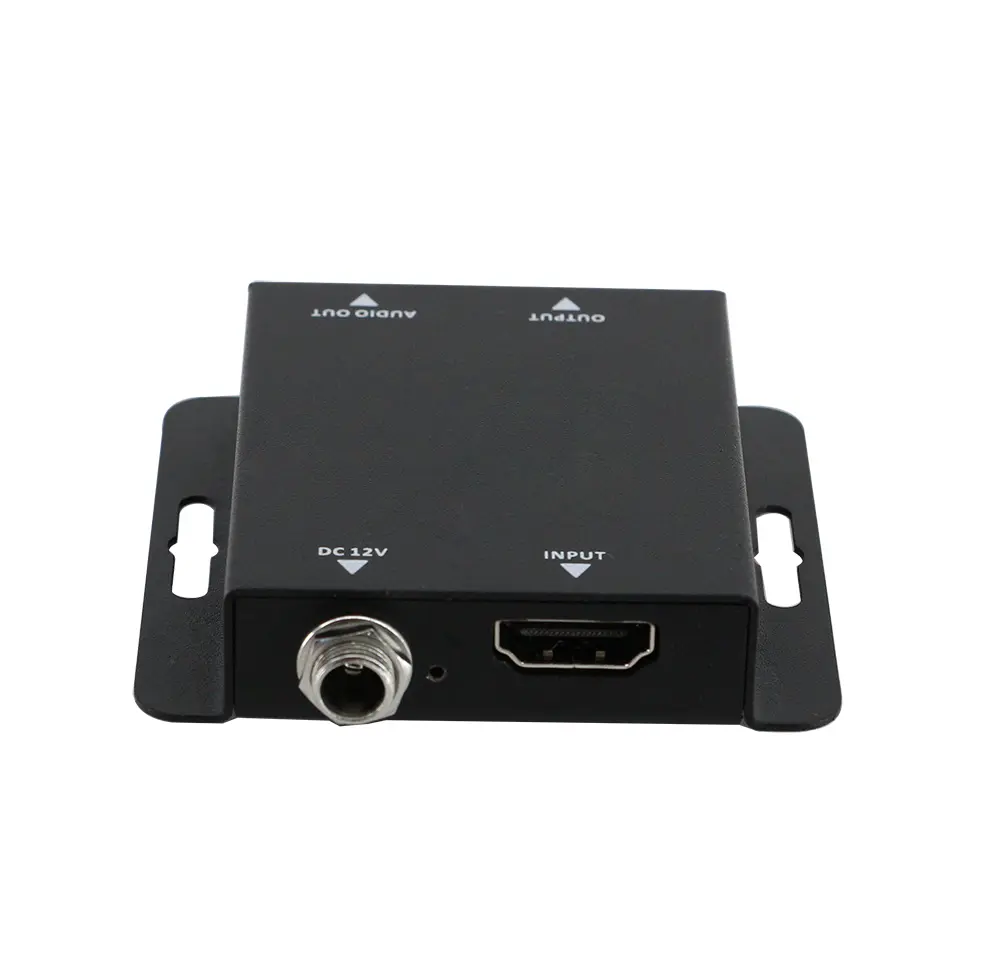

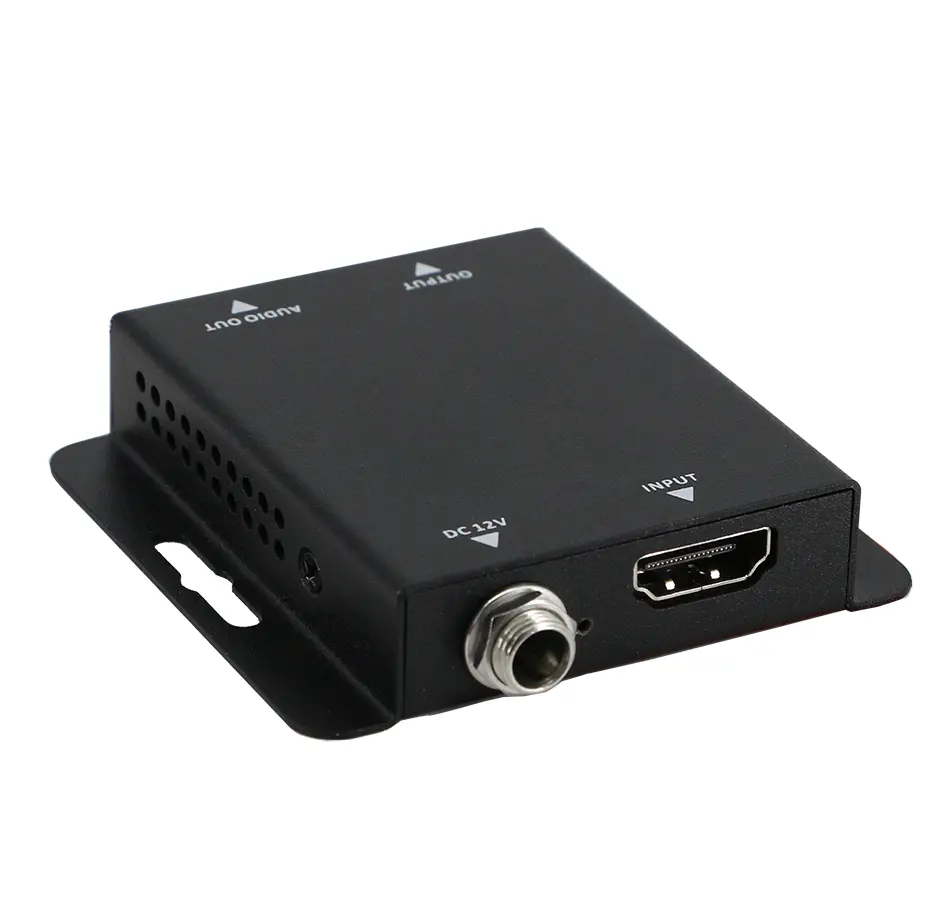

Introduction
This is a 4K60 HDCP2.3 adjuster with EDID management and audio de-embedded functions. It supports power supply via the 5V output from an HDMI signal source, enables lossless transmission of 4K@60Hz RGB signals, and allows signal frequency adjustment through physical DIP switches. The device integrates HDCP 2.3/1.4 adjustment functionality to resolve compatibility issues with encrypted signals, and simultaneously provides a 3.5mm analog audio separation output.
It is suitable for scenarios requiring cross-generation device collaboration, such as radio and television production, medical imaging, and digital signage. It ensures seamless signal connection through hardware-level processing.
Features
• Supports HDMI 2.0, with a maximum resolution of 4096×2160@60Hz
• Supports audio de-embedding
• Supports EDID management
• Supports visual LED indicators to show power and working status
• Supports DC12v or HDMI 5V power supply
• Supports HDCP2.3/1.4 adjustment
Specification
4-PIN DIP Switch setting table

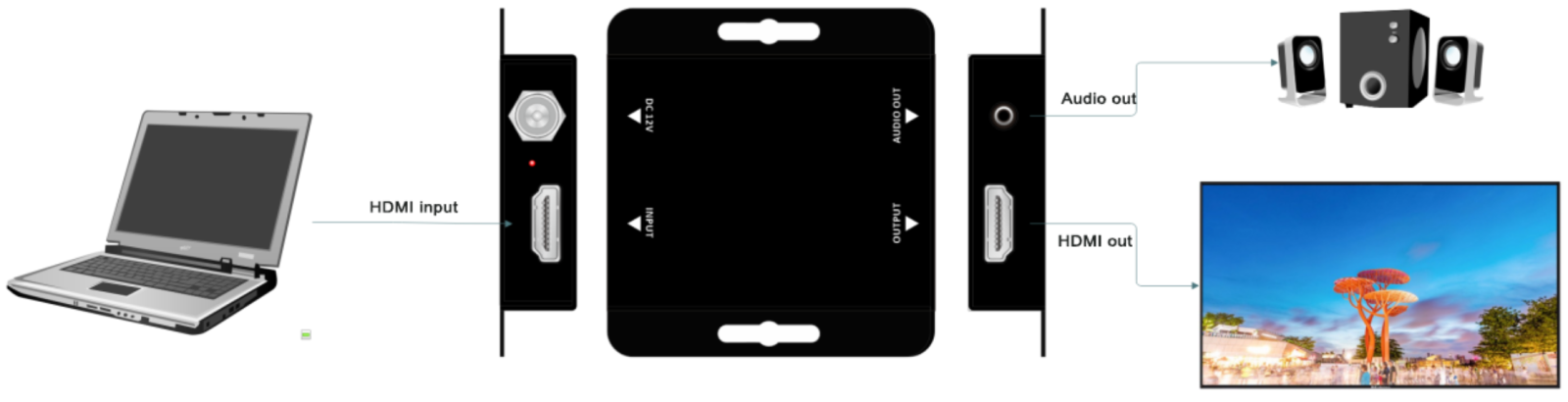

Connection diagram

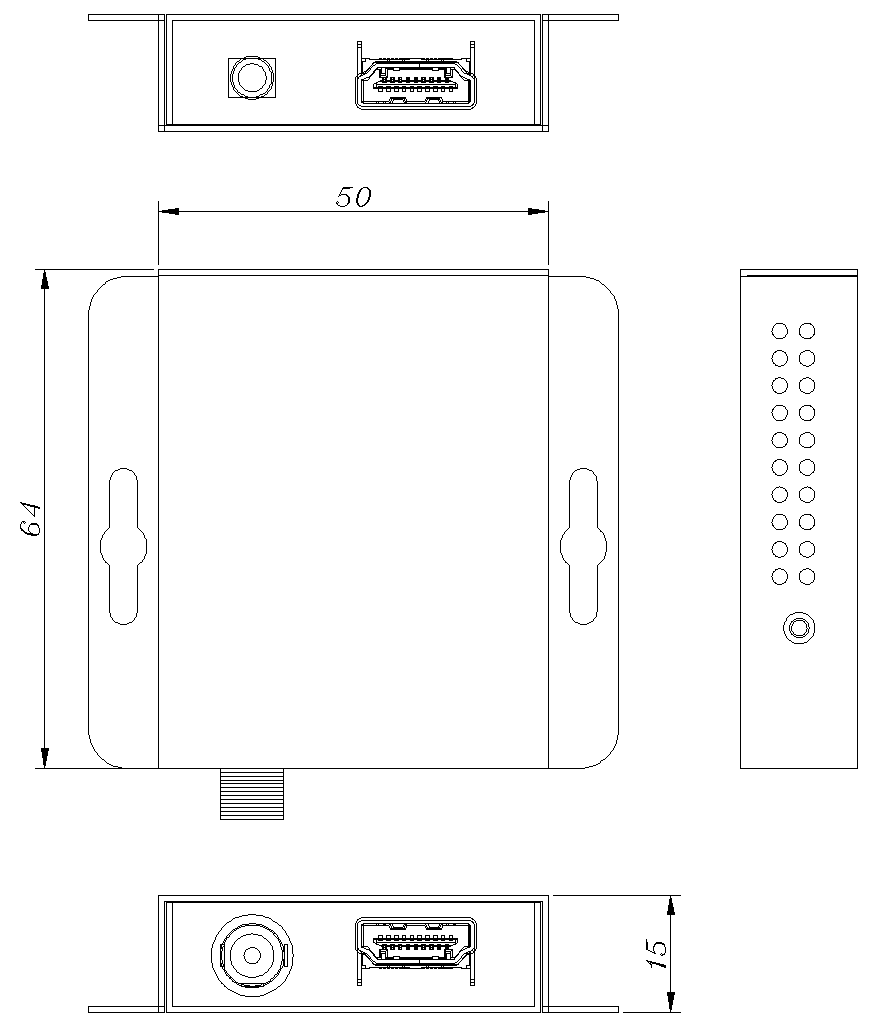

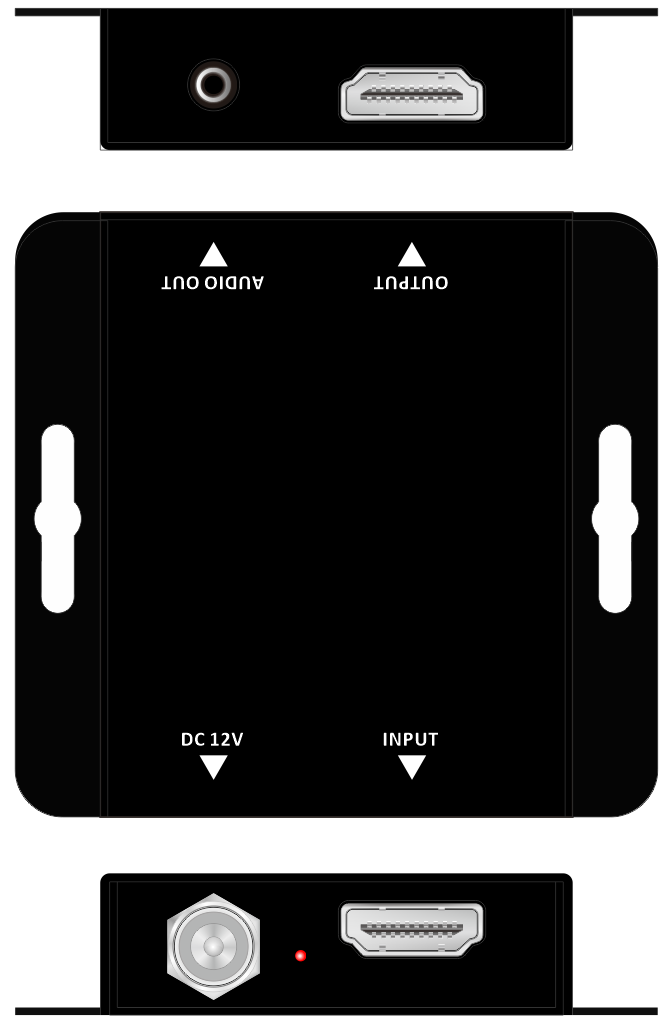

Product size(mm)
| Description | HDMI Decryption Device |
|---|---|
| Input | 1×HDMI |
| Output | 1×HDMI, 1×Analog Audio |
| Protocol Standards | Supports HDMI 1.4, HDCP 1.4, HDMI 2.0, HDCP 2.2 |
| Color Space | Supports RGB 444, YUV 444, YUV 422, and x.v.Color s |
| Resolution | 640×480 – 3840×2160@60Hz (VESA); 480i – 4K@60Hz (HDTV) |
| EDID Management | DIP Switches |
| Power Supply | DC12V 1.5A |
| DIP 1 | DIP 2 · DIP 3 · Function · DIP 4 |
| 0 | 0 · 0 · Bypass · 0: Same resolution as input / 1: Auto scaling |
| 0 (2) | 0 · 1 · DVI-1080 |
| 0 (3) | 1 · 0 · DVI-1200 |
| 1 | 0 · 0 · 1080P2.1 |
| 0 (4) | 1 · 1 · 1280×720 (1280*800A) |
| 1 (2) | 0 · 1 · HDMI-1200 |
| 1 (3) | 1 · 0 · 4k2.1 |
| 1 (4) | 1 · 1 · 4k60 |
| Description | HDMI Decryption Device |
|---|---|
| Input | 1×HDMI |
| Output | 1×HDMI, 1×Analog Audio |
| Protocol Standards | Supports HDMI 1.4, HDCP 1.4, HDMI 2.0, HDCP 2.2 |
| Color Space | Supports RGB 444, YUV 444, YUV 422, and x.v.Color s |
| Resolution | 640×480 – 3840×2160@60Hz (VESA); 480i – 4K@60Hz (HDTV) |
| EDID Management | DIP Switches |
| Power Supply | DC12V 1.5A |
| DIP 1 | DIP 2 · DIP 3 · Function · DIP 4 |
| 0 | 0 · 0 · Bypass · 0: Same resolution as input / 1: Auto scaling |
| 0 (2) | 0 · 1 · DVI-1080 |
| 0 (3) | 1 · 0 · DVI-1200 |
| 1 | 0 · 0 · 1080P2.1 |
| 0 (4) | 1 · 1 · 1280×720 (1280*800A) |
| 1 (2) | 0 · 1 · HDMI-1200 |
| 1 (3) | 1 · 0 · 4k2.1 |
| 1 (4) | 1 · 1 · 4k60 |
