Introduction

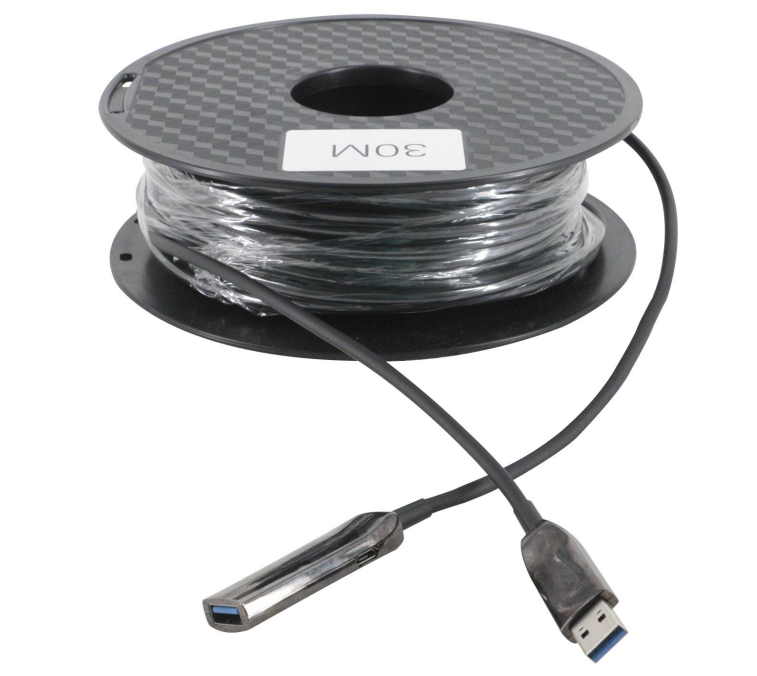

In order to solve various problems such as instability, compatibility and limited distance when traditional copper wire transmits USB3.0. This new coming Industry-leading USB3.0 (USB A Male To A Female) pure fiber optic technology cable will be helpful.
The USB3.0 cable is simple and friendly-use with stable performance, which can meet the rapid production needs of customers, it can be used with the PTZ cameras, digital home theaters, extended data storage, automotive data transmission, printers, etc.
Features
• Using the 850nm VCSEL technology
• The distance up to 100m

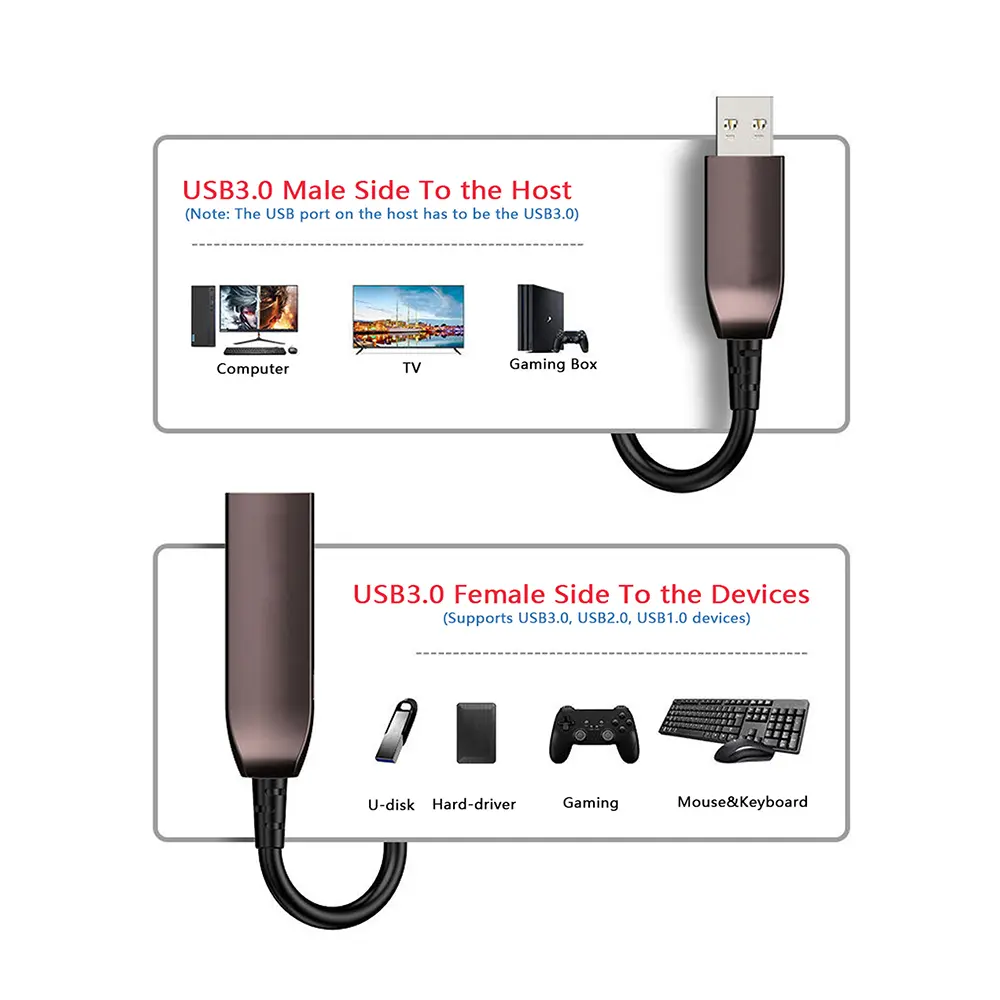

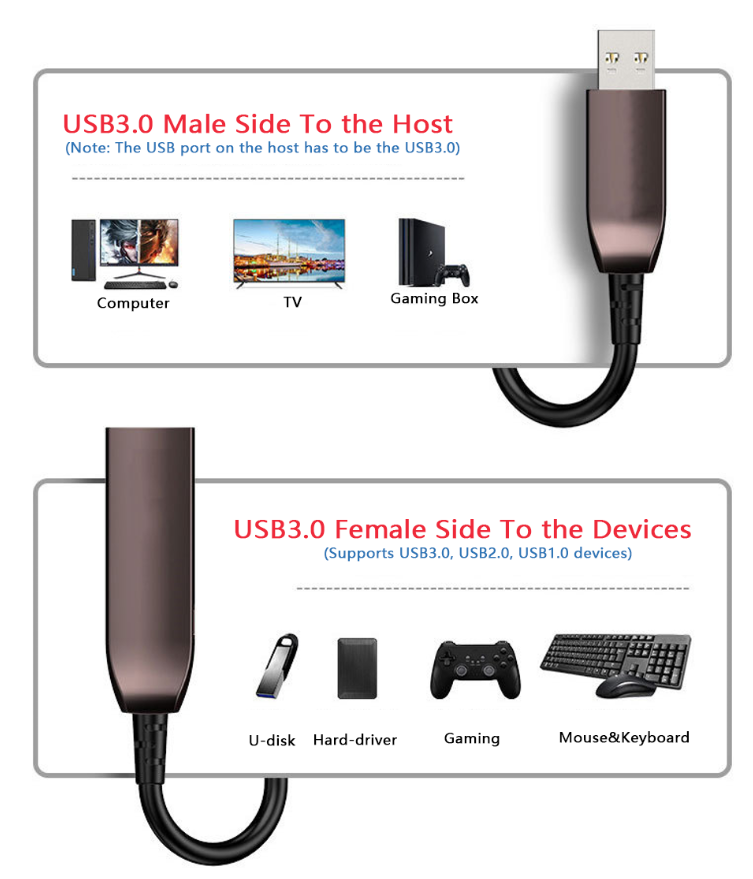

• HOST side is only for the USB3.0 port
• The female side can connected with USB3.0/USB2.0
• Support hot-plug
• With the Micro-b power supply
• Can work with the Conference cameras, data extension, printer etc.
• PVC jacket, OM3 150 , OD4.8
Specification
Cable Application
| Product Name | USB3.0 Pure Fiber Optic Cable |
|---|---|
| Fiber Optic cable | 1G Fiber Optic Cable |
| Interface | USB3.0 Typ-A Male to USB3.0 Type-A Famale |
| Functions | Supports USB3.0 and data transmission |
| Protocol | Male side is USB Host, only for USB3.0 |
| Maximum Distance | 100 meters |
| OD | 4.8mm |
| Bandwidth | 5Gbps |
| Latency | 0 |
| Speed | 400MB/s |
| Connector | Zinc alloy housing |
| Working Voltage | Male side get power from HOST |
| Working Temp | -20℃ to 70℃ |
| *Notice | TX side only works with Windows(Not support iOS) and the USB3.0 ports only. / RX side needs the external Micro-B with 5V power supply, compatible with USB3.0, USB2.0 and USB1.1. |
| Product Name | USB3.0 Pure Fiber Optic Cable |
|---|---|
| Fiber Optic cable | 1G Fiber Optic Cable |
| Interface | USB3.0 Typ-A Male to USB3.0 Type-A Famale |
| Functions | Supports USB3.0 and data transmission |
| Protocol | Male side is USB Host, only for USB3.0 |
| Maximum Distance | 100 meters |
| OD | 4.8mm |
| Bandwidth | 5Gbps |
| Latency | 0 |
| Speed | 400MB/s |
| Connector | Zinc alloy housing |
| Working Voltage | Male side get power from HOST |
| Working Temp | -20℃ to 70℃ |
| *Notice | TX side only works with Windows(Not support iOS) and the USB3.0 ports only. / RX side needs the external Micro-B with 5V power supply, compatible with USB3.0, USB2.0 and USB1.1. |
