OVERVIEW

Introduction

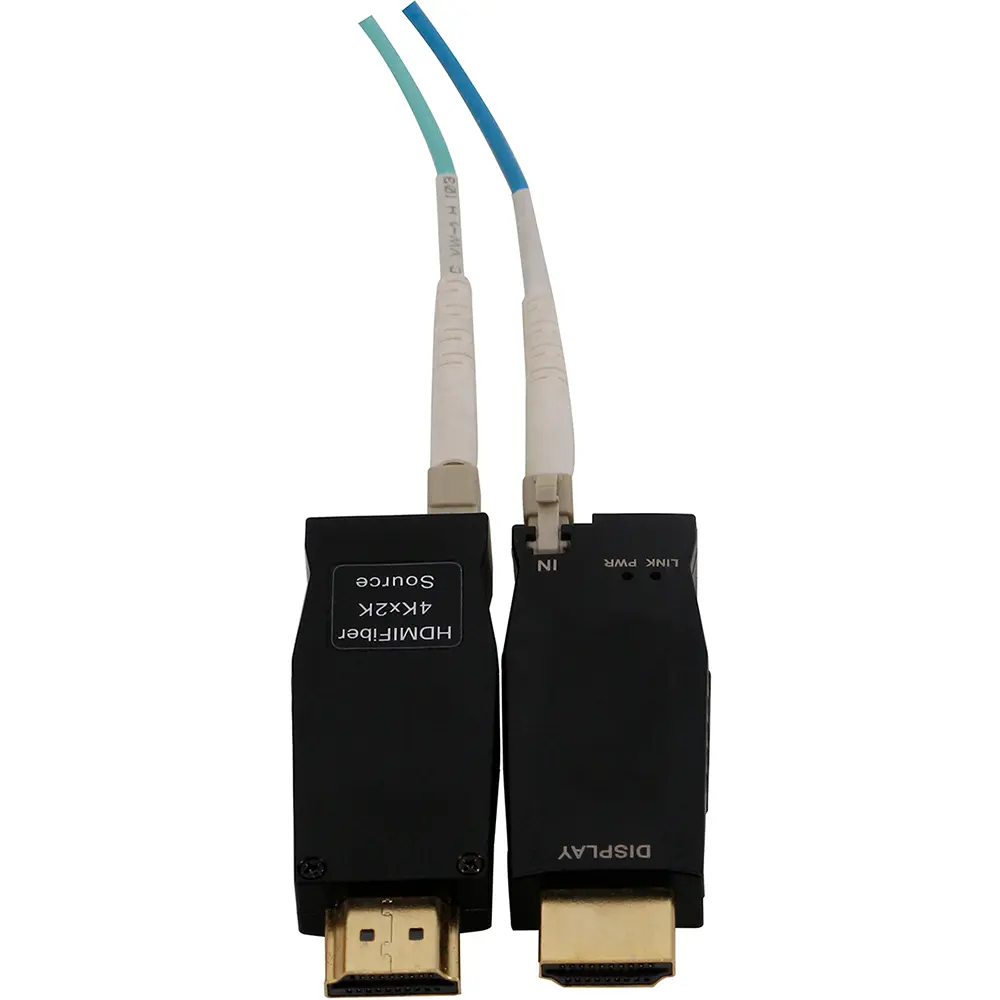

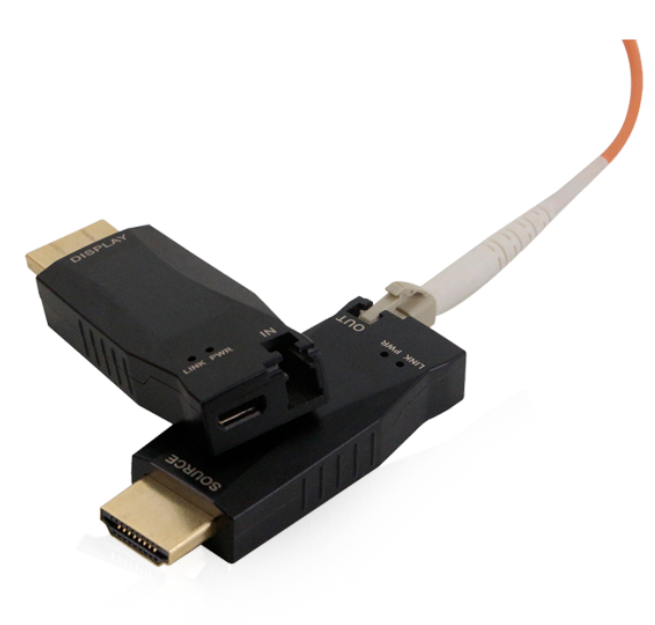

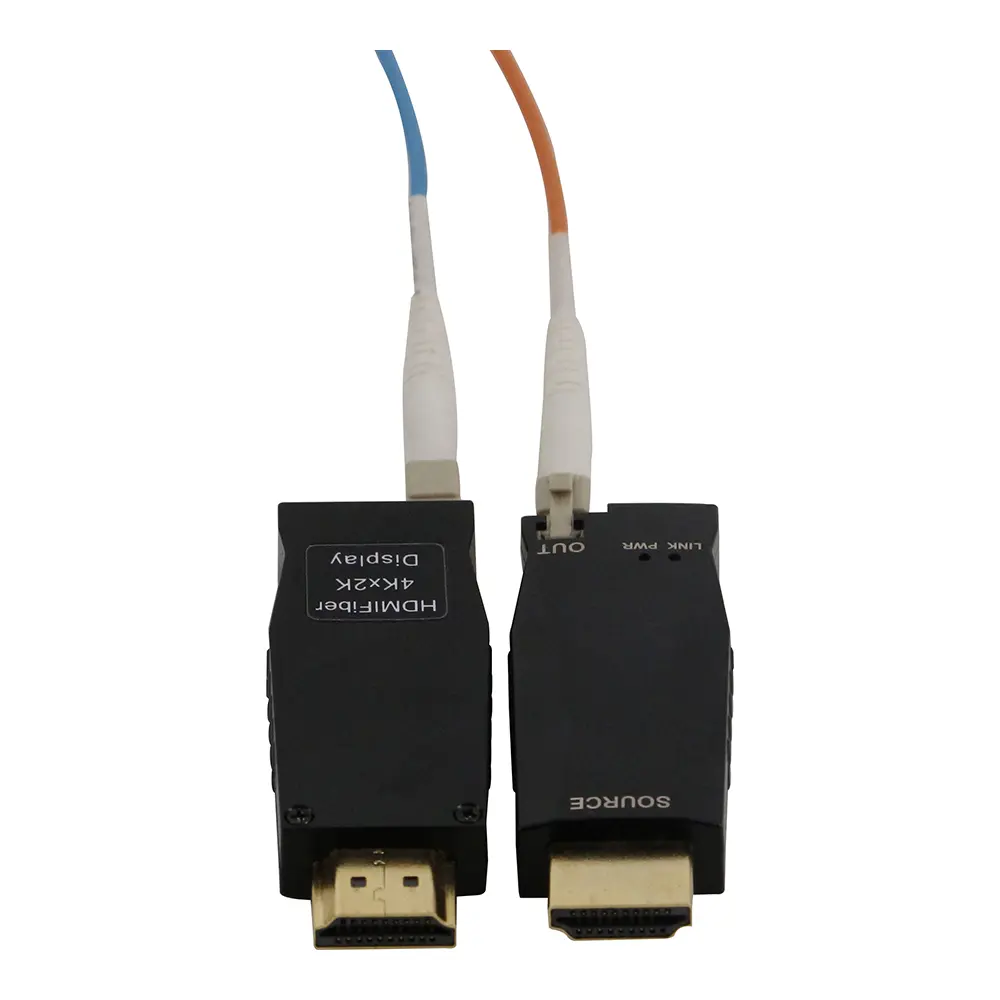

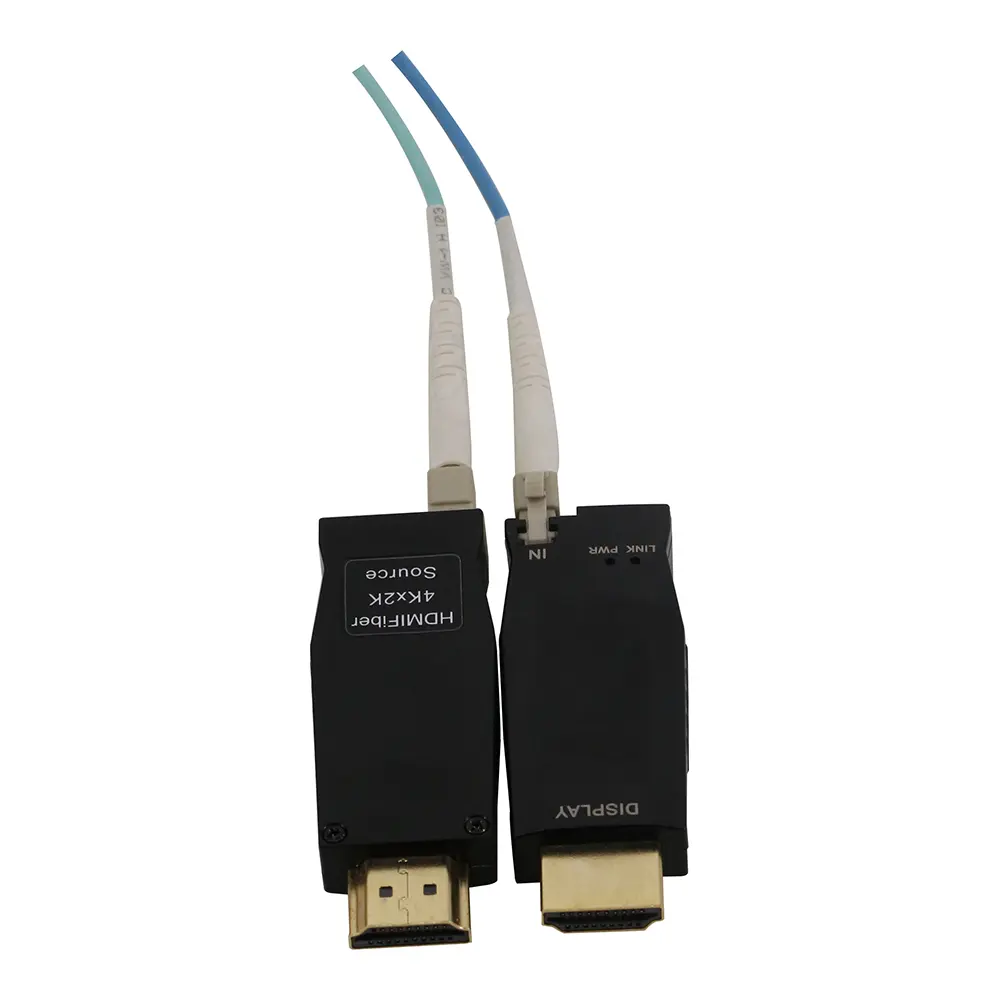

This fiber optic extender consists of transmitter and receiver, with a mini chassis and single core LC connectors, it allows to be used in a narrow space but for a long distance transmission applications. And the resolution can up to 3840*2016/30Hz (YUV 4:4:4) or 3840*2016/60Hz (YUV 4:2:0), it also can support the HDMI 1.4 and HDCP1.4 compliant. standard, the transmission distance can up to 300m over OM3 MMF and SMF.

Features

• Resolution up to 3840*2160/30Hz(Y:U:V 4:4:4) or 3840*2160/30Hz(Y:U:V 4:2:0)

• Distance can up to 300 meters over OM3 MMF or SMF Fiber

• Support HDMI1.4 and HDCP compliant

• LC connector, use 1-core OM3 MM Fiber or SM fiber cable

• Micro USB-B power connector

• Data security with negligible RFI/EMI emissions

• MINI chassis for narrow space applications

Specification

Application

With the mini chassis, it’s a good fit for the narrow space applications, it can be widely used in the rental, meeting room or other long distance transmission distance applications.

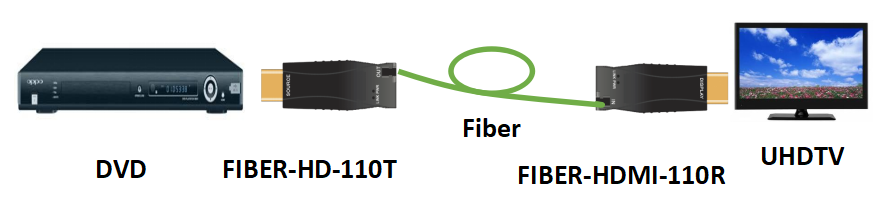

Connection diagram

Suitable Applications

Conference Room

Auditorium

Hotel

University

Broadcast

Courtroom

Command Center

TECHNICAL SPECIFICATIONS

Parameter	Specifications
Resolution	4k*2k 30Hz · 3840×2160/30Hz (YUV 4:4:4)
4k*2k 60Hz	3840×2160/60Hz.(YUV 4:2:0)
Components	Laser Diodes in Tx Module · 1310nm FP laser and 1550nm PIN PD
Photo Diodes in Rx Module	1550nm FP laser and 1310nm PIN PD
WDM filter	Integrated 1310nm/1550nm filter
Electrical	Input and Output Signals · TMDS Level (complying with DVI1.0)
Data Transfer Rate (Graphic Data)	Max. 3.4Gbps
Maximum Pixel Clock Frequency	340Mb/s
Maximum Video Bit Rate	10.3Gb/s
Total Jitter at the end of Rx output	Max. 309 ps
Skew inter-channels	Max. 6ns
Optical	Link Power Budget · Min 8.5dB
Mechanical	Module dimension (mm) · 59.5LX20.0WX10.5H
Connector	Optical Connector · 1X LC connector
Fiber connector	OM3 MM Fiber or Single-mode Fiber

KEY FEATURES

View All ›

Resolution up to 3840*2160/30Hz(Y:U:V 4:4:4) or 3840*2160/30Hz(Y:U:V 4:2:0)

Distance can up to 300 meters over OM3 MMF or SMF Fiber

Support HDMI1.4 and HDCP compliant

LC connector, use 1-core OM3 MM Fiber or SM fiber cable

Micro USB-B power connector

Data security with negligible RFI/EMI emissions

MINI chassis for narrow space applications

FirmwareLatest Version

DSP TemplateDownload

AutoCADDrawing

EASE FileAcoustic Data

Product Features

Resolution up to 3840*2160/30Hz(Y:U:V 4:4:4) or 3840*2160/30Hz(Y:U:V 4:2:0)
Distance can up to 300 meters over OM3 MMF or SMF Fiber
Support HDMI1.4 and HDCP compliant
LC connector, use 1-core OM3 MM Fiber or SM fiber cable
Micro USB-B power connector
Data security with negligible RFI/EMI emissions
MINI chassis for narrow space applications

TECHNICAL SPECIFICATIONS

Parameter	Specifications
Resolution	4k*2k 30Hz · 3840×2160/30Hz (YUV 4:4:4)
4k*2k 60Hz	3840×2160/60Hz.(YUV 4:2:0)
Components	Laser Diodes in Tx Module · 1310nm FP laser and 1550nm PIN PD
Photo Diodes in Rx Module	1550nm FP laser and 1310nm PIN PD
WDM filter	Integrated 1310nm/1550nm filter
Electrical	Input and Output Signals · TMDS Level (complying with DVI1.0)
Data Transfer Rate (Graphic Data)	Max. 3.4Gbps
Maximum Pixel Clock Frequency	340Mb/s
Maximum Video Bit Rate	10.3Gb/s
Total Jitter at the end of Rx output	Max. 309 ps
Skew inter-channels	Max. 6ns
Optical	Link Power Budget · Min 8.5dB
Mechanical	Module dimension (mm) · 59.5LX20.0WX10.5H
Connector	Optical Connector · 1X LC connector
Fiber connector	OM3 MM Fiber or Single-mode Fiber
