OVERVIEW

Introduction

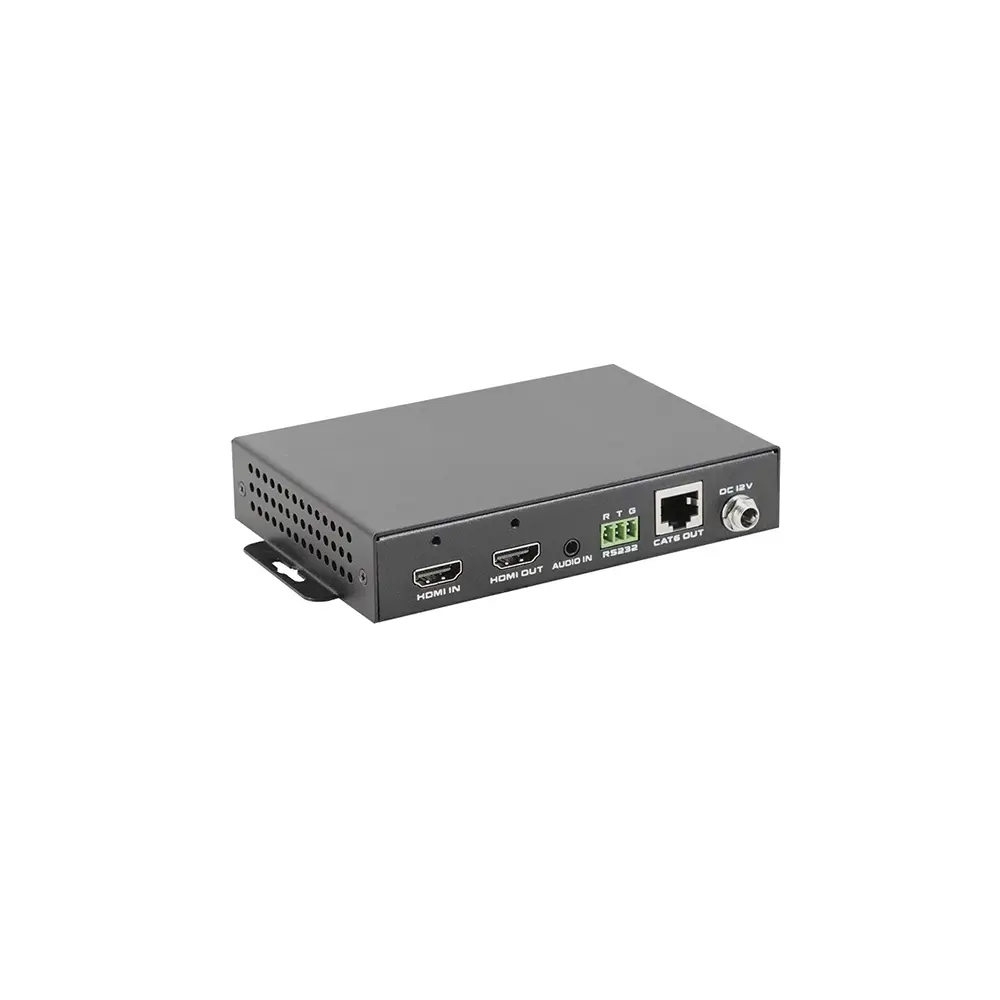

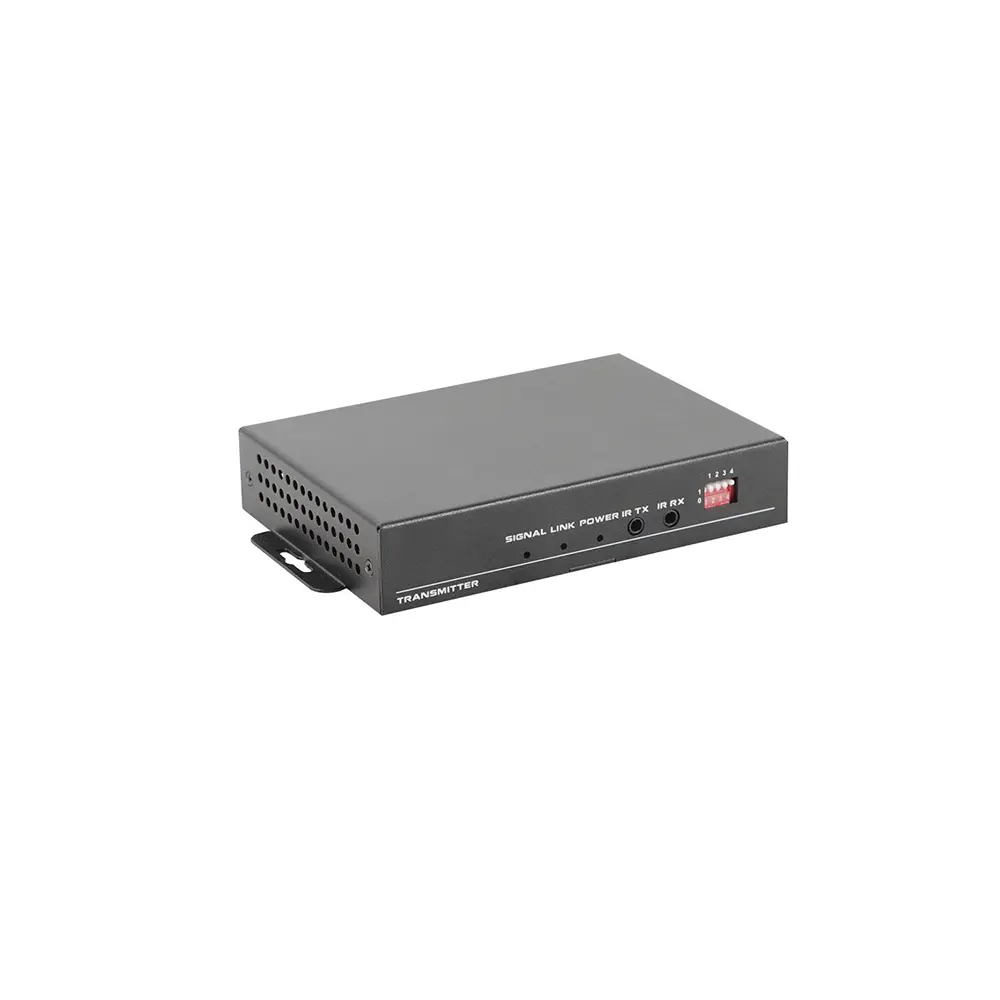

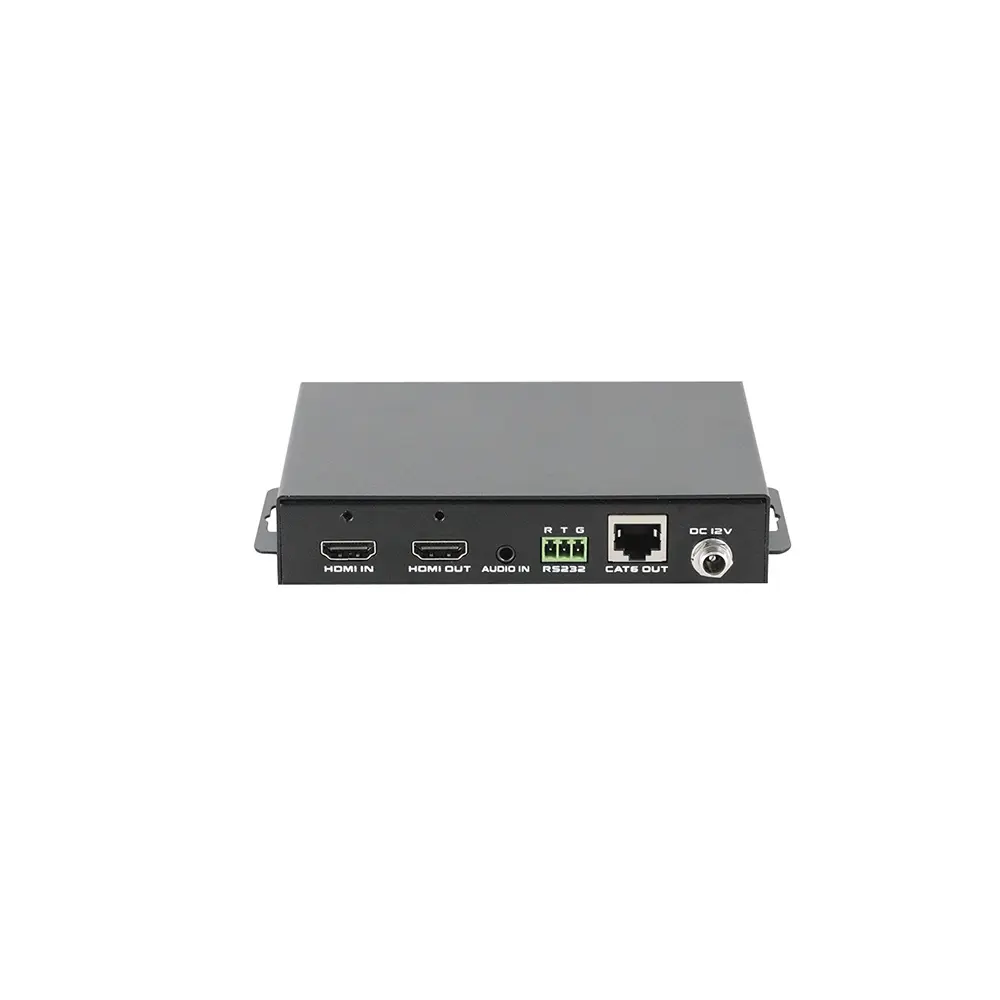

This is AEL version 4K HD extender which is using the advanced HDBaseT technology. It can transmit the 4K HD signal, audio embedded/de-embedded, bi-directional IR and RS232 signal over single STP Cat5e/6/7 cable up to a long distance and only need to power on one side with the POC function. It also can can work with other HDBaseT equipment, such as Sony HDBaseT projector. For the 1080P60Hz resolution, it can transmit to a distance of 70m/220ft(100m/330ft), for 4K60Hz it can up to 35m/110ft(70m/220ft). This extender kit can support the EDID management on the transmitter, compliant with 4K HD2.0, HDCP2.3.

It can be popularly used in media conferencing room, school, government, cinema and so on applications.

Features

• Uses the HDBaseT technology extension over single CAT5e/6/7 cable

• Extend 4K/60(4:2:0) video & IR & RS232 Control

• Transmission distance up to 70/100m 220/330ft(1080P60) or 35/70m 110/220ft(4K60)

• 4K HD2.0 and HDCP2.3

• RS232 and IR signal transmission, POC function

• EDID management and 3.5mm audio embedded on the transmitter

• Support DIP switch scaling and 3.5mm audio de-embedded on the receiver

Specification

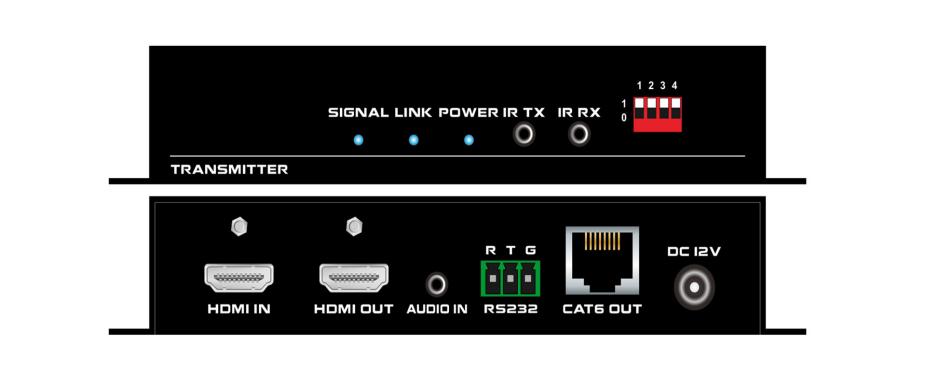

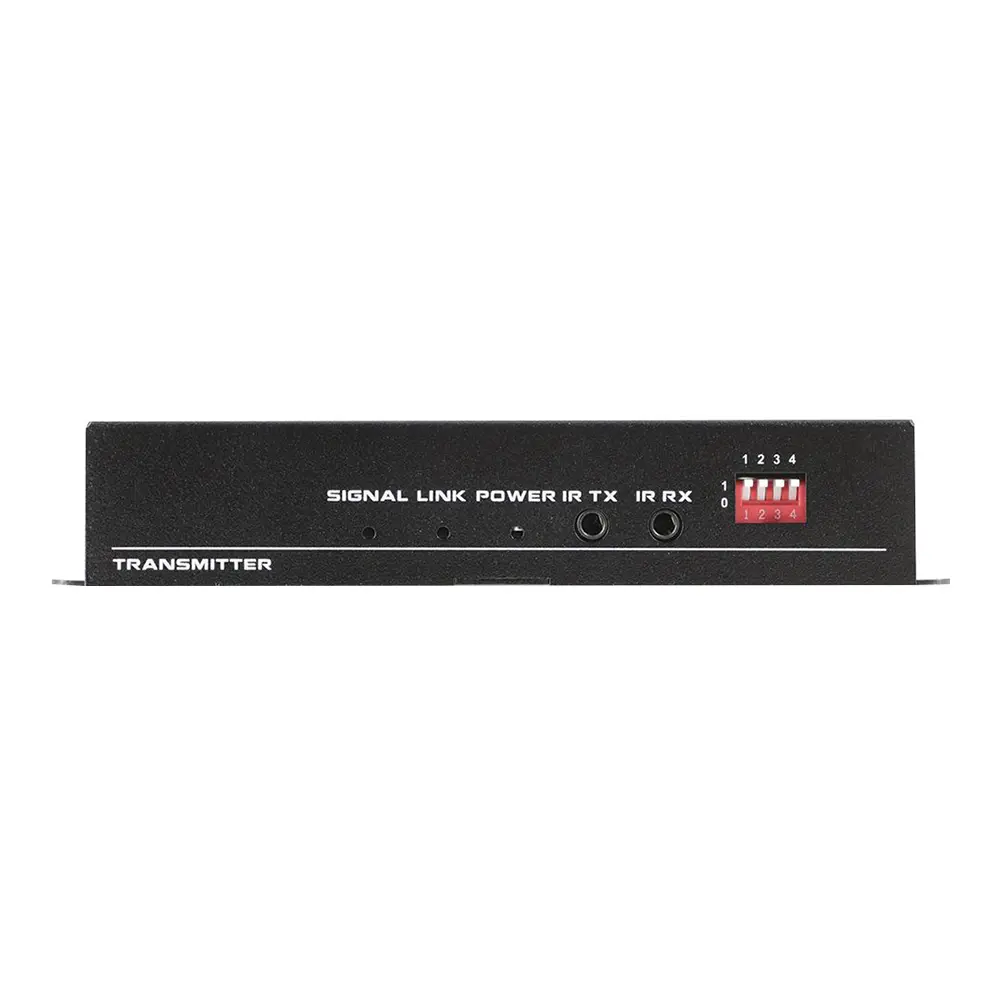

Transmitter DIP switch

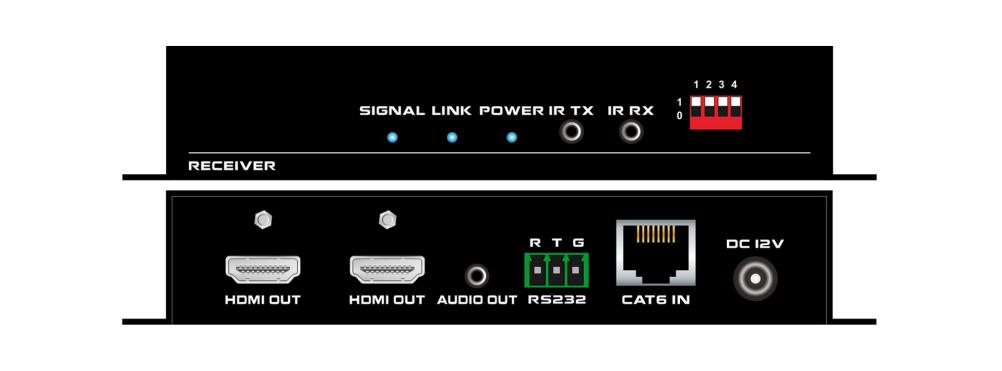

Receiver DIP switch

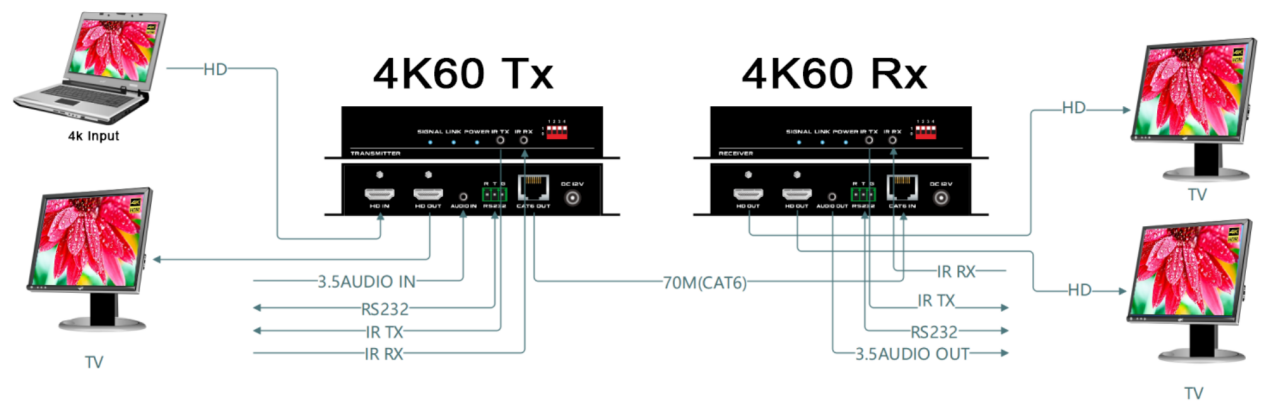

Connection diagram

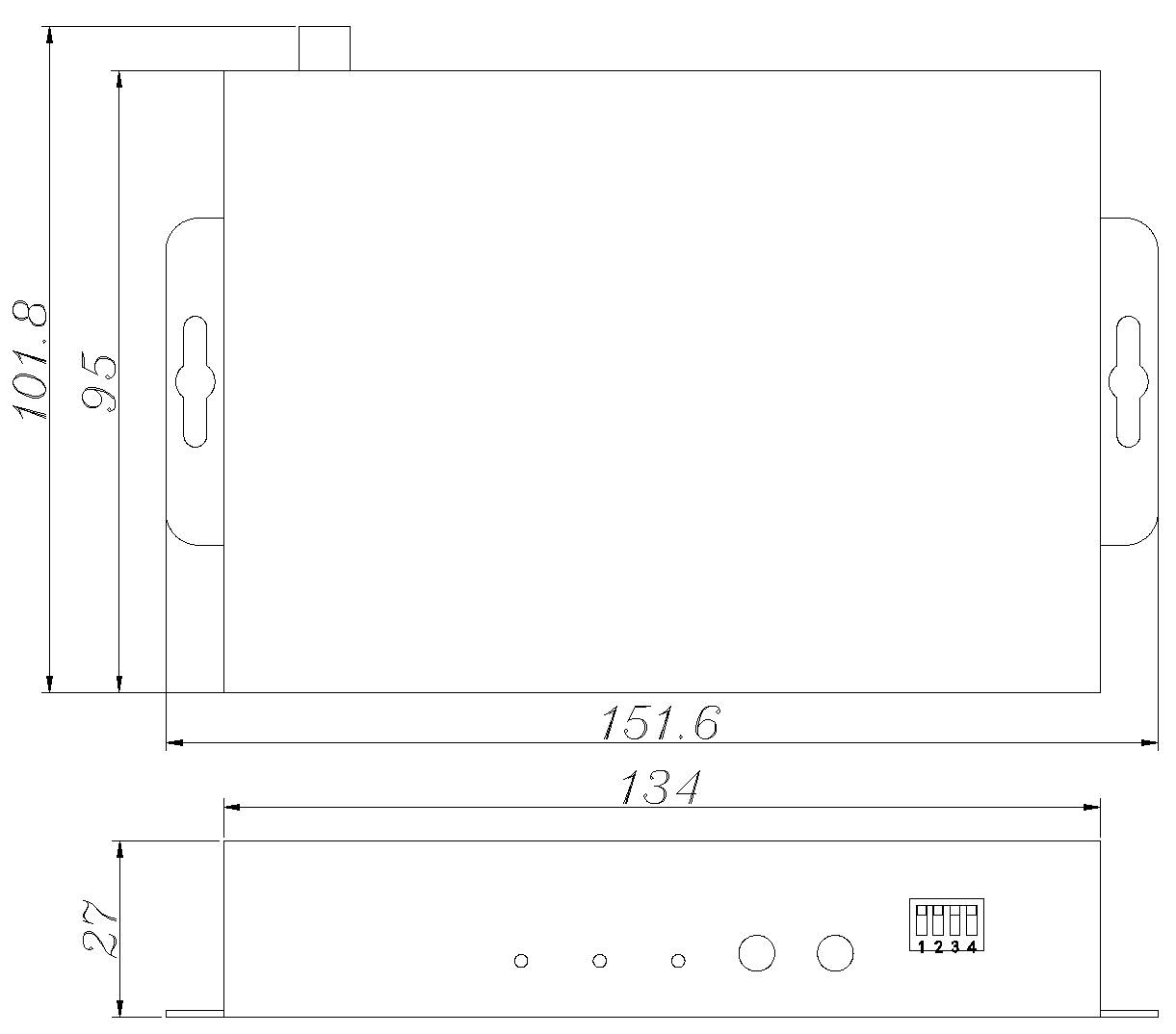

Product size/drawing(mm)

Suitable Applications

Conference Room

Auditorium

Hotel

University

Broadcast

Courtroom

Command Center

TECHNICAL SPECIFICATIONS

Name	Transmitter · Receiver
Description	4K HD 70/100m HDBaseT Transmitter · 4K HD 70/100m HDBaseT Receiver

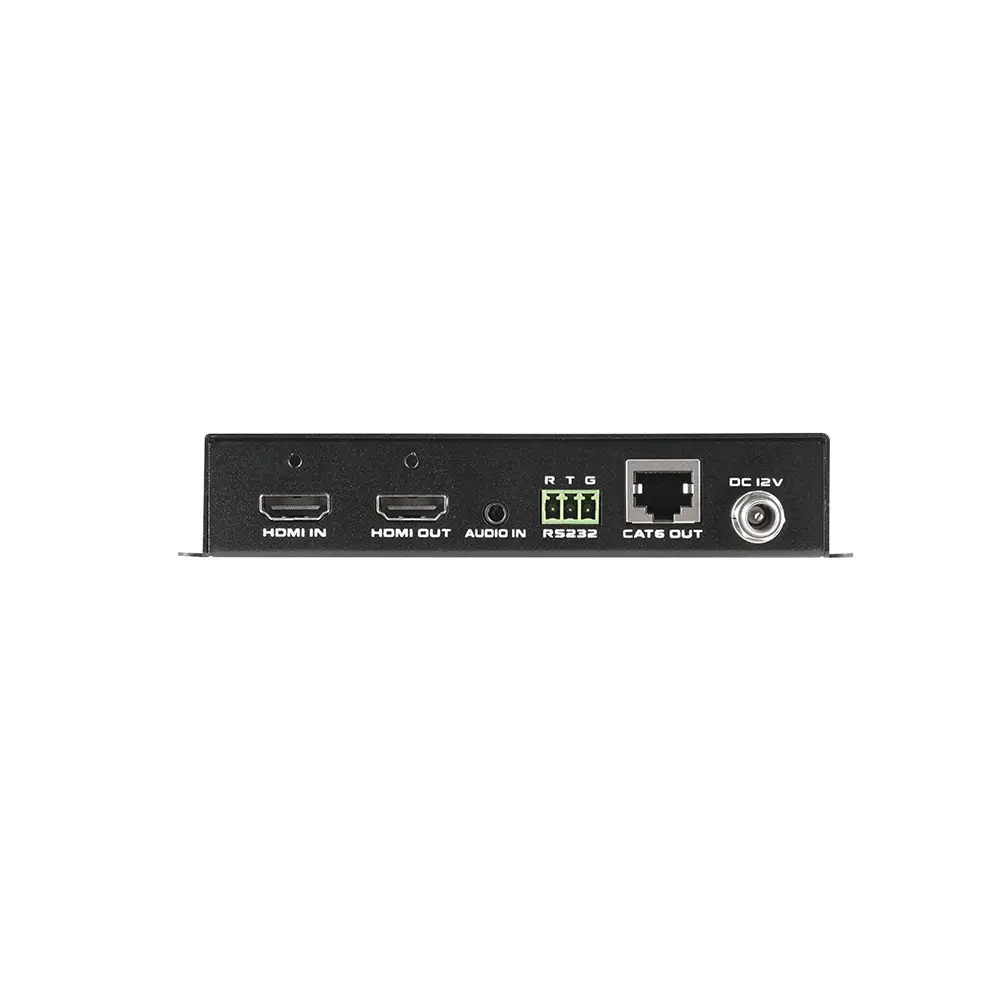

Input Port	1x4K HD, 1xRS232, 1xR-TX, 1xR-RX · 1xHDBaseT
Output Port	1xHDBaseT, 1x Loop out · 2x4K HD, 1xRS232, 1xR-TX, 1xR-RX
Standard Protocol	Support 4K HD2.0 and compatible with HDCP2.2
Resolution	1920×1200, 1680×1050, 1360×768, 1280×800, 1920×1080, 1600×900, 1366×768, 1280×720, 1024×576, 1920×1200, 1680×1050, 1360×768, 1280×800, 4096×2160@30Hz, 3840×2160@30Hz, 3840×2160@60Hz,
Bandwidth	10.2Gbps
Distance	1080p60 distances to 220/330 feet, 4K60(4:2:0) distances to 110/220 feet
Dimension	15210227(mm)(Tx/ Rx)
Weight	160g(Tx/ Rx)/ 0.35lbs
Power	AC: 100-240V 50/60Hz DC: 12V 1.5A
Consumption	≤ 10W
Work Temp	0℃ ~50℃
Storage Temp	﹣ 20℃ ~55℃
EDID management	Audio
D1	D2 · D3 · Function · D4 · Function
1	1 · 1 · 4k60 · 1 · 3.5MM
1 (2)	0 · 0 · 1080P2.1 · 0 · 4K HD
1 (3)	0 · 1 · 4K HD-1200
0	1 · 1 · 1440*900
0 (2)	0 · 1 · DVI-1080
0 (3)	1 · 0 · DVI-1200
1 (4)	1 · 0 · 4k2.1
0 (4)	0 · 0 · External EDID
Resolution Scaling	No functions
D1 (2)	D2 · Function · D3 · D4
0 (5)	0 · Resolution bypass · No functions
0 (6)	1 · Force the 4K30/50/60 resolution to 1080P30/50/60
1 (5)	0 · Force 4K50/60 420 resolution to 4K50/60 444
1 (6)	1 · Resolution bypass
