OVERVIEW

Introduction

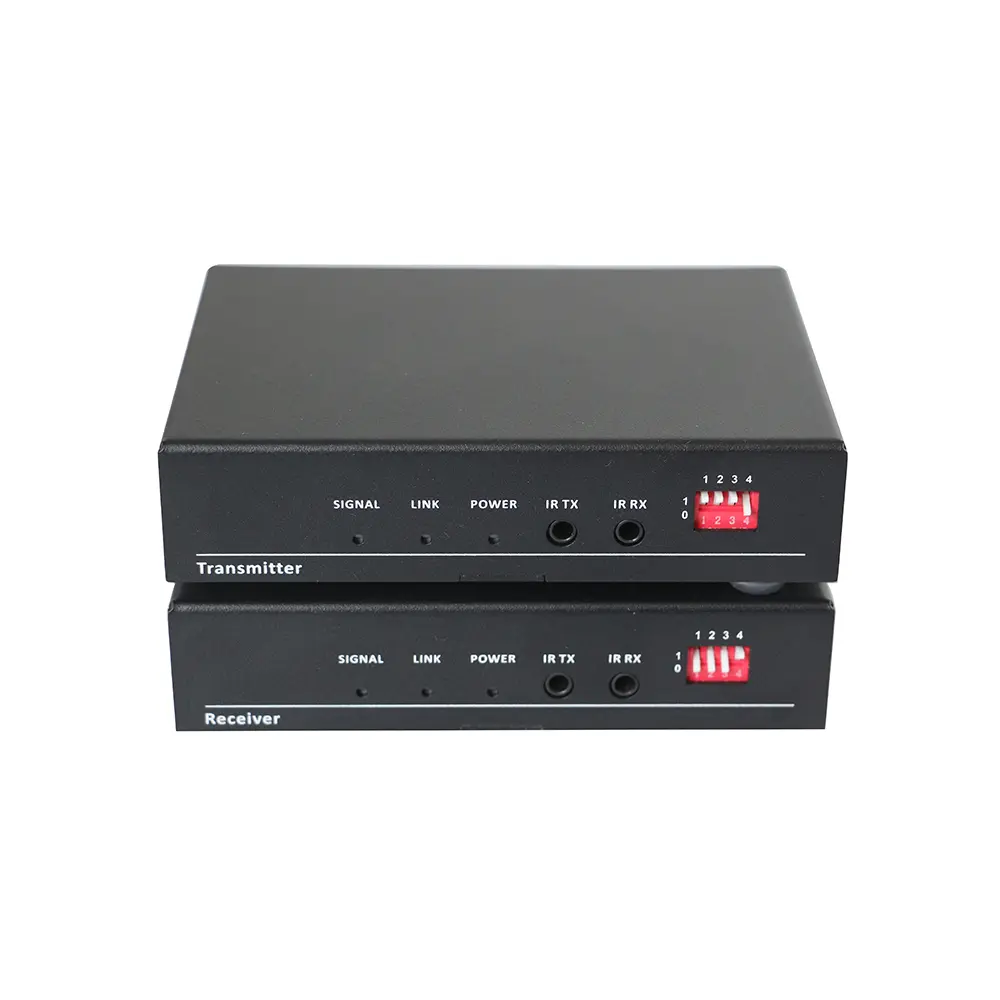

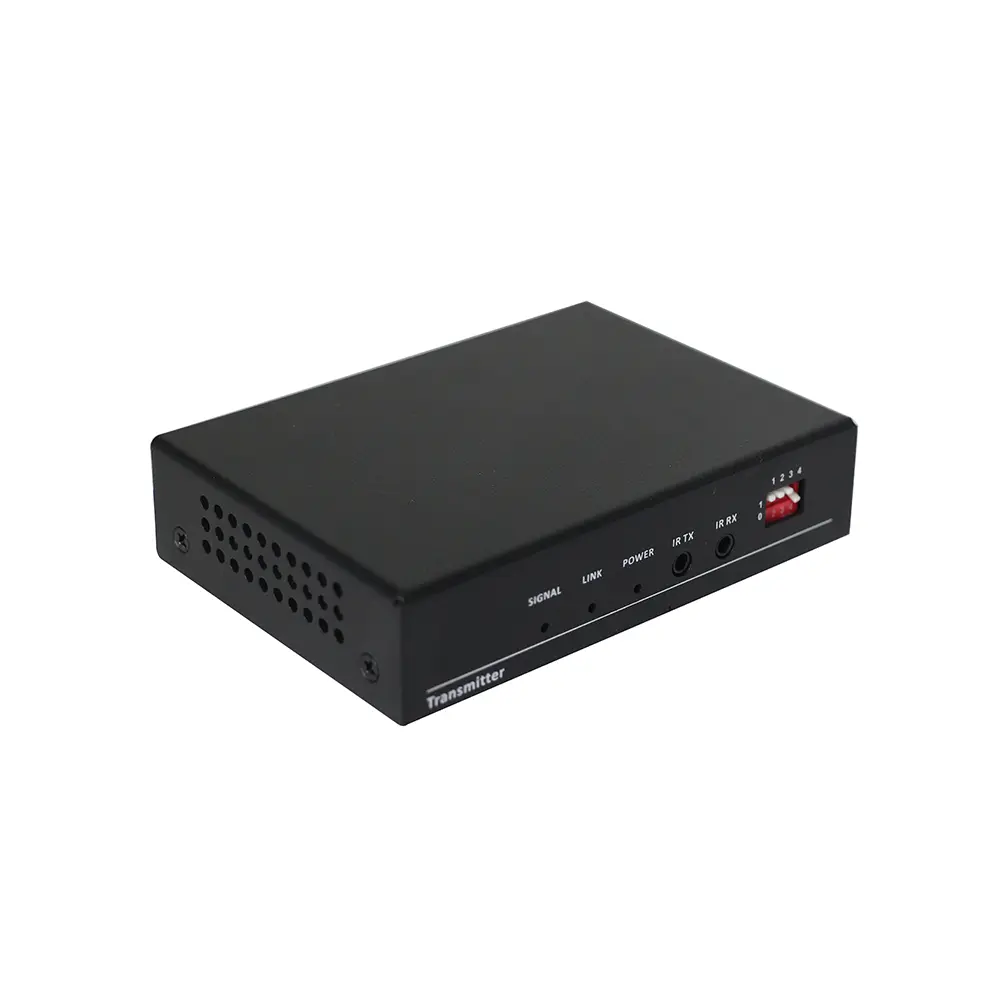

This HDMI extender can transmit the HDMI signal, bi-directional IR over single LAN cable up to 150m/450ft, the resolution up to 1080P@60hz, the transmitter with HDMI loop out and can support POC function, which only needs to power on one side with the DC power adapter.

It can be popularly used in media conferencing room, school, government, cinema and so on applications.

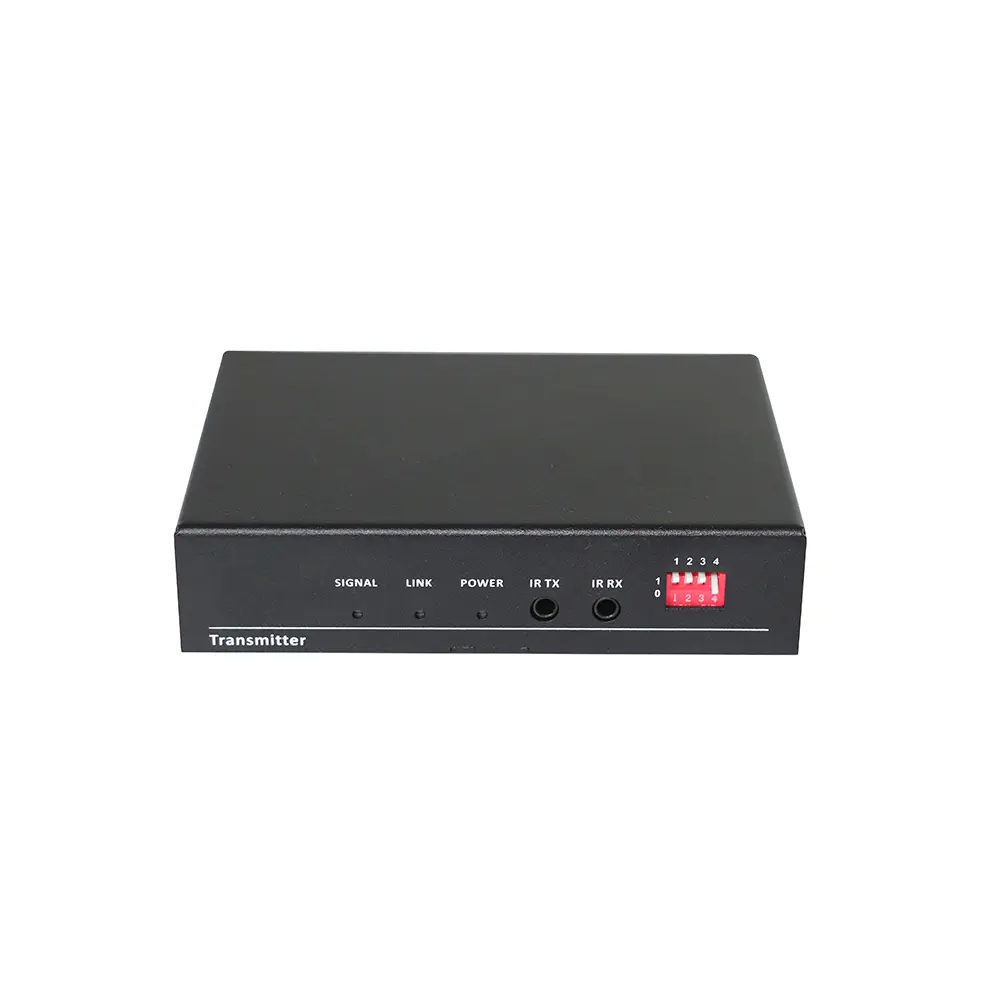

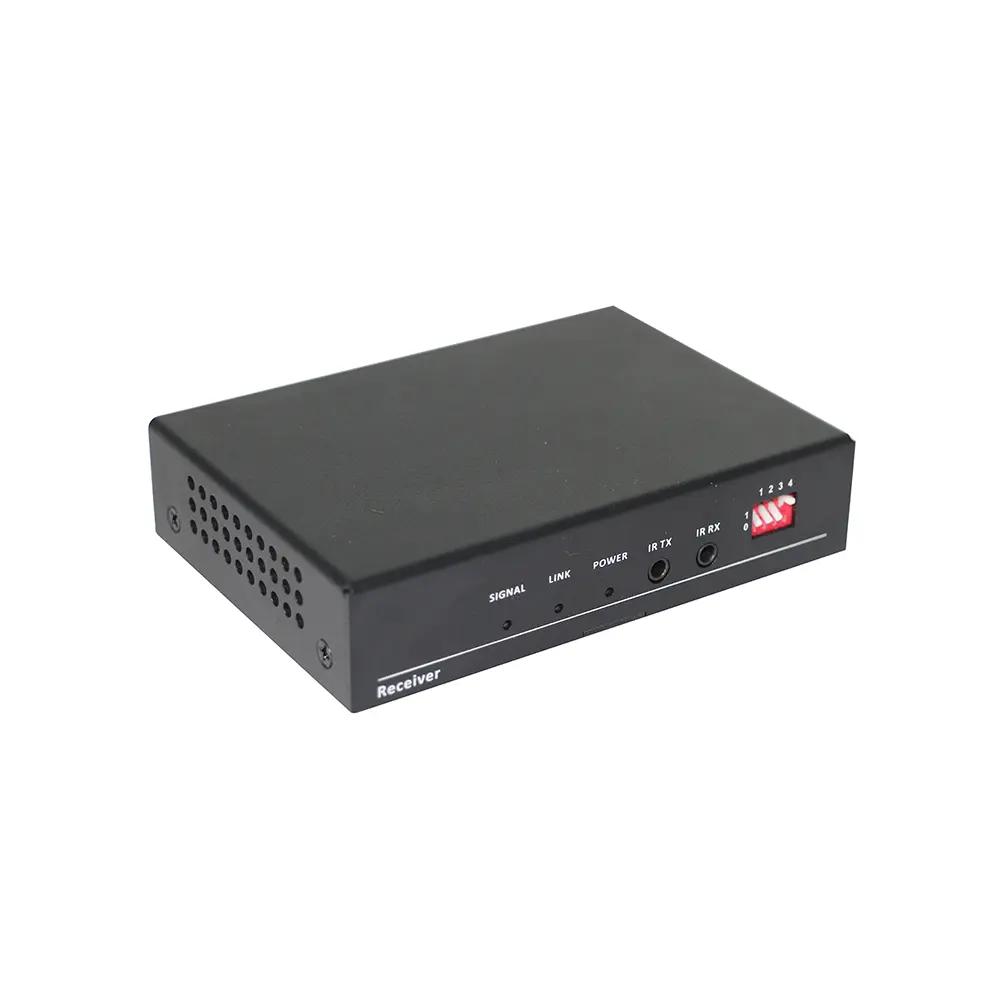

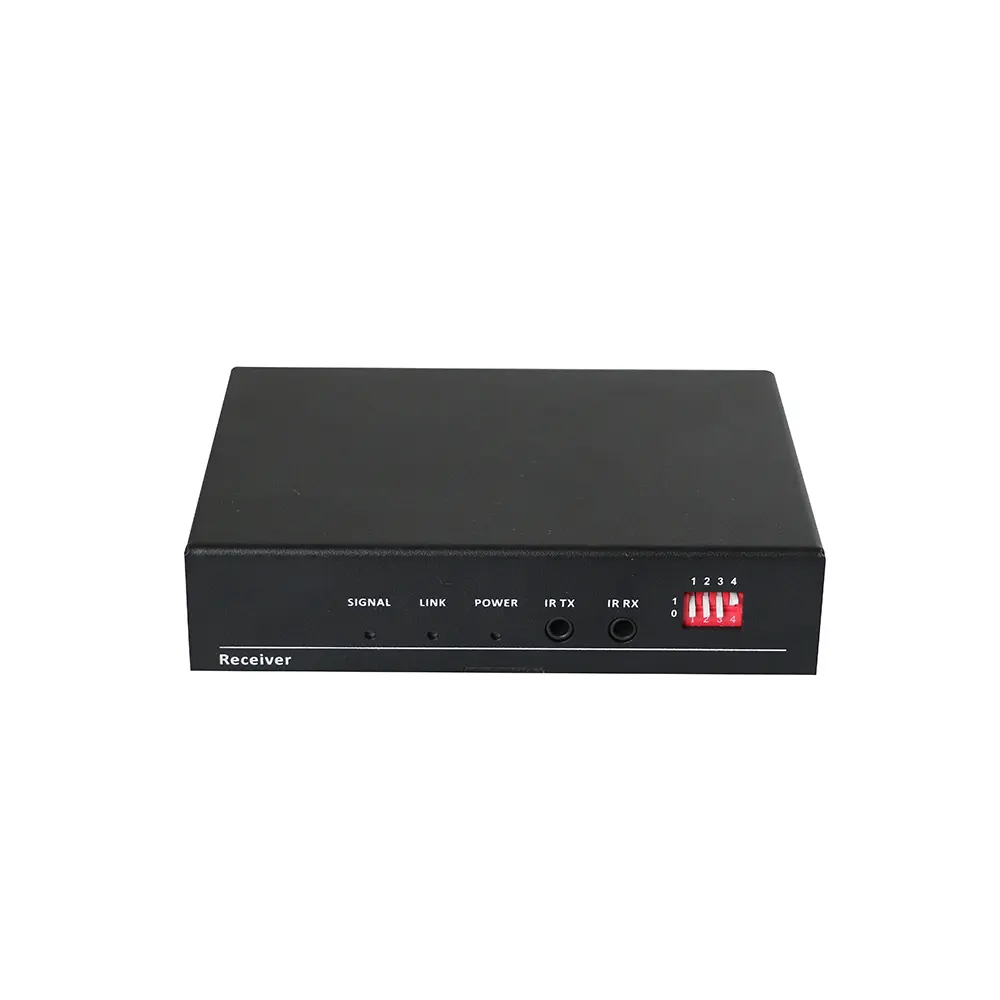

Features

• Support 1080p@60Hz

• The distance up to 150m over single CAT5e/6/7, can be both STP or UTP cable

• Support POC function, only one side need to use the DC power

• The transmitter supports HDMI loop out

• Support bi-directional IR transmission

• DC power connector with screw to lock

• Front panel indicators for working and system status

Specification

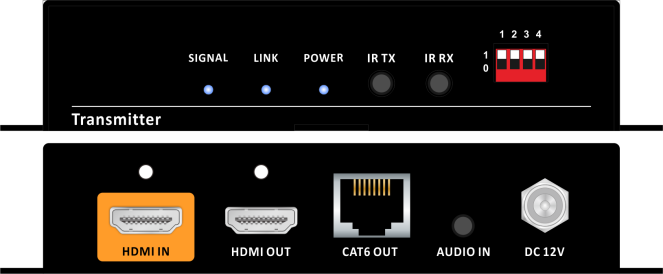

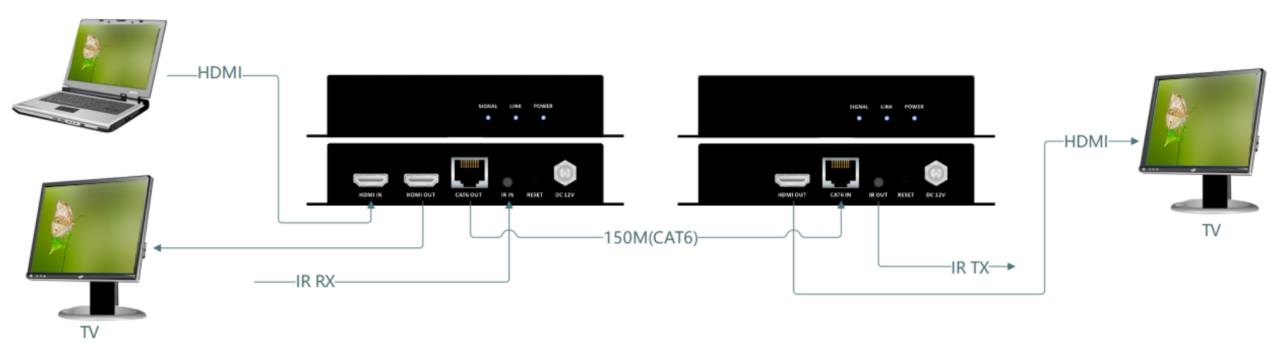

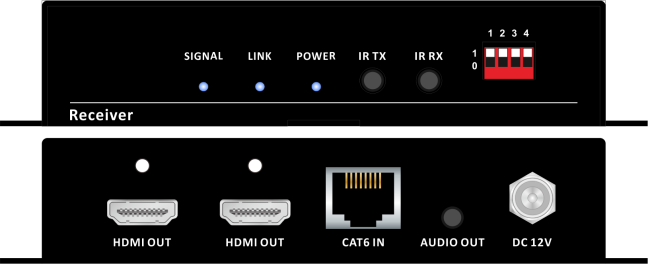

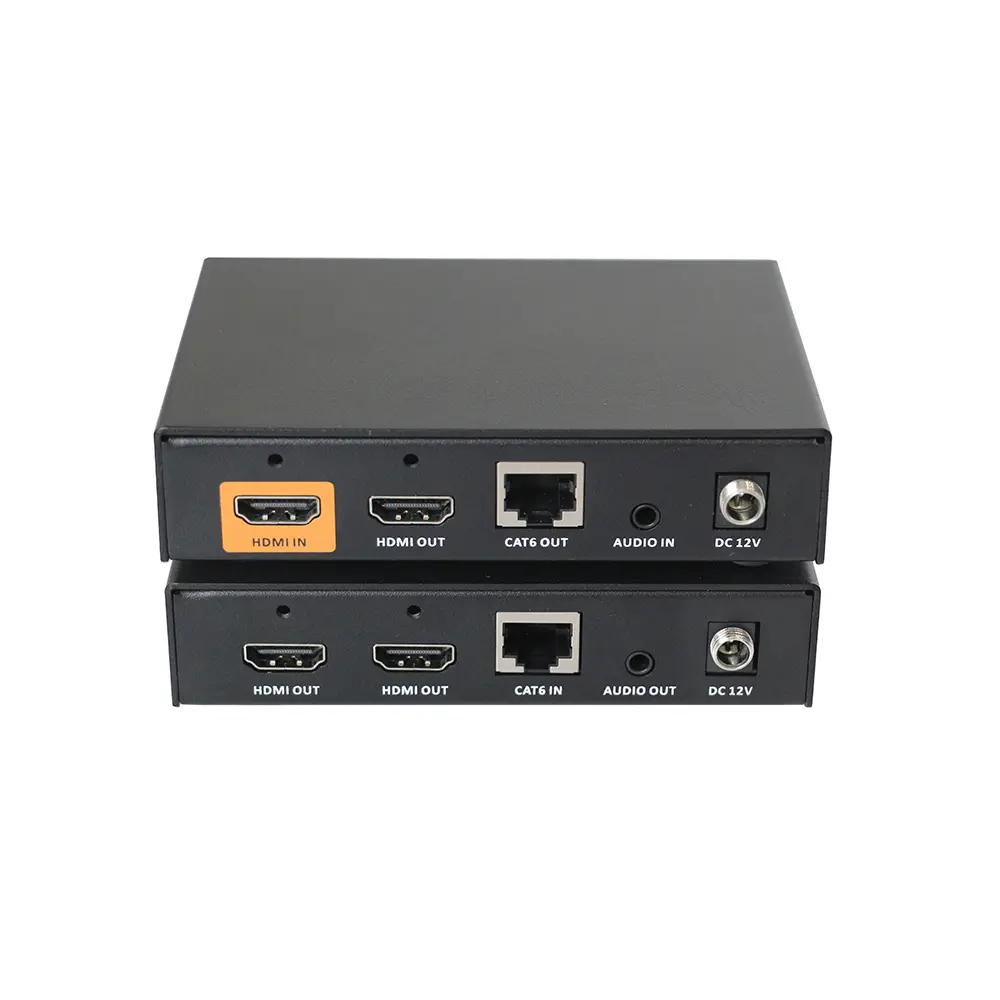

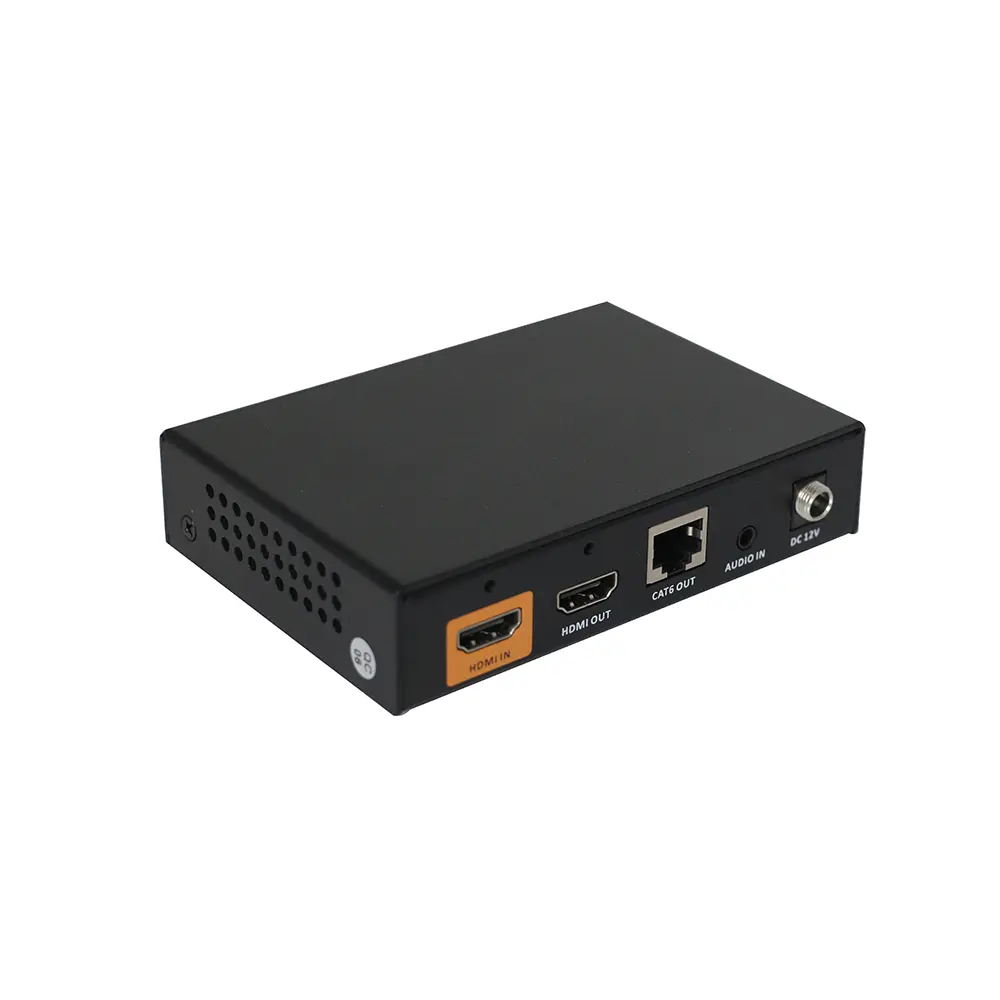

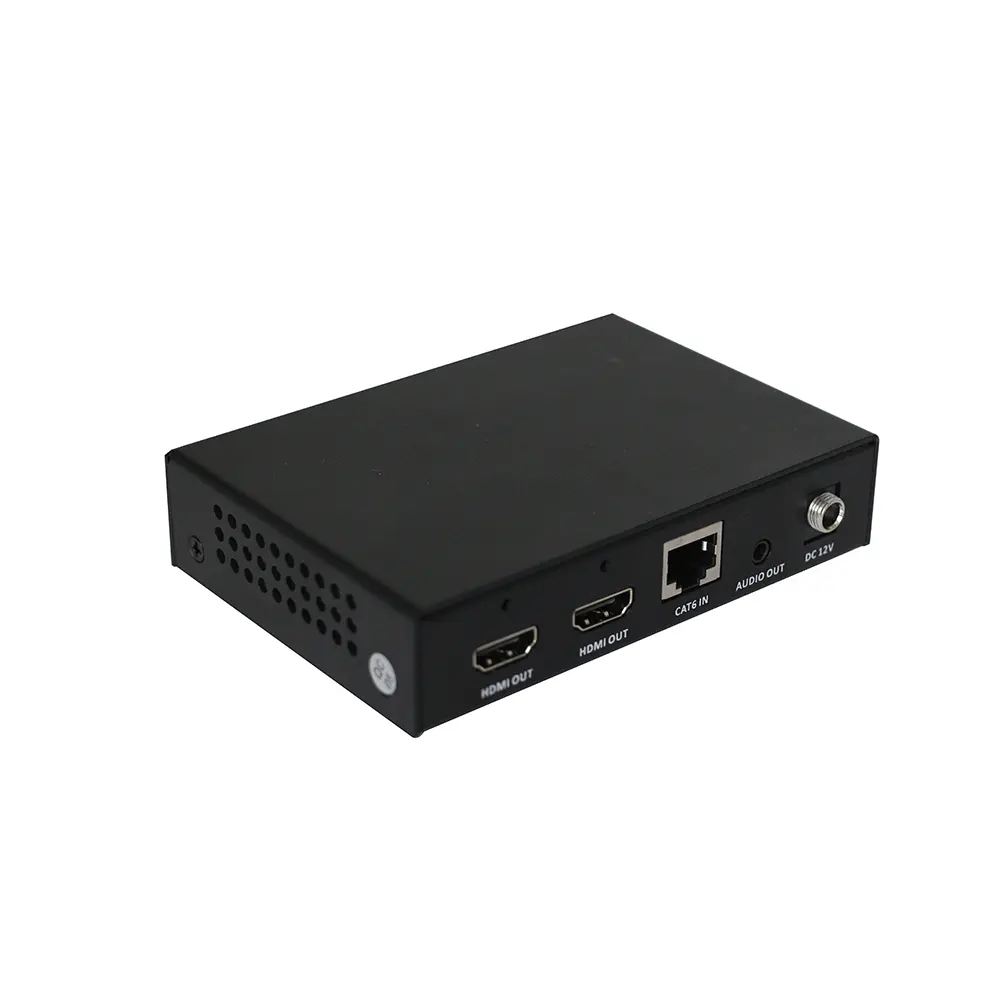

Connection Diagram

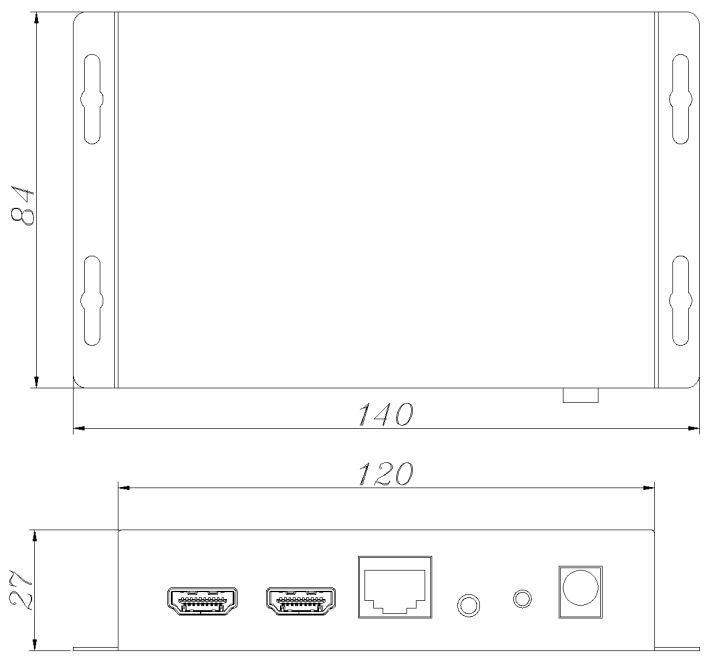

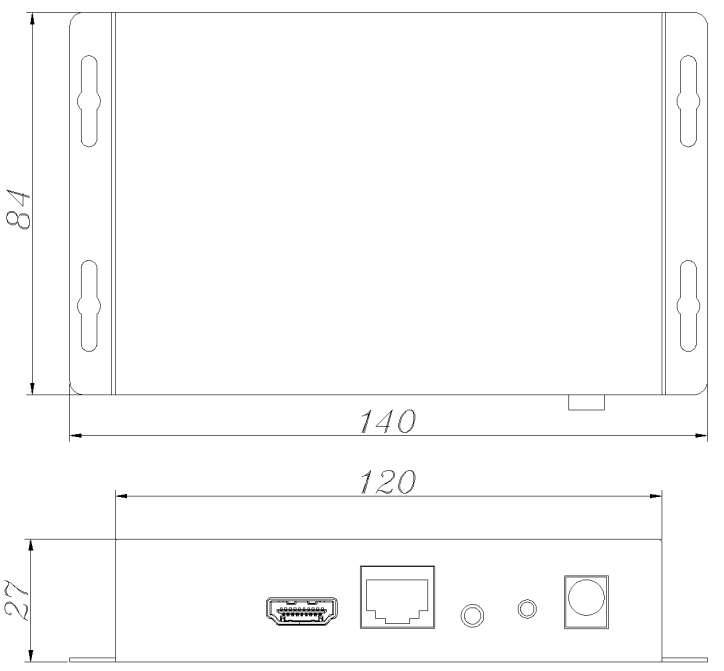

Product dimension(mm)

*External EDID operation guide: will need to have the display connected to HDMI in on the transmitter to operate. Step 1: Power off transmitter; Step 2: DIP all put to 111 position; Step 3: Have HDMI cable connected; Step 4: Power on Transmitter; Step 5: DIP switch all put to 000; Step 6: wait about 5 seconds(can see the side red indicator flashing).

Rx DIP switch setting

Suitable Applications

Conference Room

Auditorium

Hotel

University

Broadcast

Courtroom

Command Center

TECHNICAL SPECIFICATIONS

Name	Transmitter · Receiver
Input	1HDMI, 1IR-TX · 1*CAT
Output	1HDMI, 1CAT · 2HDMI,1IR-RX
Protocol	HDMI1.3, HDCP 1.2
Resolution	1600×1200@60,1680×1050@60,1360×768@60,1400×1050@60,1440×900@60,1920×1200@60, 1280×768@60,1280×800@60,1280×960@60,1280×1024@60,1024×768@60,800×600@60, 640×480@60,1920×1080@60,1280×720@60,1280×720@50,1920×1080@50
Color space	1080p: 36Bit Deep Color 4K: 24Bit True Color, 4:2:2
Distance	150m(1080p60Hz) over single Cat5e/6/7
Product size(mm)	1208427
Weight(kg)	0.15
Power	DC12V1.5A
Consumption	4.4W
Humidity	10%-90%
Temperature	0℃-50℃
Resolution adjustment	Audio
D1	D2 · D3 · Function · D4 · Function
1	1 · 1 · 4k60/2.1 · 1 · 3.5MM
1 (2)	1 · 0 · 4k30/2.1 · 0 · internal
1 (3)	0 · 0 · 1920X1080P60
0	1 · 1 · 1280x720P60
0 (2)	0 · 1 · DVI-1920X1080P60
0 (3)	1 · 0 · DVI-1920X1200P60
1 (4)	0 · 1 · 1920X1200P60
0 (4)	0 · 0 · External EDID
Resolution Scaling	No functions
D1 (2)	D2 · Function · D3 · D4
0 (5)	0 · Resolution bypass · 0 · Disable enhancement · Reserved for future functions
0 (6)	1 · Force the 4K30/50/60 resolution to 1080P30/50/60
1 (5)	0 · Force 4K50/60 420 resolution to 4K50/60 444 · 1 · Enable enhancement
1 (6)	1 · Force YUV to RGB
