Home› Products› Video Systems› 1×16 HDMI2.0 splitter
DesignPro

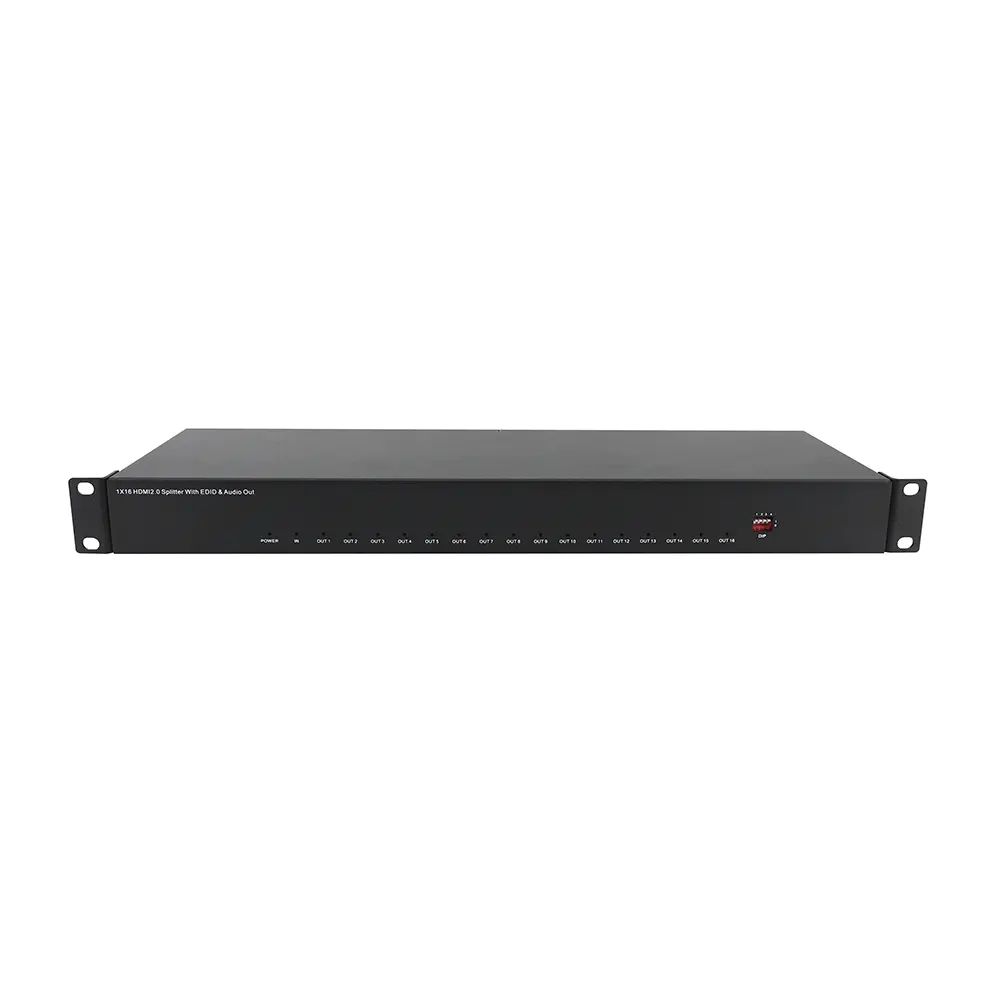

1×16 HDMI2.0 splitter Click to zoom
Video Systems

1×16 HDMI2.0 splitter

★★★★★★★★★★ No reviews yet — write one › SKU:
Delivery in 5-7 days
6 views 0 sold
In Stock
Contact Sales
Request Quote

Contact Channels

Get in touch for more details
LINE Official Facebook WeChat WhatsApp
1-Year WarrantyOfficial Thai warranty
Fast Delivery1-3 business days
Expert SupportEngineer team standby
0% InstallmentUp to 10 months
Official Thailand Warranty5 Years
Free System DesignConsultation
Technical SupportRemote Assistance
Online TrainingFor Partners & Users
Spare Parts AvailableLocal Stock

OVERVIEW

Introduction

This high performance 18Gbps 1×16 HDMI2.0 Splitter, it can support 1 HDMI input to 16 HDMI outputs simultaneously. The resolution is up to 4K60Hz. It supports EDID management, auto scaling function to fix different display resolutions, also with one 3.5mm audio de-embedded function. The ON/OFF power switch provides conveniences for users to turn it ON/OFF without the power cable plugging and unplugging.

Features

• HDCP2.2 compliant

• Support video bandwidth 18Gbps

• Video resolution is up to 4K2K@50/60Hz

• Support 3D, HDR, Dolby Vision function

• EDID management by the DIP switch settings

• Output resolution auto scaling

• Supports 3.5mm audio de-embedded

• No need to install the driver, plug and play

Specification

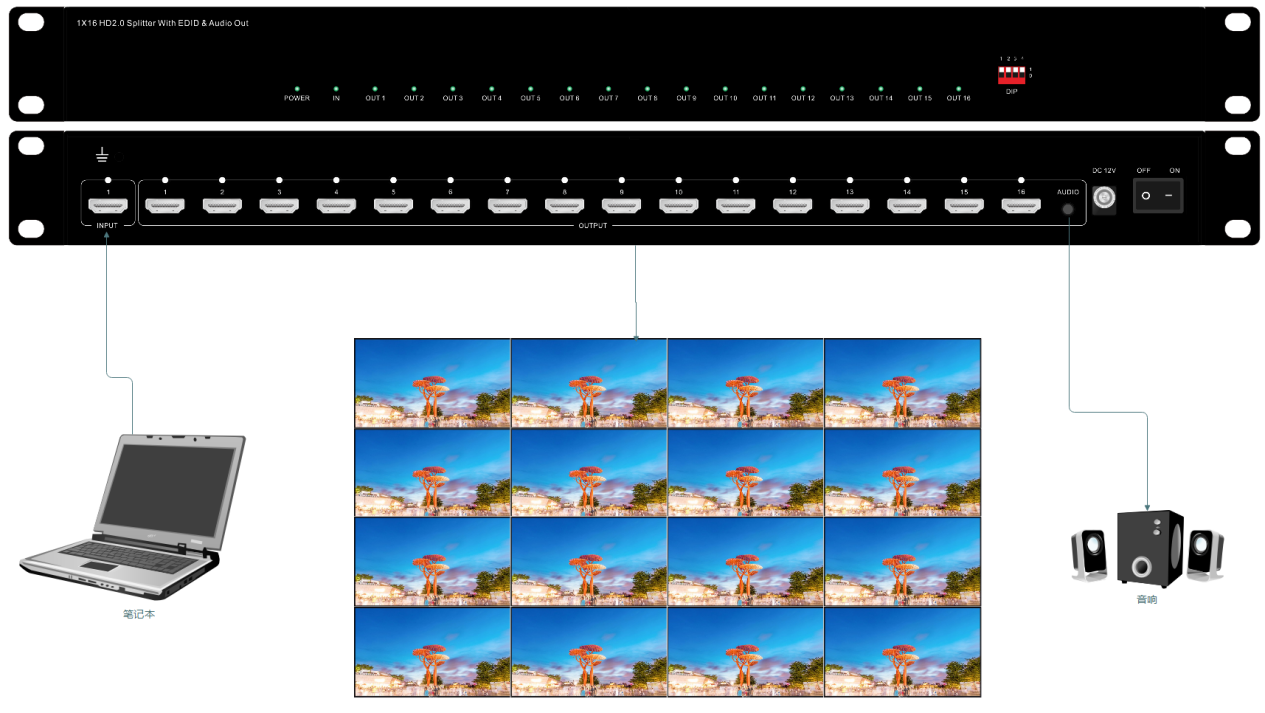

Connection diagram

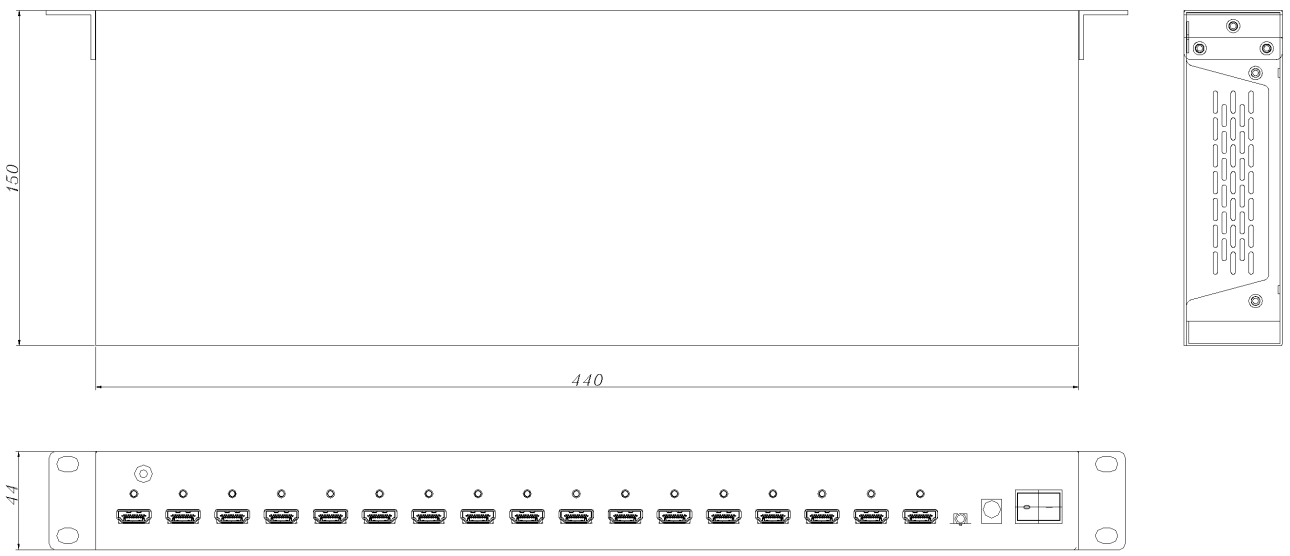

Dimension(mm)

Suitable Applications
Conference Room
Auditorium
Hotel
University
Broadcast
Courtroom
Command Center

TECHNICAL SPECIFICATIONS

HDCP ComplianceHDCP 2.2
Video Bandwidth18Gbps
Resolution4K2K 50/60Hz 4:4:4, 4K2K 30Hz 4:4:4, 1080p, 1080i, 720p, 720i, 480p, 480i All HDMI 3D TV formats All PC resolutions including 1920 x 1200
3D SupportYes
Color SpaceRGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth8/10/12-bit
HDMI Audio FormatsPCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
HDR FormatsHDR10, HDR10+, Dolby Vision
ESD ProtectionHuman-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
Input Ports1*HDMI Type A [19-pin female]
Output Ports16*HDMI Type A [19-pin female], 1*3.5mm audio
HousingMetal Enclosure
ColorBlack
DimensionsProduct: 440X150X44MM
Weight2.2kg without packing
Power SupplyInput: AC 100~240V 50/60Hz, DC12V Output: DC 5V/1A
Power Consumption3.8W (max)
Operating Temperature0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity20~90% RH (non-condensing)
Cable LengthFor 4K60 (YCbCr 4:2:0)- –32ft / 10M; For 1080P—40ft/ 15m

KEY FEATURES

View All ›
HDCP2.2 compliant
Support video bandwidth 18Gbps
Video resolution is up to 4K2K@50/60Hz
Support 3D, HDR, Dolby Vision function
EDID management by the DIP switch settings
Output resolution auto scaling
Supports 3.5mm audio de-embedded
No need to install the driver, plug and play
FirmwareLatest Version
DSP TemplateDownload
AutoCADDrawing
EASE FileAcoustic Data

Product Features

  • HDCP2.2 compliant
  • Support video bandwidth 18Gbps
  • Video resolution is up to 4K2K@50/60Hz
  • Support 3D, HDR, Dolby Vision function
  • EDID management by the DIP switch settings
  • Output resolution auto scaling
  • Supports 3.5mm audio de-embedded
  • No need to install the driver, plug and play

TECHNICAL SPECIFICATIONS

HDCP ComplianceHDCP 2.2
Video Bandwidth18Gbps
Resolution4K2K 50/60Hz 4:4:4, 4K2K 30Hz 4:4:4, 1080p, 1080i, 720p, 720i, 480p, 480i All HDMI 3D TV formats All PC resolutions including 1920 x 1200
3D SupportYes
Color SpaceRGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth8/10/12-bit
HDMI Audio FormatsPCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
HDR FormatsHDR10, HDR10+, Dolby Vision
ESD ProtectionHuman-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
Input Ports1*HDMI Type A [19-pin female]
Output Ports16*HDMI Type A [19-pin female], 1*3.5mm audio
HousingMetal Enclosure
ColorBlack
DimensionsProduct: 440X150X44MM
Weight2.2kg without packing
Power SupplyInput: AC 100~240V 50/60Hz, DC12V Output: DC 5V/1A
Power Consumption3.8W (max)
Operating Temperature0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity20~90% RH (non-condensing)
Cable LengthFor 4K60 (YCbCr 4:2:0)- –32ft / 10M; For 1080P—40ft/ 15m
