Home› Products› Video Systems› 8×1 4K30 HDMI switcher
Video Systems

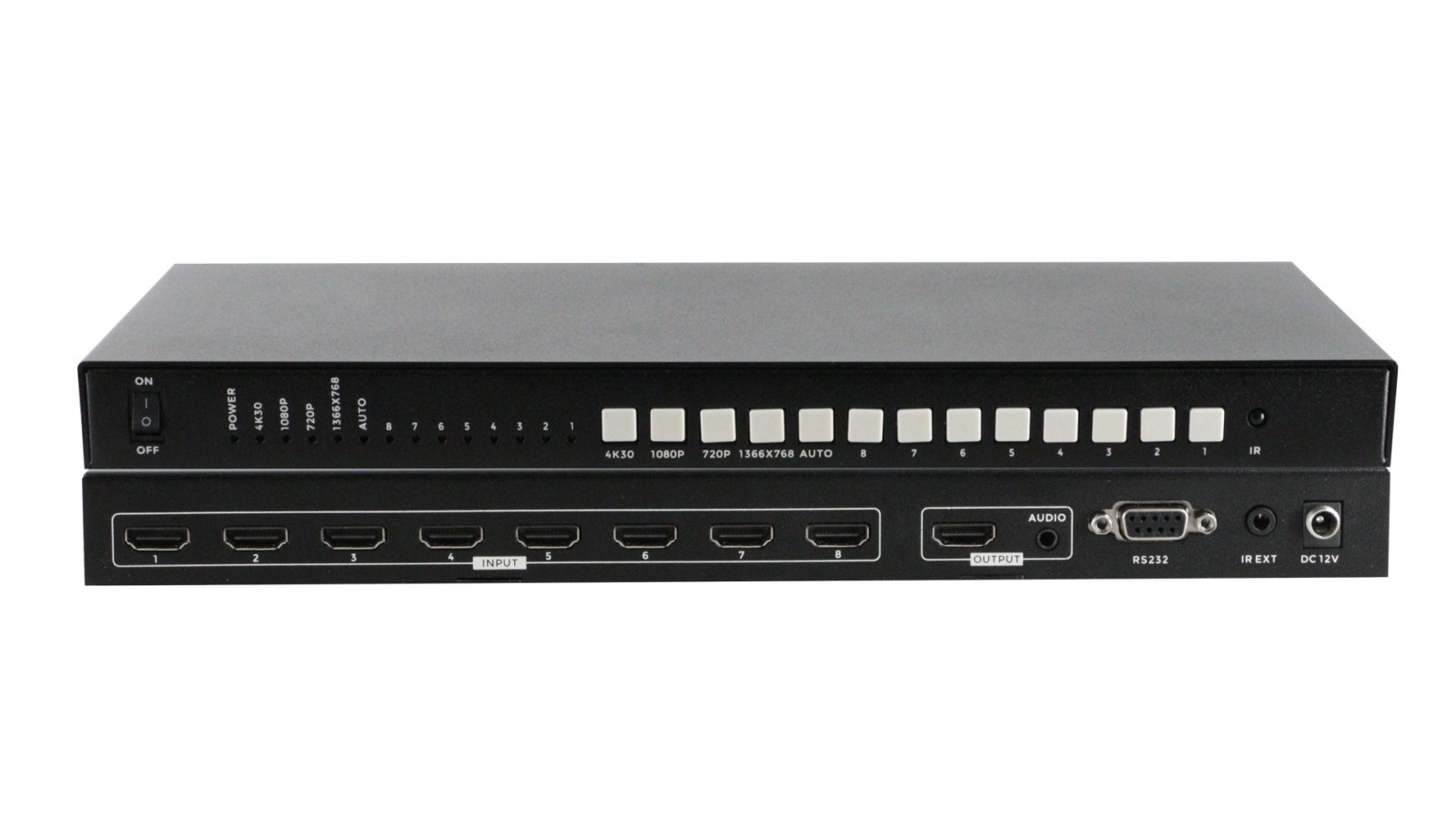

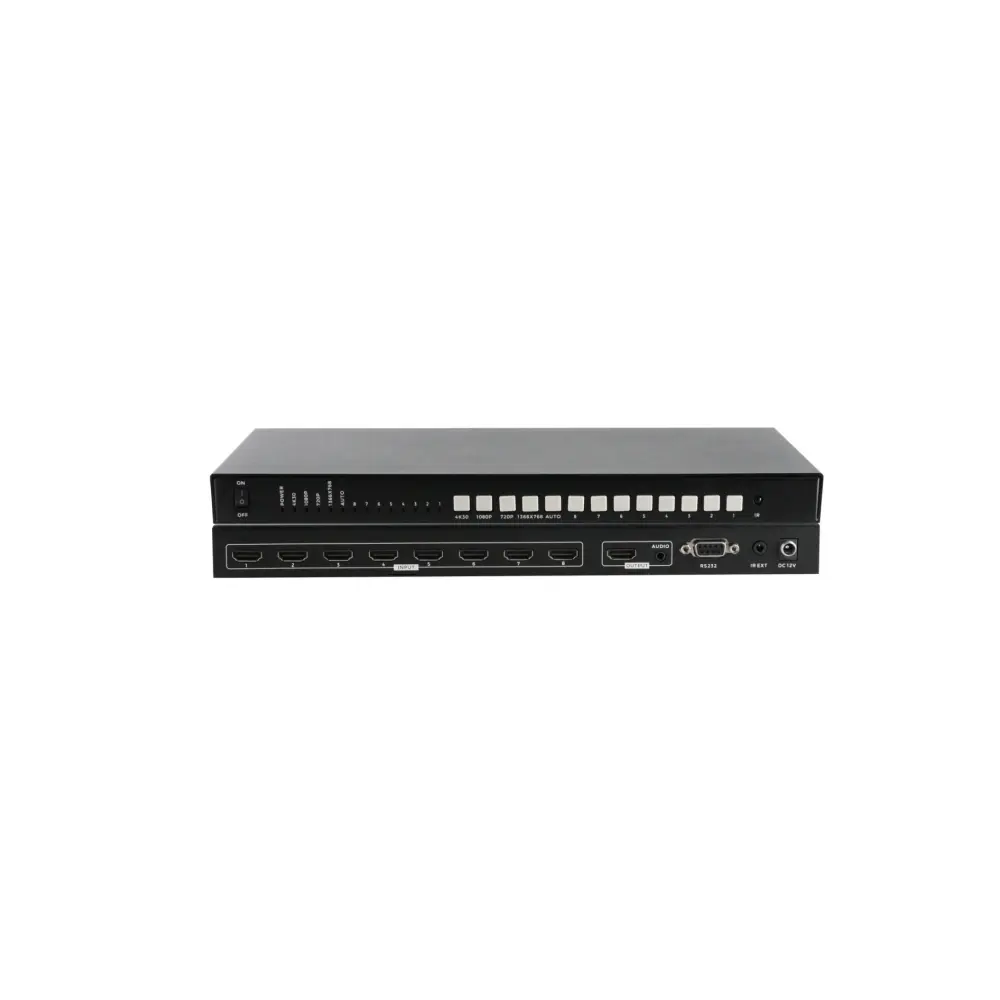

8×1 4K30 HDMI switcher

★★★★★★★★★★ No reviews yet — write one › SKU:
Delivery in 5-7 days
9 views 0 sold
In Stock
Contact Sales

Contact Channels

Get in touch for more details
1-Year WarrantyOfficial Thai warranty
Fast Delivery1-3 business days
Expert SupportEngineer team standby
0% InstallmentUp to 10 months
Official Thailand Warranty5 Years
Free System DesignConsultation
Technical SupportRemote Assistance
Online TrainingFor Partners & Users
Spare Parts AvailableLocal Stock

OVERVIEW

Introduction

This product is a HDMI 4K seamless and scaling switcher, supports automatic switching and manual switching, supports switching from 8 HDMI inputs to 1 HDMI output, and 8 HDMI inputs support different arbitrary resolutions with seamless switching and scaling. The HDMI output supports fixed resolutions output, which can be selected through the front panel buttons, infrared remote control, and RS232 serial port commands. Also supports EDID management through RS232 commands.

Features

• Support HDMI1.4, and the resolution up to 3840*2160@30Hz;

• Support CEC, ARC follow

• Support seamless switching even when different resolutions inputs;

• Support auto and manual switching modes

• Support the front panel push-button, IR remote and the RS232 control

• Support EDID management by RS232 commands

• Support work and standby power saving modes

• Support USB-A upgrading

Specification

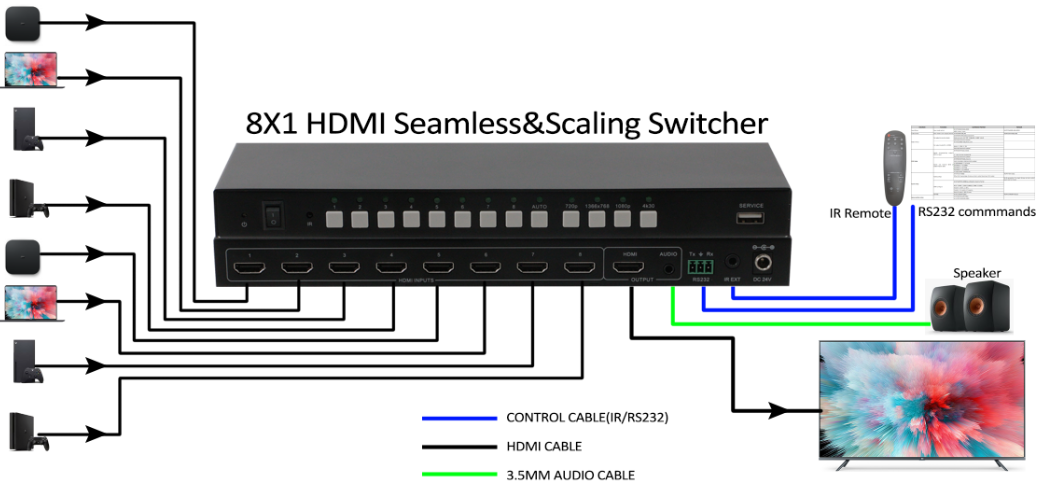

Connection diagram

Suitable Applications
Conference Room
Auditorium
Hotel
University
Broadcast
Courtroom
Command Center

TECHNICAL SPECIFICATIONS

Input8*HDMI
Output1*HDMI+3.5mm audio
Protocol StandardHDMI1.4, HDCP1.4
Resolution(8)3840*2160@30\1920*1080@60\1280*720@60\1366*768@60
Dimension250*100*26mm(9.84*3.94*1.02inch)
Weight0.5kg(1.1lb)(No packing)
Power SupplyDC 12V 1A
Consumption2.5W
Working Humidity10%-90%
Temperature-10℃-50℃
Storage-20℃-75℃

KEY FEATURES

View All ›
Support HDMI1.4, and the resolution up to 3840*2160@30Hz;
Support CEC, ARC follow
Support seamless switching even when different resolutions inputs;
Support auto and manual switching modes
Support the front panel push-button, IR remote and the RS232 control
Support EDID management by RS232 commands
Support work and standby power saving modes
Support USB-A upgrading
FirmwareLatest Version
DSP TemplateDownload
AutoCADDrawing
EASE FileAcoustic Data

Product Features

  • Support HDMI1.4, and the resolution up to 3840*2160@30Hz;
  • Support CEC, ARC follow
  • Support seamless switching even when different resolutions inputs;
  • Support auto and manual switching modes
  • Support the front panel push-button, IR remote and the RS232 control
  • Support EDID management by RS232 commands
  • Support work and standby power saving modes
  • Support USB-A upgrading

TECHNICAL SPECIFICATIONS

Input8*HDMI
Output1*HDMI+3.5mm audio
Protocol StandardHDMI1.4, HDCP1.4
Resolution(8)3840*2160@30\1920*1080@60\1280*720@60\1366*768@60
Dimension250*100*26mm(9.84*3.94*1.02inch)
Weight0.5kg(1.1lb)(No packing)
Power SupplyDC 12V 1A
Consumption2.5W
Working Humidity10%-90%
Temperature-10℃-50℃
Storage-20℃-75℃
