VPX-4100KVM⧉

OVERVIEW

Introduction

This is a high-performance 4K60 4X1 HDMI Multi-Viewer with fast switching switcher, which can display 4 channels of ultra-high-definition video signals on the same screen at the same time. Users can choose different screen splitting methods and switch between 4 channels of input signals. It supports 4K60/ 4K30/ 1080P/720P output and 3.5mm audio de-embedded, the input resolutions can up to 4K(three 4K30 inputs and one 4K60 input), when the 4 input signals are 1080p60 or below can truly realize the point-to-point lossless display. This multi-viewer also supports audio switching, which can switch the sound of any input signals. It can supports multiple control methods, users can control the device through the front push-button,IR remote or the professional RS232. In general, it is a very practical 4K60 multi-viewer with stable performance, simple installation, flexible control, which can be widely used in games, professional conferences, radio and television, security monitoring, securities markets and other fields .

Features

• Supports multiple working modes

• Support up to 4K inputs and 4K60 output

• Supports front panel push-button, hot-key and IR and RS-232 control

• Supports the audio switching

• Supports the 3.5mm audio de-embedded

• Supports the mouse roaming

Specification

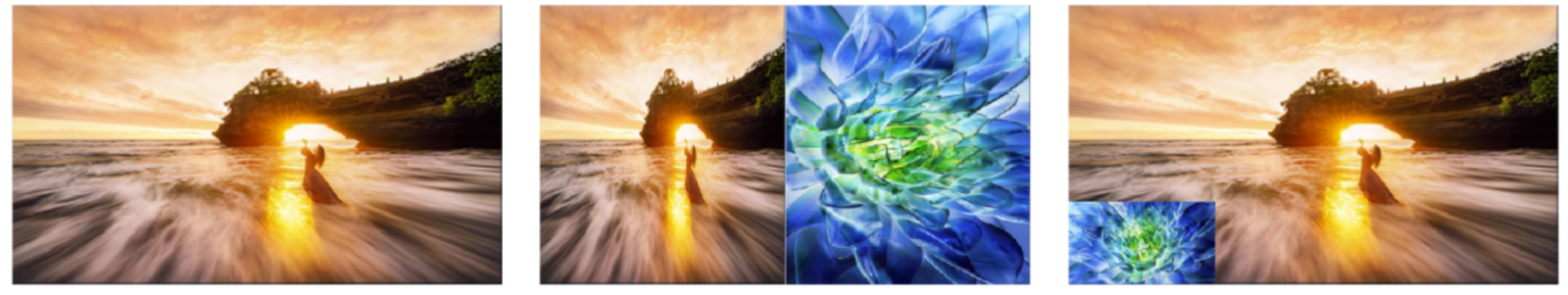

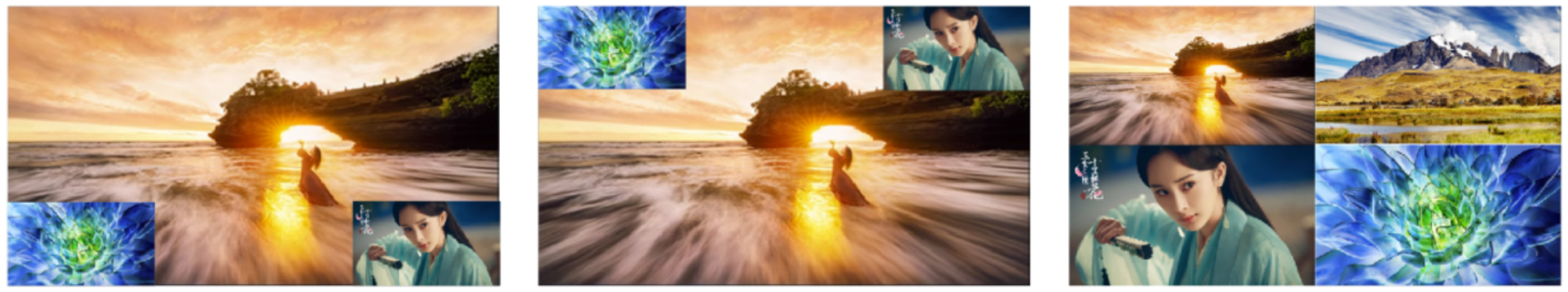

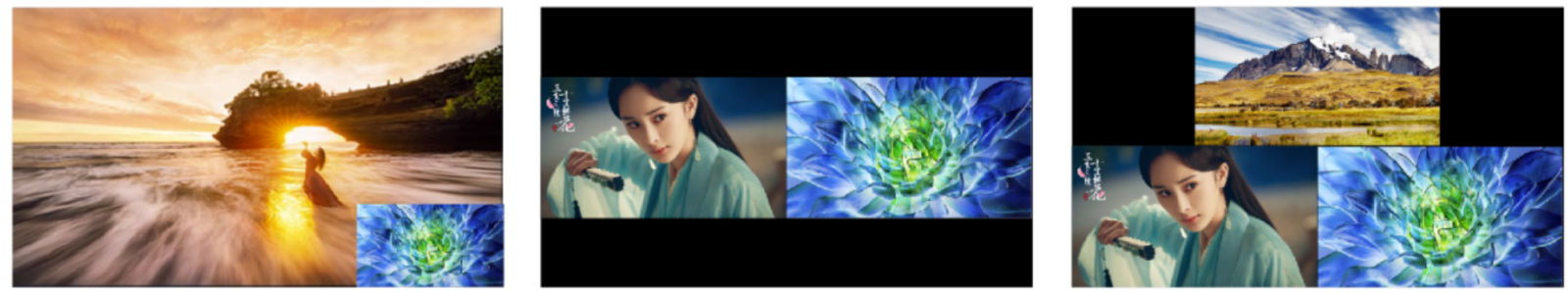

Working Modes

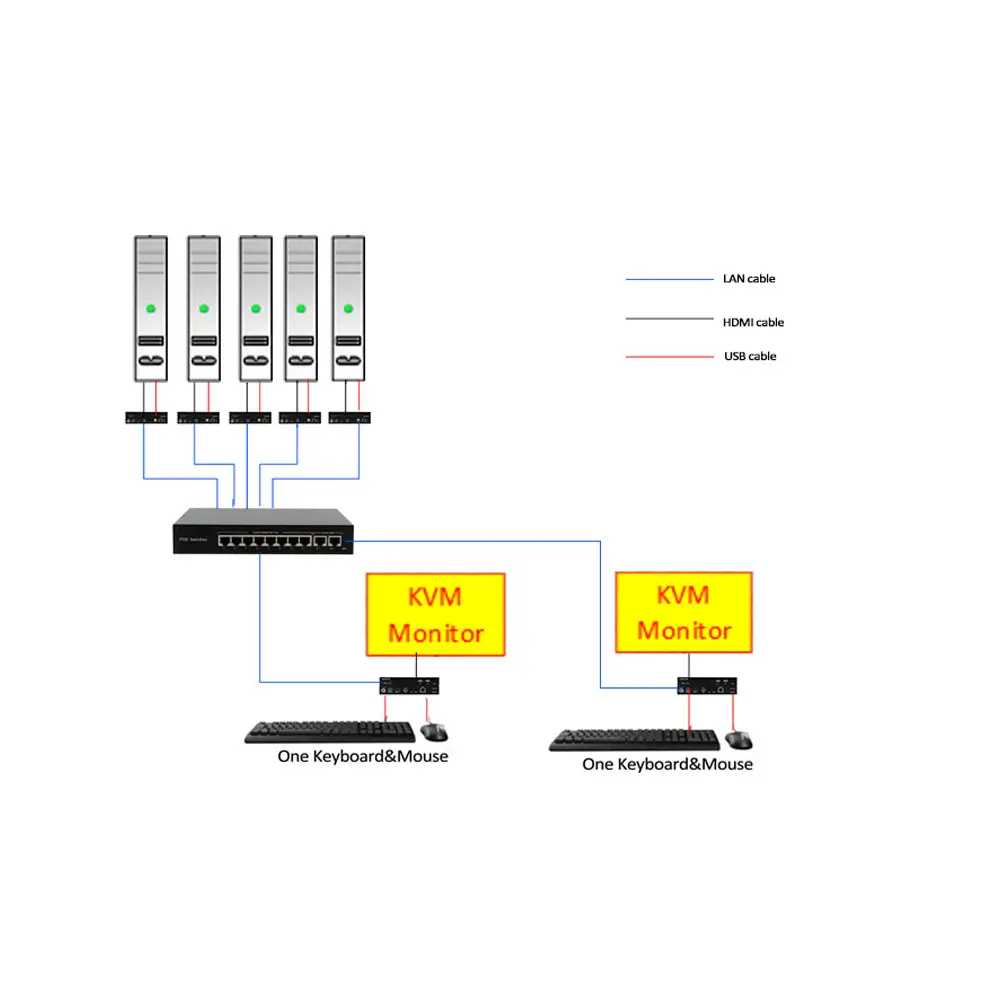

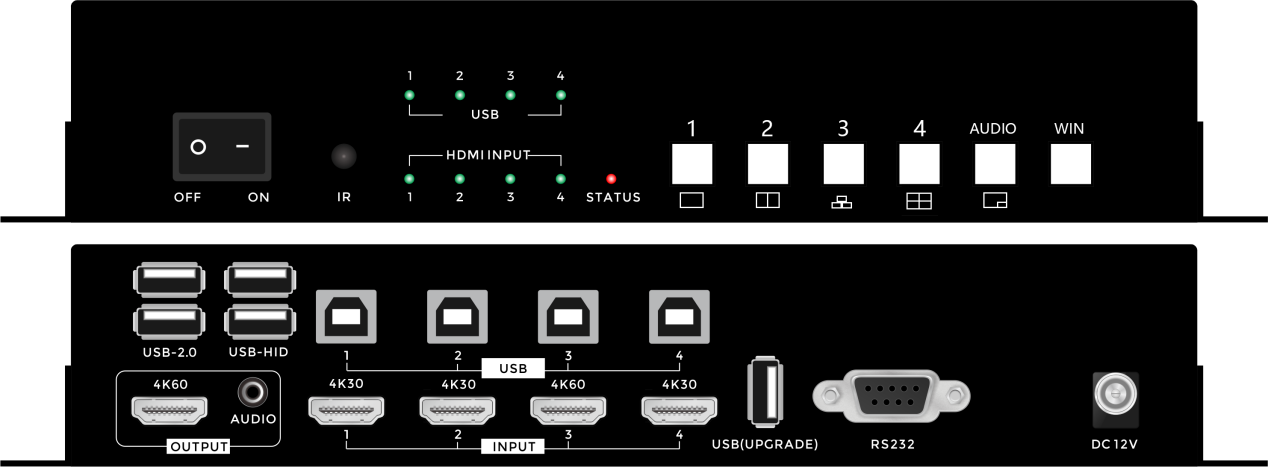

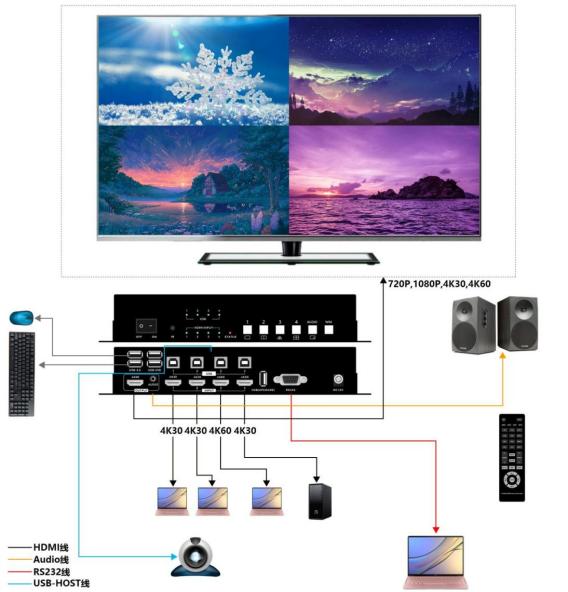

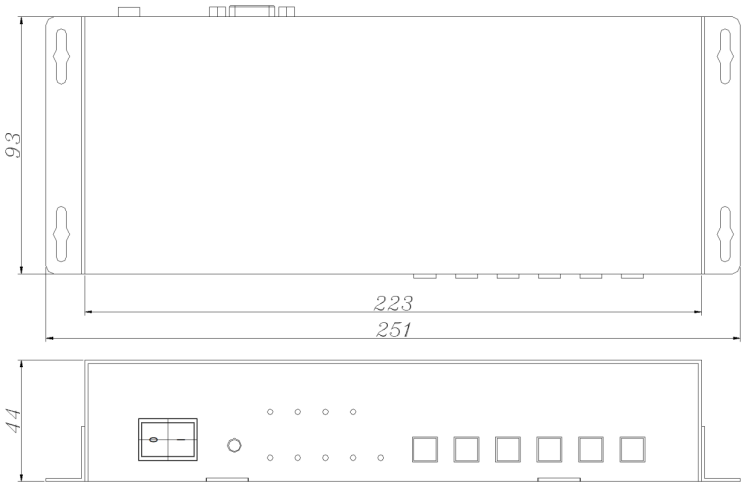

Connection diagram and Drawing
