OVERVIEW

Introduction

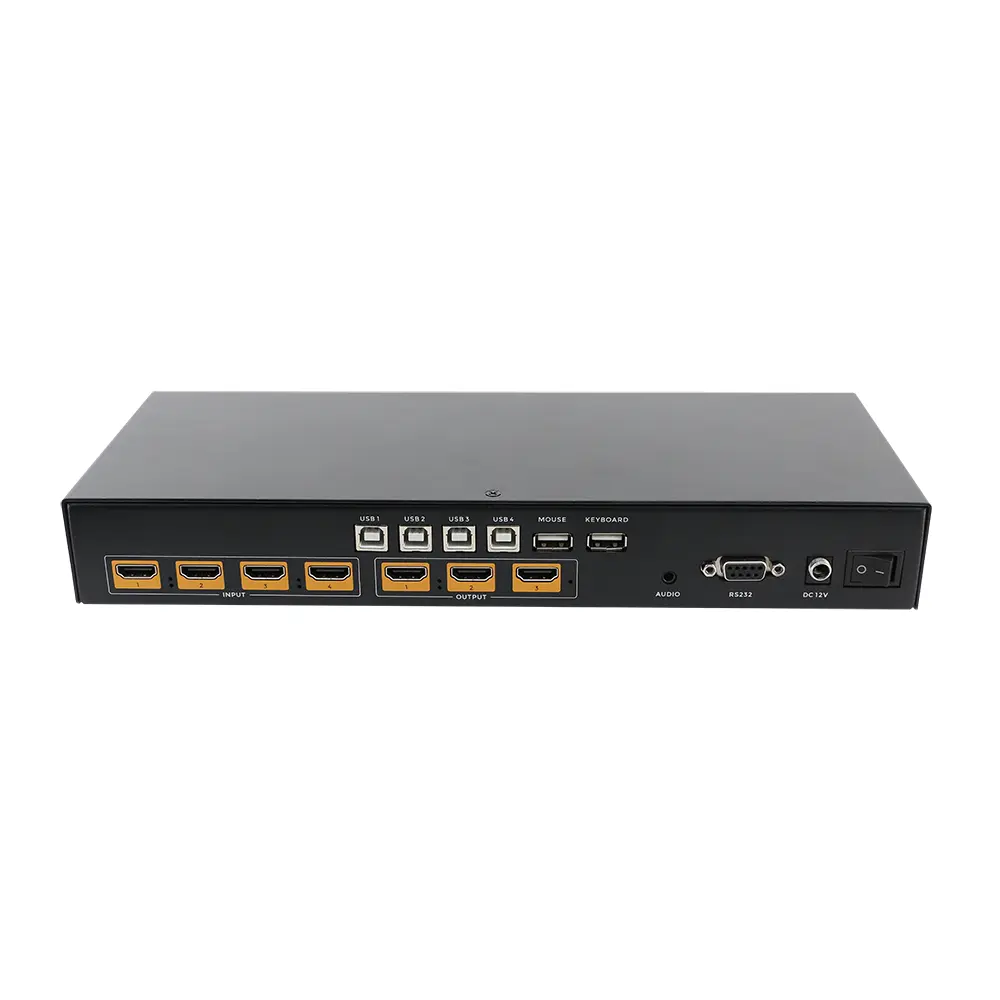

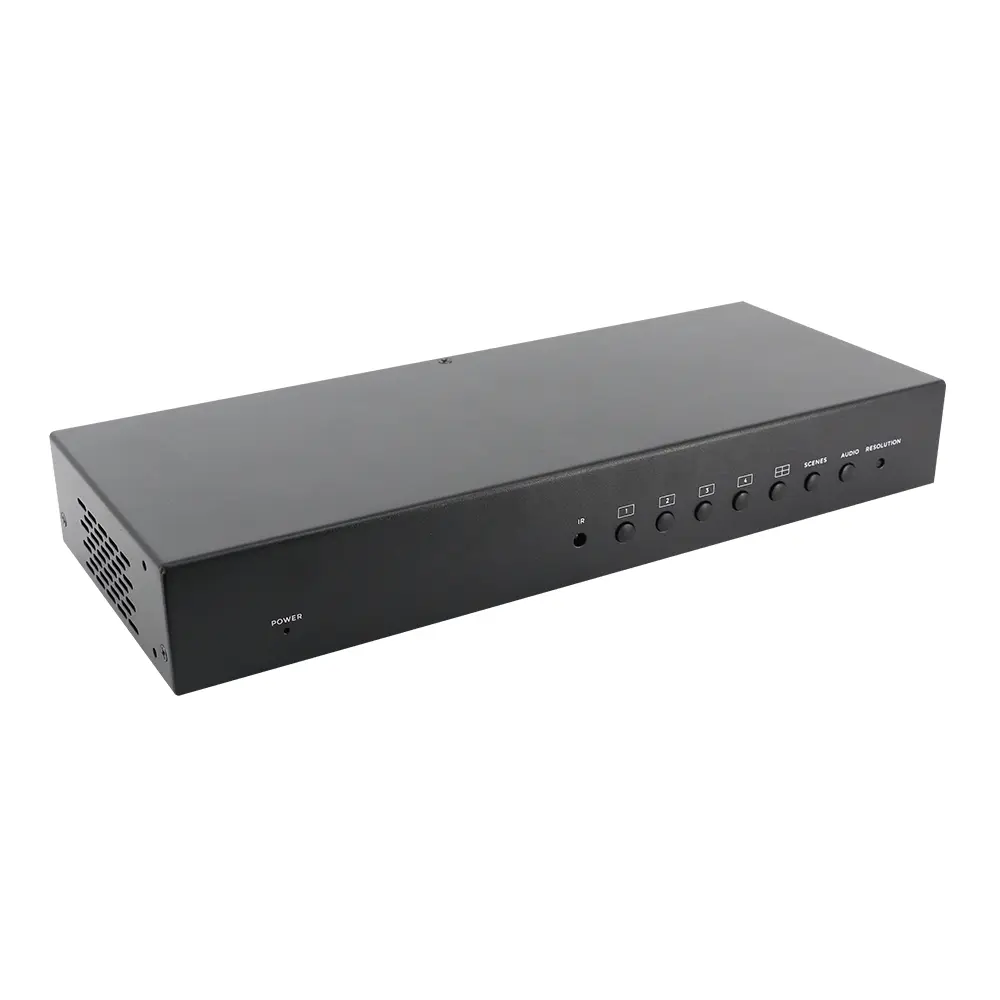

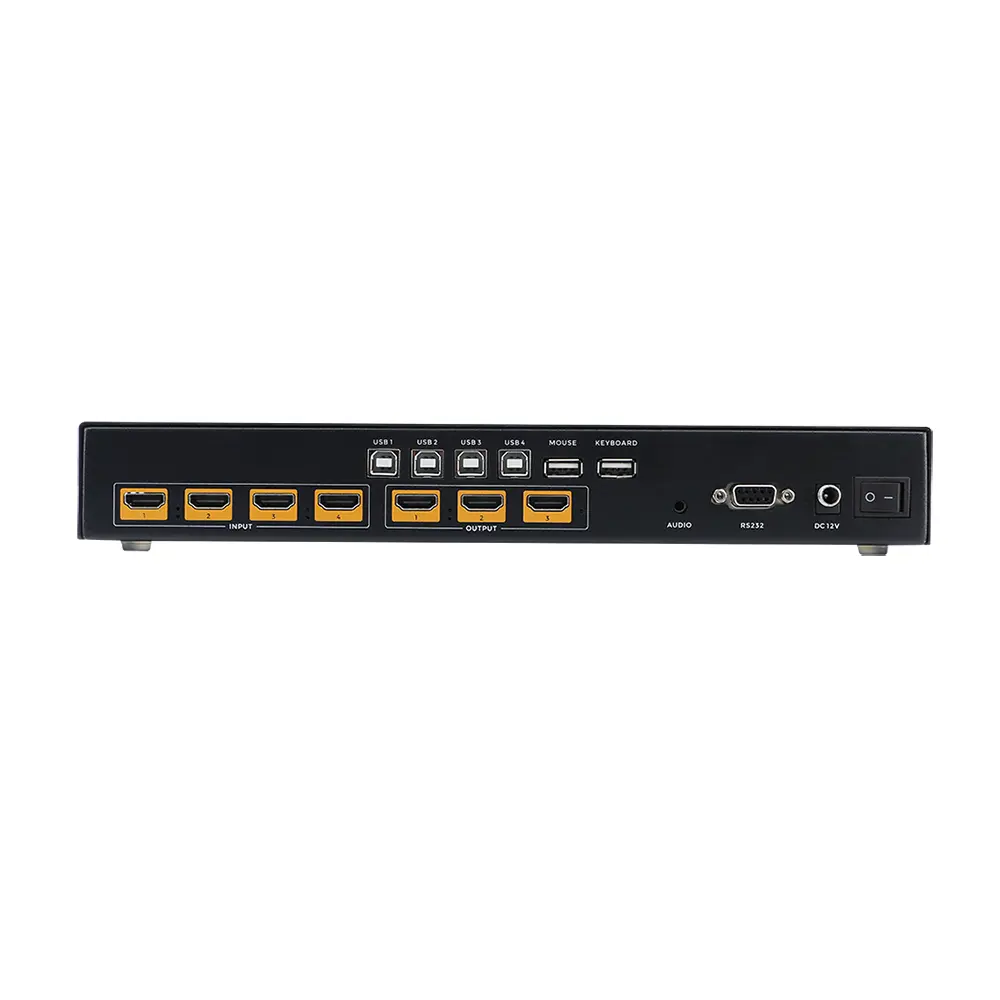

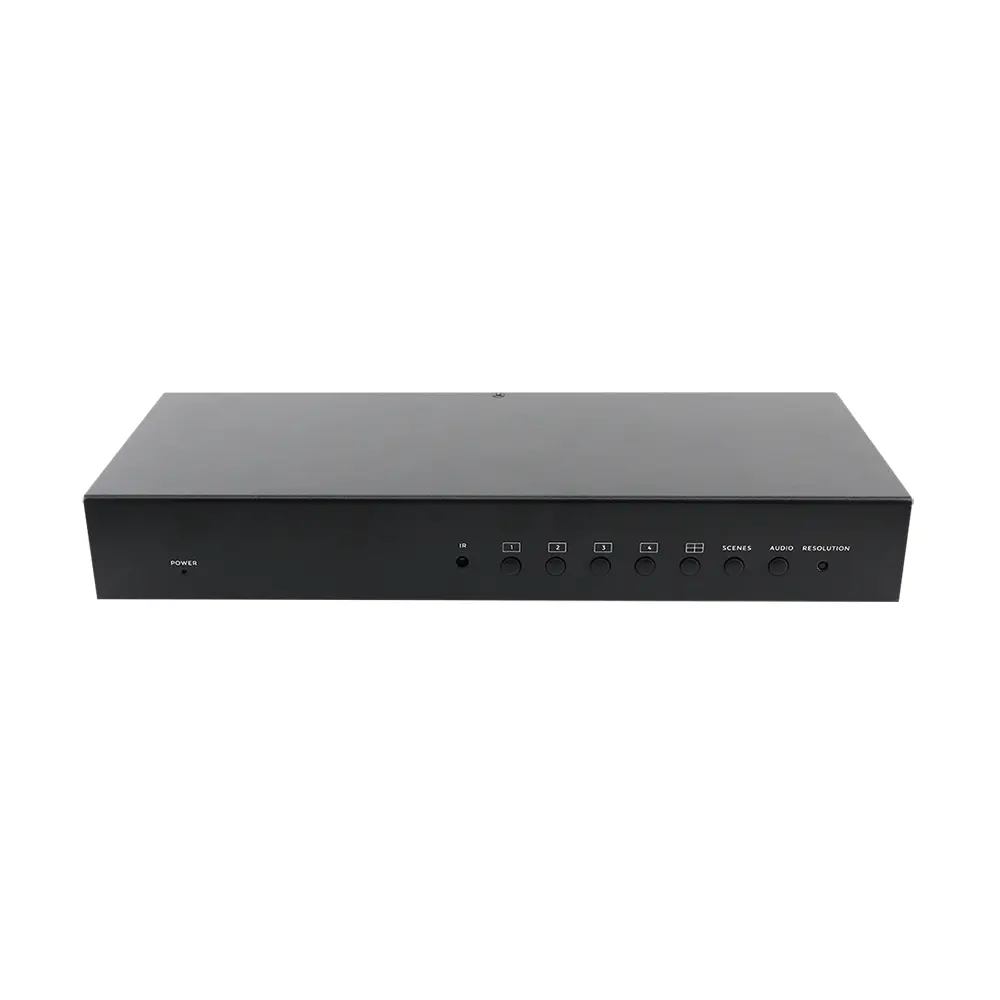

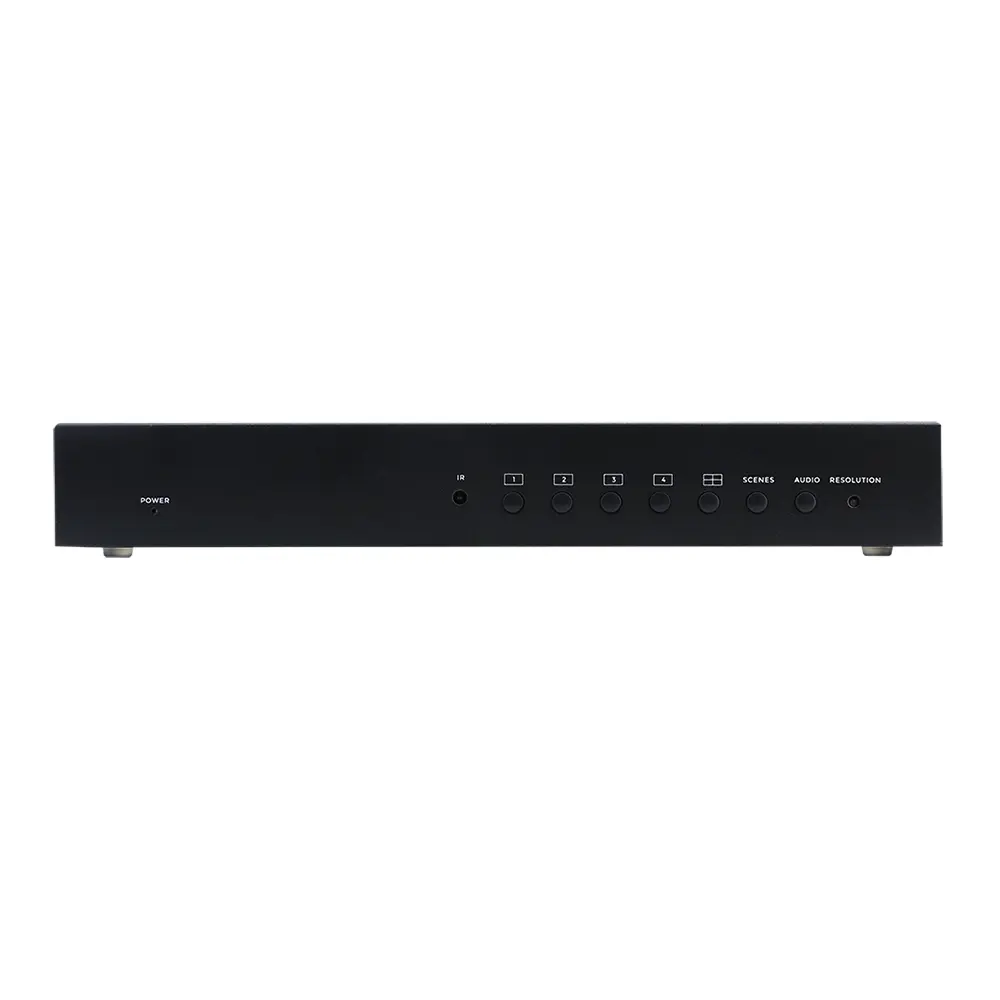

VPX-4300KVM is a 4K-KVM multi-view split switch. It is a professional video processing and control device that can simultaneously display multiple high-definition images in multi-window mode on ultra-high-definition resolution UHDTV flat-panel TVs, projections and other display devices. information. The screen splitter adopts a pure hardware structure design, without an operating system. The entire system runs completely closed and does not require a computer or startup software. It is very simple, has high stability, and the output graphics quality is good. The stability is much higher than that of the WINDOWS-based operating system. The “computer + board” method and the traditional controller based on embedded structural design and embedded special operating system can work immediately after power-on and have high stability. The ultra-high-definition picture split switch can accept 4-channel HD2.0 standard high-definition signals, and adjust and transform the input signals in terms of window size, image ratio, etc. according to user requirements, and finally outputs a unified format HD2.0 interface signal.

The 4K-KVM multi-screen split switch does not require any system or WEB and other control software. It can quickly switch all signals using only the mouse and keyboard, realize independent scaling of each window, and the input and output resolutions can reach the 4K@60 standard. . Users can choose a single screen with 4 pictures to display simultaneously to control the window size and mouse and keyboard operations of 4 computers. They can also choose to operate dual screens with dual pictures for separate display. At the same time, there is also a loop-through for point-to-point loop-out display of the input signal source.

Features

• Support 4 channels of HD 2.0 signal input;

• Support 3 channels of HD 2.0 signal output;

• Supports 4 channels of computer USB/BM input and 2 channels of USB/AM mouse and keyboard input ;

• Supports 11 conventional resolution outputs, such as 2160P@60, DCI 4K@60, 1920X1200@60, 1080P@60, etc.;

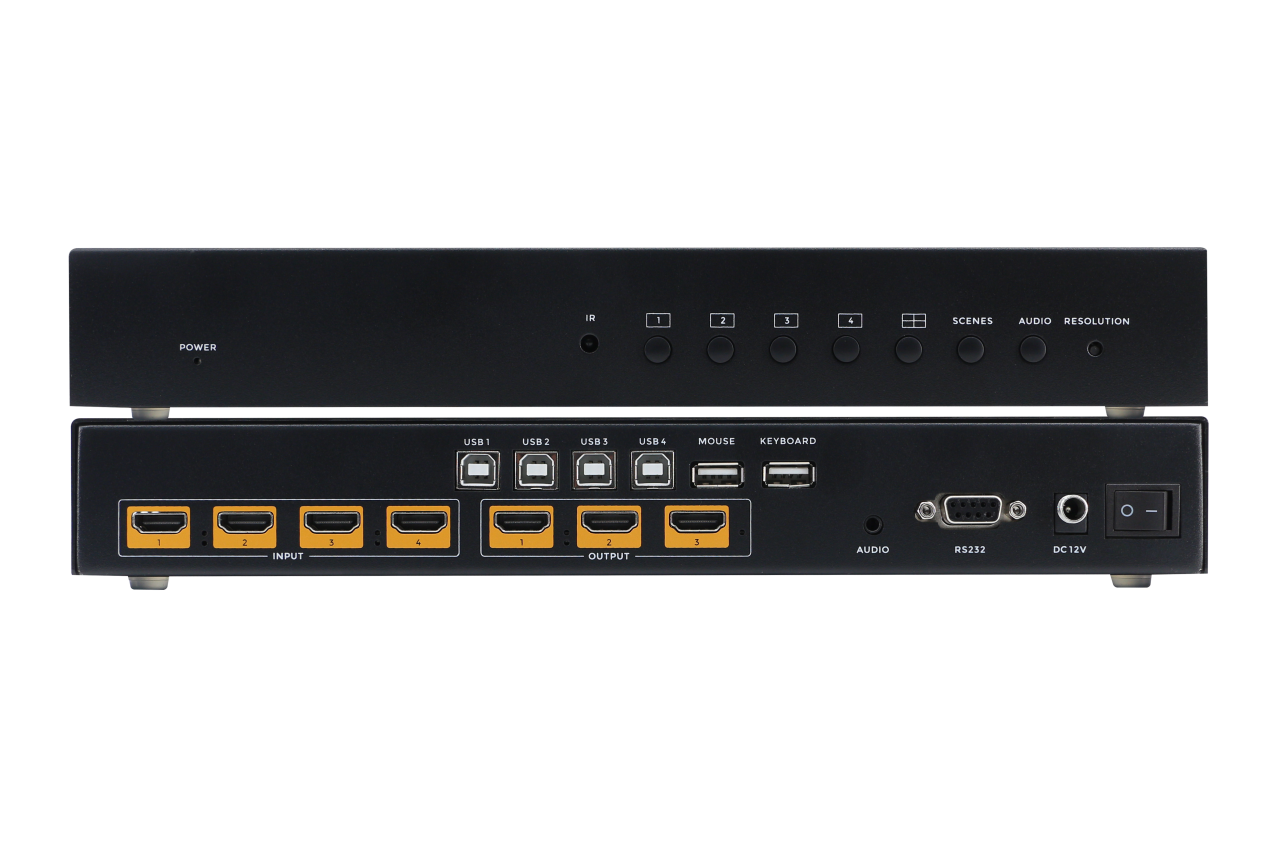

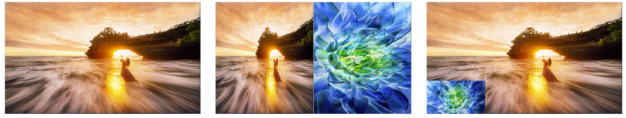

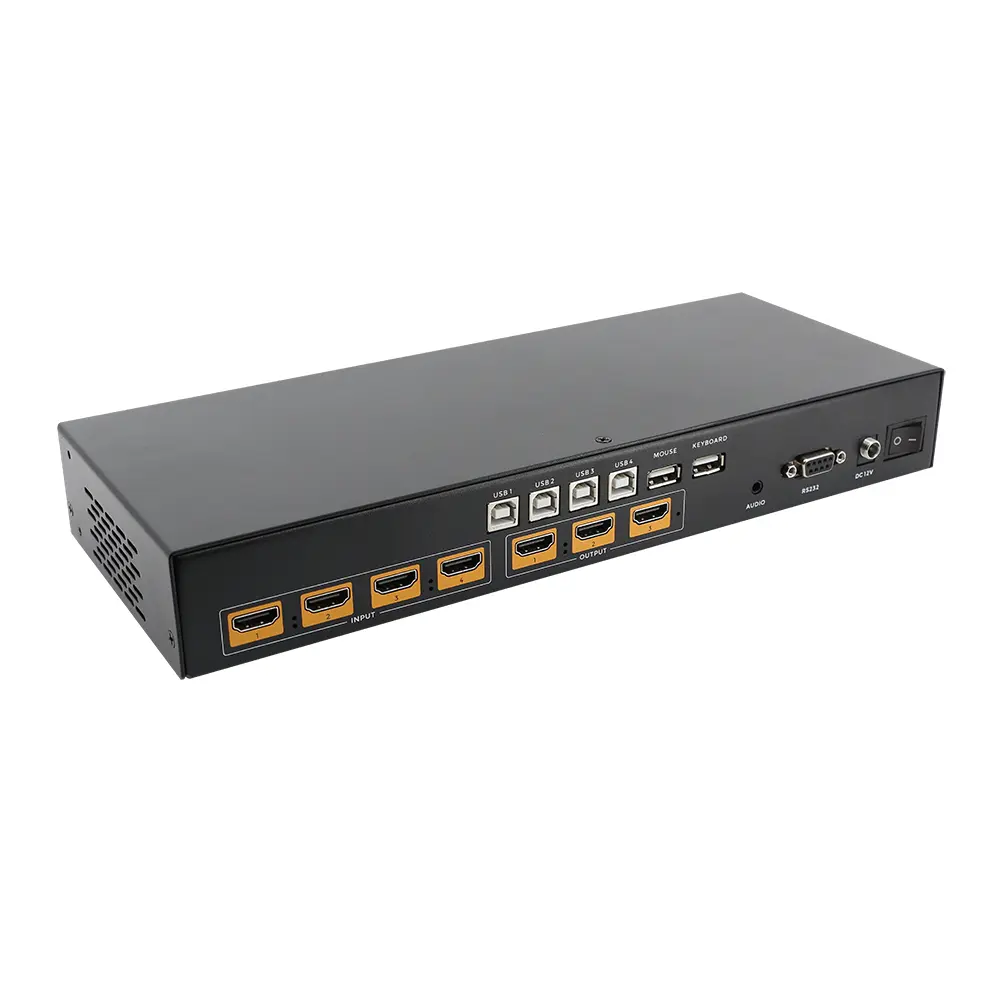

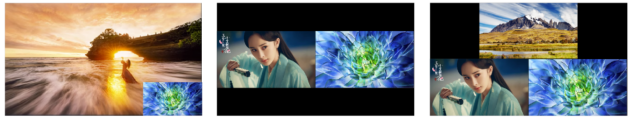

• Supports dual-screen simultaneous display of 4 windows, 3 windows, 2 windows, single window and other window combination modes ;

• Supports multiple window combination modes such as dual-screen display with 2 windows and single window ;

• Supports controlling window size, PIP transparency, signal source switching, etc. through mouse and keyboard;

• Supports simultaneous operation of 4 computers through a set of mouse and keyboard ;

• Support panel switching signal full screen, 4 pictures, 2 pictures, etc.;

• Supports panel, infrared, control scene mode, audio output and video loop-out switching;

• Support panel loop to change output resolution;

Specification

Working Modes

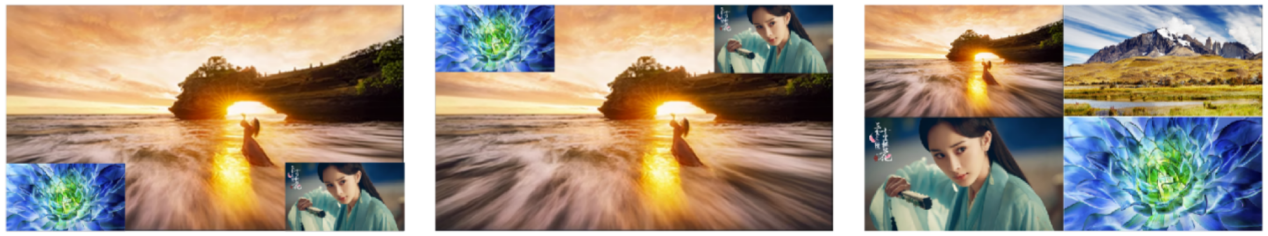

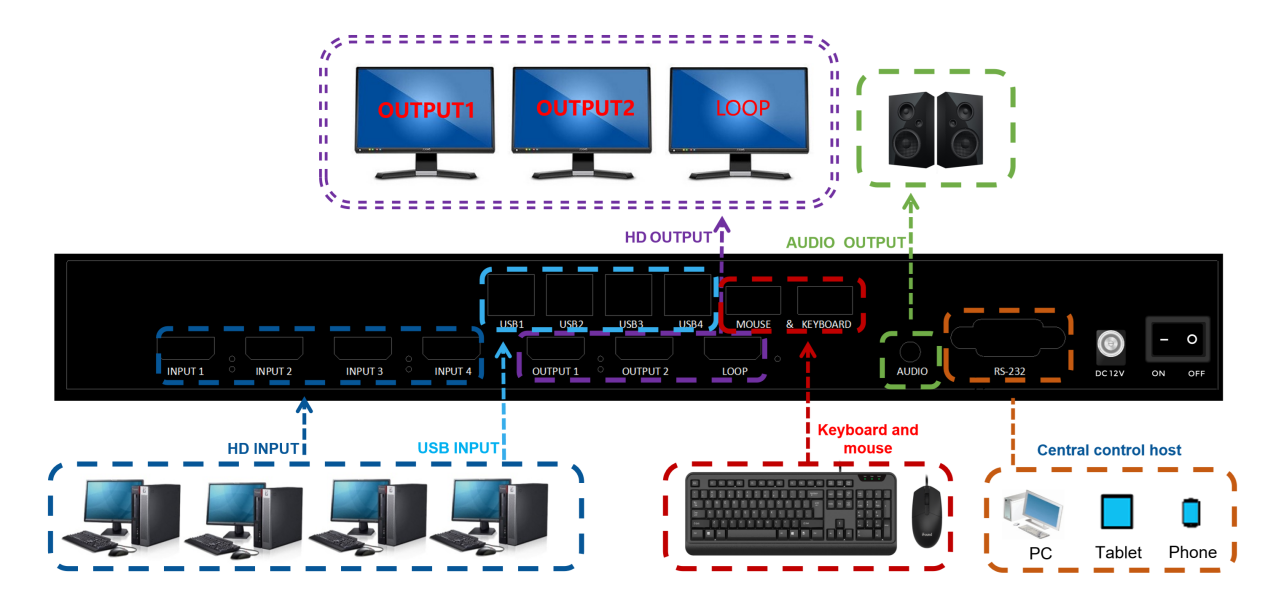

Connection diagram:

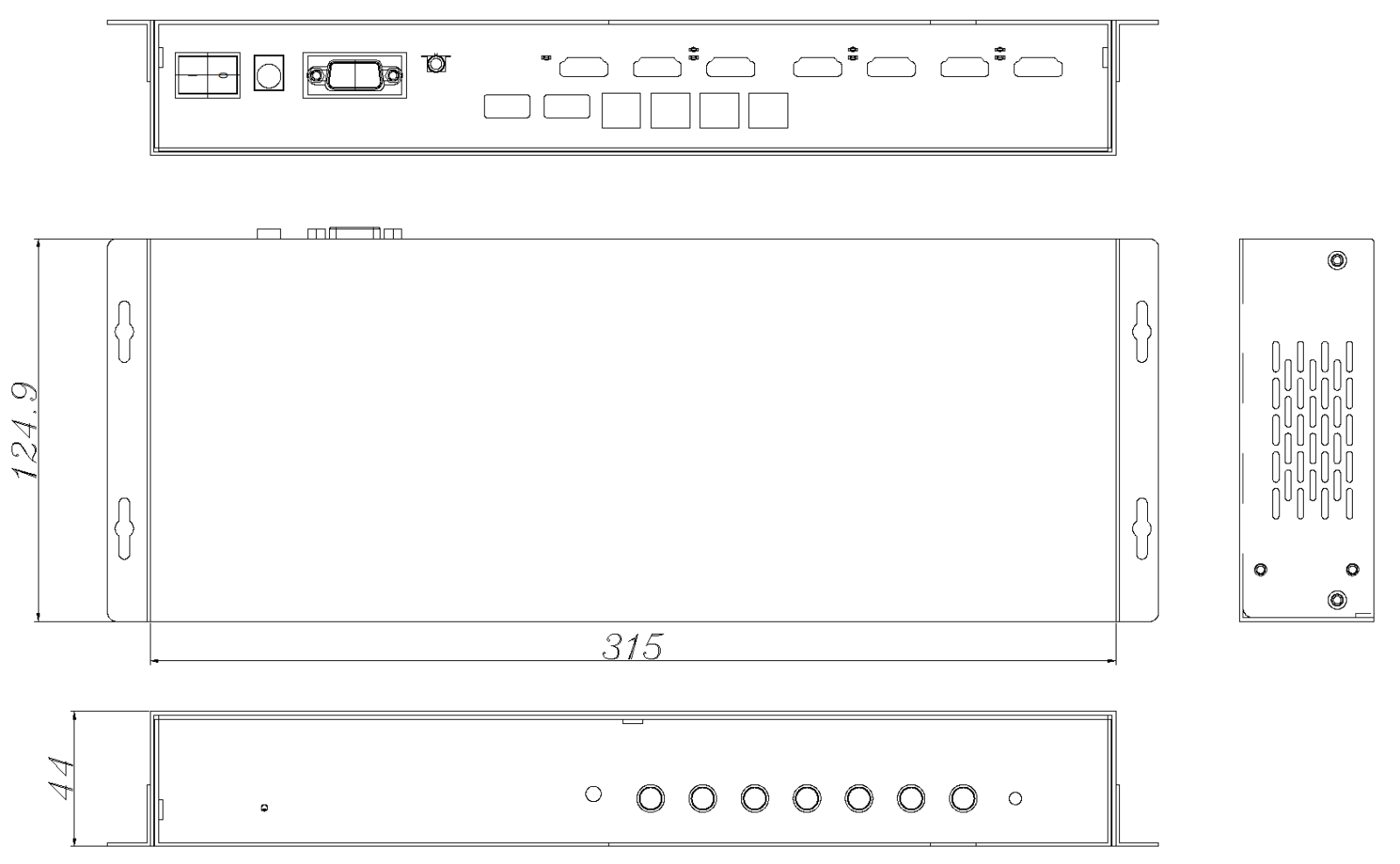

Product dimension(mm): 315*124.9*44

Suitable Applications

Conference Room

Auditorium

Hotel

University

Broadcast

Courtroom

Command Center

TECHNICAL SPECIFICATIONS

Input	4 x HDMI2.0(4K60)
Input resolution	HDMI2.0: 640×4808, 800×6008, 1024×7688, 1280×7688, 1280×8008, 1280×10248, 1360×7688, 1366×7688, 1440×9008, 1400×10508, 1600×12008, 1680×10508, 1920×12008, 720×4808 (480p), 720×5766 (576p), 1280×7205 (720p30), 1280×7206 (720p50), 1280×7208 (720p60), 1920×10802 (1080p24), 1920×10803 (1080p25), 1920×10805 (1080p30), 1920×10806 (1080p50), 1920×10808 (1080p60), 3840×21605(2160p30),3840×21606 (2160p50), 3840×21608 (2160p60) 1 = 23.98 Hz, 2 = 24 Hz, 3 = 25 Hz, 4 = 29.97 Hz, 5 = 30 Hz, 6 = 50 Hz, 7 = 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz
Output	1 x HDMI2.0
Output resolution	HDMI2.0: 1920×10806 (1080p50), 1920×10808 (1080p60), 3840×21605 (2160p30) , 3840×21606 (2160p50) , 3840×21608 (2160p60) 1 = 23.98 Hz, 2 = 24 Hz, 3 = 25 Hz, 4 = 29.97 Hz, 5 = 30 Hz, 6 = 50 Hz, 7 = 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz
Input (2)	4 x HDMI
Input audio signal	RAW PCM, 16 bit, 32/44.1/48KHz sps; PCM 2.0
Output (2)	1 x HDMI2.0;1 x Analog Audio
Output audio signal	RAW PCM, 16 bit, 32/44.1/48KHz sps; PCM 2.0
Front panel button	1: for input1 to be fullscreen 2: for input 2 to fullscreen 3: for input 3 to fullscreen 4: for input 4 to fullscreen 田：for 4-window quad-view SCENES: for preset recall AUDIO: Select the corresponding input signal(*Long press for 7 seconds to reset to factory model)
IR	Can realize all the functions of the button, also support fast switching
RS232	The interface is a 3pin phoenix segment, which support third-party control
Operating temperature	0 to +45°C (32 to + 113 °F)
Storage temperature	-20 to +70°C (-4 to + 158 °F)
Relative humidity	10% to 90%,
Static Protection	Human body discharge mode:±8kV (Air gap discharge)/ ±4kV (Contact discharge)
Power supply	12 V 2A DC
Power consumption	10W(Max)
Measure	315124.944(mm)
Net weight	2 kg
