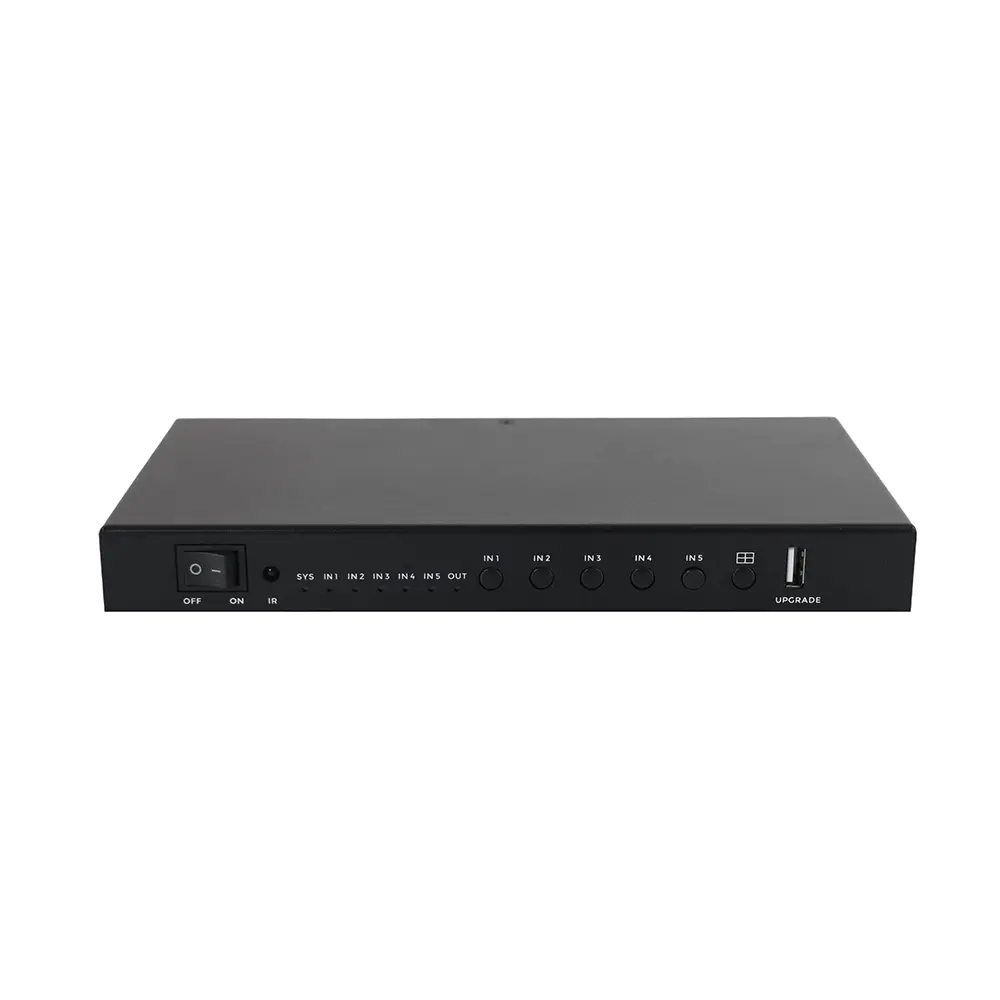

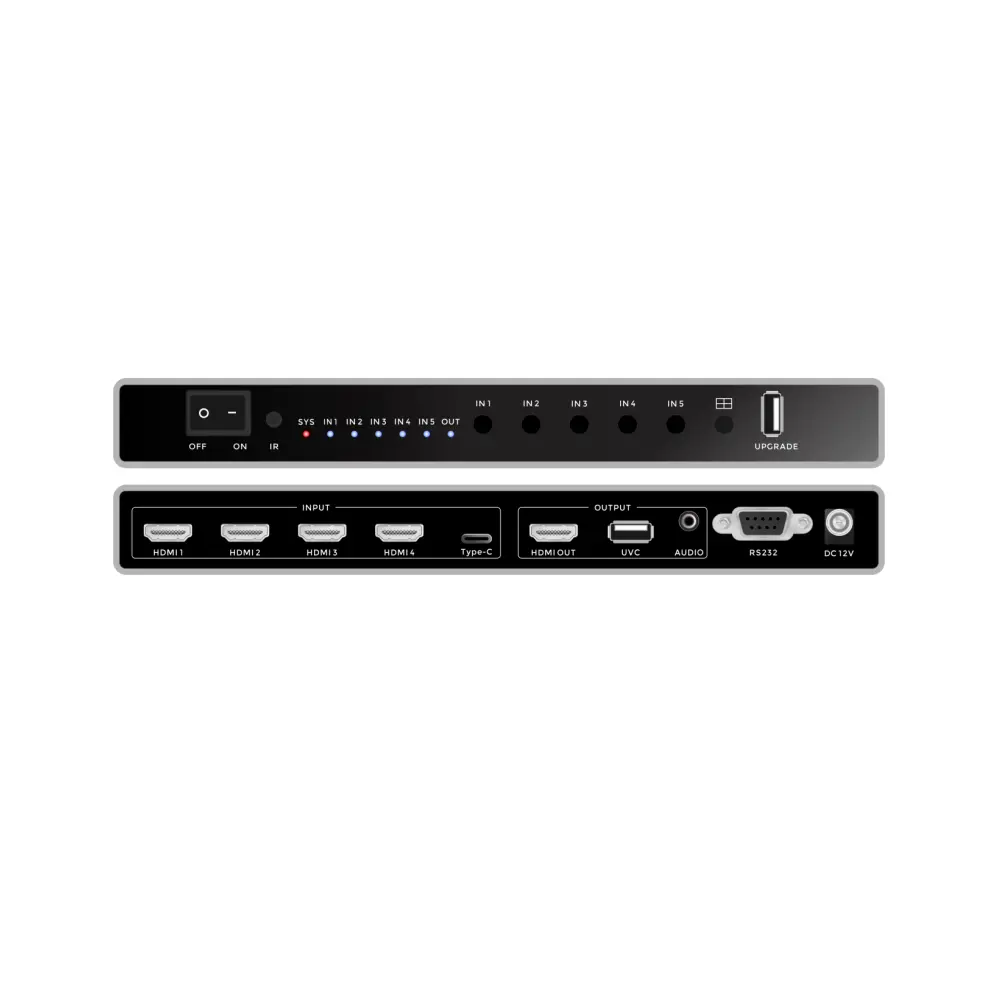

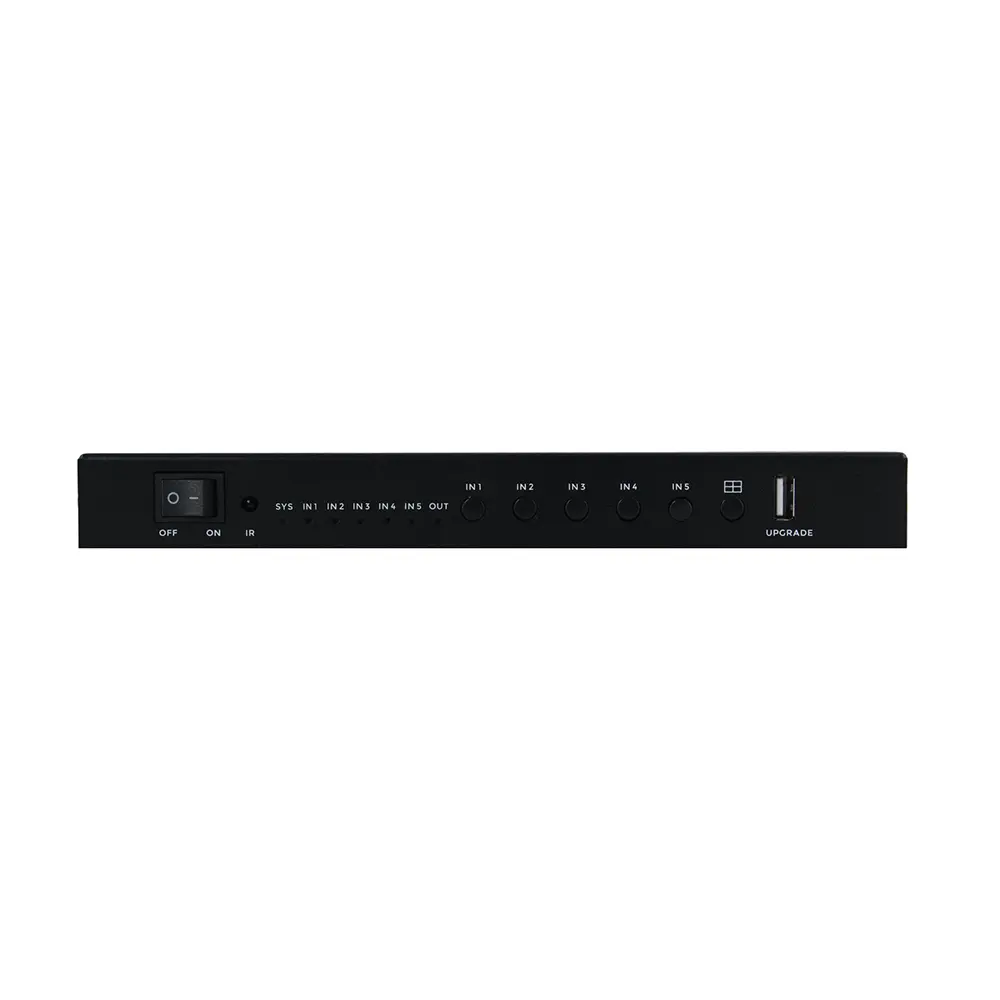

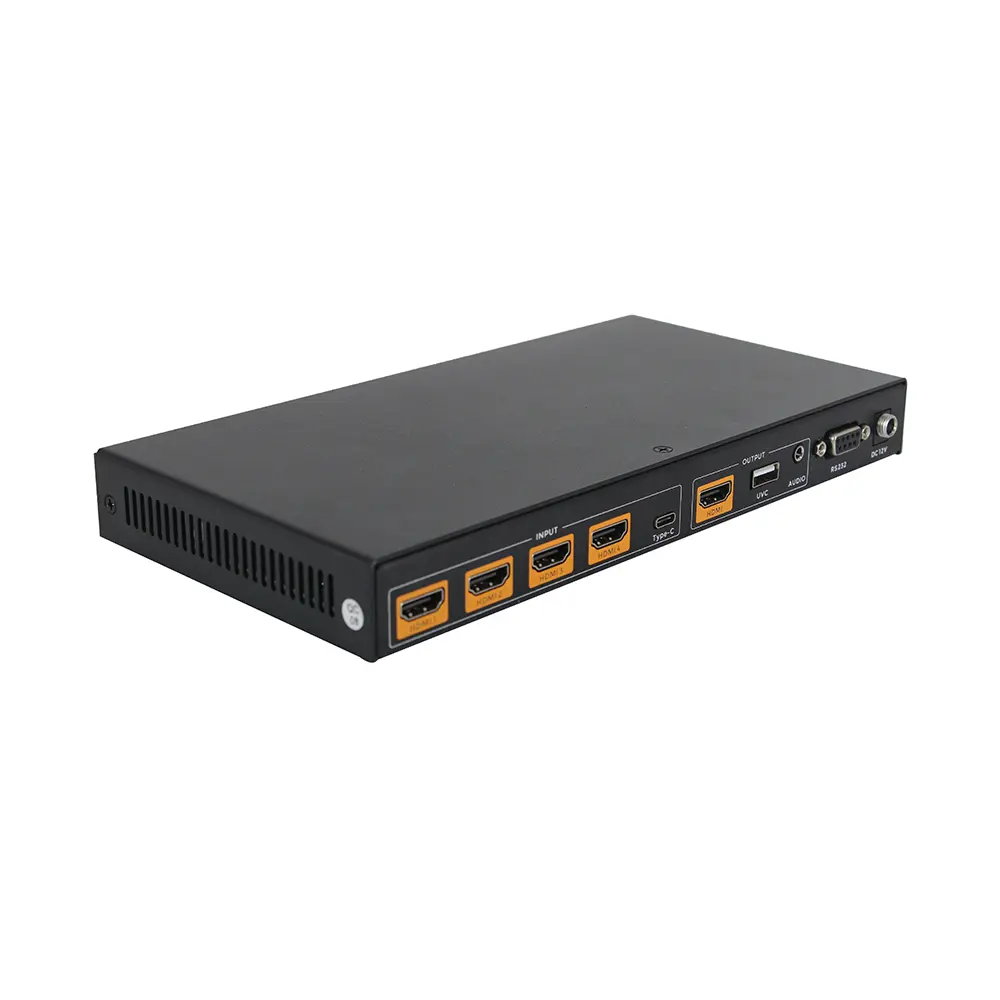

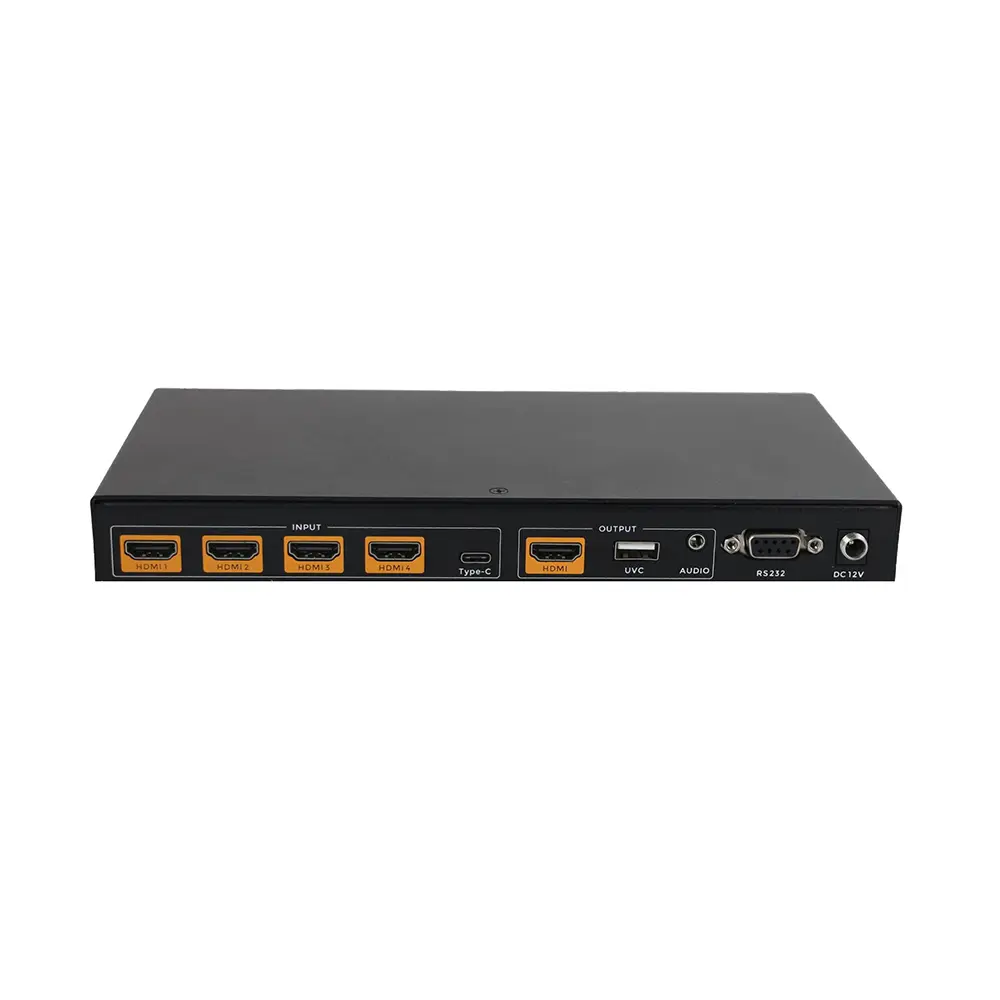

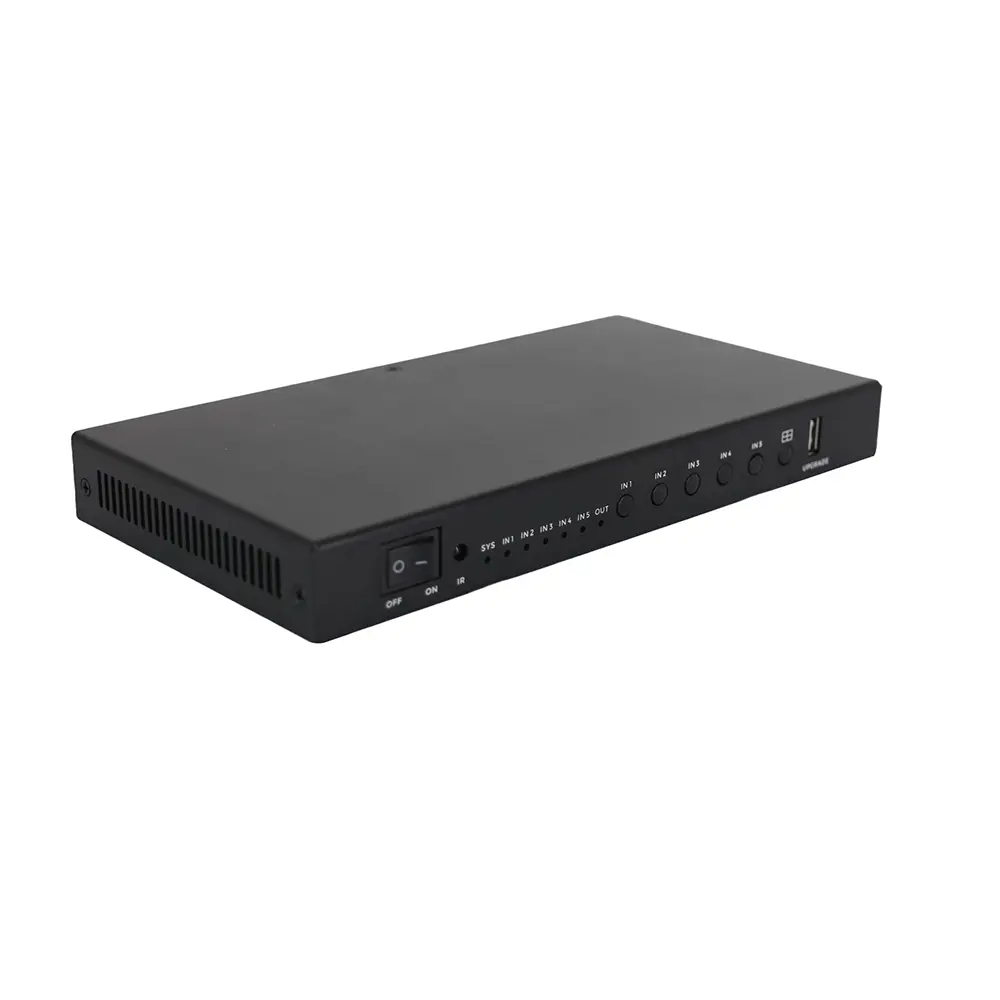

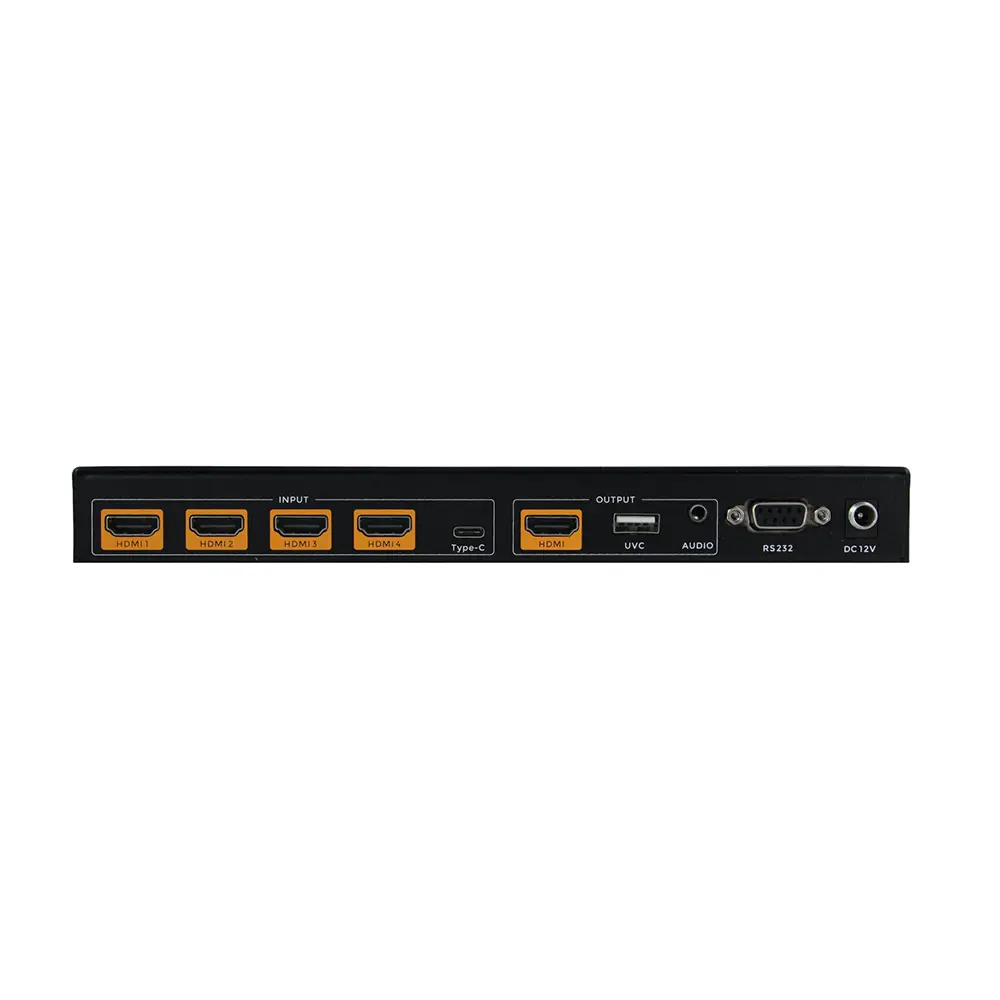

OVERVIEW

Introduction

This product is a real 4K60 multiviewer switcher with seamless switching(*when single-window mode) and and scaling function, it supports 4 HDMI2.0 inputs, 1 Type-C input and 1 HDMI2.0 output with 3.5mm audio out and USB2.0 capture. The resolution of both inputs and output can up to 4K@60hz 4:4:4, the bandwidth can up to 18Gbps. Users can use the front panel push buttons, IR remote control, and RS232 codes to control the unit.

Features

• Support 8 working modes/layouts

• Support HDMI2.0, and the resolution up to 3840*2160@60Hz

• Support USB2.0 port for OBS Capture

• Support 4K60 inputs(4*HDMI, 1*USB-C)

• Support seamless switching even when different resolutions inputs

• Support the front panel push-button, IR remote and the RS232 control

• Support USB-A upgrading

Specification

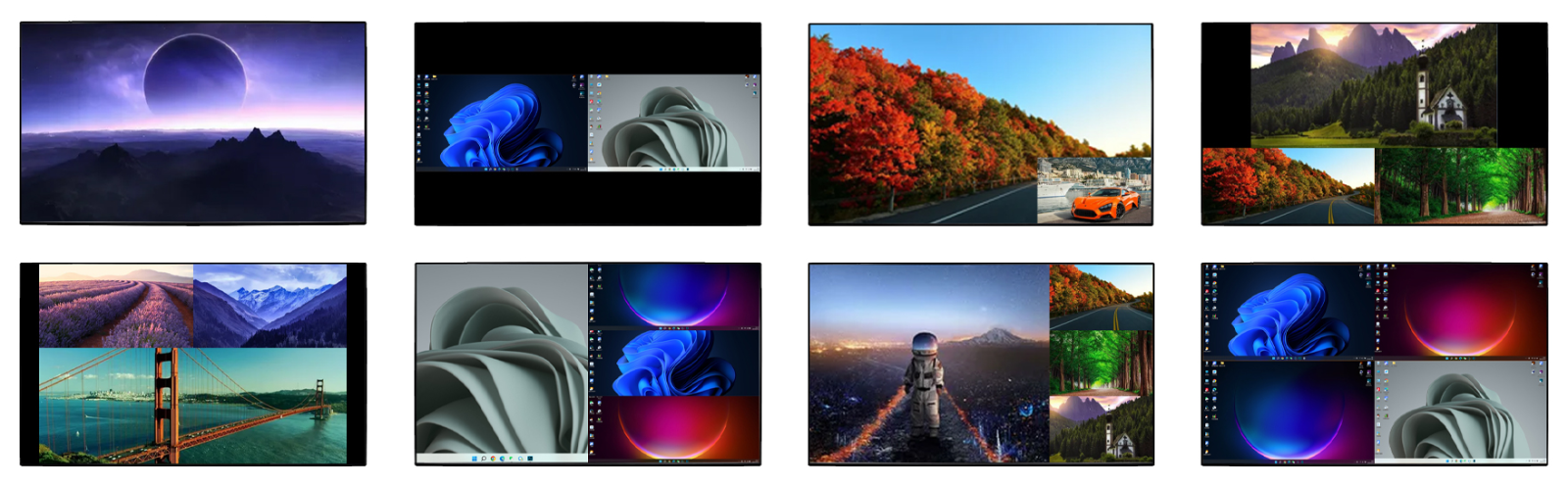

Working modes:

*Also can support the RS232 commands to customize layout or output resolutions

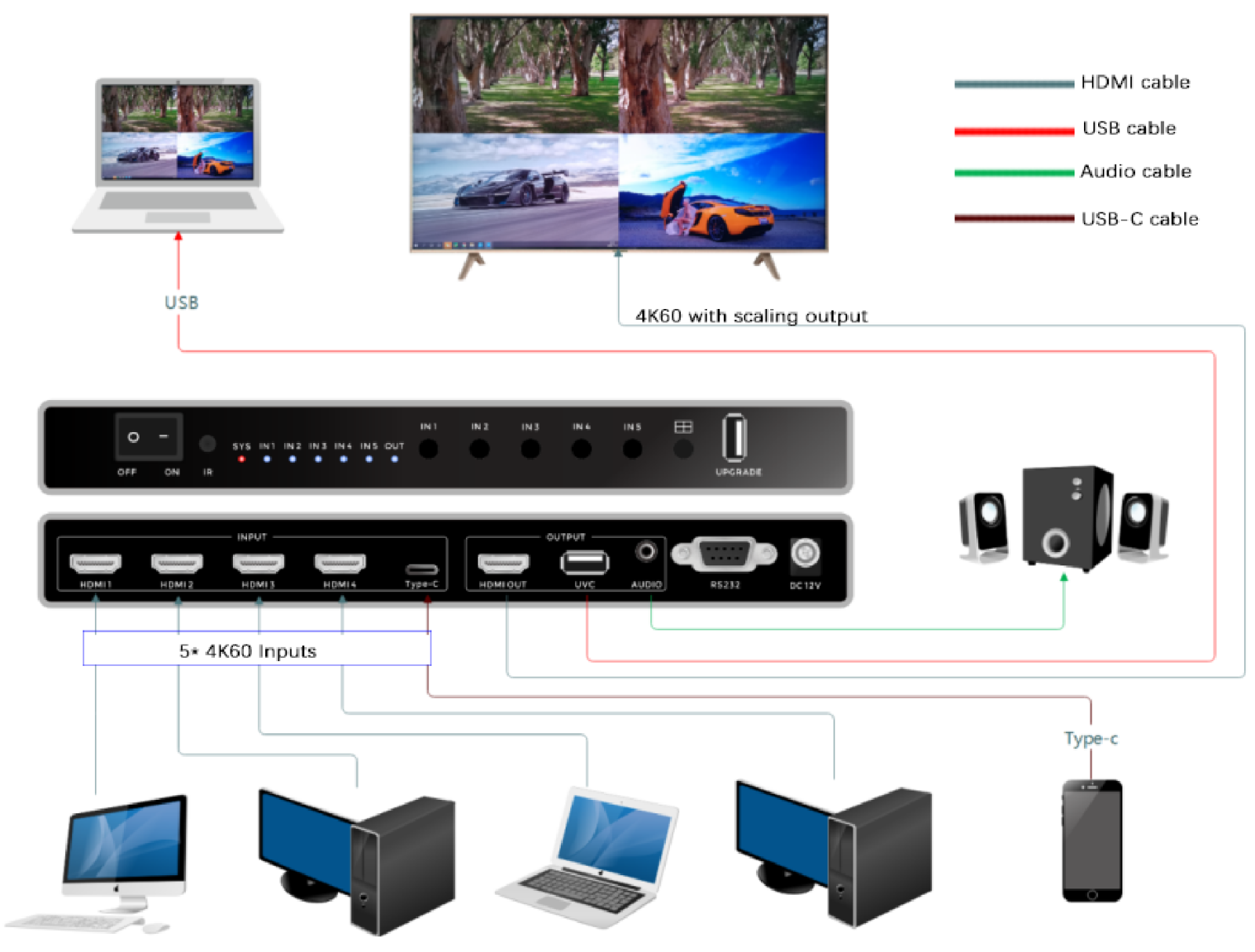

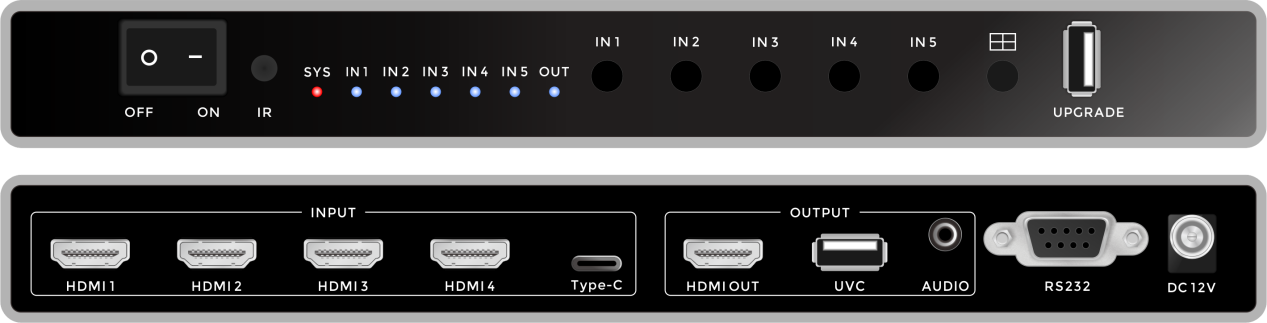

Connection diagram

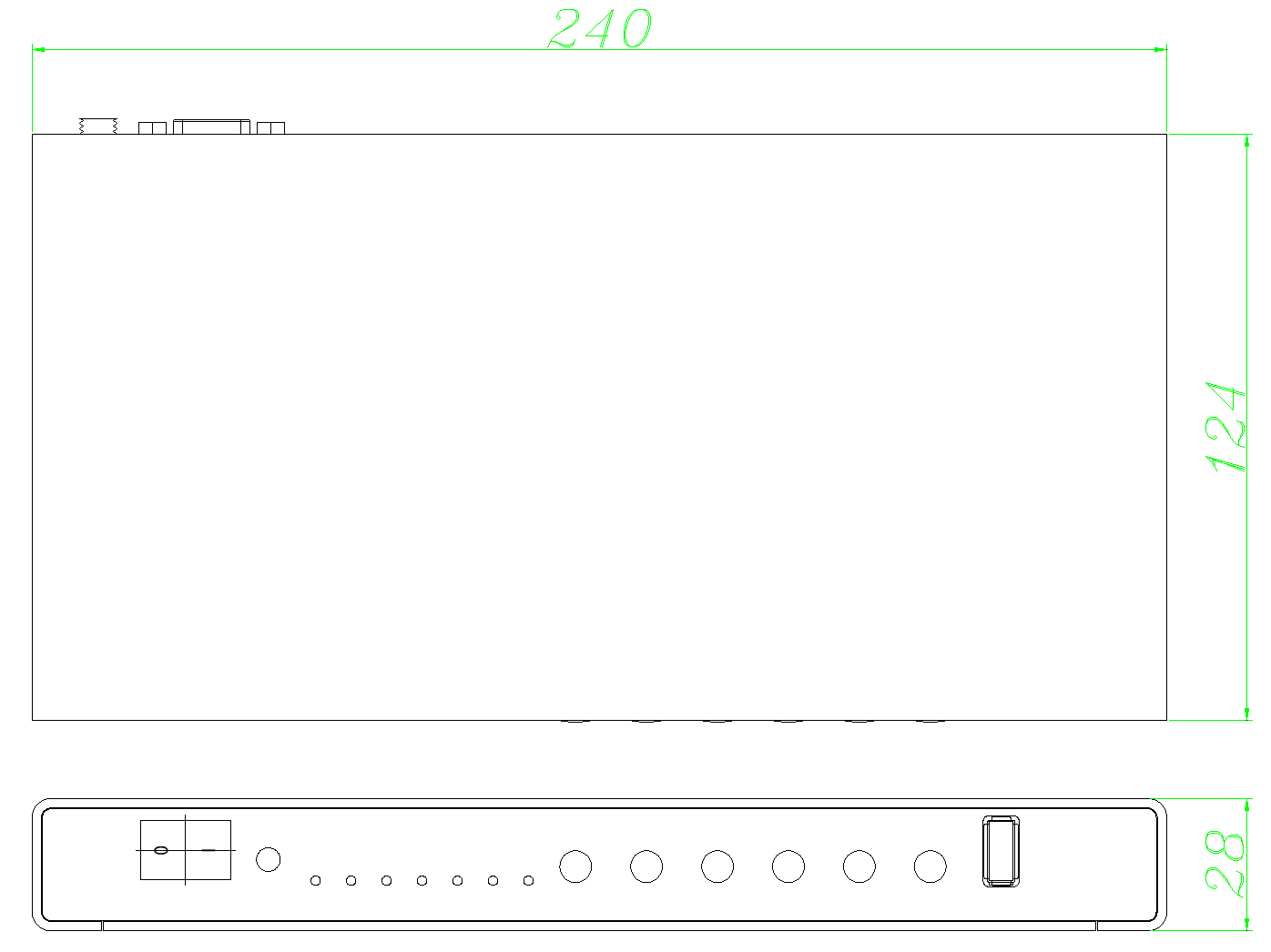

Product dimension(mm)

Suitable Applications

Conference Room

Auditorium

Hotel

University

Broadcast

Courtroom

Command Center

TECHNICAL SPECIFICATIONS

Input port	4* HDMI2.0, 1*USB-C
Input resolution	HDMI2.0: 640×4808, 800×6008, 1024×7688, 1280×7688, 1280×8008, 1280×10248, 1360×7688, 1366×7688, 1440×9008, 1400×10508, 1600×12008, 1680×10508, 1920×12008, 720×4808 (480p), 720×5766 (576p), 1280×7205 (720p30), 1280×7206 (720p50), 1280×7208 (720p60), 1920×10802 (1080p24), 1920×10803 (1080p25), 1920×10805 (1080p30), 1920×10806 (1080p50), 1920×10808 (1080p60), 3840×21605(2160p30),3840×21606 (2160p50), 3840×21608 (2160p60) USB-C: 640×4808, 800×6008, 1024×7688, 1280×7688, 1280×8008, 1280×10248, 1360×7688, 1366×7688, 1440×9008, 1400×10508, 1600×12008, 1680×10508, 1920×12008, 720×4808 (480p), 720×5766 (576p), 1280×7205 (720p30), 1280×7206 (720p50), 1280×7208 (720p60), 1920×10802 (1080p24), 1920×10803 (1080p25), 1920×10805 (1080p30), 1920×10806 (1080p50), 1920×10808 (1080p60), 3840×21605(2160p30) 1 = 23.98 Hz, 2 = 24 Hz, 3 = 25 Hz, 4 = 29.97 Hz, 5 = 30 Hz, 6 = 50 Hz, 7 = 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz
Output port	1* HDMI2.0
Output resolution	HDMI2.0: 1920×10806 (1080p50), 1920×10808 (1080p60), 3840×21605 (2160p30) , 3840×21606 (2160p50) , 3840×21608 (2160p60) UVC(USB2.0): 1920×10806 (1080p50), 1920×10808 (1080p60) 1 = 23.98 Hz, 2 = 24 Hz, 3 = 25 Hz, 4 = 29.97 Hz, 5 = 30 Hz, 6 = 50 Hz, 7 = 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz
Input port (2)	4x HDMI, 1*USB-C
Input audio signal	RAW PCM, 16 bit, 32/44.1/48KHz sps; PCM 2.0
Output port (2)	1* HDMI2.0, 1* Analog Audio(3.5mm audio), 1*USB2.0
Output audio signal	RAW PCM, 16 bit, 32/44.1/48KHz sps; PCM 2.0
Front control	IN1: Input 1 IN2: Input 2 IN3: Input 3 IN4: Input 4 IN5: Input 5 · Single-view mode
田： Default input 1 to input 4	Quad-view mode
IR	All the functions of the button can be realized through the remote control, and it also supports fast switching.
RJ45	DB9, serial port control
Operating temperature	0 to +45 C (32 to + 113 F)
Storage temperature	-20 to +70 C (-4 to + 158 F)
Humidity	10% to 90%
Static Protection	Human body discharge mode: ±8kV (air gap discharge)/ ±4kV (contact discharge)
Power adapter	DC 12 V 1.5 A
Power consumption	10W(Max)
Product size(mm)	24012428
Net Weight	2kg
