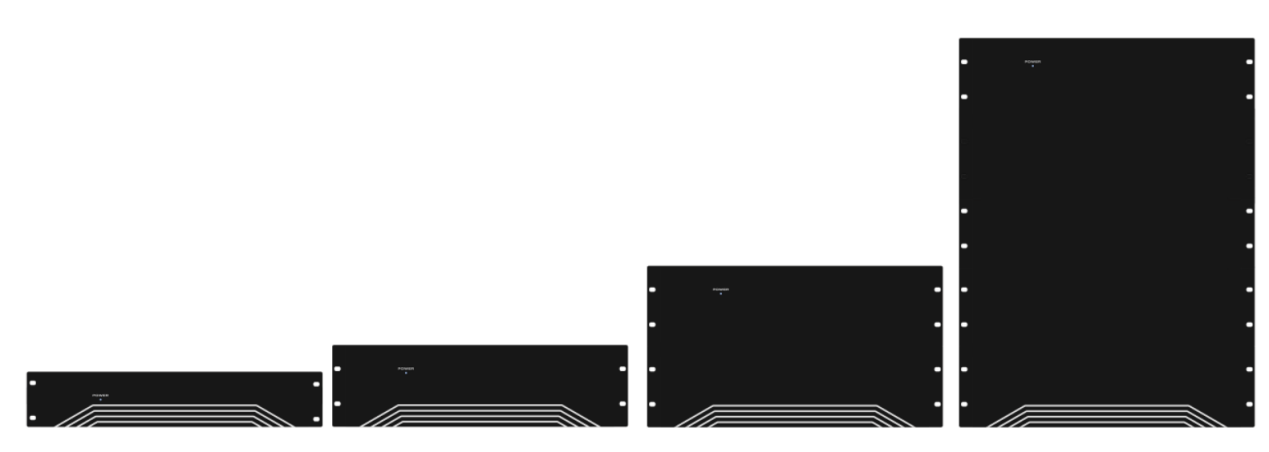

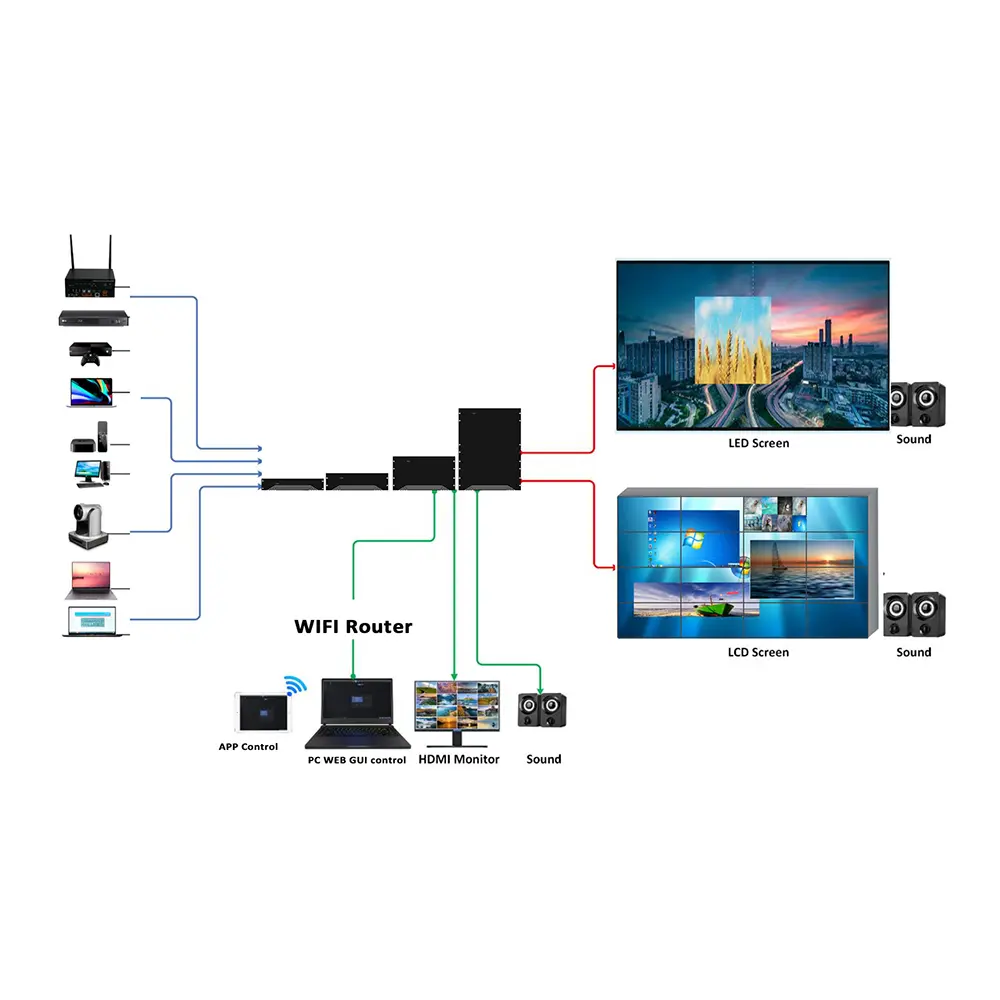

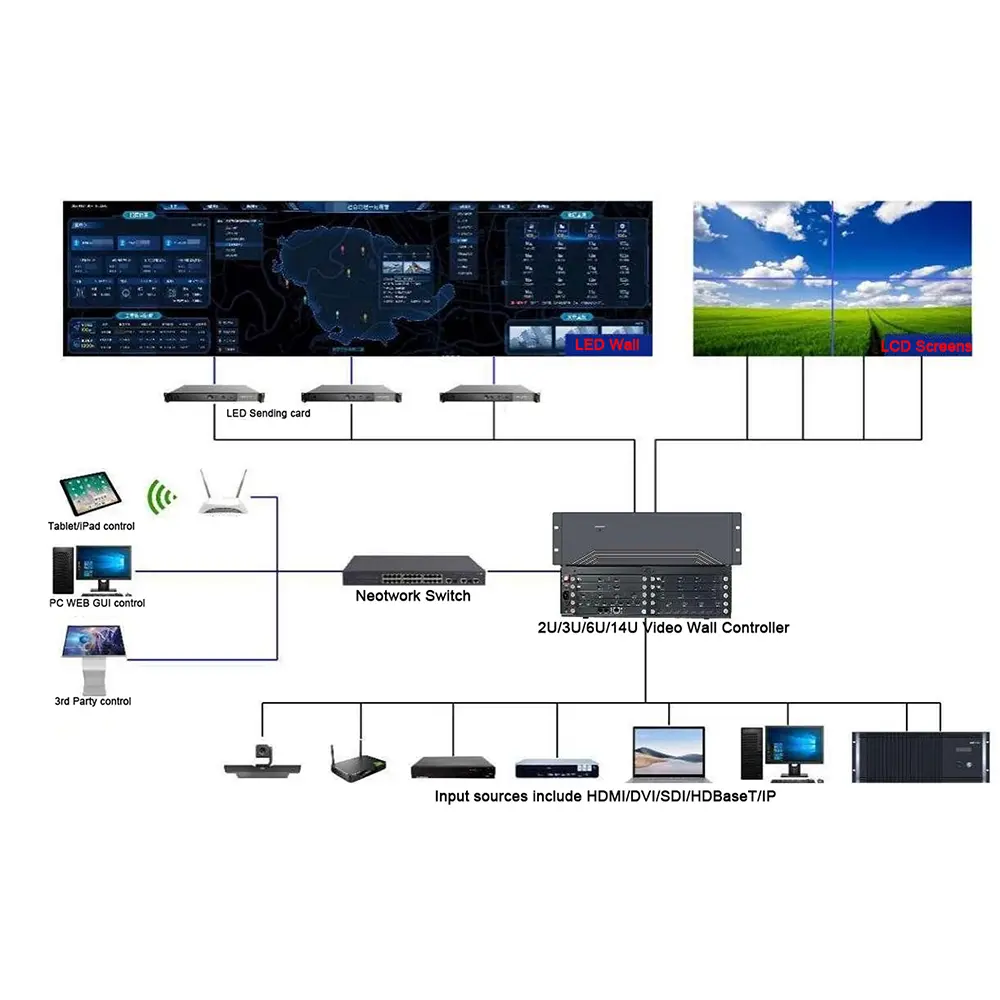

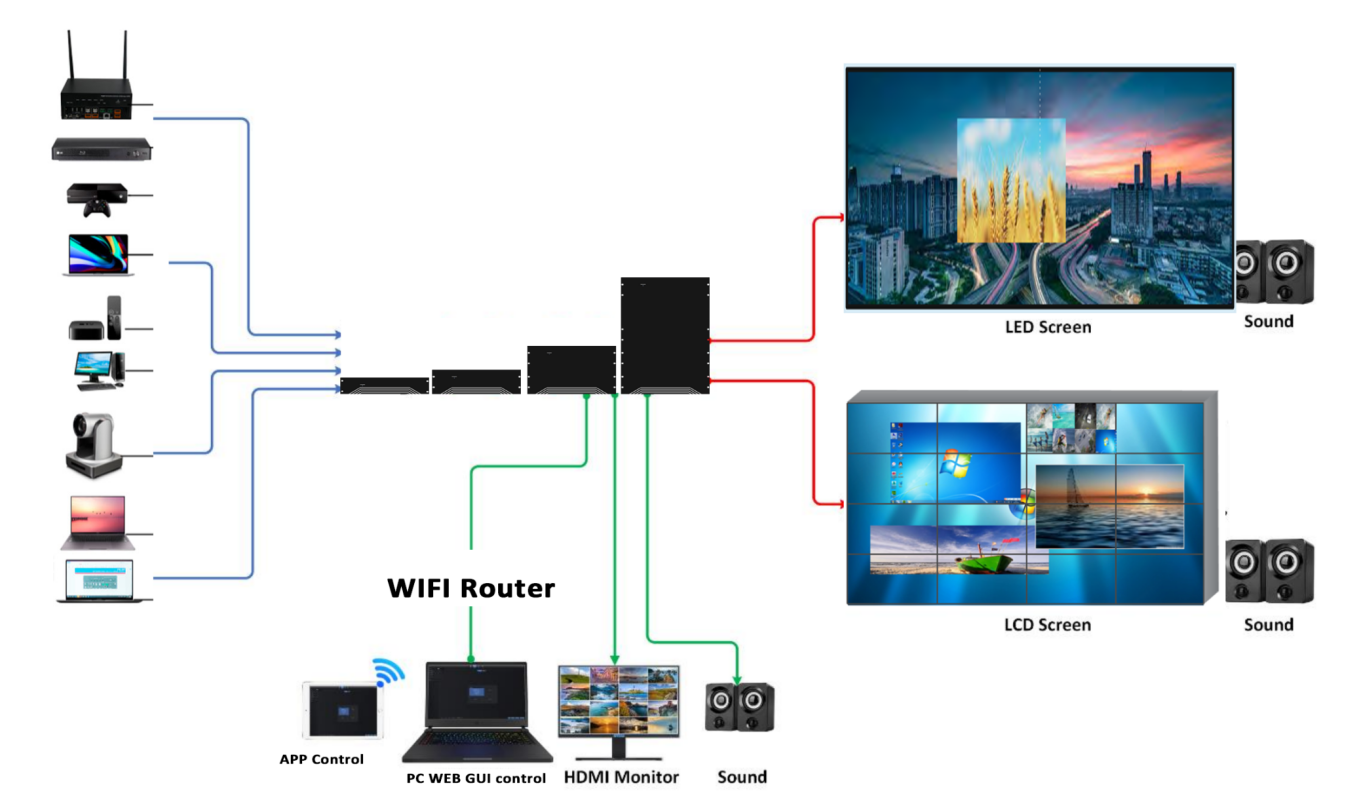

| Chassis | 2U · 3U · 6U · 14U |
|---|
| Input Slots | 4 · 6 · 8 · 20 |
|---|
| Output Slots | 3 · 5 · 8 · 24 |
|---|
| Max windows number | 24-window · 48-window · 96-window · 192-window |
|---|
| Redundant power | NO · NO · Optional · Optional |
|---|
| Power supply | 110-240V/47-63Hz |
|---|
| Power consumption | 80W · 160W · 600W · 1200W |
|---|
| Dimension (WxHxD)mm | 482*359*95 · 482*359*140 · 482*359*273 · 482*359*629 |
|---|
| Product weight(kg) | 10 · 13 · 23 · 51 |
|---|
| Operating Temperature | 0~45℃ |
|---|
| Storage Temperature | -20℃~65℃ |
|---|
| Parameters | Input signal type · DVI |
|---|
| Resolution | 2048×1152@60Hz |
|---|
| Video input format | RGB444, YCbCr444, YCbCr422 |
|---|
| Custom resolution | Limit width 2048, limit height 2048 |
|---|
| Input signal level | TMDS /CML |
|---|
| Impedance | difference 100ohm |
|---|
| Power | 5W |
|---|
| Other | Description of indicator light status Always On: The input signal is connected normally Off: input is not connected or input is abnormal |
|---|
| Parameters (2) | Input signal type · HDMI1.3 |
|---|
| Resolution (2) | 2048×1152@60Hz |
|---|
| Video input format (2) | RGB444, YCbCr444, YCbCr422 |
|---|
| Custom resolution (2) | Limit Width 2048 pixels, height 2048 pixels |
|---|
| Input signal level (2) | TMDS /CML |
|---|
| Impedance (2) | difference 100ohm |
|---|
| Power (2) | 5W |
|---|
| Other (2) | Support audio Description of indicator light status: Always On: The input signal is connected normally Off: input is not connected or input is abnormal |
|---|
| Parameters (3) | Input signal type · HDMI1.3 |
|---|
| Resolution (3) | 2048×1152@60Hz |
|---|
| Video input format (3) | RGB444, YCbCr444, YCbCr422 |
|---|
| Custom resolution (3) | Limit Width 2048 pixels, height 2048 pixels |
|---|
| Input signal level (3) | TMDS /CML |
|---|
| Impedance (3) | difference 100ohm |
|---|
| Power (3) | 10W |
|---|
| Other (3) | l Support audio l Description of indicator light status: Always on: The input signal is connected normally Off: input is not connected or input is abnormal |
|---|
| Parameters (4) | Input signal type · HDMI2.0 |
|---|
| Resolution (4) | 4096×2400@60Hz or 7680×1200@60Hz |
|---|
| Video input format (4) | RGB444, YCbCr444,YCbCr422 |
|---|
| Custom resolution (4) | Limit Width 2048 pixels, height 2048 pixels |
|---|
| Input signal level (4) | TMDS /CML |
|---|
| Impedance (4) | Difference 100ohm |
|---|
| Power (4) | 5W |
|---|
| Other (4) | Support audio Description of indicator light status: Always on: The input signal is connected normally Off: input is not connected or input is abnormal |
|---|
| Parameters (5) | Input signal type · DP1.2 |
|---|
| Resolution (5) | 4096×2400@60Hz or 7680×1200@60Hz |
|---|
| Video input format (5) | RGB444, YCbCr444, YCbCr422 |
|---|
| Custom resolution (5) | Limit width 8192, limit height 8192 |
|---|
| Input signal level (5) | TMDS /CML |
|---|
| Impedance (5) | Difference 100ohm |
|---|
| Power (5) | 5W |
|---|
| Other (5) | l Support audio l Description of indicator light status: Always on: The input signal is connected normally Off: input is not connected or input is abnormal |
|---|
| Parameters (6) | Input signal type · HDMI2.0 |
|---|
| Resolution (6) | 4096×2400@60Hz or 7680×1200@60Hz |
|---|
| Video input format (6) | RGB444, YCbCr444, YCbCr422 |
|---|
| Custom resolution (6) | Limit width8192, limit height8192 |
|---|
| Input signal level (6) | TMDS /CML |
|---|
| Impedance (6) | Difference 100ohm |
|---|
| Power (6) | 10W |
|---|
| Other (6) | l Support audio l Description of indicator light status: Always on: The input signal is connected normally Off: input is not connected or input is abnormal |
|---|
| Parameters (7) | Input signal type · DP1.2 |
|---|
| Resolution (7) | 4096×2400@60Hz or7680×1200@60Hz |
|---|
| Video input format (7) | RGB444， YCbCr444， YCbCr422 |
|---|
| Custom resolution (7) | Limit width8192， limit height8192 |
|---|
| Input signal level (7) | TMDS /CML |
|---|
| Impedance (7) | Difference 100ohm |
|---|
| Power (7) | 10W |
|---|
| Other (7) | Support audio Description of indicator light status: Always on: The input signal is connected normally Off: input is not connected or input is abnormal |
|---|
| Parameters (8) | Output signal type · DVI |
|---|
| Video output format | RGB444, YCbCr444, YCbCr422 |
|---|
| Load capacity | Single port can carry up to 2.6 million pixels; supports custom output resolution. Limit width 4096, limit height 4096 |
|---|
| Output signal level | TMDS /CML |
|---|
| Impedance (8) | Difference 100ohm |
|---|
| Power (8) | 5W |
|---|
| Other (8) | Support audio |
|---|
| Parameters (9) | Output signal type · HDMI1.3 |
|---|
| Video output format (2) | RGB444, YCbCr444, YCbCr422 |
|---|
| Load capacity (2) | Single port can carry up to 2.6 million pixels; Limit width4096, limit height4096 |
|---|
| Output signal level (2) | TMDS /CML |
|---|
| Impedance (9) | Difference 100ohm |
|---|
| Power (9) | 5W |
|---|
| Other (9) | Support audio |
|---|
| Parameters (10) | Output signal type · HDMI1.3 |
|---|
| Video output format (3) | RGB444, YCbCr444, YCbCr422 |
|---|
| Load capacity (3) | Single port can carry up to 2.6 million pixels, Limit width4096, limit height 4096 |
|---|
| Output signal level (3) | TMDS /CML |
|---|
| Impedance (10) | Difference 100ohm |
|---|
| Power (10) | 10W |
|---|
| Other (10) | Support audio |
|---|
| Parameters (11) | Output signal type · HDMI2.0 |
|---|
| Video output format (4) | RGB444, YCbCr444, YCbCr422 |
|---|
| Load capacity (4) | Maximum load capacity of a single port is 9.21 million pixels; Supports custom output resolution, Limit width8192, limit height8192 |
|---|
| Output signal level (4) | TMDS /CML |
|---|
| Impedance (11) | Difference 100ohm |
|---|
| Power (11) | 5W |
|---|
| Other (11) | Support audio Support 3.5mm audio output |
|---|
| Parameters (12) | Output signal type · DP1.2 |
|---|
| Video output format (5) | RGB444, YCbCr444, YCbCr422 |
|---|
| Load capacity (5) | Maximum load capacity of a single port is 9.21 million pixels; Supports customize output resolution,Limit width8192, limit height8192 |
|---|
| Output signal level (5) | TMDS /CML |
|---|
| Impedance (12) | Difference 100ohm |
|---|
| Power (12) | 5W |
|---|
| Other (12) | Support audio Support 3.5mm audio output |
|---|
| Parameters (13) | Output signal type · HDMI2.0 |
|---|
| Video output format (6) | RGB444, YCbCr444, YCbCr422 |
|---|
| Load capacity (6) | Maximum load capacity of a single port is 9.21 million pixels; Supports custom output resolution, Limit width8192, limit height8192 |
|---|
| Output signal level (6) | TMDS /CML |
|---|
| Impedance (13) | Difference 100ohm |
|---|
| Power (13) | 10W |
|---|
| Other (13) | Support audio Support 3.5mm audio output |
|---|
| Parameters (14) | Output signal type · DP1.2 |
|---|
| Video output format (7) | RGB444, YCbCr444, YCbCr422 |
|---|
| Load capacity (7) | Maximum load capacity of a single port is 9.21 million pixels; Supports custom output resolution, Limit width8192, limit height8192 |
|---|
| Output signal level (7) | TMDS /CML |
|---|
| Impedance (14) | Difference 100ohm |
|---|
| Power (14) | 10W |
|---|
| Other (14) | l Support audio l Support 3.5mm audio output |
|---|
| Parameters (15) | COM-1 · RS232 control port, can be connected with the central control system |
|---|
| COM-2 | RS232 control port, can be connected with central control system; can be used as COM-1 loop-out port |
|---|
| USB | USB3.0 port |
|---|
| ETHERNET | Gigabit network port, communication interface, connected with control computer, router or switch, for web control and echo |
|---|
| Other (15) | RUN light status Fast flashing: the device is starting Fixed frequency flashing: 1/2S, the system is running normally No flashing or no light: system failure (after the device is turned on) PWR light Always on: The power supply of the device is normal Off: Abnormal power supply of the device |
|---|
| Parameters (16) | 3D-SYCN · 3D sync signal output interface |
|---|
| GENLOCK | External sync signal source IN: External signal source input LOOP: External signal source synchronous output |
|---|
| COM-1 | RS232 control port, can be connected with the central control system |
|---|
| COM-2 (2) | RS232 control port, can be connected with central control system; can be used as COM-1 loop-out port |
|---|
| USB (2) | USB for system upgrading |
|---|
| NET | Gigabit Ethernet port, communication interface, connected with control computer, router or switch for web control and echo |
|---|
| Monitor | HDMI Preview interface Output resolution: 1920×1080@60Hz |
|---|
| Other (16) | RUN light status Fast flashing: the device is starting Fixed frequency flashing: 1/2S, the system is running normally No flashing or no light: system failure (after the device is turned on) PWR light l Always on: The power supply of the device is normal l Off: Abnormal power supply of the device |
|---|
