VPX Series⧉

OVERVIEW

Introduction

It’s a is a professional video processing and control equipment, pure hardware FPGA design architecture, all boards adopt modular design, with comprehensive input and output interfaces, and can flexibly configure input and output boards according to different project application requirements. It can be widely used in TV stations, dispatching rooms, command centers, exhibition halls, conference rooms, stage performances, data centers, multifunction halls and other scenarios. It can support 8K ultra-high-definition video input and output, supports output rotation, multi-screen and multi-layer management, input and output EDID management, supports input echo and output preview, supports 3D output, supports Genlock genlock, and meets various and complex requirements. project needs.

Features

• Supports multiple chassis selection for more flexible configuration

• 8K input, massive layers

• Web GUI/RS232/TCP/IP/Android APP control

• Multiple management methods, easy management

• Input source OSD or LOGO function

• Scrolling Text can be superimposed on the layer

• Seamless switching, no image freeze or blue/black screen

• Real-time monitoring

• Support hot swap

• User Management and Screen Group management

• Support more than 2,000 presets, seamless switching between presets

• EDID Management

Specification

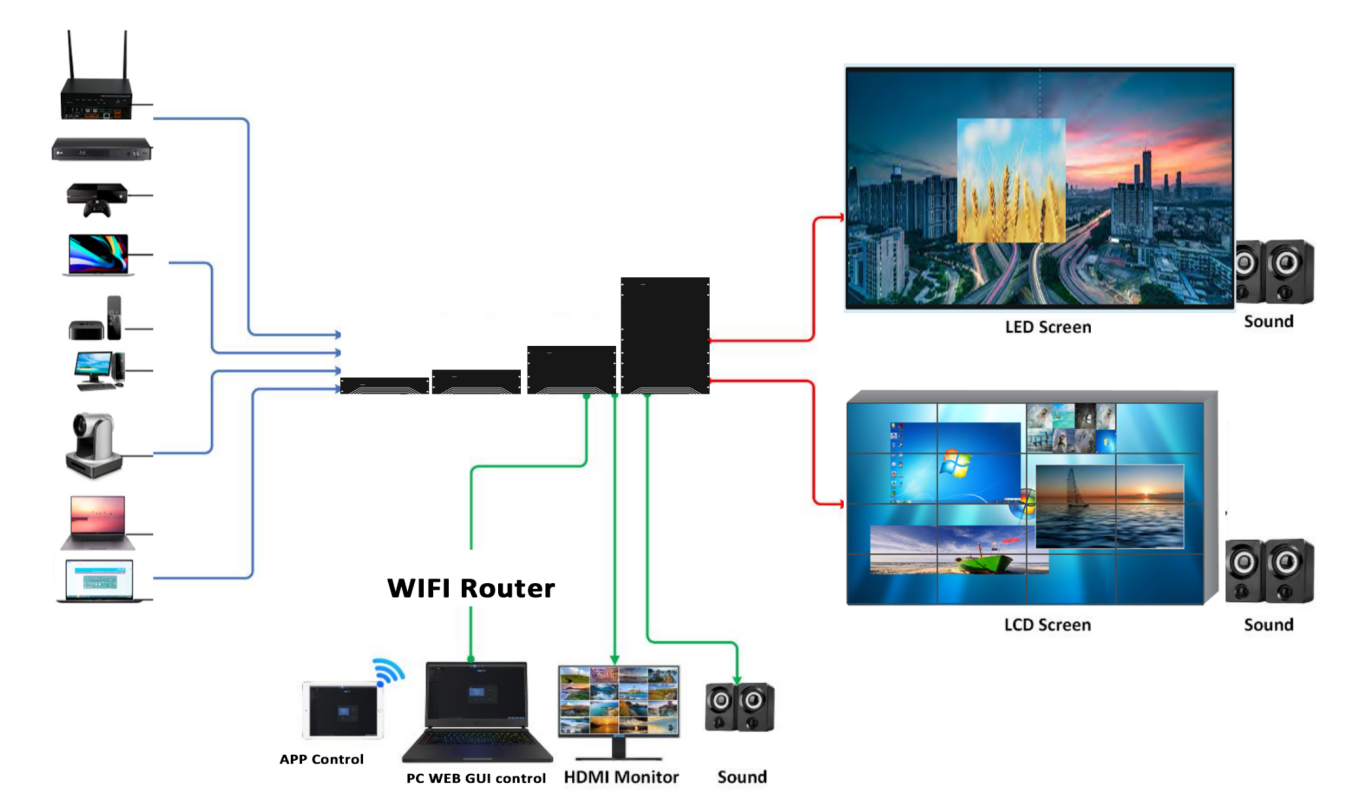

Connection diagram

Input board introduction

4×DVI input card

4×HDMI1.3 input board

8×HDMI1.3 input board

1×HDMI2.0 input board

1×DP1.2 input board

2×HDMI2.0 input board

2×DP1.2 input board

Output board introduction

4×DVI output board

4×HDMI1.3 output board

8×HDMI1.3 output board

1×HDMI2.0 output board

1×DP1.2 output board

2×HDMI2.0 output board

2×DP1.2 output board

Control board

Enhanced control card
