Home› Products› AV KVM SYSTEMS› DP-SMS-800M-4K30
DesignPro
DP-SMS-800M-4K30 Click to zoom
AV KVM SYSTEMS

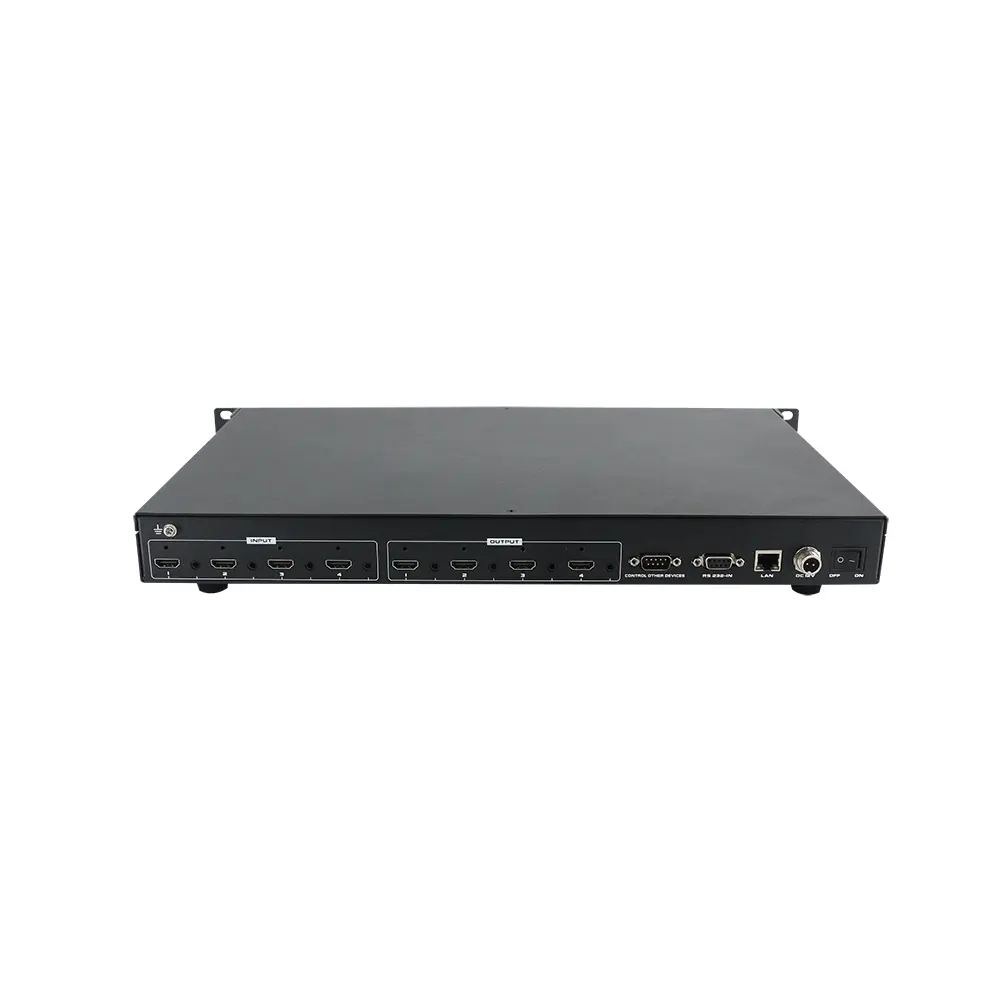

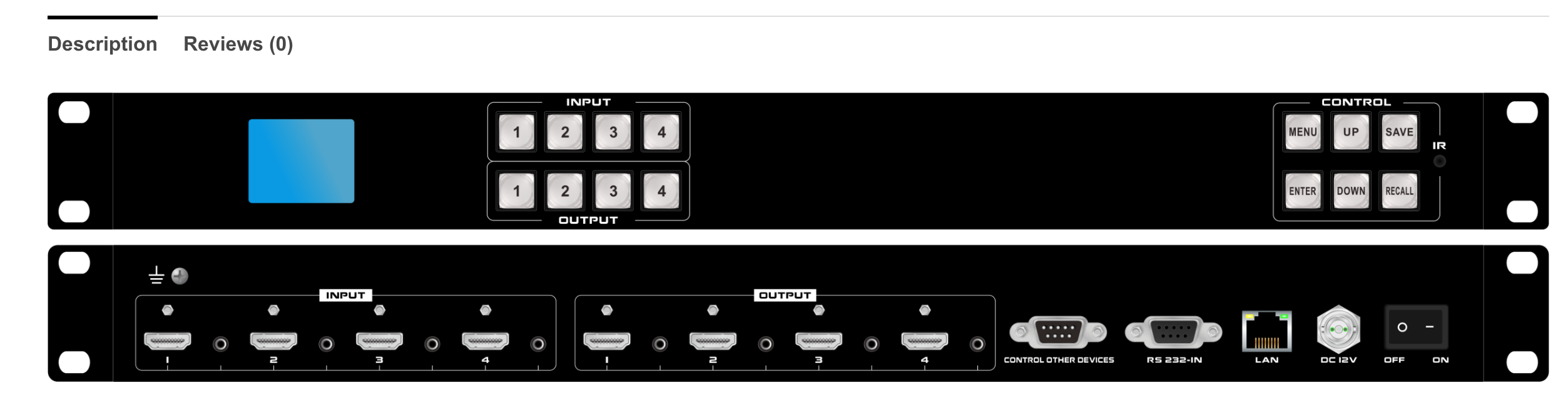

DP-SMS-800M-4K30

Matrix Switcher with Seamless switching and TV Wall function
★★★★★★★★★★ No reviews yet — write one › SKU: DP-SMS-800M-4K30

SMS-MANAGER-400M-4K30 series 4×4, 8×8 HDMI Matrix Switcher with Seamless switching and TV Wall function

FEATUREDNEWPROMOTIONFor project pricing information, please contact us.
Special pricing is available for project work.
Delivery in 5-7 days
51 views 8 sold
In Stock
Get Quote
Request Quote

Contact Channels

Get in touch for more details
WeChat WhatsApp Facebook LINE Official
1-Year WarrantyOfficial Thai warranty
Fast Delivery1-3 business days
Expert SupportEngineer team standby
0% InstallmentUp to 20 months
Official Thailand Warranty1 Years
Free System DesignConsultation
Technical SupportRemote Assistance
Online TrainingFor Partners & Users
Spare Parts AvailableLocal Stock

OVERVIEW

This is a the SMS-MANAGER series 1080P HDMI Matrix switchers with the seamless switch, Video Wall function, audio embedded and de-embedded and the resolution can up to 1080p60Hz with scaling function and all ports are HDCP compliant. With the friendly user control methods: IR remote control, push buttons with background blue light, APP/WEB GUI/TCPIP/RS232/IR remote control, this matrix switcher can work with the Blu-Ray Players, Set-Top boxes, Home Theater, and game consoles etc HDMI input sources to route to the HDMI displays, it has been widely used in different audio visual applications.

Suitable Applications
Conference Room
Auditorium
Hotel
University
Broadcast
Courtroom
Command Center

TECHNICAL SPECIFICATIONS

ResolutionInputs FHD 1080P60Hz and under / Outputs 1080P60HZ\720P\1366*768@60
HDMI protocolHDMI1.4
HDCP protocolHDCP1.4
Color depth8/10/12 bit
Color spaceYCbCr, RGB
EDIDBuilt-in and output ports learning/copy
HDMI output4 inputs, 8 inputs
Audio formatPCM 2.1Ch, Dolby Digital, Dolby True-HD, DTS-HD(Only supports 2.1)
Audio sampling32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Audio baud rateUp to 16~24-bit
RS232DB9 female connector
IRIR receiver
LANRJ45 for the TCP/IP control
PowerPower adapter 24V/3A/ AC for the 16×16
Consumption6W/16W/30W

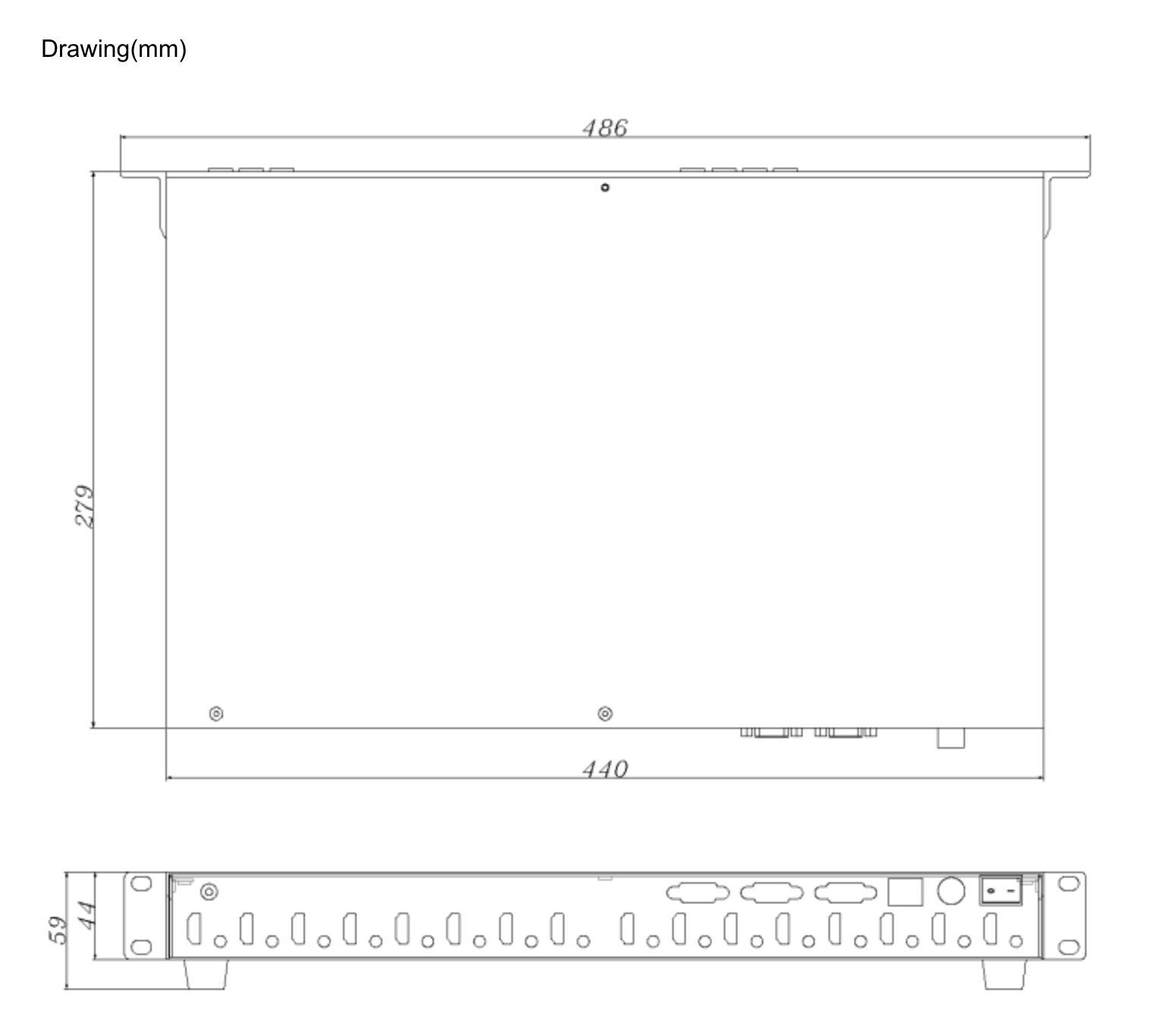

Size440*279*44 (mm) for the 4×4 and 8×8
Weight3kg
Working temp0℃~50℃
Storage temp-20℃~ 60℃
Working Humdity20%-90%

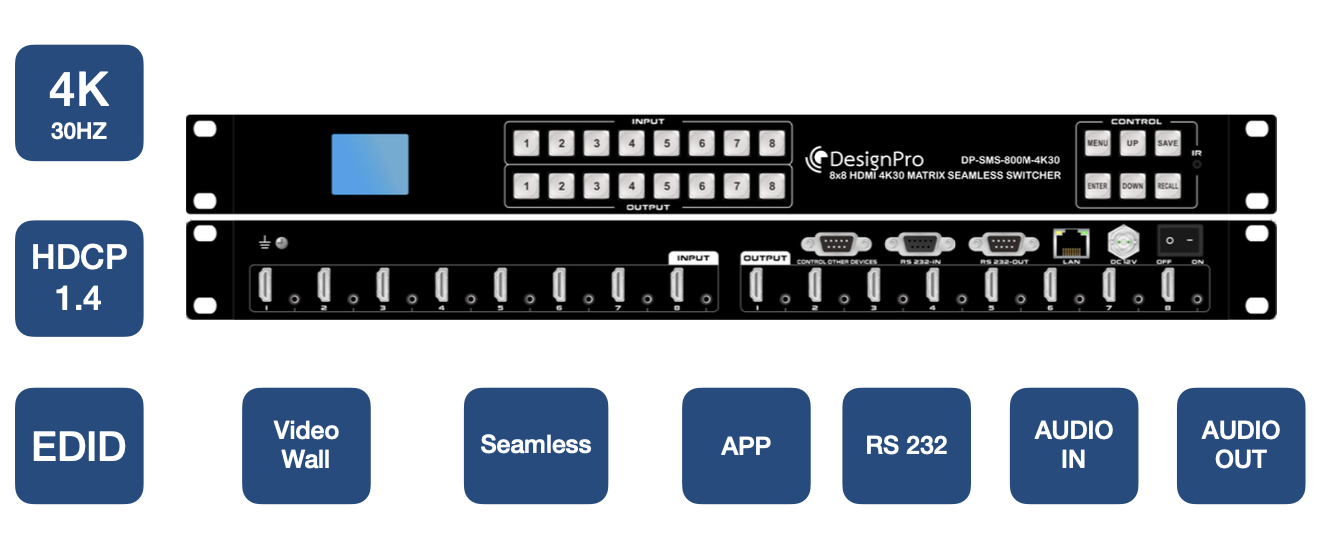

KEY FEATURES

View All ›
The resolution can up to 1080P60Hz inputs and outputs with scaling
Supports seamless switching, no black/blue screen during the sources switch
Supports the video wall function
Supports the 3.5mm audio embedded and de-embedded
Supports RS232 and TCP/IP Control(WEB GUI, APP), IR remote control
Supports the push buttons control with blue lights
Supports to rename the inputs and outputs
Supports up to 40scenes
FirmwareLatest Version
DSP TemplateDownload
AutoCADDrawing
EASE FileAcoustic Data

DOWNLOADS

DP-SMS-800M-4K30 Datasheet
DATASHEETL
Preview PDF Download
designpro Datasheet
DATASHEETL
Preview PDF Download

PRODUCT VIDEOS

▶
111111
▶
2222222

Product Features

  • Model: SMS-MANAGER-400M
  • The resolution can up to 1080P60Hz inputs and outputs with scaling
  • Supports seamless switching, no black/blue screen during the sources switch
  • Supports the video wall function
  • Supports the 3.5mm audio embedded and de-embedded
  • Supports RS232 and TCP/IP Control(WEB GUI, APP), IR remote control
  • Supports the push buttons control with blue lights
  • Supports to rename the inputs and outputs
  • Supports up to 40scenes

TECHNICAL SPECIFICATIONS

ResolutionInputs FHD 1080P60Hz and under / Outputs 1080P60HZ\720P\1366*768@60
HDMI protocolHDMI1.4
HDCP protocolHDCP1.4
Color depth8/10/12 bit
Color spaceYCbCr, RGB
EDIDBuilt-in and output ports learning/copy
HDMI output4 inputs, 8 inputs
Audio formatPCM 2.1Ch, Dolby Digital, Dolby True-HD, DTS-HD(Only supports 2.1)
Audio sampling32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Audio baud rateUp to 16~24-bit
RS232DB9 female connector
IRIR receiver
LANRJ45 for the TCP/IP control
PowerPower adapter 24V/3A/ AC for the 16×16
Consumption6W/16W/30W
Size440*279*44 (mm) for the 4×4 and 8×8
Weight3kg
Working temp0℃~50℃
Storage temp-20℃~ 60℃
Working Humdity20%-90%

DOWNLOADS

DP-SMS-800M-4K30 Datasheet
DATASHEETL
Preview PDF Download
designpro Datasheet
DATASHEETL
Preview PDF Download

Product Video

▶
111111
▶
2222222
