Home› Products› AV KVM SYSTEMS› 10-button programming
DesignPro

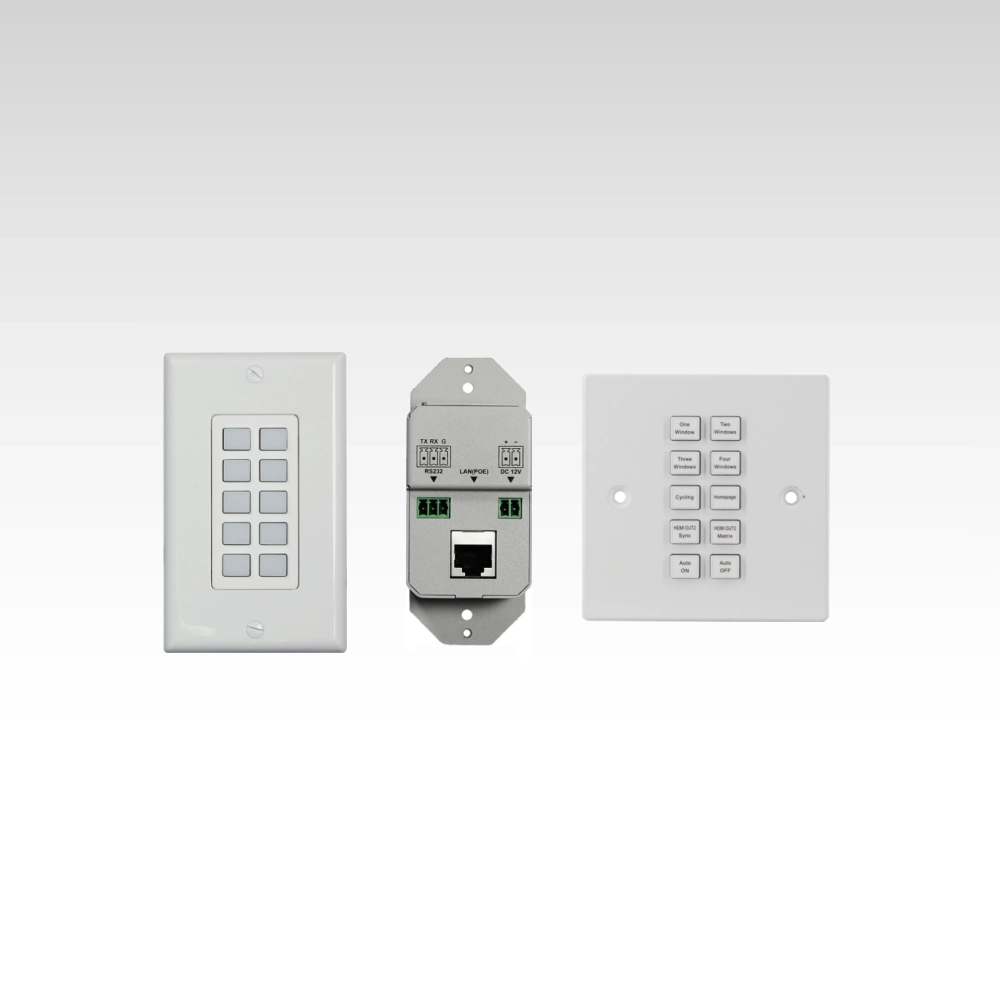

10-button programming Click to zoom
AV KVM SYSTEMS

10-button programming

10-button programming control keypad with PoE function
★★★★★★★★★★ No reviews yet — write one › SKU: 10-button

10-button keypad controller aimed at providing customers simple and economic control solutions

WEB GUI Programming
RS232 TCP/IP and RS232
PoE function Supports PoE function
10 x Buttons 10 x Buttons(silicone soft buttons)
BEST SELLERFEATUREDNEWPROMOTIONDDDDDDD
Promotion Price
Delivery in 5-7 days
292 views 0 sold
In Stock
Contact Sales
Request Quote

Contact Channels

Get in touch for more details
LINE Official Facebook WeChat WhatsApp
1-Year WarrantyOfficial Thai warranty
Fast Delivery1-3 business days
Expert SupportEngineer team standby
0% InstallmentUp to 10 months
Official Thailand Warranty1 Years
Free System DesignConsultation
Technical SupportRemote Assistance
Online TrainingFor Partners & Users
Spare Parts AvailableLocal Stock

OVERVIEW

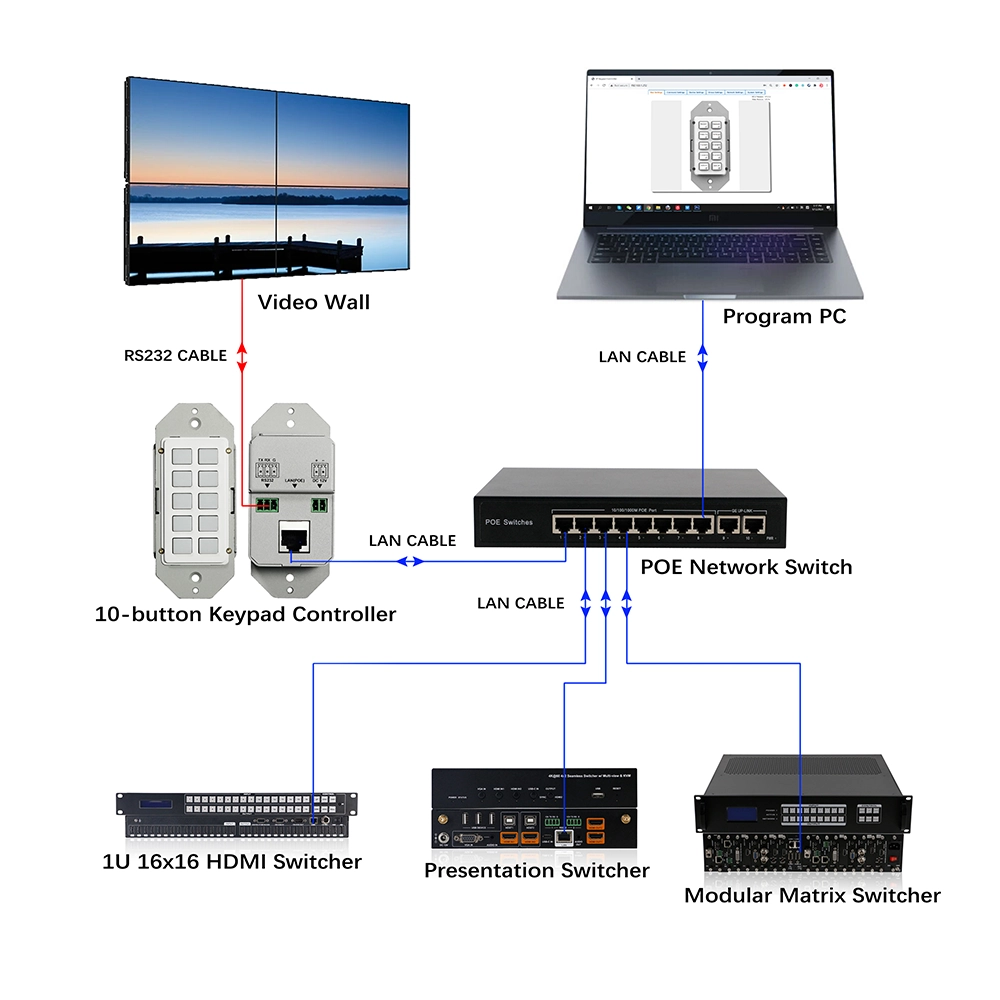

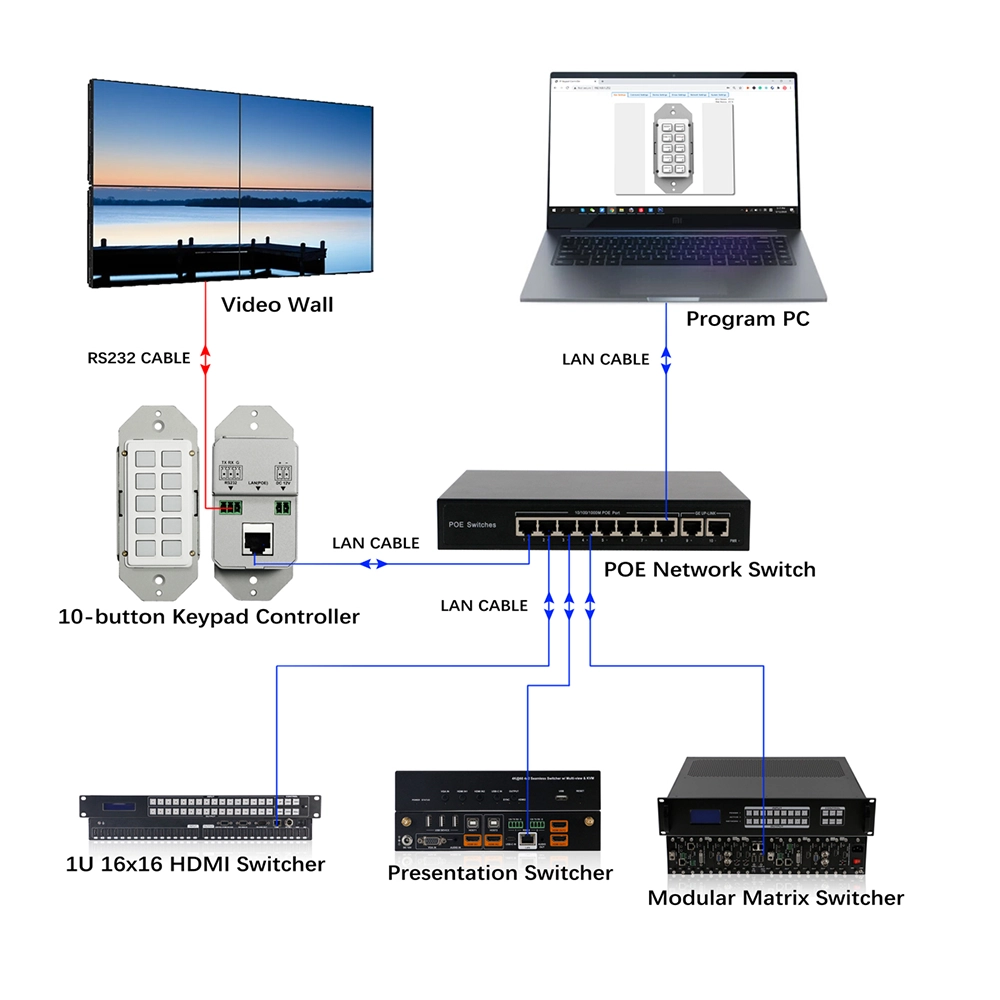

BYOD-1000 (Hereinafter referred to as the Keypad) is a 10-button keypad controller aimed at providing customers simple and economic control solutions. With built-in PoE, it can receive power from PoE enabled ethernet switch. The keypad can control devices like presentation switches through LAN(PoE) port or RS232 port. It supports button configuration and control, also system firmware update on web UI.

Suitable Applications
Conference Room
Auditorium
Hotel
University
Broadcast
Courtroom
Command Center

TECHNICAL SPECIFICATIONS

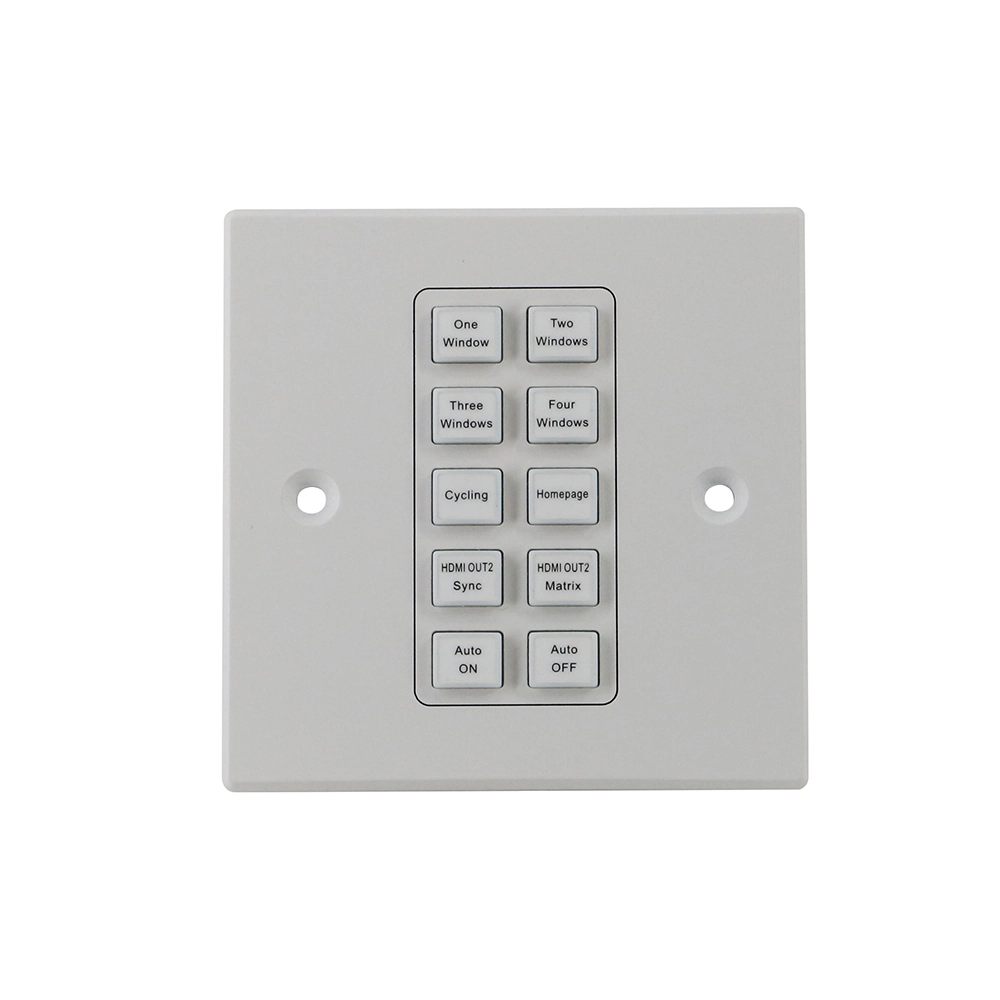

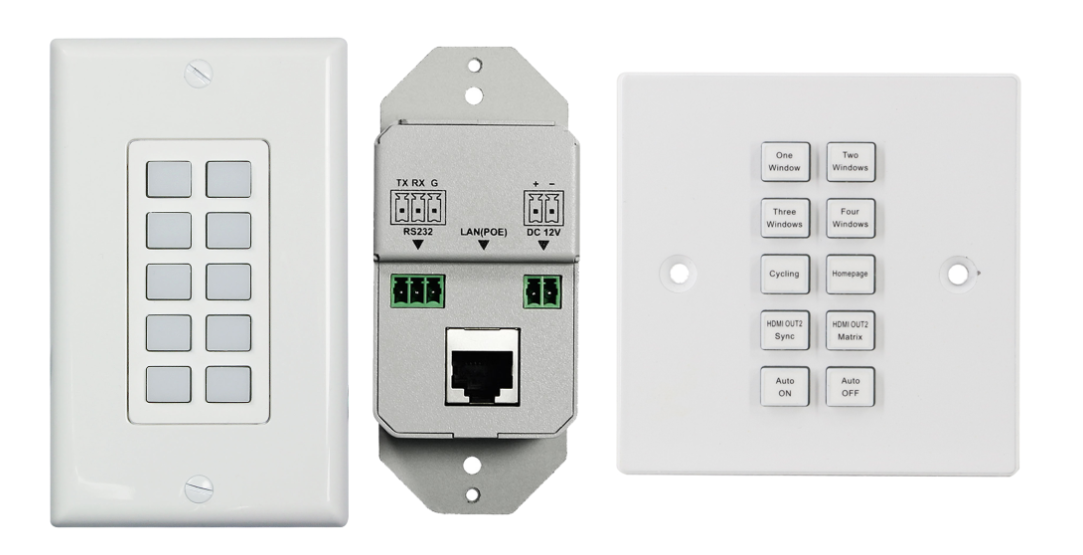

Front panel10 x Buttons(silicone soft buttons)

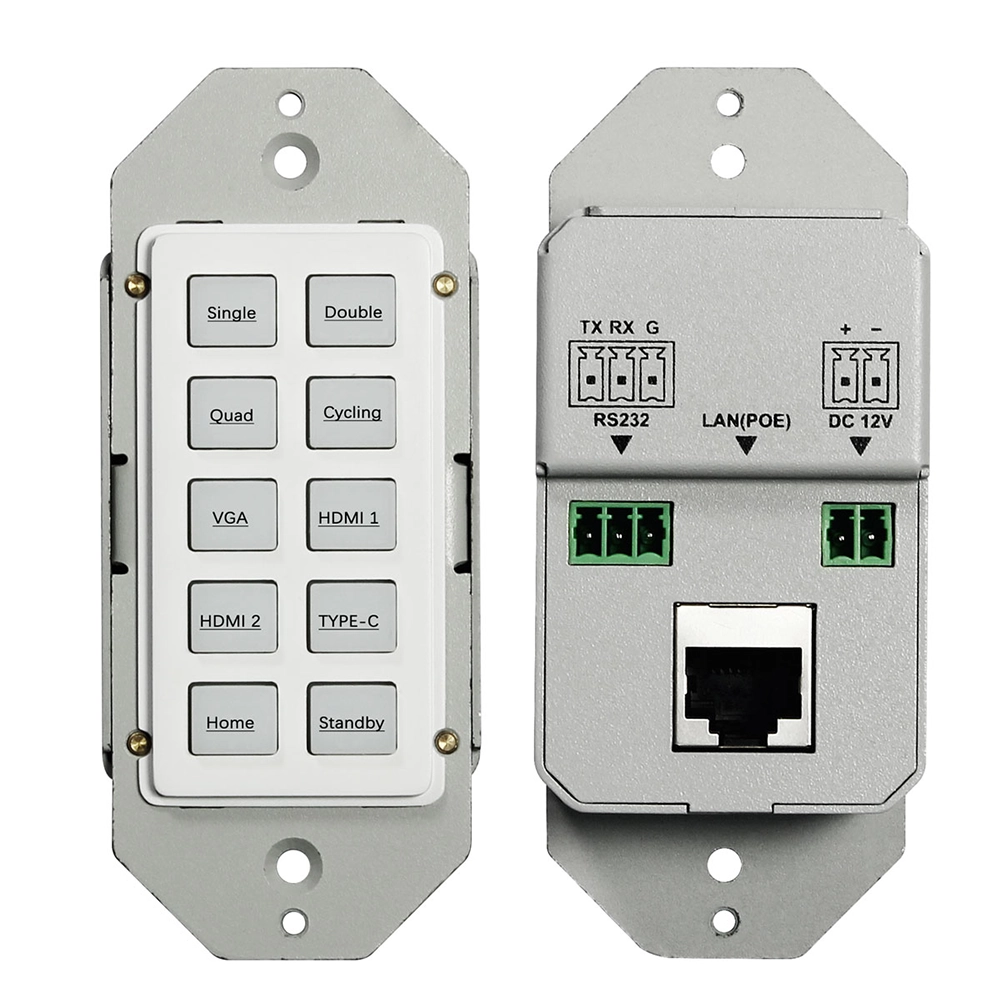

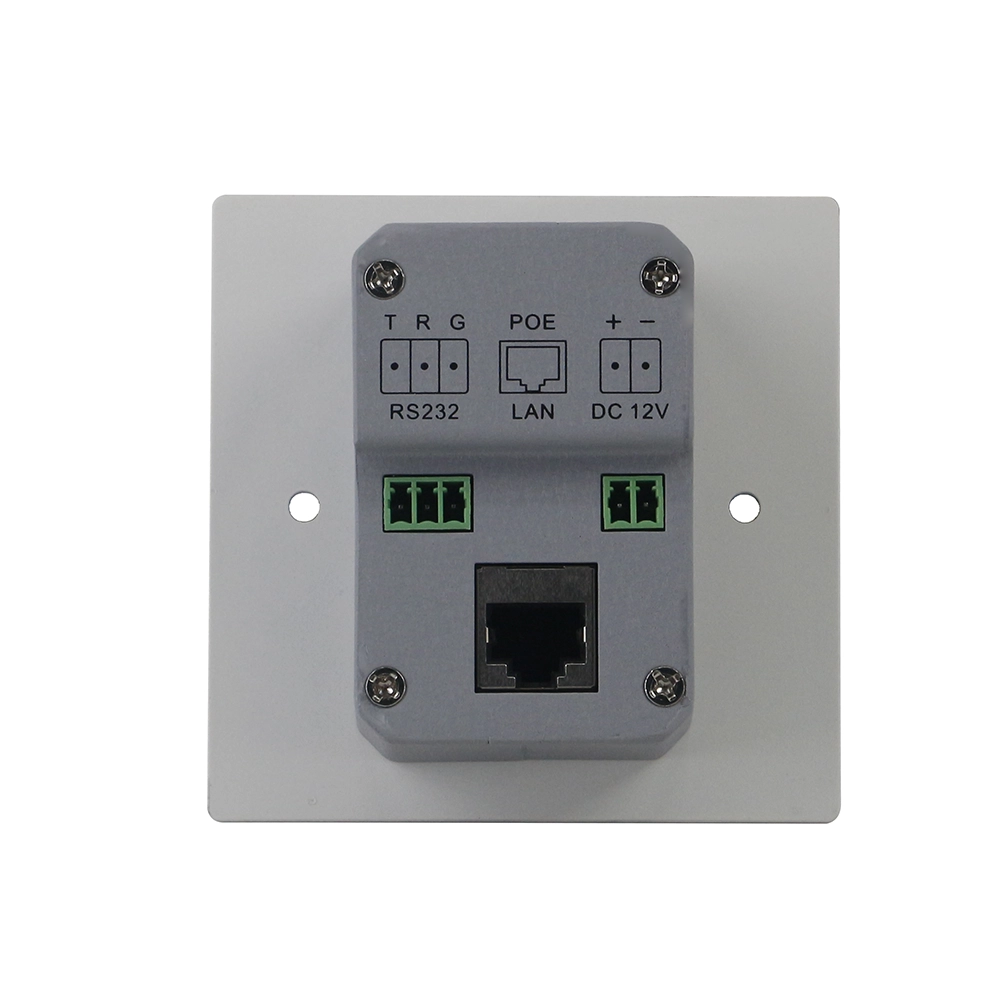

Back panel1 x LAN (RJ45, PoE), 1 x RS232; 1 x DC 12V Power In
Operating Temperature0°C to 45°C (32°F to 113°F)
Storage Temperature-20°C to 70°C (-4°F to 158°F)
Humidity10% to 90%, non-condensing
ESD ProtectionHuman-body Model, ±8kV (Air-gap discharge)/±4kV (Contact discharge)
Power SupplyDC 12V 0.5A (Power adapter is not included in the package)
Consumption (Max)1.3W
US Size Dimension45mm x 105.6mm x 36mm/ 1.77” x 4.16” x 1.42”
Product Weight0.18kg/0.40lb

KEY FEATURES

View All ›
WEB GUI programming
Ten-button
Supports TCP/IP and RS232
Supports PoE function
US or UK single panel for selection
Config files to restore
FirmwareLatest Version
DSP TemplateDownload
AutoCADDrawing
EASE FileAcoustic Data

DOWNLOADS

DesignPro ICP-10P Datasheet
DATASHEETL
Preview PDF Download

PRODUCT VIDEOS

▶
2222222
▶
2222222

Product Features

  • WEB GUI programming
  • Ten-button
  • Supports TCP/IP and RS232
  • Supports PoE function
  • US or UK single panel for selection
  • Config files to restore

TECHNICAL SPECIFICATIONS

Front panel10 x Buttons(silicone soft buttons)
Back panel1 x LAN (RJ45, PoE), 1 x RS232; 1 x DC 12V Power In
Operating Temperature0°C to 45°C (32°F to 113°F)
Storage Temperature-20°C to 70°C (-4°F to 158°F)
Humidity10% to 90%, non-condensing
ESD ProtectionHuman-body Model, ±8kV (Air-gap discharge)/±4kV (Contact discharge)
Power SupplyDC 12V 0.5A (Power adapter is not included in the package)
Consumption (Max)1.3W
US Size Dimension45mm x 105.6mm x 36mm/ 1.77” x 4.16” x 1.42”
Product Weight0.18kg/0.40lb

DOWNLOADS

DesignPro ICP-10P Datasheet
DATASHEETL
Preview PDF Download

Product Video

▶
2222222
▶
2222222
