OVERVIEW
Introduction
The NLP series DSP adopts the ADI SHARC 21489 processing chip, which is based on a 64-bit floating-point DSP engine and a powerful digital audio signal processing platform. This series of products provides a wide range of digital processing tools for audio system design, configuration, and optimization. The DSP Controller software can fully control and manage the entire series of DSPs and all their processing functions, including AFC, AEC, ANS, ANC, AM, AGC, Ducker, PEQ, GEQ , delay, crossover and other functions.
The intuitive graphical user interface is the main component of the DSP Controller software. It allows users to quickly and conveniently view all signal channels in a single window. In this user-friendly environment, audio system designers or installers can clearly view and adjust all input levels, audio DSP processing parameters,mixing relationships,and output levels.
Features
• ADI SHARC platform with semi-open architecture.
• Integrated management of multiple devices offers open user
• interface and supports good sound quality (at 24bit/48kHz.)
• Each channel has its own independent adaptive feedback suppression which can find and suppress audio feedback automatically.
• Full-duplex Adaptive Echo Cancellation (AEC) and Active Noise
• Cancellation (ANS).
• Gain sharing Auto Mixer Control (AMC).
• Automatic Gain Control (AGC).
• Full-featured audio mixing matrix supports adjustable input level.
• Provides up to 8 presets, each can work independently.
• Supports audio channel duplicating, linking, and grouping.
• Supports RS-232 and UDP central control.
• Provides the flexibility to assign UDP port number, with the control
• commands available through the contral software.
• Works with 2 types of our wall panel products, both software
• programmable.
• Built-in dual channel USB sound card can be used for audio
• recording, audio broadcasting, and video conference.
• Supports both PoE power supply and DC 12V power adapter.·
• Supports iOS and Windows operating system.

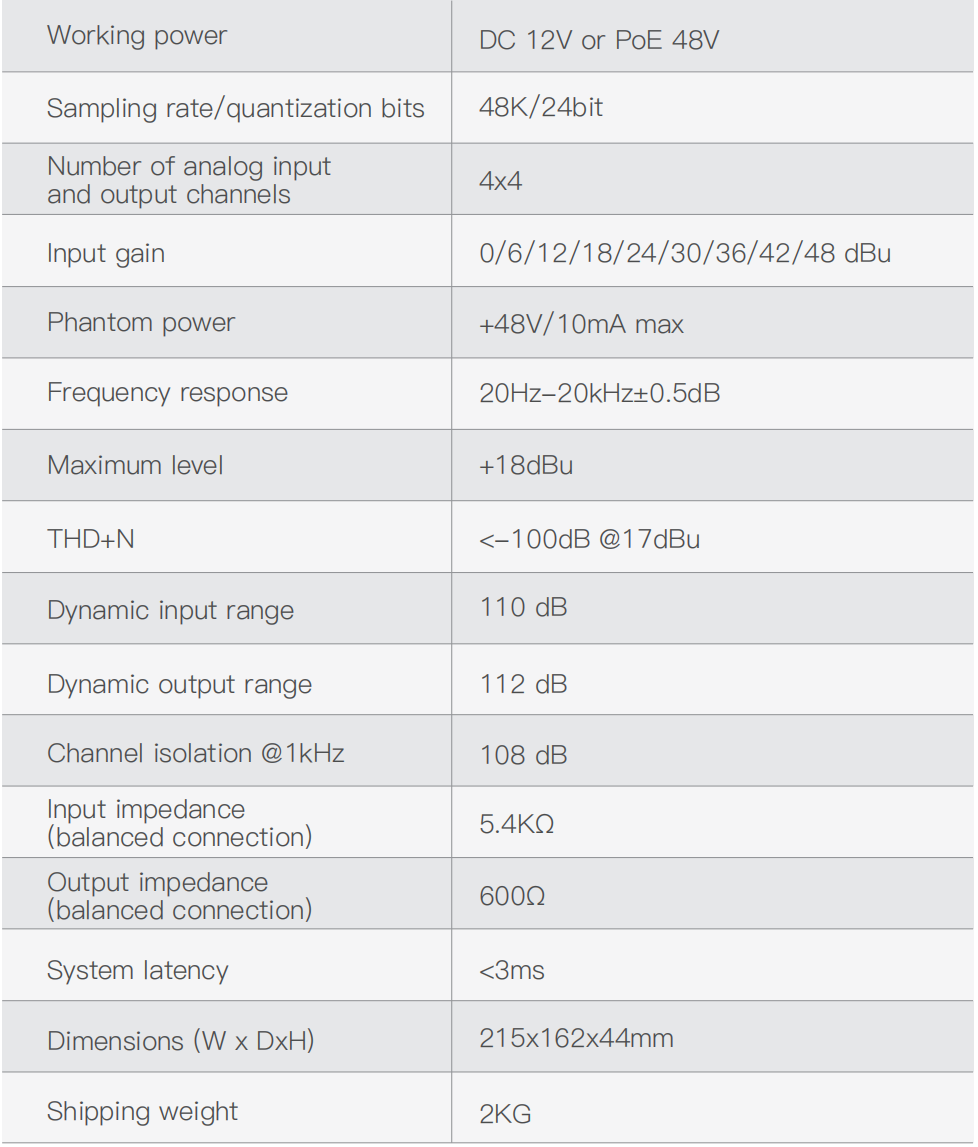

Specification
